Hf35 Transmission Connector End View (C168B)

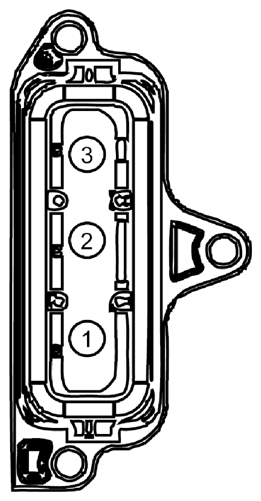

Fig 1: Identifying HF35 Transmission Connector (C168B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	HYA07 (WH-LB)	20	GENERATOR W PHASE (GWP)
2	HYA08 (WH-OG)	20	GENERATOR V PHASE (GVP)
3	HYA09 (WH-BU)	20	GENERATOR U PHASE (GUP)
