Hf35 Transmission Connector End View (C168A)

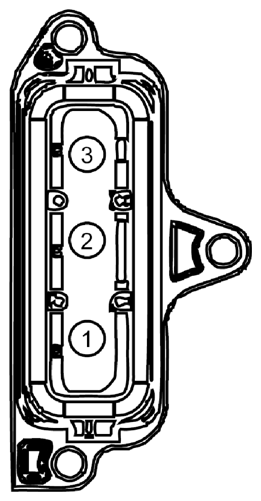

Fig 1: Identifying HF35 Transmission Connector (C168A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	HYA04 (WH-LB)	20	MOTOR W PHASE (MWP)
2	HYA05 (WH-OG)	20	MOTOR V PHASE (MVP)
3	HYA06 (WH-BU)	20	MOTOR U PHASE (MUP)
