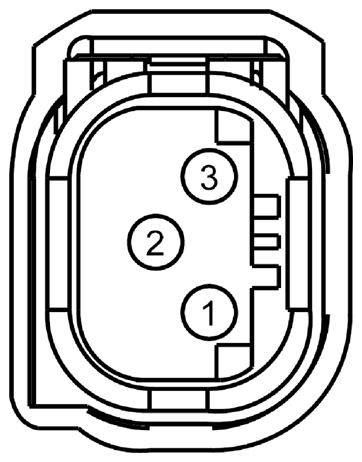

Brake Booster Travel Sensor Connector End View (C149)

Fig 1: Identifying Brake Booster Travel Sensor Connector (C149)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CCB33 (GY-OG)	20	CTRL MOD. - SENSOR BOOST PEDAL +
2	RCB33 (VT-GY)	20	CTRL MOD. - SENSOR BOOST PEDAL -
3	VCB34 (WH-BU)	20	SENSOR - BOOST PEDAL
