Blower Motor Control Module Connector End View (C297A)

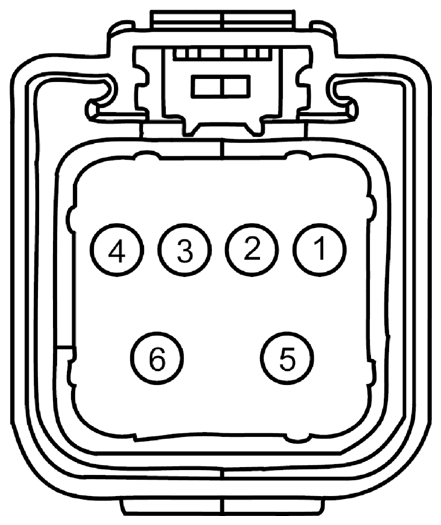

Fig 1: Identifying Blower Motor Control Module Connector (C297A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	VH101 (WH)	26	CTRL MOD. - CLIMATE # BLOWER MOTOR CONTROL
4	*	*	Not Used
5	GD216 (BK-VT)	6	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT
6	CH402 (YE-GN)	6	RELAY - FRONT BLOWER
