Audio Front Control Module (ACM) Connector End View (C240B)

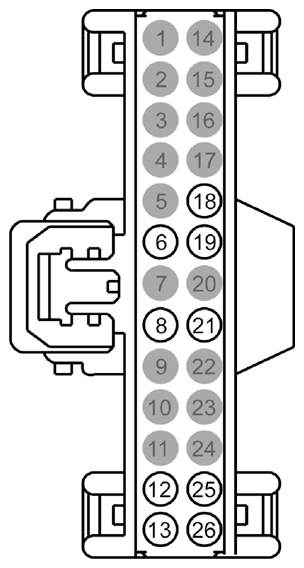

Fig 1: Identifying Audio Front Control Module Connector (C240B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	*	*	Not Used
5	*	*	Not Used
6	VME90 (GY)	26	CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (+) (SDL-H)
7	*	*	Not Used
8	VME80 (VT-GN)	22	CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+)
9	*	*	Not Used
10	*	*	Not Used
11	*	*	Not Used
12	VME52 (BU)	22	CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT +
13	VME53 (VT-GN)	22	CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT +
14	*	*	Not Used
15	*	*	Not Used
16	*	*	Not Used
17	*	*	Not Used
18	SME23 (VT-RD)	22	CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER ENABLE
19	VME91 (WH)	26	CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (-) (SDL-L)
20	*	*	Not Used
21	RME80 (BU-GY)	22	CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-)
22	*	*	Not Used
23	*	*	Not Used
24	*	*	Not Used
25	RME52 (GY-OG)	22	CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT -
26	RME53 (BN-WH)	22	CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT -
