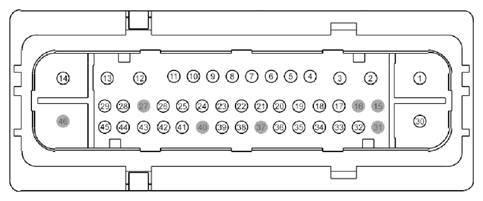

| 1 |
SBB82 (YE-RD) |
6 |
FUSE - 82 OR CIRCUIT BREAKER |
|
| 2 |
CCB18 (YE-GY) |
12 |
CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR RIGHT LOCK (+) |
|
| 3 |
CCB19 (GN-BN) |
12 |
CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR RIGHT UNLOCK (-) |
|
| 4 |
RCA19 (VT) |
20 |
CTRL MOD. - SENSOR WHEEL SPEED RIGHT FRONT |
|
| 5 |
VCA05 (GY-VT) |
20 |
SENSOR - WHEEL SPEED RIGHT FRONT |
|
| 6 |
RCA18 (BN-GN) |
20 |
CTRL MOD. - SENSOR WHEEL SPEED LEFT REAR |
|
| 7 |
VCA04 (BU-OG) |
20 |
SENSOR - WHEEL SPEED LEFT REAR |
|
| 8 |
RCA17 (YE) |
20 |
CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT |
|
| 9 |
VCA03 (VT-WH) |
20 |
SENSOR - WHEEL SPEED LEFT FRONT |
|
| 10 |
RCA20 (BN) |
20 |
CTRL MOD. - SENSOR WHEEL SPEED RIGHT REAR |
|
| 11 |
VCA06 (WH-OG) |
20 |
SENSOR - WHEEL SPEED RIGHT REAR |
|
| 12 |
CCB17 (BU-GN) |
12 |
CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR LEFT UNLOCK (-) |
|
| 13 |
CCB16 (WH-VT) |
12 |
CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR LEFT LOCK (+) |
|
| 14 |
GD121 (BK-YE) |
6 |
GROUND - FENDER FRONT LEFT # 2ND POINT |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
* |
* |
Not Used |
|
| 17 |
CCB20 (BU-WH) |
20 |
CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 1 |
|
| 18 |
CCB21 (GN-VT) |
20 |
CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 2 |
|
| 19 |
CCB22 (WH-BN) |
20 |
CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 3 |
|
| 20 |
VCA30 (YE-VT) |
20 |
SENSOR - BRAKE PEDAL POSITION/ANGLE 1 |
|
| 21 |
CBB45 (YE) |
20 |
FUSE - 45 OR CIRCUIT BREAKER |
|
| 22 |
VCA43 (WH-GN) |
20 |
SENSOR - BRAKE PEDAL POSITION/ANGLE 2 |
|
| 23 |
LCA27 (BN-WH) |
20 |
CTRL MOD. - SENSOR BRAKE PEDAL POSITION + |
|
| 24 |
CCB23 (VT-GN) |
20 |
CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 4 |
|
| 25 |
CCB33 (GY-OG) |
20 |
CTRL MOD. - SENSOR BOOST PEDAL + |
|
| 26 |
RCA27 (WH) |
20 |
CTRL MOD. - SENSOR BRAKE PEDAL POSITION - |
|
| 27 |
* |
* |
Not Used |
|
| 28 |
RCB33 (VT-GY) |
20 |
CTRL MOD. - SENSOR BOOST PEDAL - |
|
| 29 |
VCA22 (GN-BN) |
20 |
CTRL MOD. - SOLENOID IVD ACTIVE BOOSTER - |
|
| 30 |
SBB69 (GY-RD) |
12 |
FUSE - 69 OR CIRCUIT BREAKER |
|
| 31 |
* |
* |
Not Used |
|
| 32 |
CCA22 (GY-YE) |
20 |
CTRL MOD. - SOLENOID IVD ACTIVE BOOSTER + |
|
| 33 |
CCB41 (YE) |
20 |
CTRL MOD. - RELAY VACUUM PUMP 2 |
|
| 34 |
VCB34 (WH-BU) |
20 |
SENSOR - BOOST PEDAL |
|
| 35 |
CBB25 (WH-OG) |
18 |
FUSE - 25 OR CIRCUIT BREAKER |
|
| 36 |
VCA38 (BN-VT) |
20 |
SENSOR - BRAKE VACUUM SIGNAL 1 |
|
| 37 |
* |
* |
Not Used |
|
| 38 |
CCB30 (GY-VT) |
20 |
CTRL MOD. - RELAY VACUUM PUMP |
|
| 39 |
CCB24 (WH-OG) |
20 |
CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 5 |
|
| 40 |
* |
* |
Not Used |
|
| 41 |
CCB25 (BN) |
20 |
CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 6 |
|
| 42 |
VDB25 (GN-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH |
|
| 43 |
VDB26 (GY-BU) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW |
|
| 44 |
LCA37 (YE-OG) |
20 |
CTRL MOD. - SENSOR BRAKE VACUUM + |
|
| 45 |
RCA37 (WH-BU) |
20 |
CTRL MOD. - SENSOR BRAKE VACUUM - |
|
| 46 |
* |
* |
Not Used |
|
