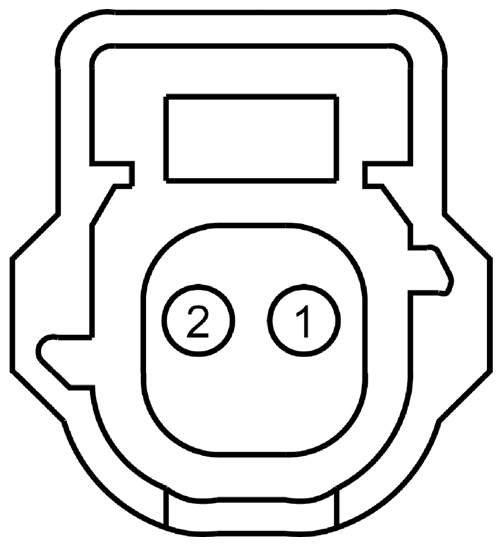

Ambient Air Temperature Sensor Connector End View (C132)

Fig 1: Identifying Ambient Air Temperature Sensor Connector (C132)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE750 (GN-BU)	18	SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT)
2	RE407 (YE-VT)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN)

Available Pigtail Kits

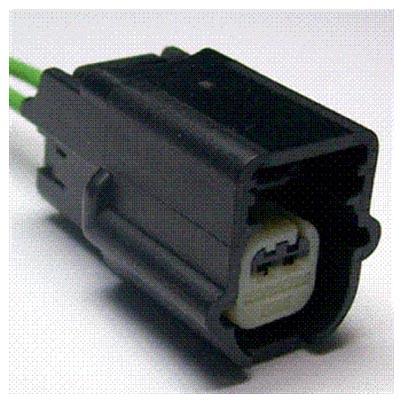

Pigtail Kit Part Number WPT-1089	Service Part Number: AU2Z-14S411-AGA  Gauge: 18  Pin material: Silver  Cavities: 2  Vehicle Uses Sensor - Ambient Temp Sensor - Side Impact

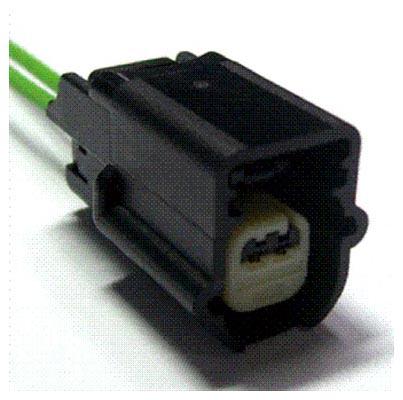

Pigtail Kit Part Number WPT-1306	Service Part Number: AU2Z-14S411-AGB  Gauge: 20  Pin material: Silver  Cavities: 2  Vehicle Uses Sensor - Ambient Temp Sensor - Side Impact
