High-Level IPC - HEV And PHEV

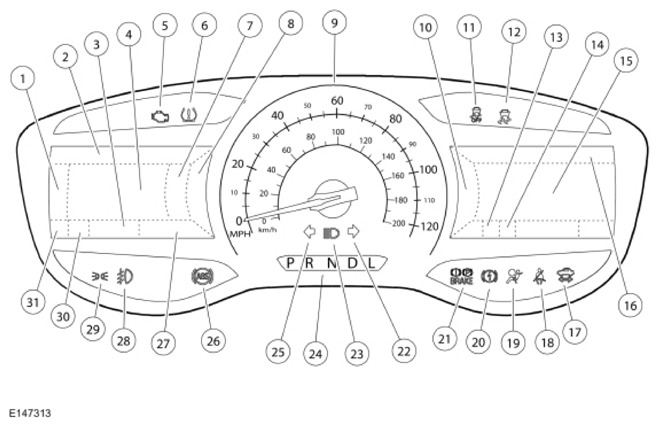

HIGH-LEVEL IPC - HEV AND PHEV
| Item | Description |
|---|---|
| 1 | Main menu display area |
| 2 | Selected menu navigation display |
| 3 | Odometer |
| 4 | Main message center/virtual gauge display area |
| 5 | MIL |
| 6 | TPMS warning indicator |
| 7 | High voltage battery gauge |
| 8 | Fuel gauge |
| 9 | Speedometer |
| 10 | Main infotainment menu |
| 11 | Stability-traction control disabled indicator (sliding car OFF icon) |
| 12 | Stability-traction control indicator (sliding car icon) |
| 13 | Outside air temperature display |
| 14 | Compass display |
| 15 |
|
| 16 | Selected infotainment menu display |
| 17 | Ready to drive indicator |
| 18 | Safety belt warning indicator |
| 19 | Air bag warning indicator |
| 20 | Electric park brake warning indicator |
| 21 | Brake warning indicator |
| 22 | RH turn indicator |
| 23 | High beam indicator |
| 24 | PRNDL display |
| 25 | LH turn indicator |
| 26 | ABS warning indicator |
| 27 | Message center indicator display area |
| 28 | Fog lamp indicator |
| 29 | Lights on indicator |
| 30 | Lane departure warning system on message center indicator |
| 31 | Cruise control message center indicator |
The HEV and PHEV IPC utilizes a modified high-level IPC that provides specific displays HEV and PHEV displays.
The display options allow the user to define the level of information that they view. The display levels are as follows:
- Vehicle Range
- Inform
- Enlighten
- Engage
- Empower
- MyView
- EV (PHEV)
For a complete description of the display levels and the information contained in each level, refer to the Owner's Literature.
