Component Location Charts

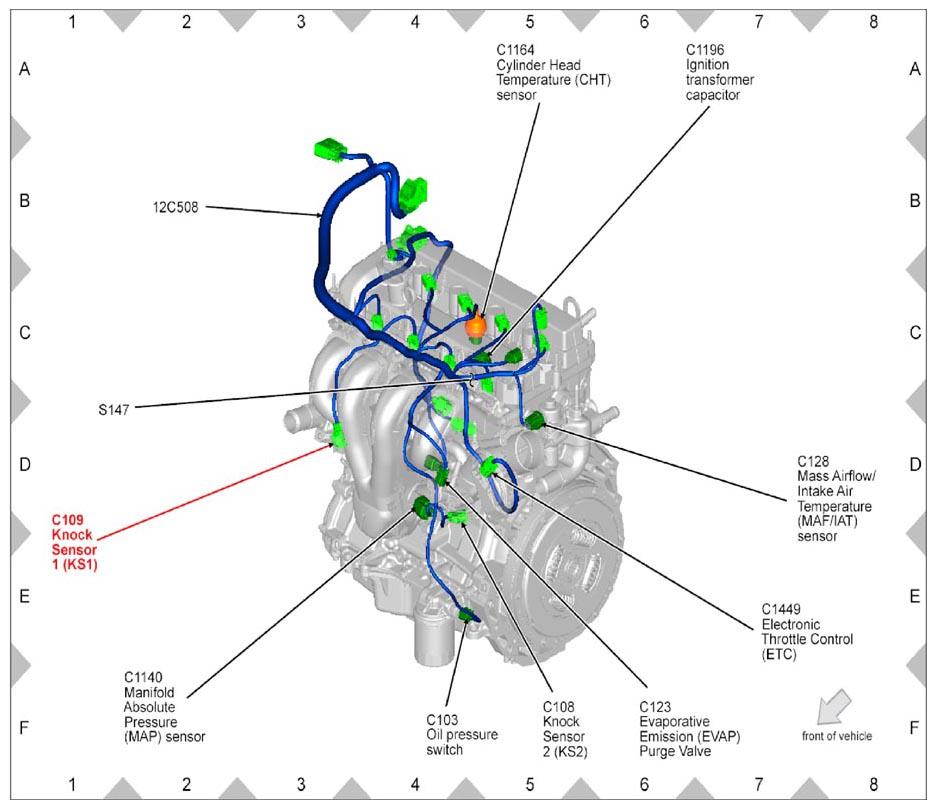

Fig 1: Identifying Oil Pressure Switch Connector (C103)

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Knock Sensor 2 (KS2) Connector (C108)

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Knock Sensor 1 (KS1) Connector (C109)

Courtesy of FORD MOTOR CO.

Fig 4: Identifying Connector (C110)

Courtesy of FORD MOTOR CO.

Fig 5: Identifying Evaporative Emission (EVAP) Purge Valve Connector (C123)

Courtesy of FORD MOTOR CO.

Fig 6: Identifying Low Brake Fluid Warning Indicator Switch Connector (C124)

Courtesy of FORD MOTOR CO.

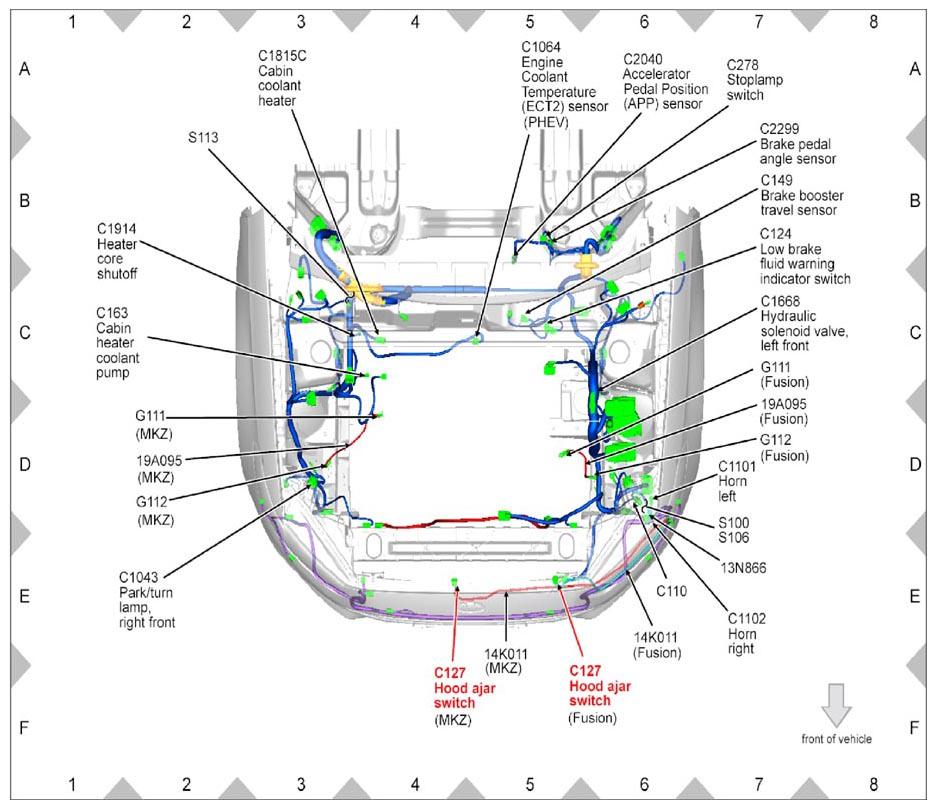

Fig 7: Identifying Hood Ajar Switch Connector (C127) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 8: Identifying Hood Ajar Switch Connector (C127) (MKZ)

Courtesy of FORD MOTOR CO.

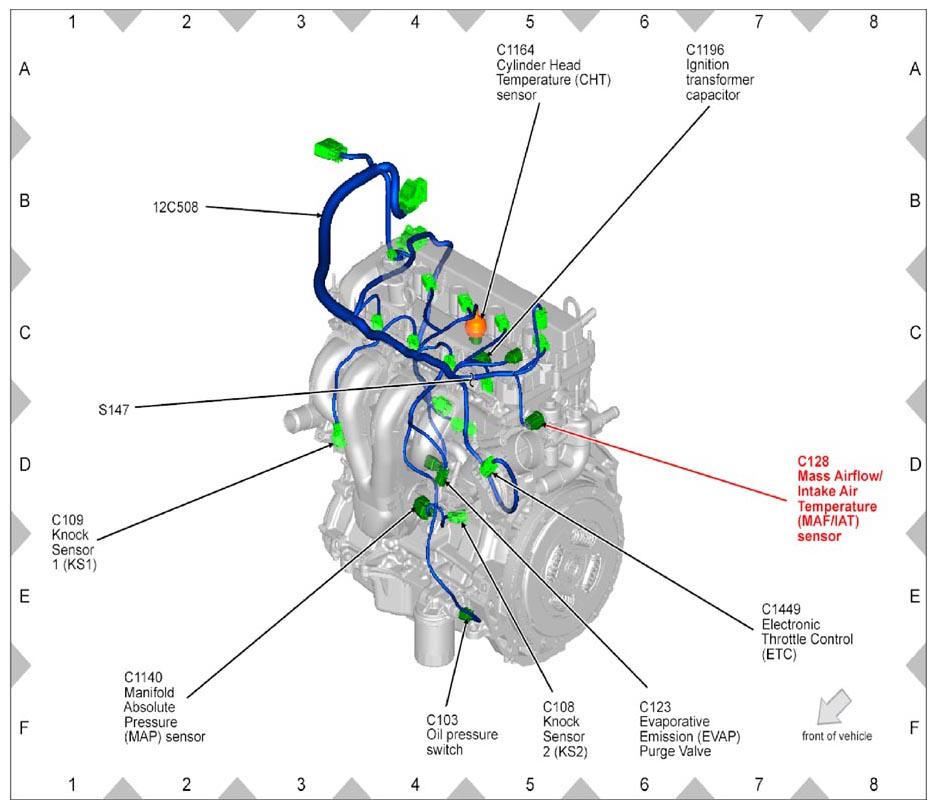

Fig 9: Identifying Mass Airflow/Intake Air Temperature (MAF/IAT) Sensor Connector (C128)

Courtesy of FORD MOTOR CO.

Fig 10: Identifying Ambient Air Temperature Sensor Connector (C132)

Courtesy of FORD MOTOR CO.

Fig 11: Identifying Connector (C133)

Courtesy of FORD MOTOR CO.

Fig 12: Identifying Connector (C134)

Courtesy of FORD MOTOR CO.

Fig 13: Identifying Anti-Lock Brake System (ABS) Module Connector (C135)

Courtesy of FORD MOTOR CO.

Fig 14: Identifying Windshield Washer Pump Connector (C137)

Courtesy of FORD MOTOR CO.

Fig 15: Identifying Low Washer Fluid Warning Indicator Switch Connector (C138)

Courtesy of FORD MOTOR CO.

Fig 16: Identifying Heated Oxygen Sensor (HO2S) No. 12 Connector (C142)

Courtesy of FORD MOTOR CO.

Fig 17: Identifying Connector (C145)

Courtesy of FORD MOTOR CO.

Fig 18: Identifying Connector (C146)

Courtesy of FORD MOTOR CO.

Fig 19: Identifying Brake Booster Travel Sensor Connector (C149)

Courtesy of FORD MOTOR CO.

Fig 20: Identifying Front Wheel Speed Sensor LH Connector (C150)

Courtesy of FORD MOTOR CO.

Fig 21: Identifying Fog Lamp - Left Front Connector (C152)

Courtesy of FORD MOTOR CO.

Fig 22: Identifying Front Wheel Speed Sensor RH Connector (C160)

Courtesy of FORD MOTOR CO.

Fig 23: Identifying Fog Lamp - Right Front Connector (C162)

Courtesy of FORD MOTOR CO.

Fig 24: Identifying Cabin Heater Coolant Pump Connector (C163)

Courtesy of FORD MOTOR CO.

Fig 25: Identifying HF35 Transmission Connector (C168A And C168C)

Courtesy of FORD MOTOR CO.

Fig 26: Identifying HF35 Transmission Connector (C168B)

Courtesy of FORD MOTOR CO.

Fig 27: Identifying Connector (C168C)

Courtesy of FORD MOTOR CO.

Fig 28: Identifying HF35 Transmission Connector (C168D)

Courtesy of FORD MOTOR CO.

Fig 29: Identifying Powertrain Control Module (PCM) Connector (C175B)

Courtesy of FORD MOTOR CO.

Fig 30: Identifying Powertrain Control Module (PCM) Connector (C175E)

Courtesy of FORD MOTOR CO.

Fig 31: Identifying Powertrain Control Module (PCM) Connector (C175T)

Courtesy of FORD MOTOR CO.

Fig 32: Identifying Camshaft Position 11 (CMP11) Sensor Connector (C180)

Courtesy of FORD MOTOR CO.

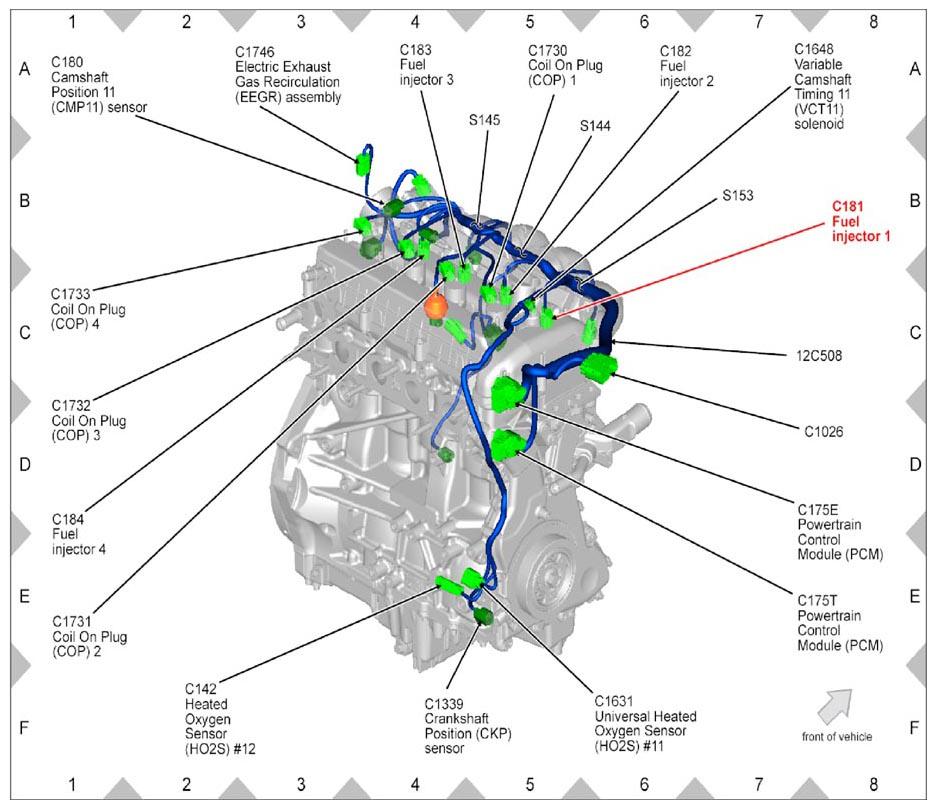

Fig 33: Identifying Fuel Injector 1 Connector (C181)

Courtesy of FORD MOTOR CO.

Fig 34: Identifying Fuel Injector 2 Connector (C182)

Courtesy of FORD MOTOR CO.

Fig 35: Identifying Fuel Injector 3 Connector (C183)

Courtesy of FORD MOTOR CO.

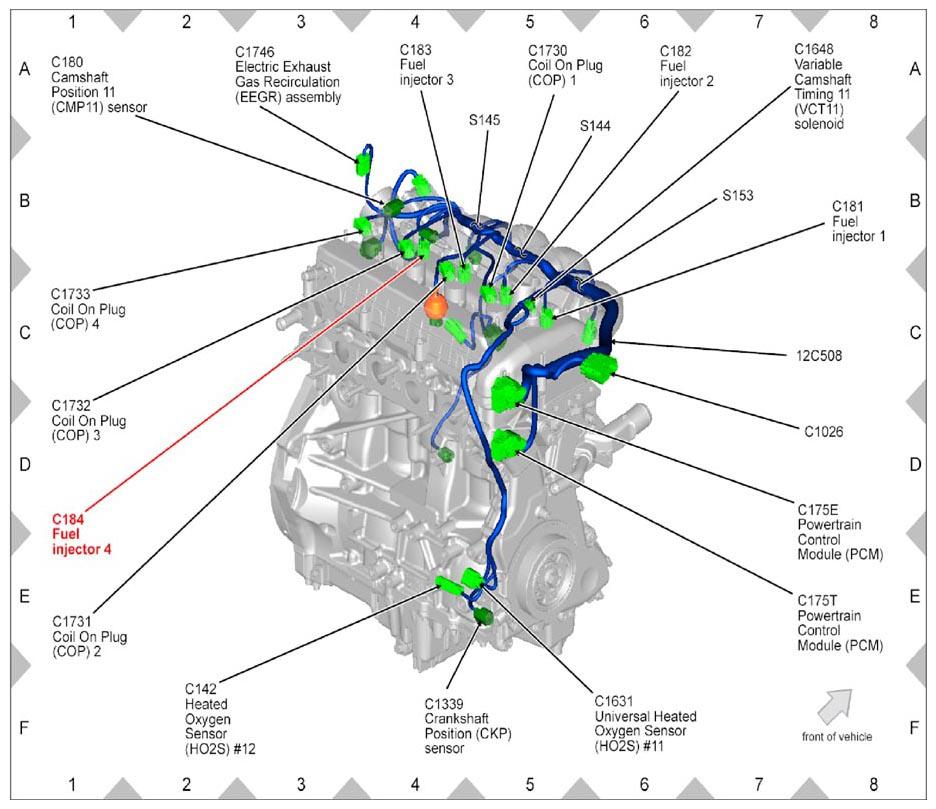

Fig 36: Identifying Fuel Injector 4 Connector (C184)

Courtesy of FORD MOTOR CO.

Fig 37: Identifying Connector (C192)

Courtesy of FORD MOTOR CO.

Fig 38: Identifying Headlamp Switch Connector (C205) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 39: Identifying Headlamp Switch Connector (C205) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 40: Identifying Footwell Lamp - Left Front Connector (C209) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 41: Identifying Footwell Lamp - Left Front Connector (C209) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 42: Identifying Connector (C210)

Courtesy of FORD MOTOR CO.

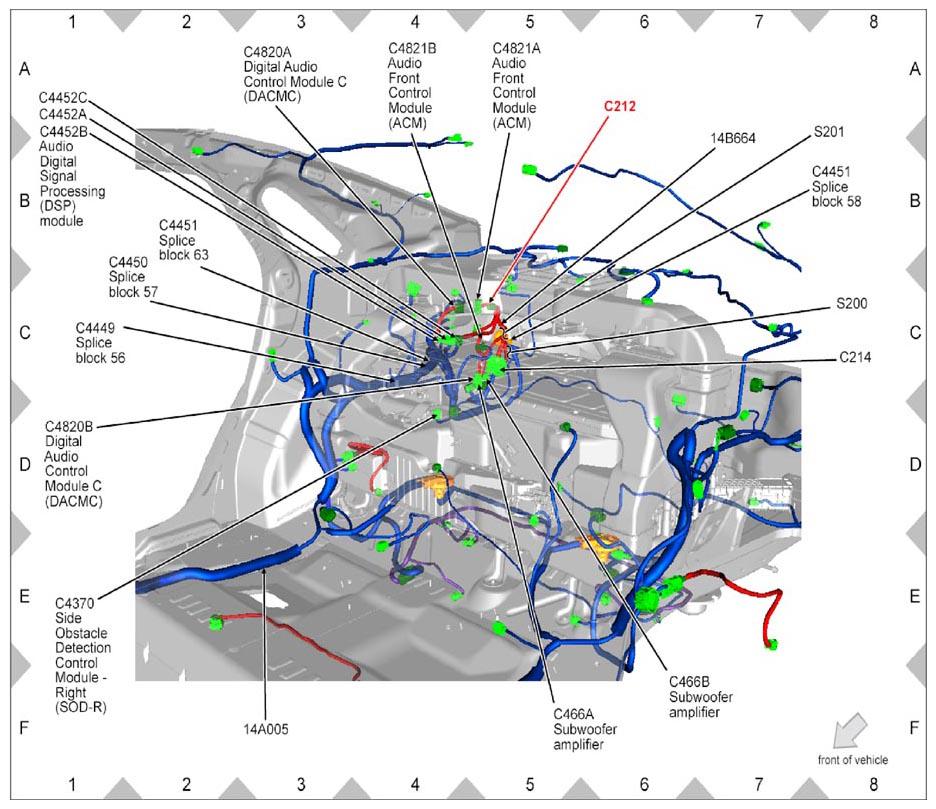

Fig 43: Identifying Connector (C212)

Courtesy of FORD MOTOR CO.

Fig 44: Identifying Connector (C213)

Courtesy of FORD MOTOR CO.

Fig 45: Identifying Connector (C214)

Courtesy of FORD MOTOR CO.

Fig 46: Identifying Connector (C215)

Courtesy of FORD MOTOR CO.

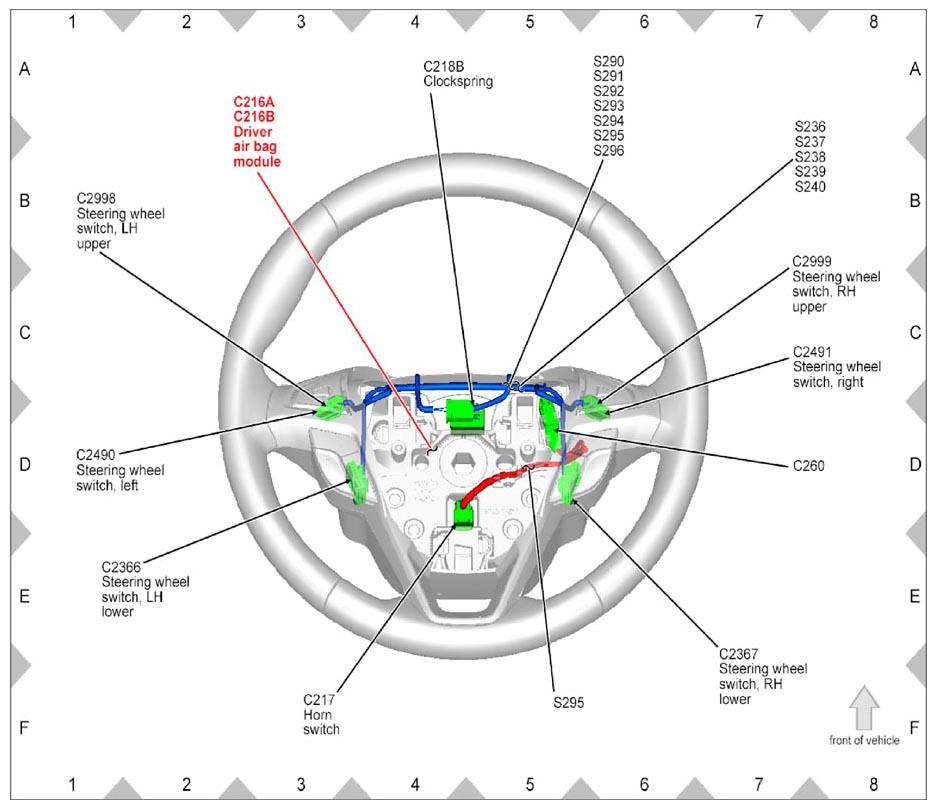

Fig 47: Identifying Driver Air Bag Module Connector (C216A And C216B)

Courtesy of FORD MOTOR CO.

Fig 48: Identifying Driver Air Bag Module Connector (C216A And C216B)

Courtesy of FORD MOTOR CO.

Fig 49: Identifying Horn Switch Connector (C217)

Courtesy of FORD MOTOR CO.

Fig 50: Identifying Clockspring Connector (C218A) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 51: Identifying Clockspring Connector (C218A) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 52: Identifying Clockspring Connector (C218B)

Courtesy of FORD MOTOR CO.

Fig 53: Identifying Clockspring Connector (C218C)

Courtesy of FORD MOTOR CO.

Fig 54: Identifying Connector (C218D)

Courtesy of FORD MOTOR CO.

Fig 55: Identifying Connector (C218E)

Courtesy of FORD MOTOR CO.

Fig 56: Identifying Connector (C219) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 57: Identifying Connector (C219) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 58: Identifying Instrument Panel Cluster (IPC) Connector (C220) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 59: Identifying Instrument Panel Cluster (IPC) Connector (C220) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 60: Identifying Splice Block 22 Connector (C223)

Courtesy of FORD MOTOR CO.

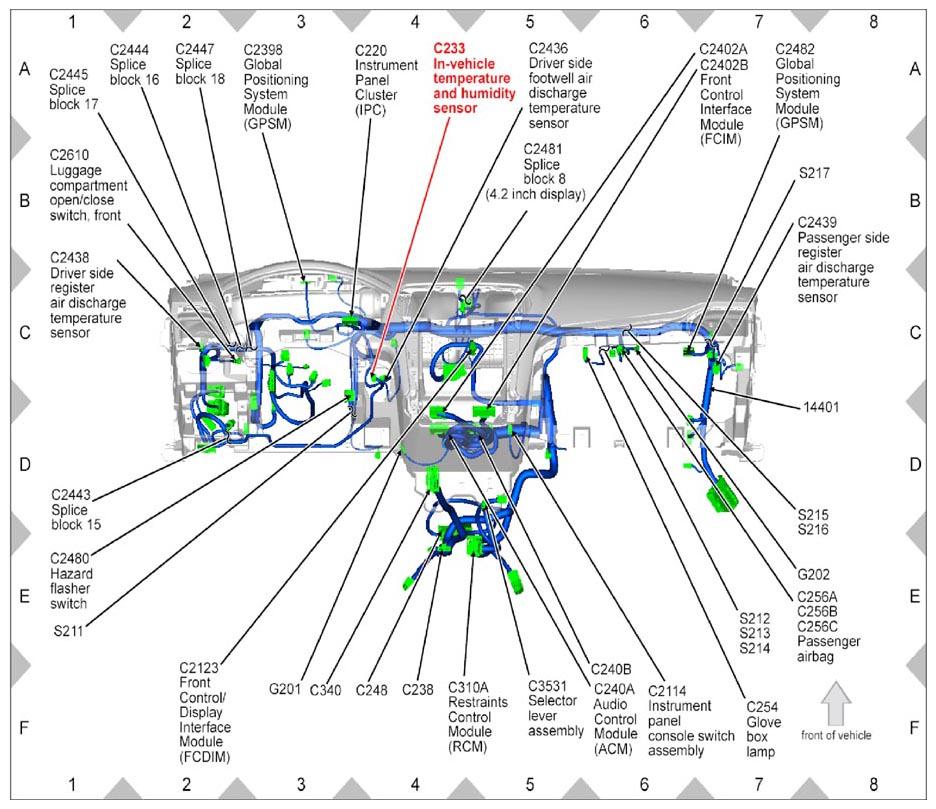

Fig 61: Identifying In-Vehicle Temperature And Humidity Sensor Connector (C233) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 62: Identifying In-Vehicle Temperature And Humidity Sensor Connector (C233) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 63: Identifying Air Distribution Door Actuator Connector (C236)

Courtesy of FORD MOTOR CO.

Fig 64: Identifying Connector (C237) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 65: Identifying Connector (C237) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 66: Identifying Connector (C238) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 67: Identifying Connector (C238) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 68: Identifying Audio Control Module (ACM) Connector (C240A)

Courtesy of FORD MOTOR CO.

Fig 69: Identifying Connector (C240B)

Courtesy of FORD MOTOR CO.

Fig 70: Identifying Splice Block 23 Connector (C244)

Courtesy of FORD MOTOR CO.

Fig 71: Identifying Connector (C248)

Courtesy of FORD MOTOR CO.

Fig 72: Identifying Connector (C248) (Fusion)

Courtesy of FORD MOTOR CO.

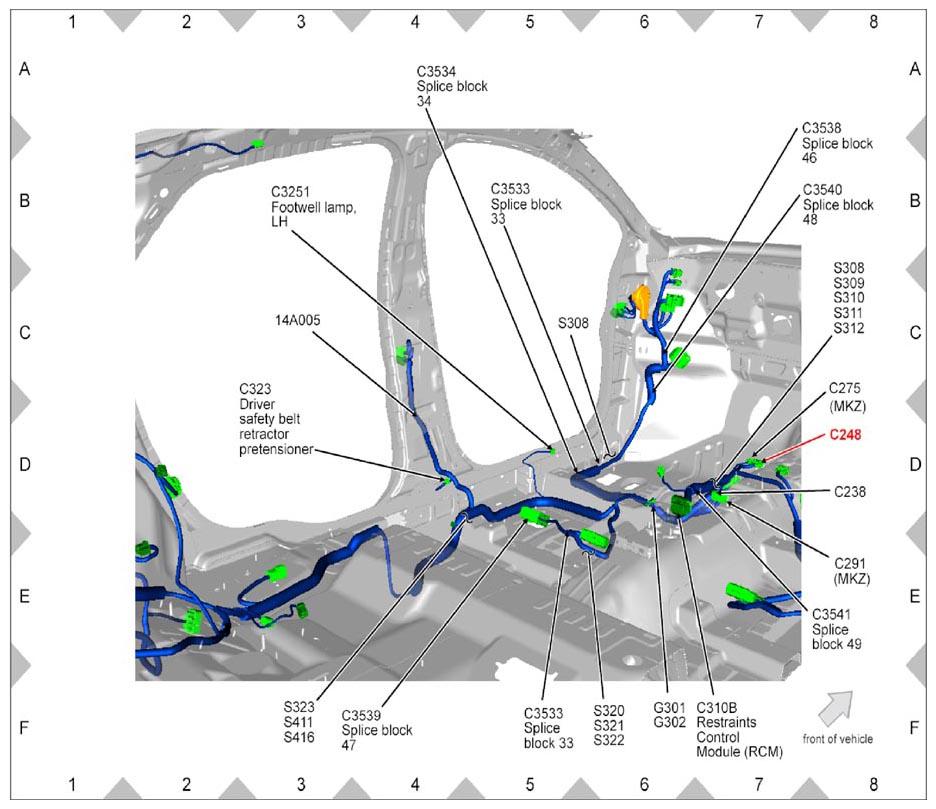

Fig 73: Identifying Connector (C248) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 74: Identifying Ignition Switch Connector (C250)

Courtesy of FORD MOTOR CO.

Fig 75: Identifying Data Link Connector (DLC) Connector (C251) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 76: Identifying Data Link Connector (DLC) Connector (C251) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 77: Identifying Passive Anti-Theft Transceiver Connector (C252)

Courtesy of FORD MOTOR CO.

Fig 78: Identifying Glove Box Lamp Connector (C254) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 79: Identifying Glove Box Lamp Connector (C254) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 80: Identifying Passenger Airbag Connector (C256A, C256B And C256C) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 81: Identifying Passenger Airbag Connector (C256A, C256B And C256C) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 82: Identifying Passenger Airbag Connector (C256A, C256B And C256C) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 83: Identifying Passenger Airbag Connector (C256A, C256B And C256C) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 84: Identifying Passenger Airbag Connector (C256A, C256B And C256C) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 85: Identifying Passenger Airbag Connector (C256A, C256B And C256C) (MKZ)

Courtesy of FORD MOTOR CO.

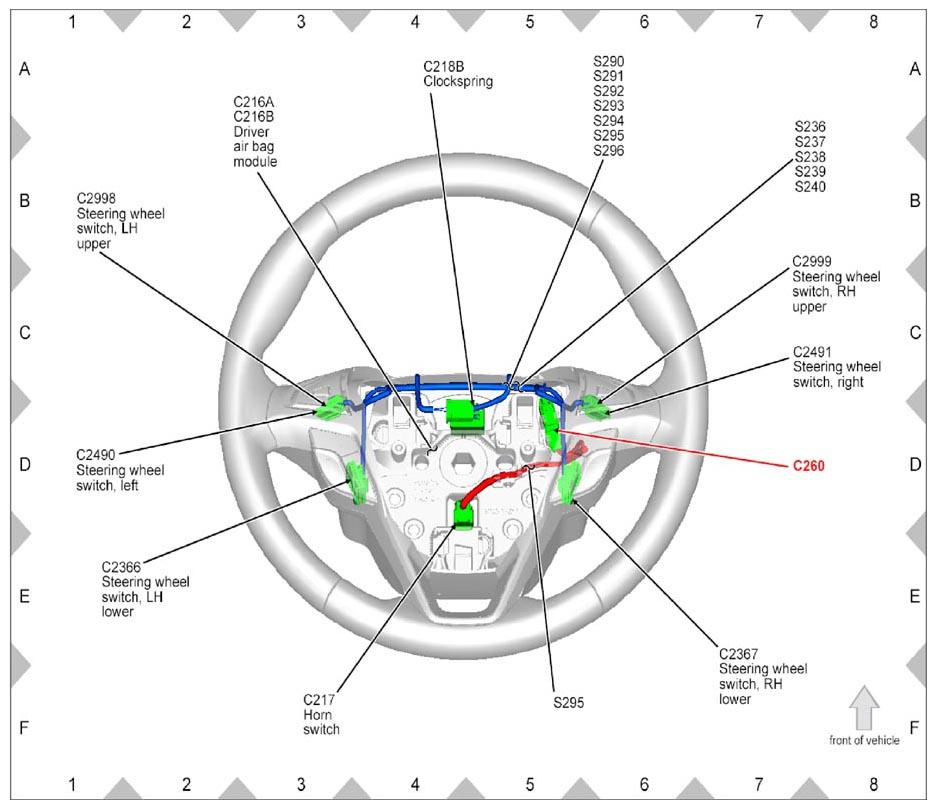

Fig 86: Identifying Connector (C260)

Courtesy of FORD MOTOR CO.

Fig 87: Identifying Connector (C260) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 88: Identifying Connector (C260) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 89: Identifying Splice Block 19 Connector (C261)

Courtesy of FORD MOTOR CO.

Fig 90: Identifying Splice Block 20 Connector (C262)

Courtesy of FORD MOTOR CO.

Fig 91: Identifying Connector (C263)

Courtesy of FORD MOTOR CO.

Fig 92: Identifying Connector (C263) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 93: Identifying Connector (C263) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 94: Identifying Connector (C264)

Courtesy of FORD MOTOR CO.

Fig 95: Identifying Connector (C265)

Courtesy of FORD MOTOR CO.

Fig 96: Identifying Connector (C265) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 97: Identifying Connector (C265) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 98: Identifying Footwell Lamp - Right Front Connector (C266) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 99: Identifying Footwell Lamp - Right Front Connector (C266) (MKZ)

Courtesy of FORD MOTOR CO.

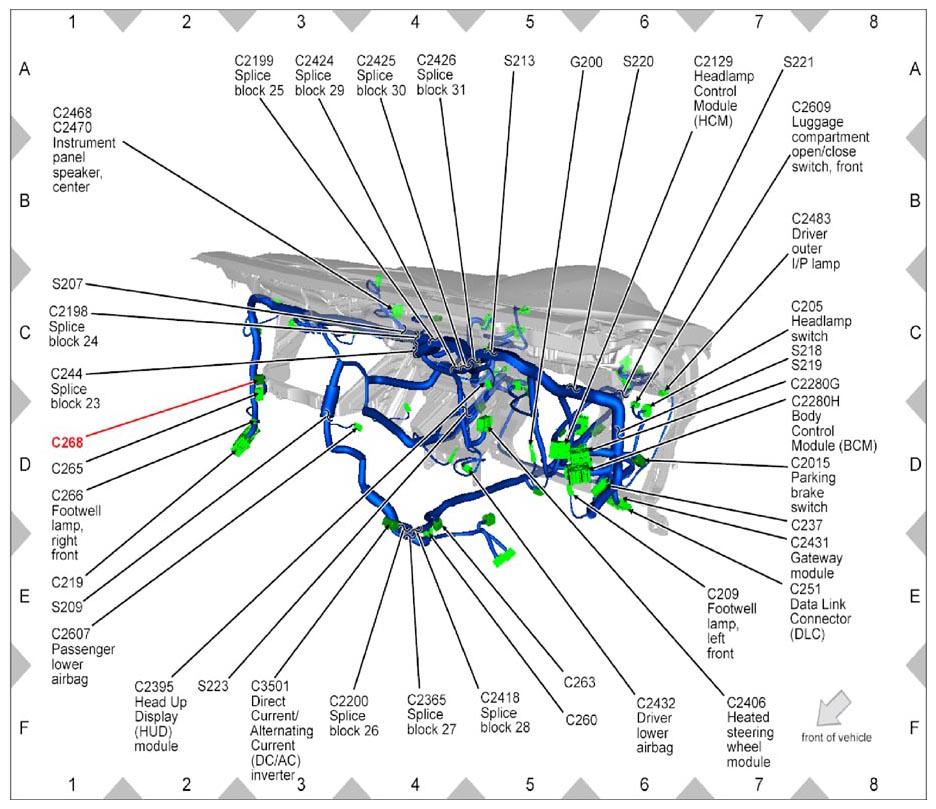

Fig 100: Identifying Connector (C268)

Courtesy of FORD MOTOR CO.

Fig 101: Identifying Connector (C268) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 102: Identifying Connector (C268) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 103: Identifying Connector (C275)

Courtesy of FORD MOTOR CO.

Fig 104: Identifying Connector (C275) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 105: Identifying Stoplamp Switch Connector (C278)

Courtesy of FORD MOTOR CO.

Fig 106: Identifying Autolamp/Sunload Sensor Connector (C286) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 107: Identifying Autolamp/Sunload Sensor Connector (C286) (MKZ)

Courtesy of FORD MOTOR CO.

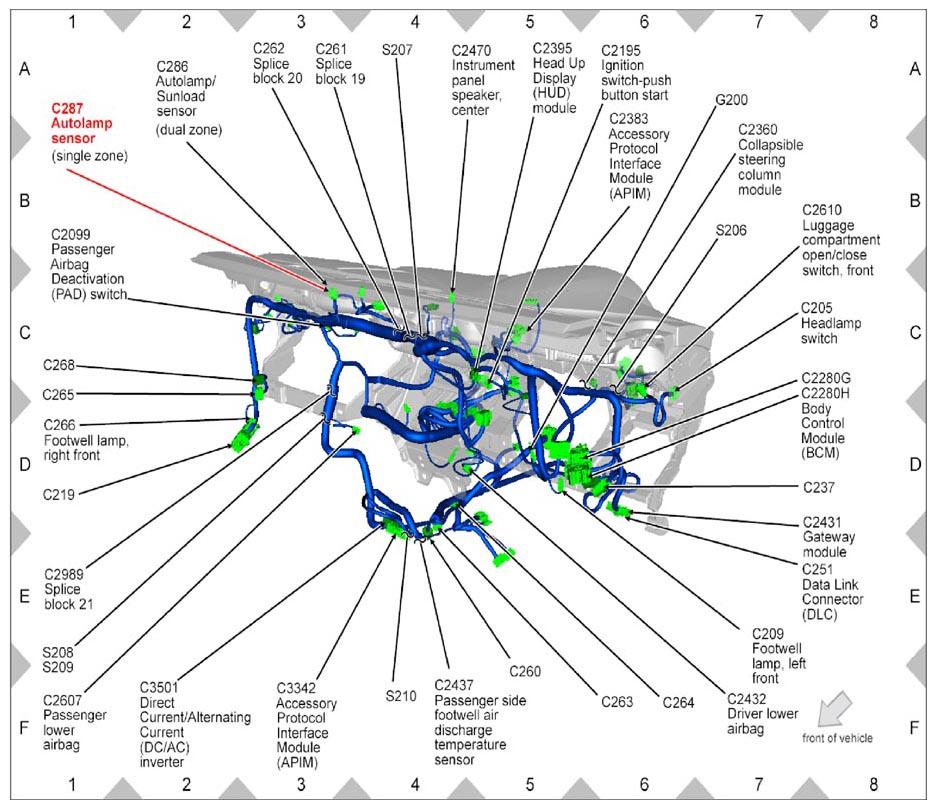

Fig 108: Identifying Autolamp Sensor Connector (C287)

Courtesy of FORD MOTOR CO.

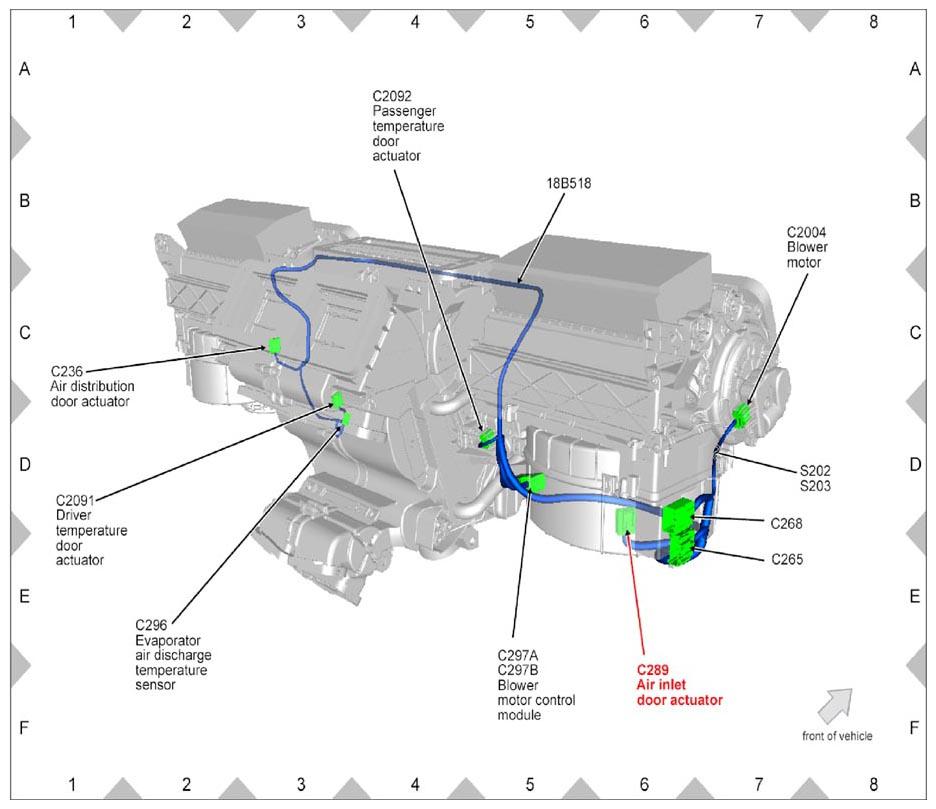

Fig 109: Identifying Air Inlet Door Actuator Connector (C289)

Courtesy of FORD MOTOR CO.

Fig 110: Identifying Connector (C291)

Courtesy of FORD MOTOR CO.

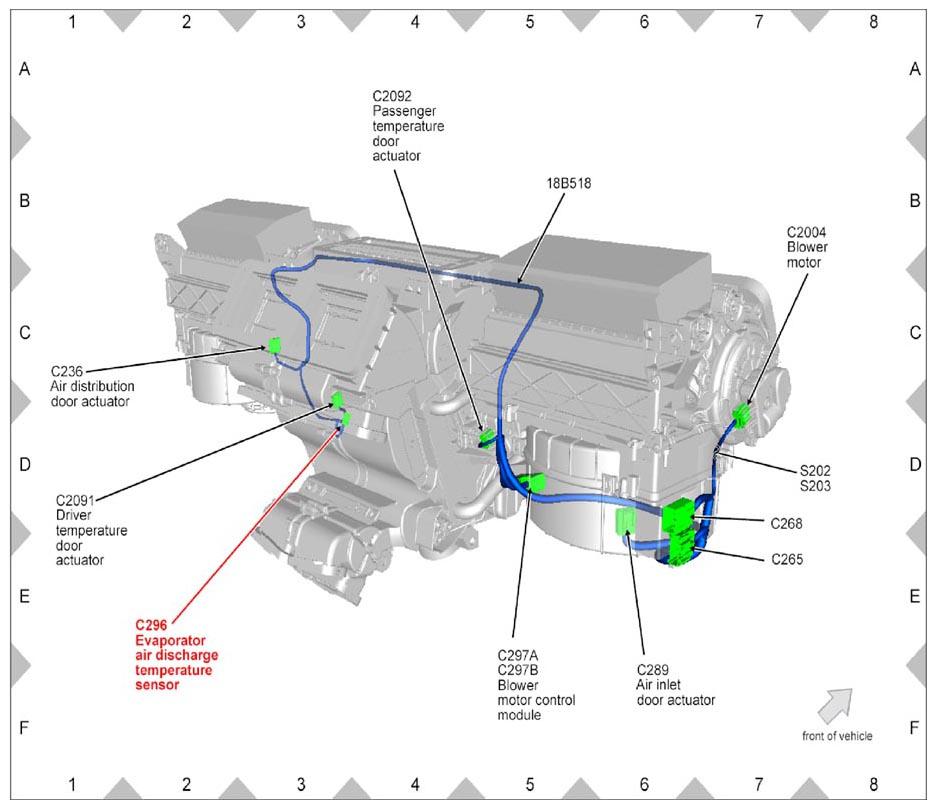

Fig 111: Identifying Evaporator Air Discharge Temperature Sensor Connector (C296)

Courtesy of FORD MOTOR CO.

Fig 112: Identifying Blower Motor Control Module Connector (C297A And C297B)

Courtesy of FORD MOTOR CO.

Fig 113: Identifying Blower Motor Control Module Connector (C297A And C297B)

Courtesy of FORD MOTOR CO.

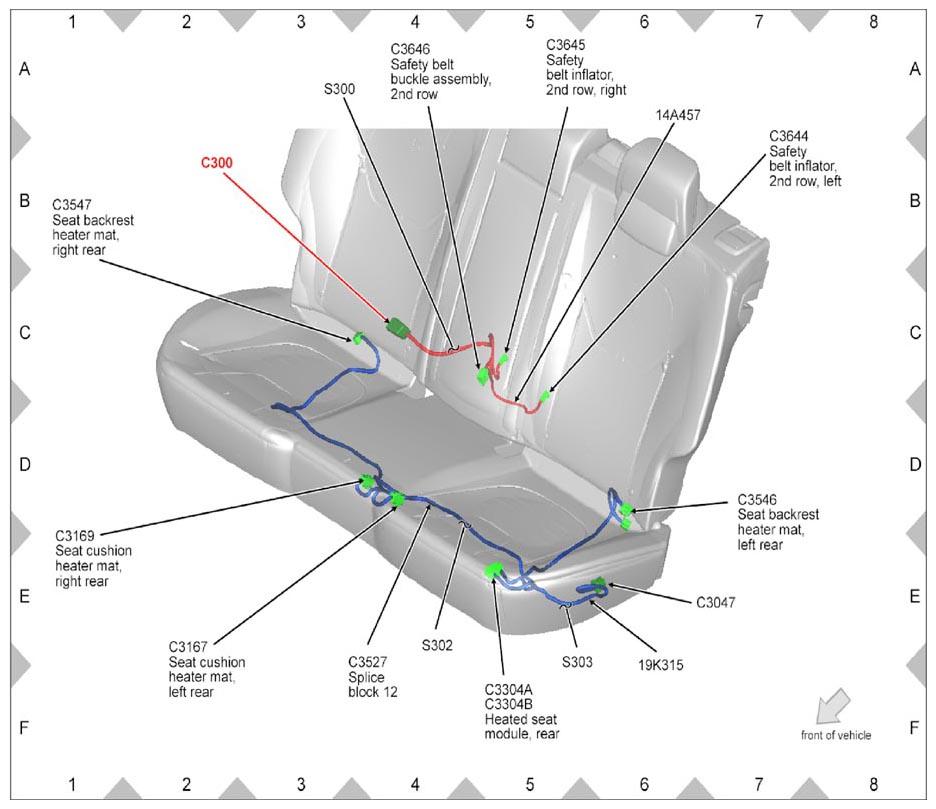

Fig 114: Identifying Connector (C300)

Courtesy of FORD MOTOR CO.

Fig 115: Identifying Connector (C300) (MKZ)

Courtesy of FORD MOTOR CO.

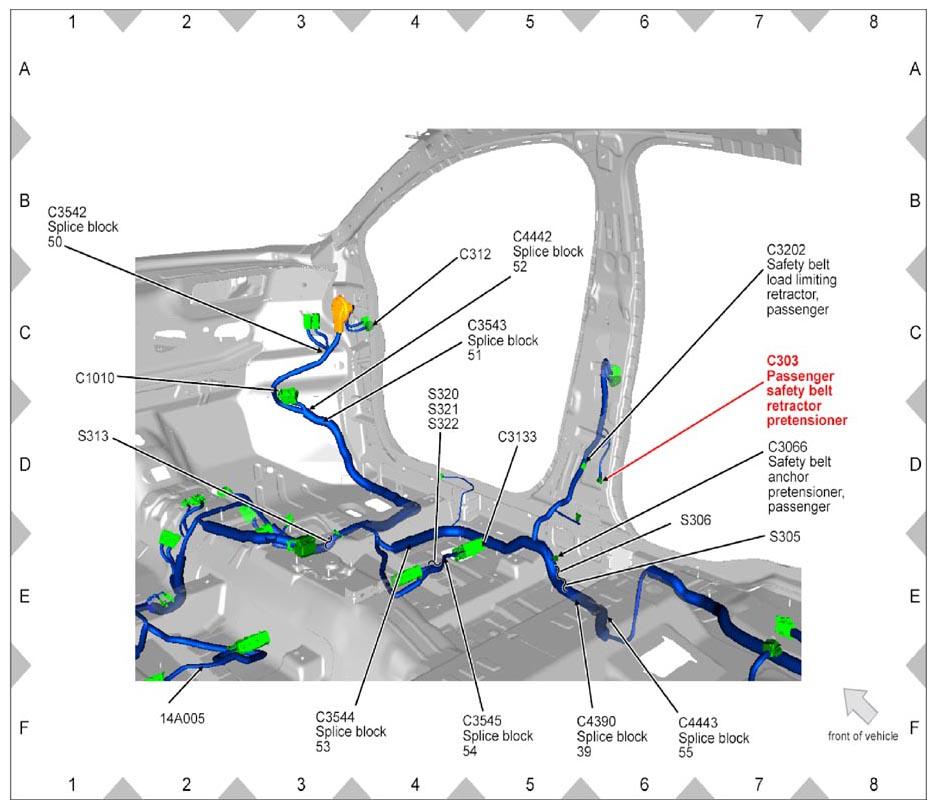

Fig 116: Identifying Passenger Safety Belt Retractor Pretensioner Connector (C303)

Courtesy of FORD MOTOR CO.

Fig 117: Identifying Parking Brake Switch Connector (C306)

Courtesy of FORD MOTOR CO.

Fig 118: Identifying Restraints Control Module (RCM) Connector (C310A) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 119: Identifying Restraints Control Module (RCM) Connector (C310A) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 120: Identifying Restraints Control Module (RCM) Connector (C310B)

Courtesy of FORD MOTOR CO.

Fig 121: Identifying Connector (C311)

Courtesy of FORD MOTOR CO.

Fig 122: Identifying Connector (C311) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 123: Identifying Connector (C311) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 124: Identifying Connector (C312)

Courtesy of FORD MOTOR CO.

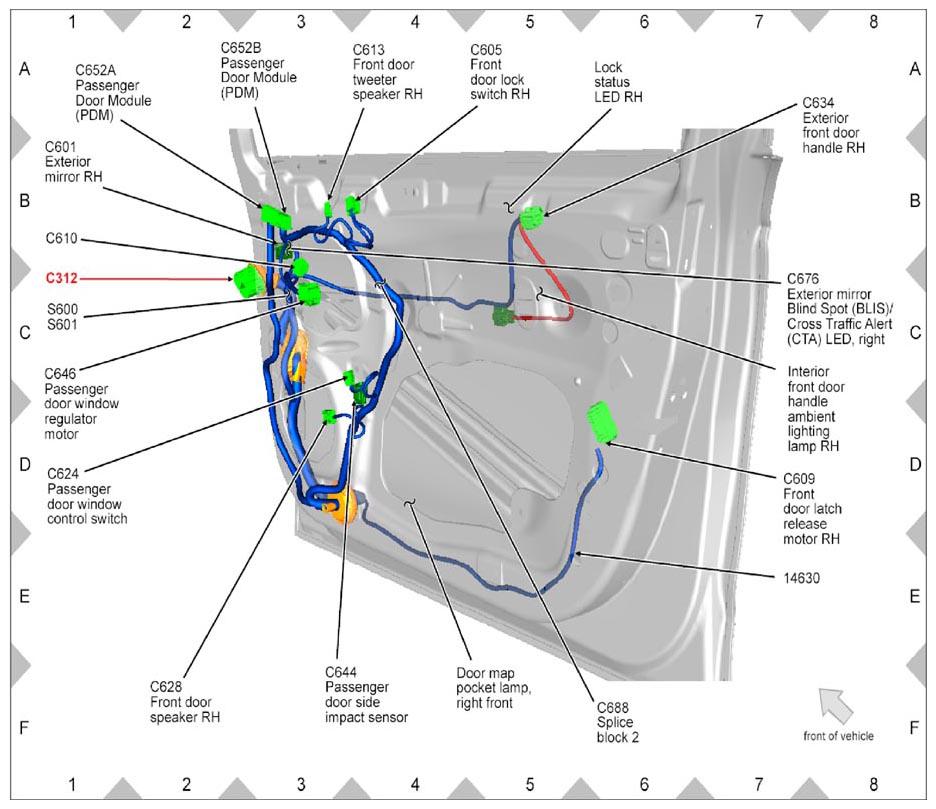

Fig 125: Identifying Connector (C312) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 126: Identifying Connector (C312) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 127: Identifying Connector (C313)

Courtesy of FORD MOTOR CO.

Fig 128: Identifying Connector (C313) (MKZ)

Courtesy of FORD MOTOR CO.

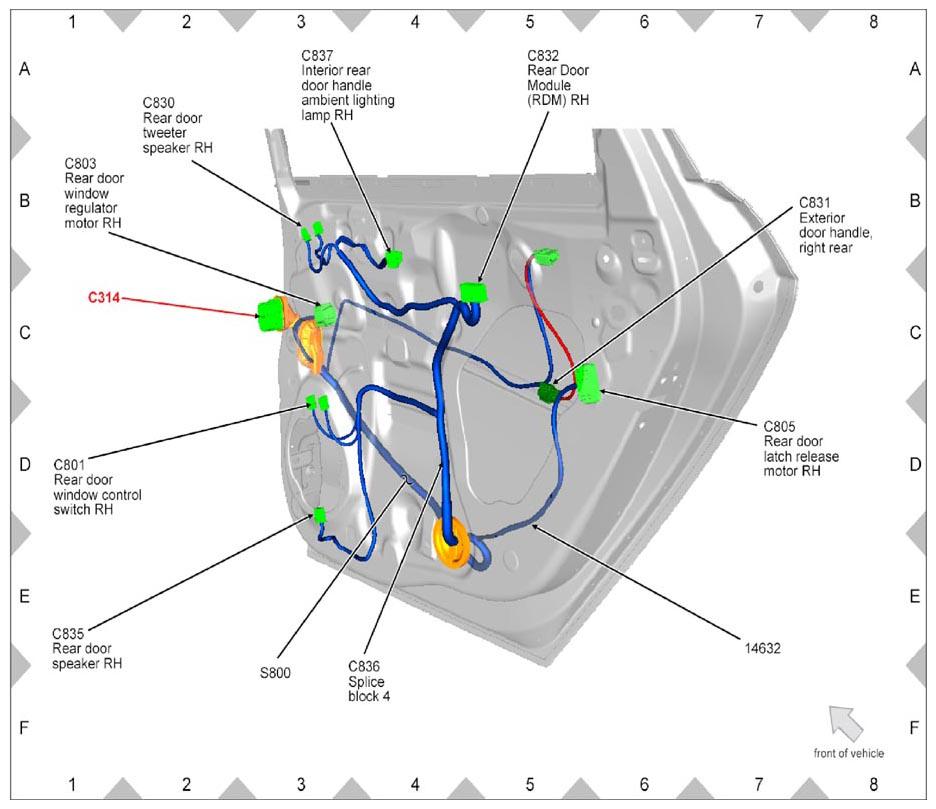

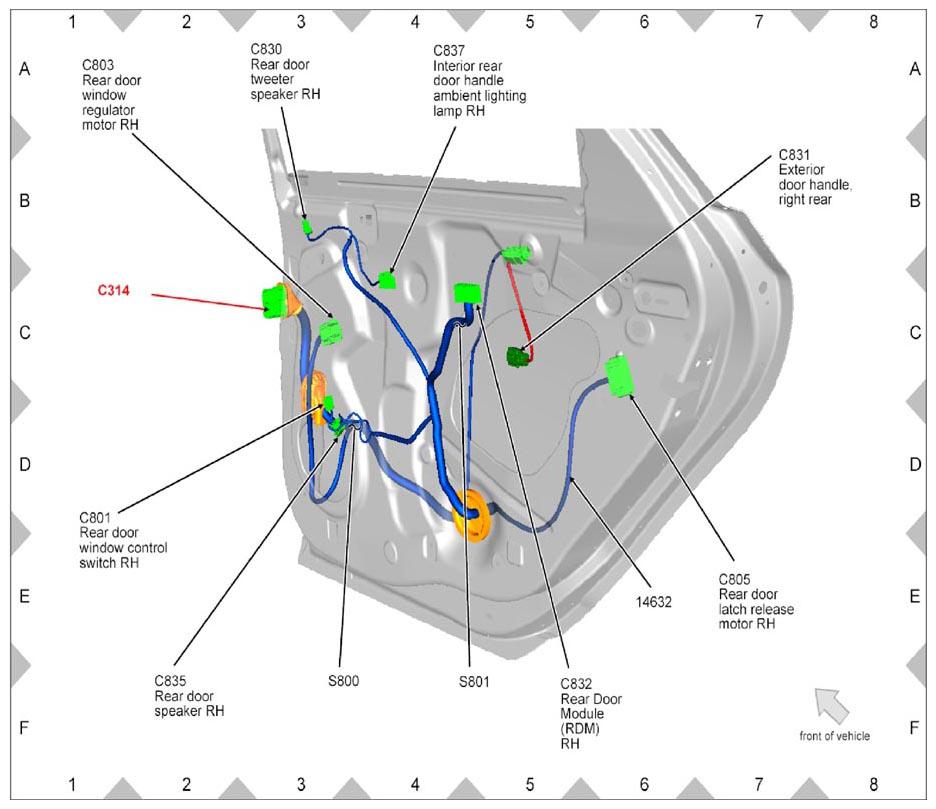

Fig 129: Identifying Connector (C314)

Courtesy of FORD MOTOR CO.

Fig 130: Identifying Connector (C314) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 131: Identifying Connector (C315)

Courtesy of FORD MOTOR CO.

Fig 132: Identifying Cigar Lighter Connector (C319) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 133: Identifying Cigar Lighter Connector (C319) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 134: Identifying Driver Safety Belt Retractor Pretensioner Connector (C323)

Courtesy of FORD MOTOR CO.

Fig 135: Identifying Connector (C328) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 136: Identifying Connector (C328) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 137: Identifying Passenger Seat Rear Height Motor Connector (C330)

Courtesy of FORD MOTOR CO.

Fig 138: Identifying Passenger Seat Horizontal Motor Connector (C332)

Courtesy of FORD MOTOR CO.

Fig 139: Identifying Seat Cushion Heater - Right Front Connector (C334)

Courtesy of FORD MOTOR CO.

Fig 140: Identifying Seat Backrest Heater - Right Front Connector (C335)

Courtesy of FORD MOTOR CO.

Fig 141: Identifying Side Airbag Module - Right Front Connector (C337)

Courtesy of FORD MOTOR CO.

Fig 142: Identifying Connector (C340)

Courtesy of FORD MOTOR CO.

Fig 143: Identifying Connector (C340) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 144: Identifying Connector (C340) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 145: Identifying Connector (C340) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 146: Identifying Driver Seat Module (DSM) Connector (C341A, C341B, C341C And C341D)

Courtesy of FORD MOTOR CO.

Fig 147: Identifying Driver Seat Module (DSM) Connector (C341A, C341B, C341C And C341D)

Courtesy of FORD MOTOR CO.

Fig 148: Identifying Driver Seat Module (DSM) Connector (C341A, C341B, C341C And C341D)

Courtesy of FORD MOTOR CO.

Fig 149: Identifying Driver Seat Module (DSM) Connector (C341A, C341B, C341C And C341D)

Courtesy of FORD MOTOR CO.

Fig 150: Identifying Seat Position Sensor - Driver Connector (C356 And C358)

Courtesy of FORD MOTOR CO.

Fig 151: Identifying Seat Position Sensor - Driver Connector (C356 And C358)

Courtesy of FORD MOTOR CO.

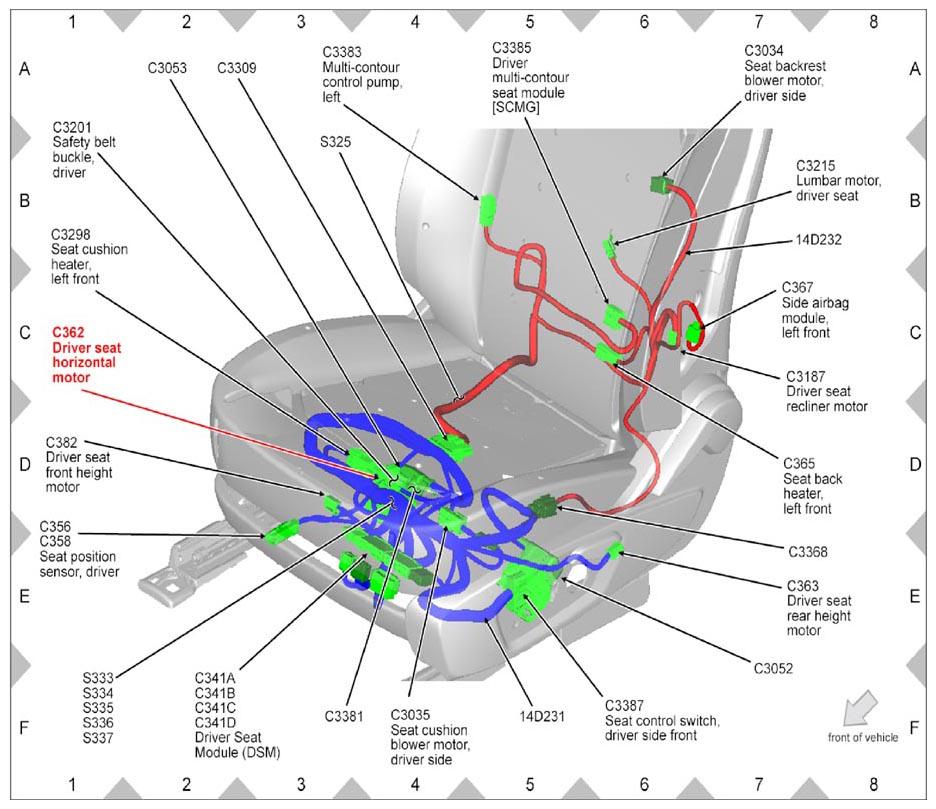

Fig 152: Identifying Driver Seat Horizontal Motor Connector (C362)

Courtesy of FORD MOTOR CO.

Fig 153: Identifying Driver Seat Rear Height Motor Connector (C363)

Courtesy of FORD MOTOR CO.

Fig 154: Identifying Seat Back Heater - Left Front Connector (C365)

Courtesy of FORD MOTOR CO.

Fig 155: Identifying Side Airbag Module - Left Front Connector (C367)

Courtesy of FORD MOTOR CO.

Fig 156: Identifying Driver Seat Front Height Motor Connector (C382)

Courtesy of FORD MOTOR CO.

Fig 157: Identifying Heated Rear Window Element Connector (C402A) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 158: Identifying Heated Rear Window Element Connector (C402A) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 159: Identifying Heated Rear Window Element Connector (C402B)

Courtesy of FORD MOTOR CO.

Fig 160: Identifying Connector (C405) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 161: Identifying Connector (C405) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 162: Identifying Connector (C405) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 163: Identifying Connector (C406) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 164: Identifying Connector (C406) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 165: Identifying Connector (C408)

Courtesy of FORD MOTOR CO.

Fig 166: Identifying Fuel Filler Door Latch Motor Connector (C409)

Courtesy of FORD MOTOR CO.

Fig 167: Identifying Rear Lamp Assembly Connector (C412) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 168: Identifying Rear Lamp Assembly LH Connector (C412) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 169: Identifying Rear Lamp Assembly RH Connector (C415) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 170: Identifying Rear Lamp Assembly RH Connector (C415) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 171: Identifying Wheel Speed Sensor - Right Rear Connector (C426) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 172: Identifying Wheel Speed Sensor - Right Rear Connector (C426) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 173: Identifying Luggage Compartment Lamp Connector (C428) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 174: Identifying Luggage Compartment Lamp Connector (C428) (MKZ)

Courtesy of FORD MOTOR CO.

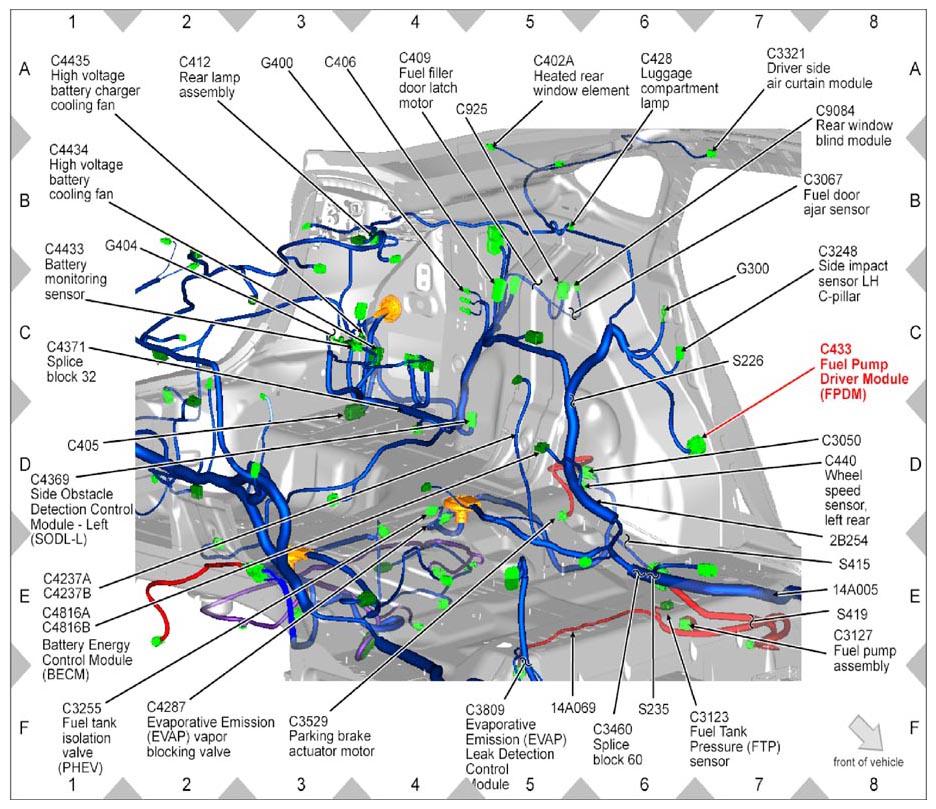

Fig 175: Identifying Fuel Pump Driver Module (FPDM) Connector (C433) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 176: Identifying Fuel Pump Driver Module (FPDM) Connector (C433) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 177: Identifying Wheel Speed Sensor - Left Rear Connector (C440) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 178: Identifying Wheel Speed Sensor - Left Rear Connector (C440) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 179: Identifying Reversing Lamp Connector (C451)

Courtesy of FORD MOTOR CO.

Fig 180: Identifying Subwoofer Amplifier Connector (C466A)

Courtesy of FORD MOTOR CO.

Fig 181: Identifying Subwoofer Amplifier Connector (C466B)

Courtesy of FORD MOTOR CO.

Fig 182: Identifying High Mounted Stoplamp Connector (C475)

Courtesy of FORD MOTOR CO.

Fig 183: Identifying Reversing Lamp LH Connector (C487)

Courtesy of FORD MOTOR CO.

Fig 184: Identifying Reversing Lamp RH Connector (C488)

Courtesy of FORD MOTOR CO.

Fig 185: Identifying Connector (C495)

Courtesy of FORD MOTOR CO.

Fig 186: Identifying Driver Door Module (DDM) Connector (C501A) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 187: Identifying Driver Door Module (DDM) Connector (C501A) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 188: Identifying Driver Door Module (DDM) Connector (C501B) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 189: Identifying Driver Door Module (DDM) Connector (C501B) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 190: Identifying Front Door Lock Switch LH Connector (C505)

Courtesy of FORD MOTOR CO.

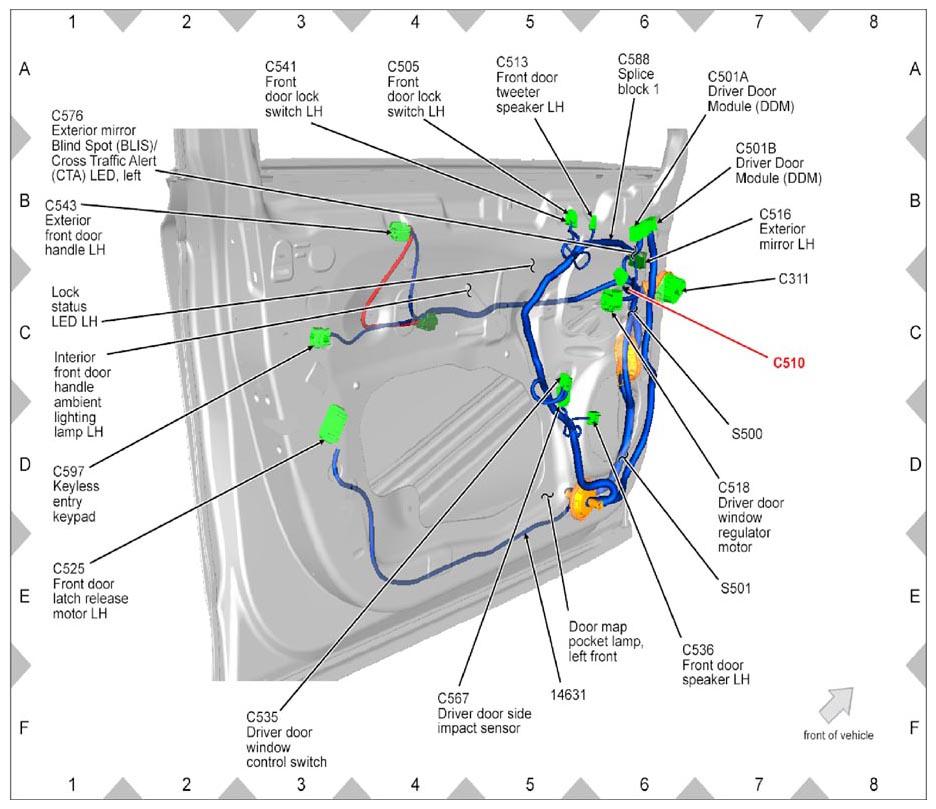

Fig 191: Identifying Connector (C510) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 192: Identifying Connector (C510) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 193: Identifying Front Door Tweeter Speaker LH Connector (C513) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 194: Identifying Front Door Tweeter Speaker LH Connector (C513) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 195: Identifying Exterior Mirror LH Connector (C516) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 196: Identifying Exterior Mirror LH Connector (C516) (MKZ)

Courtesy of FORD MOTOR CO.

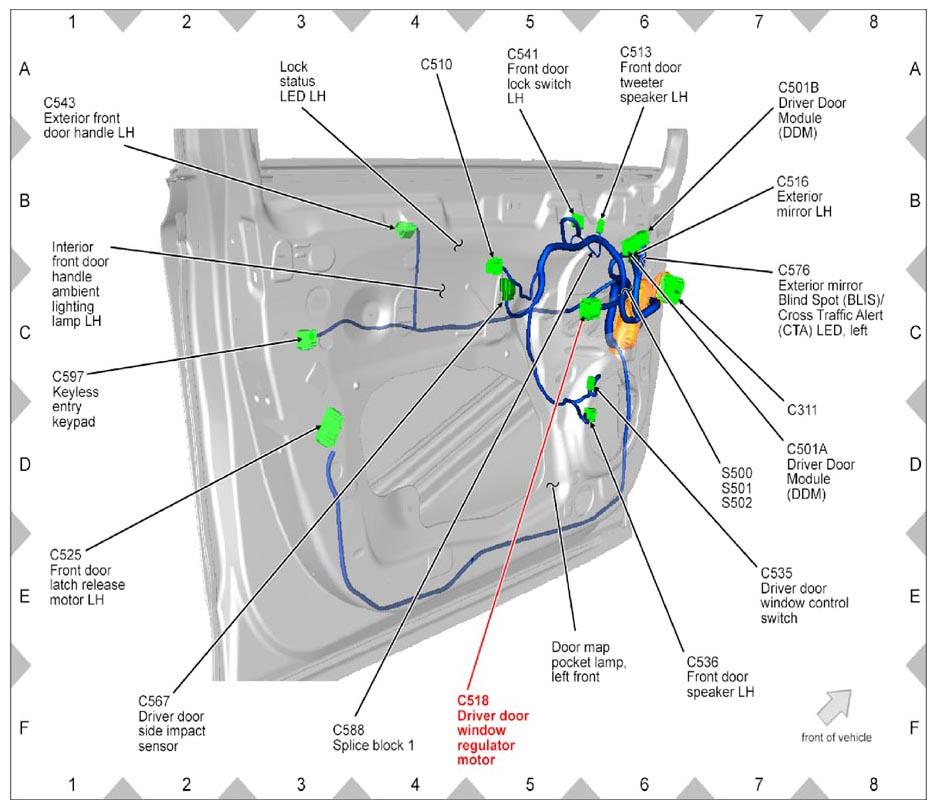

Fig 197: Identifying Driver Door Window Regulator Motor Connector (C518) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 198: Identifying Driver Door Window Regulator Motor Connector (C518) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 199: Identifying Front Door Latch Release Motor LH Connector (C525) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 200: Identifying Front Door Latch Release Motor LH Connector (C525) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 201: Identifying Driver Door Window Control Switch Connector (C535) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 202: Identifying Driver Door Window Control Switch Connector (C535) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 203: Identifying Front Door Speaker LH Connector (C536) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 204: Identifying Front Door Speaker LH Connector (C536) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 205: Identifying Front Door Lock Switch LH Connector (C541) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 206: Identifying Front Door Lock Switch LH Connector (C541) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 207: Identifying Exterior Front Door Handle LH Connector (C543) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 208: Identifying Exterior Front Door Handle LH Connector (C543) (MKZ)

Courtesy of FORD MOTOR CO.

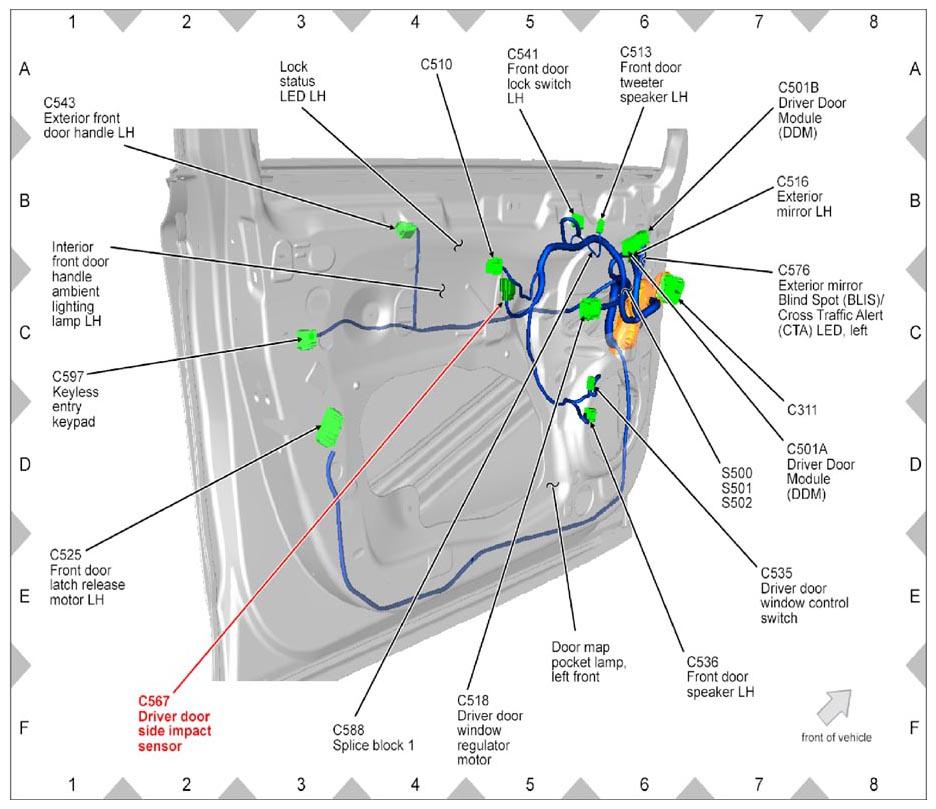

Fig 209: Identifying Driver Door Side Impact Sensor Connector (C567) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 210: Identifying Driver Door Side Impact Sensor Connector (C567) (MKZ)

Courtesy of FORD MOTOR CO.

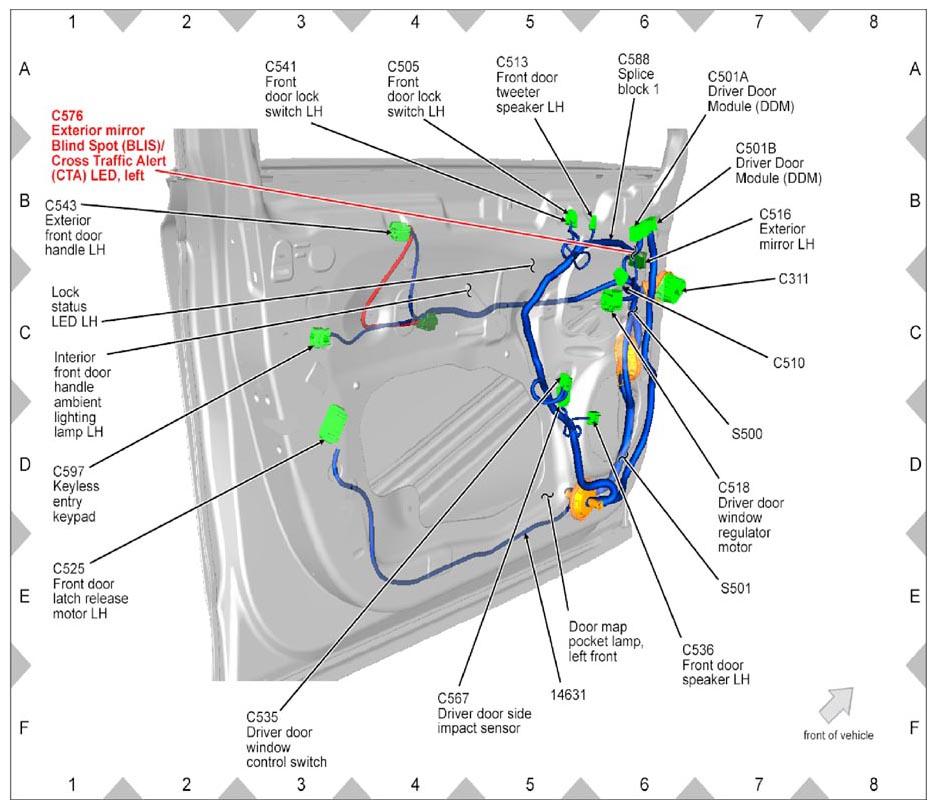

Fig 211: Identifying Exterior Mirror Blind Spot/Cross Traffic Alert LED - Left Connector (C576) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 212: Identifying Exterior Mirror Blind Spot/Cross Traffic Alert LED - Left Connector (C576) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 213: Identifying Splice Block 1 Connector (C588) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 214: Identifying Splice Block 1 Connector (C588) (MKZ)

Courtesy of FORD MOTOR CO.

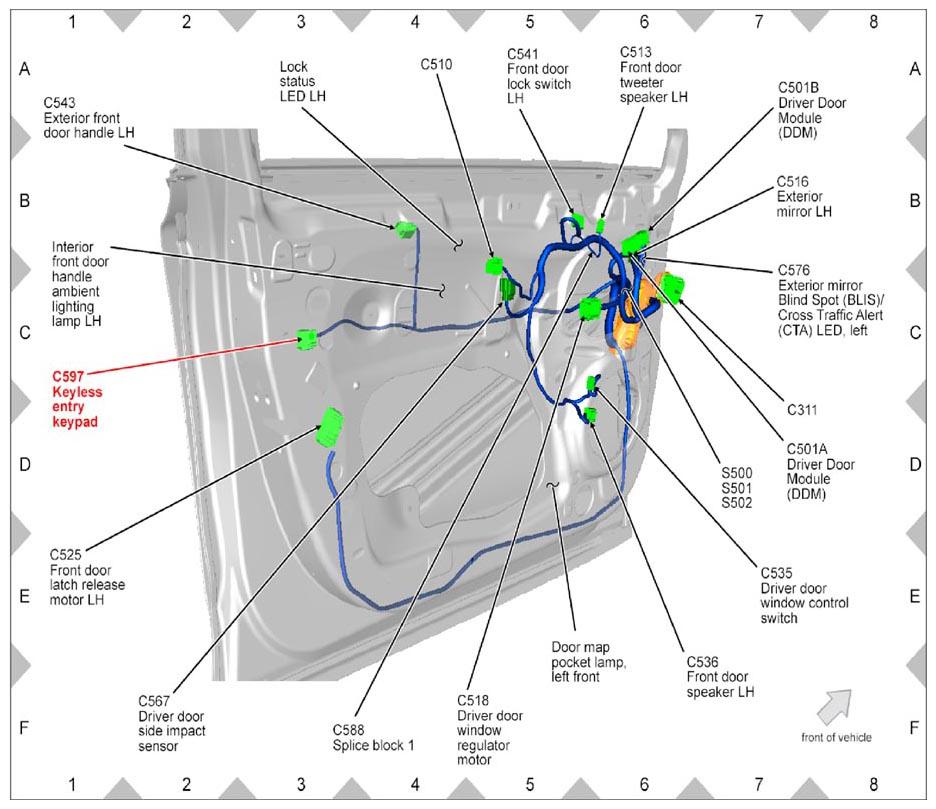

Fig 215: Identifying Keyless Entry Keypad Connector (C597) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 216: Identifying Keyless Entry Keypad Connector (C597) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 217: Identifying Exterior Mirror RH Connector (C601) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 218: Identifying Exterior Mirror RH Connector (C601) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 219: Identifying Front Door Lock Switch RH Connector (C605) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 220: Identifying Front Door Lock Switch RH Connector (C605) (MKZ)

Courtesy of FORD MOTOR CO.

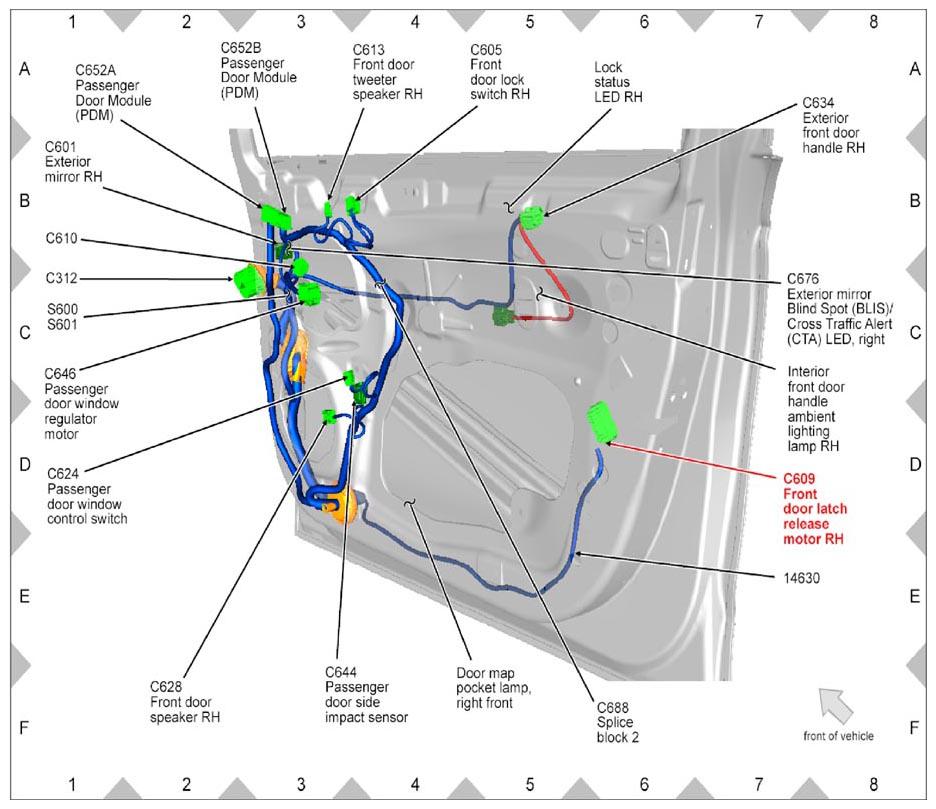

Fig 221: Identifying Front Door Latch Release Motor RH Connector (C609) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 222: Identifying Front Door Latch Release Motor RH Connector (C609) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 223: Identifying Connector (C610) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 224: Identifying Connector (C610) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 225: Identifying Front Door Tweeter Speaker RH Connector (C613) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 226: Identifying Front Door Tweeter Speaker RH Connector (C613) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 227: Identifying Passenger Door Window Control Switch Connector (C624) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 228: Identifying Passenger Door Window Control Switch Connector (C624) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 229: Identifying Front Door Speaker RH Connector (C628) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 230: Identifying Front Door Speaker RH Connector (C628) (MKZ)

Courtesy of FORD MOTOR CO.

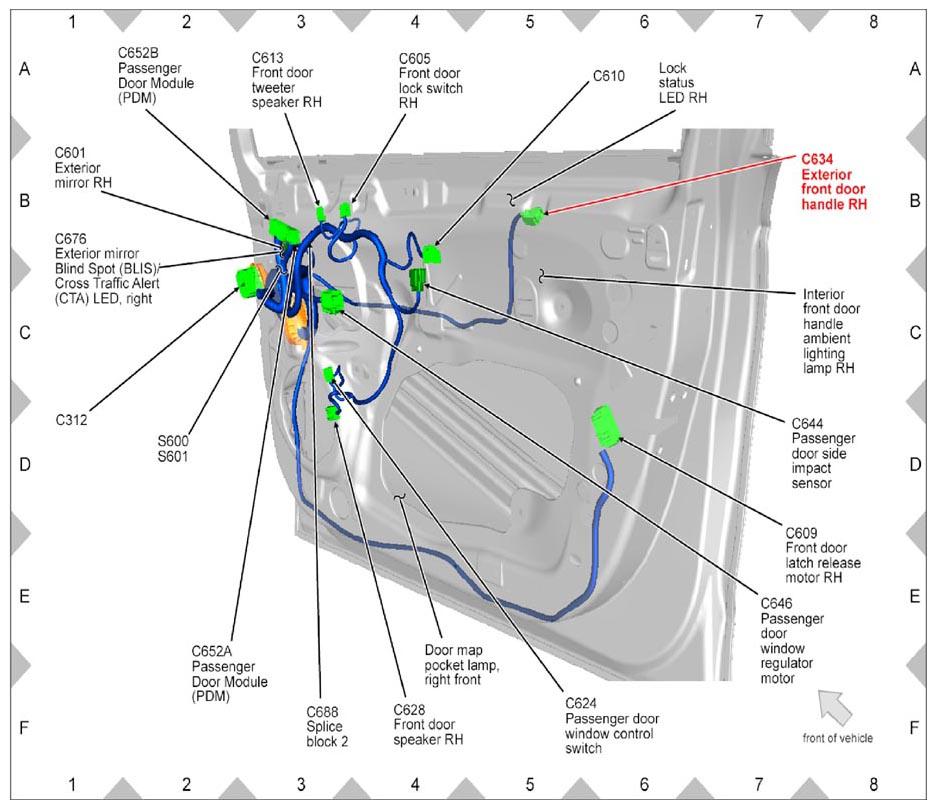

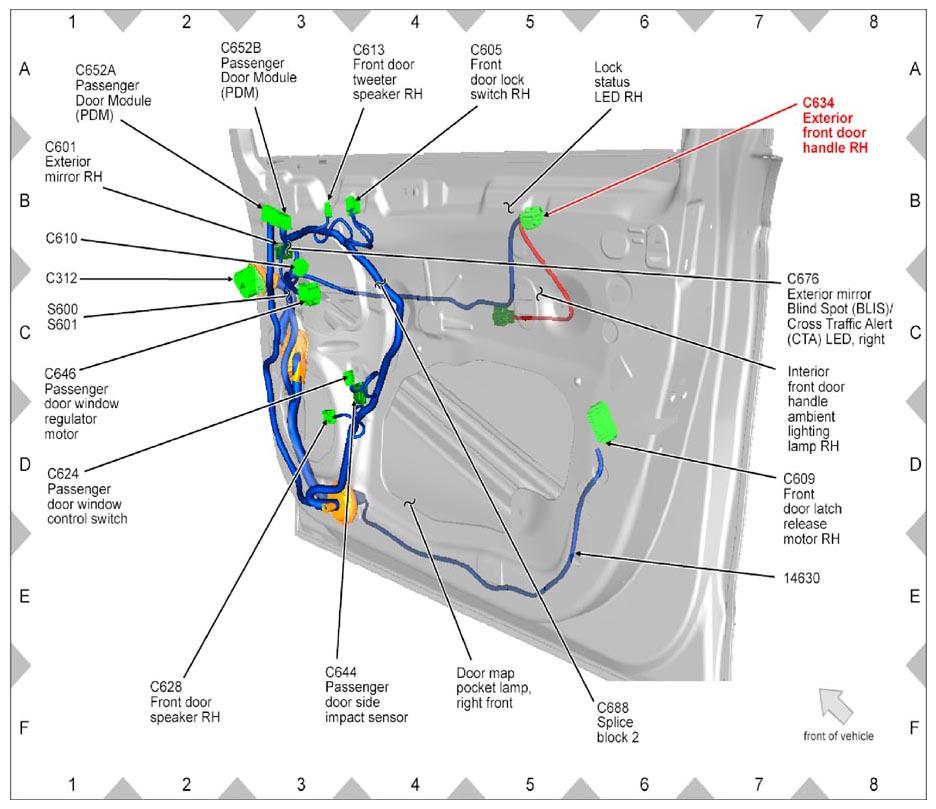

Fig 231: Identifying Exterior Front Door Handle RH Connector (C634) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 232: Identifying Exterior Front Door Handle RH Connector (C634) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 233: Identifying Passenger Door Side Impact Sensor Connector (C644) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 234: Identifying Passenger Door Side Impact Sensor Connector (C644) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 235: Identifying Passenger Door Window Regulator Motor Connector (C646) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 236: Identifying Passenger Door Window Regulator Motor Connector (C646) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 237: Identifying Passenger Door Module (PDM) Connector (C652A) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 238: Identifying Passenger Door Module (PDM) Connector (C652A) (MKZ)

Courtesy of FORD MOTOR CO.

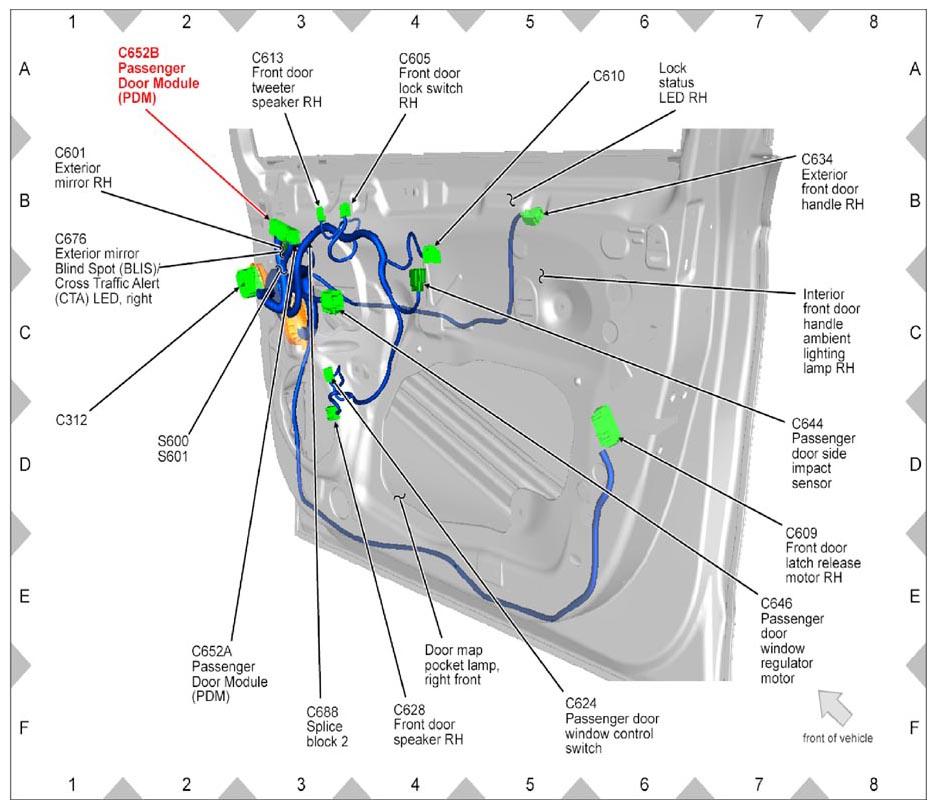

Fig 239: Identifying Passenger Door Module (PDM) Connector (C652B) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 240: Identifying Passenger Door Module (PDM) Connector (C652B) (MKZ)

Courtesy of FORD MOTOR CO.

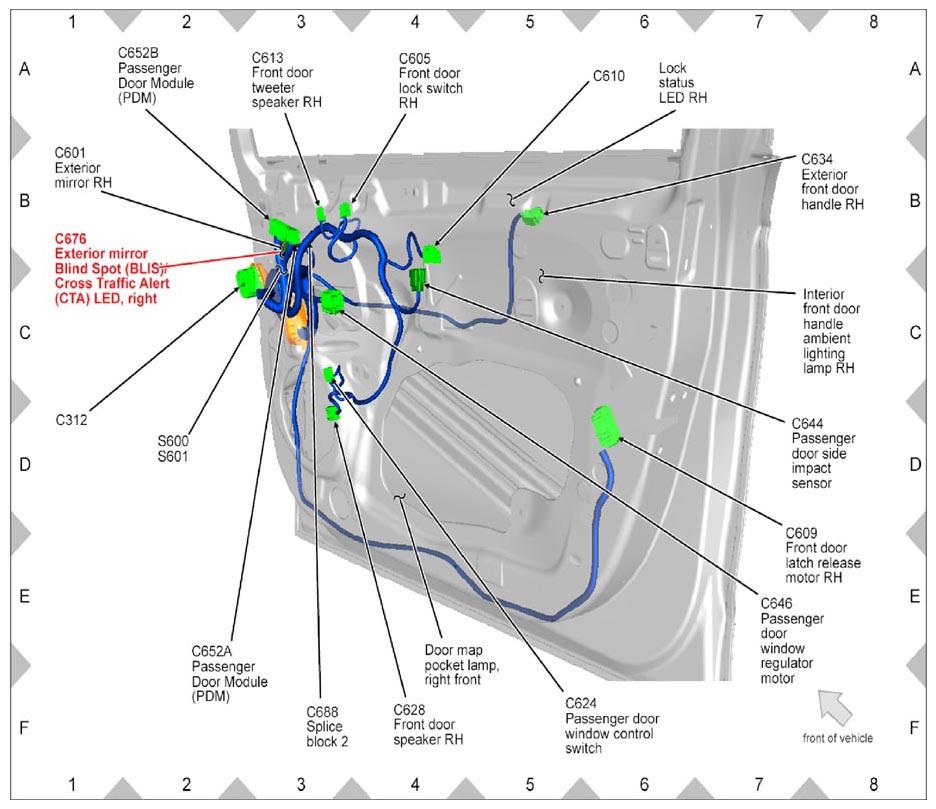

Fig 241: Identifying Exterior Mirror Blind Spot/Cross Traffic Alert LED - Right Connector (C676) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 242: Identifying Exterior Mirror Blind Spot/Cross Traffic Alert LED - Right Connector (C676) (MKZ)

Courtesy of FORD MOTOR CO.

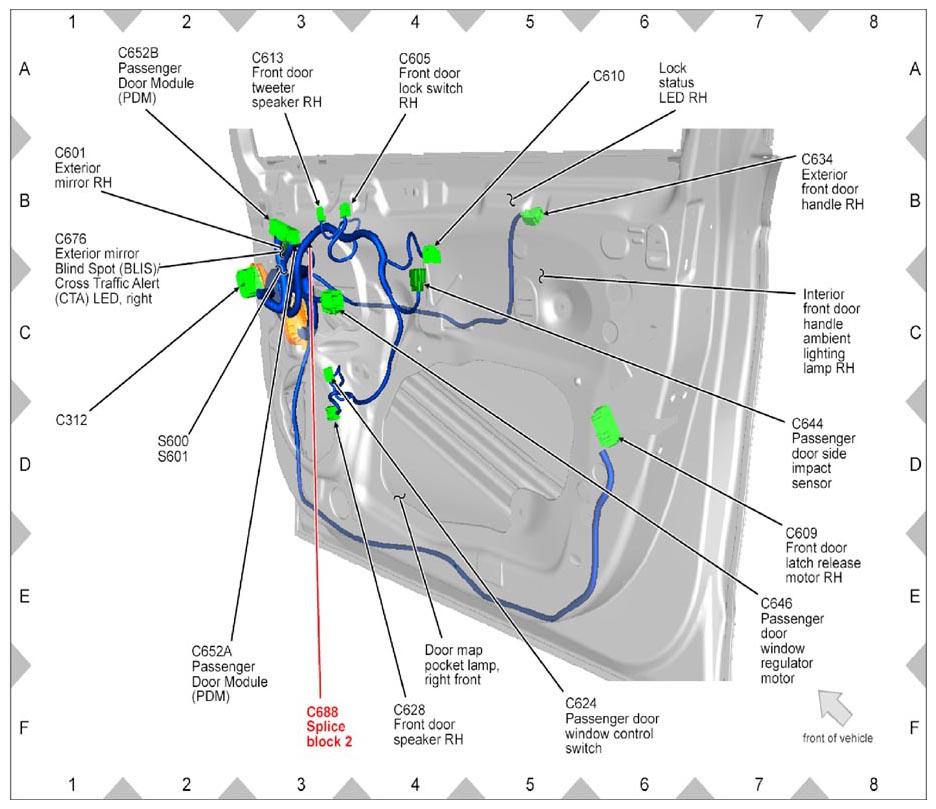

Fig 243: Identifying Splice Block 2 Connector (C688) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 244: Identifying Splice Block 2 Connector (C688) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 245: Identifying Rear Door Window Control Switch LH Connector (C701) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 246: Identifying Rear Door Window Control Switch LH Connector (C701) (MKZ)

Courtesy of FORD MOTOR CO.

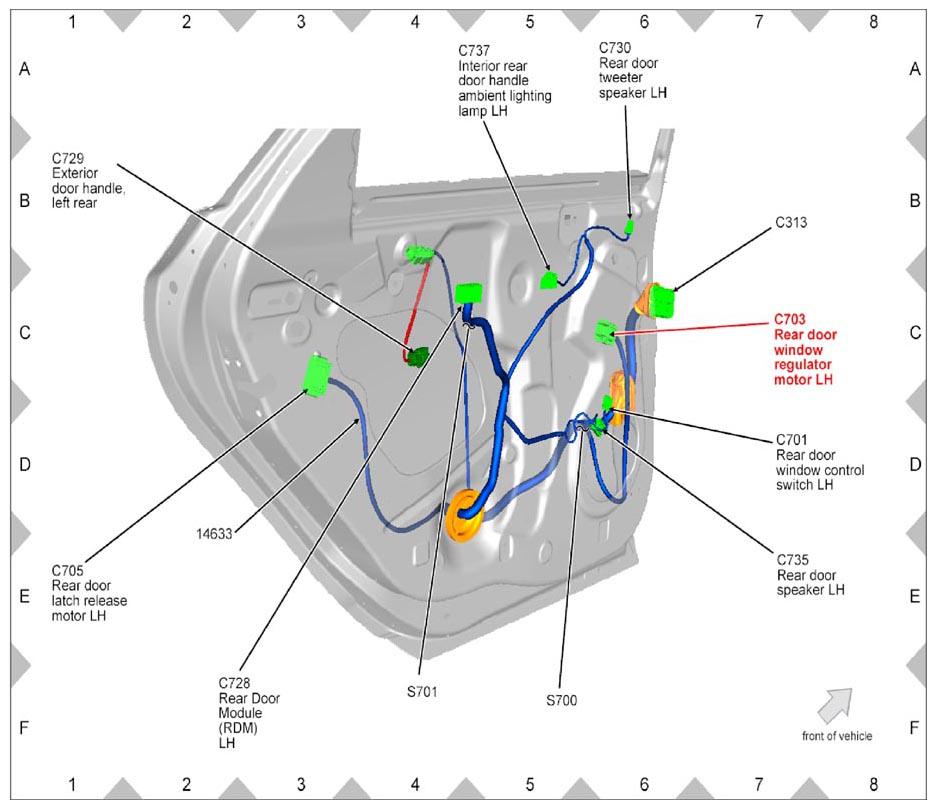

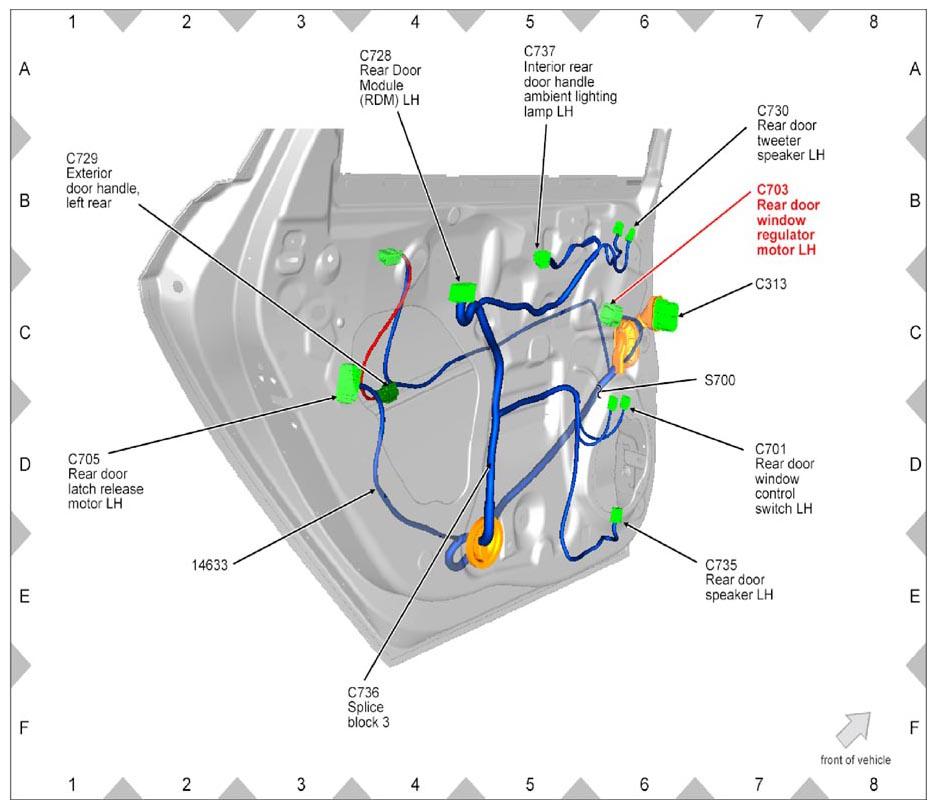

Fig 247: Identifying Rear Door Window Regulator Motor LH Connector (C703) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 248: Identifying Rear Door Window Regulator Motor LH Connector (C703) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 249: Identifying Rear Door Latch Release Motor LH Connector (C705) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 250: Identifying Rear Door Latch Release Motor LH Connector (C705) (MKZ)

Courtesy of FORD MOTOR CO.

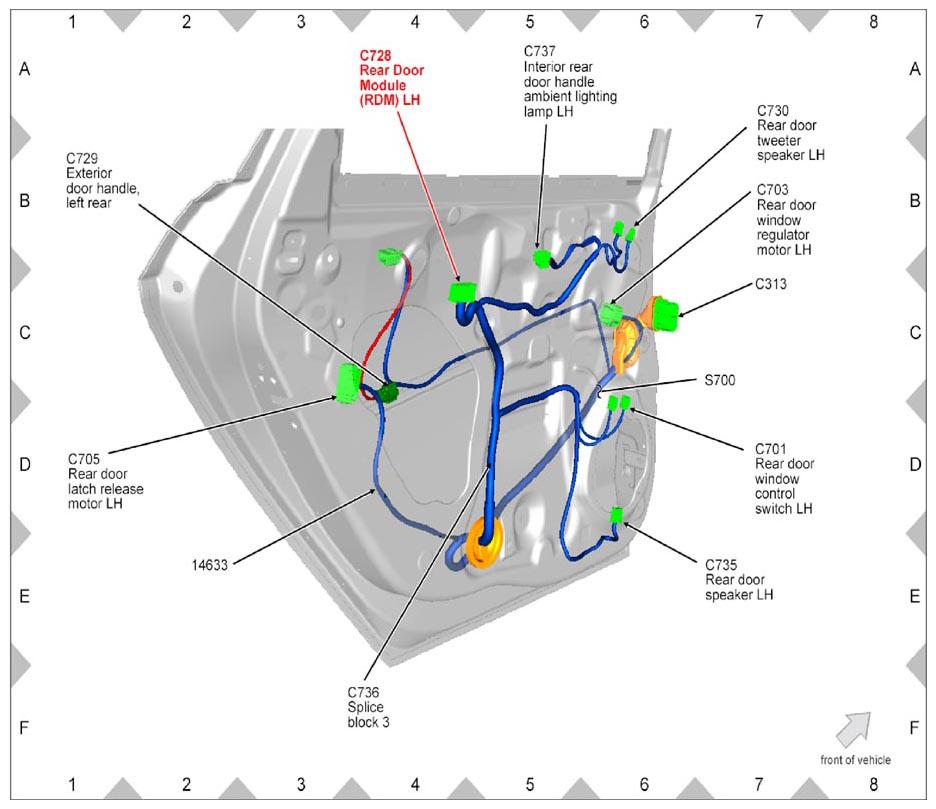

Fig 251: Identifying Rear Door Module (RDM) LH Connector (C728) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 252: Identifying Rear Door Module (RDM) LH Connector (C728) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 253: Identifying Exterior Door Handle Left Rear Connector (C729) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 254: Identifying Exterior Door Handle - Left Rear Connector (C729) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 255: Identifying Rear Door Tweeter Speaker LH Connector (C730) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 256: Identifying Rear Door Tweeter Speaker LH Connector (C730) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 257: Identifying Rear Door Speaker LH Connector (C735) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 258: Identifying Rear Door Speaker LH Connector (C735) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 259: Identifying Splice Block 3 Connector (C736)

Courtesy of FORD MOTOR CO.

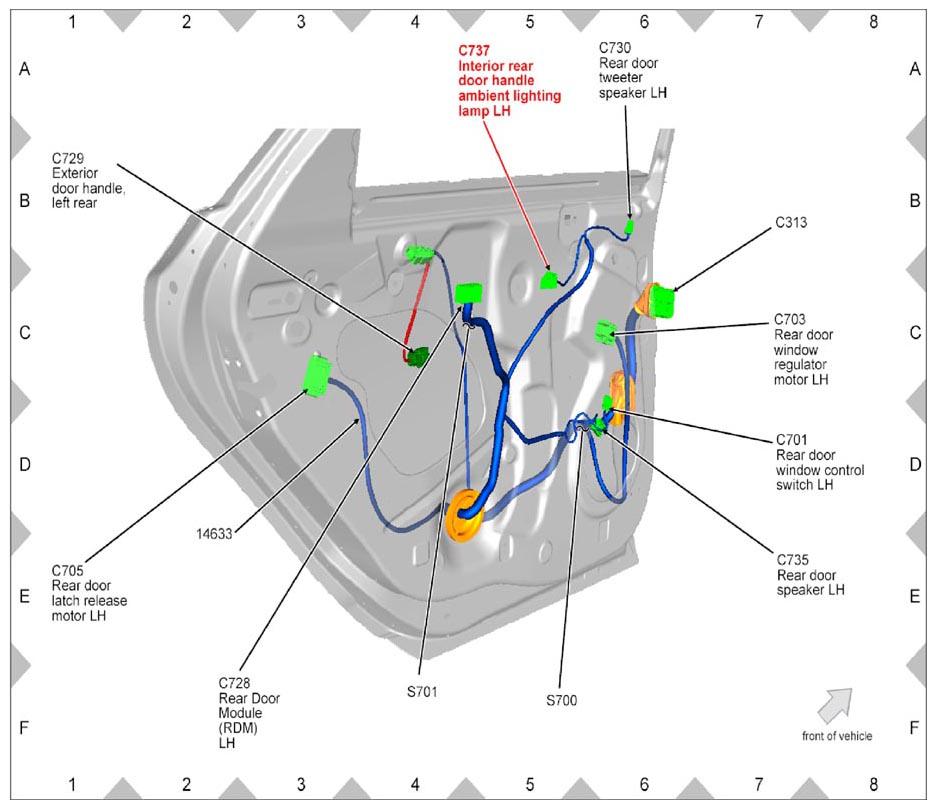

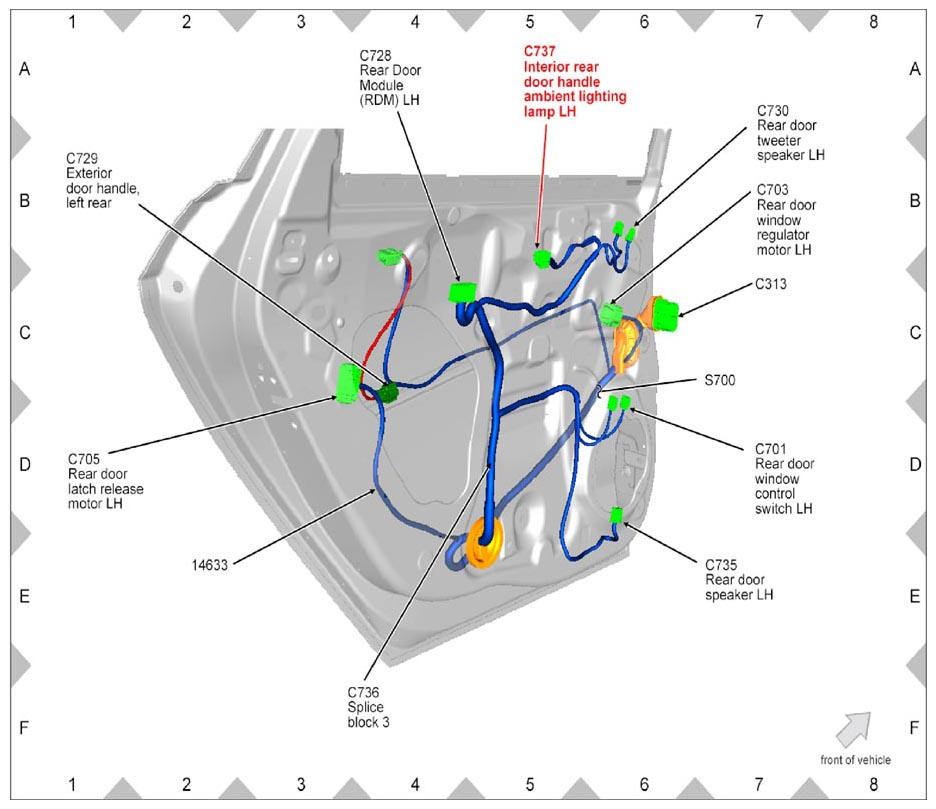

Fig 260: Identifying Interior Rear Door Handle Ambient Lighting Lamp LH Connector (C737) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 261: Identifying Interior Rear Door Handle Ambient Lighting Lamp LH Connector (C737) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 262: Identifying Rear Door Window Control Switch RH Connector (C801) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 263: Identifying Rear Door Window Control Switch RH Connector (C801) (MKZ)

Courtesy of FORD MOTOR CO.

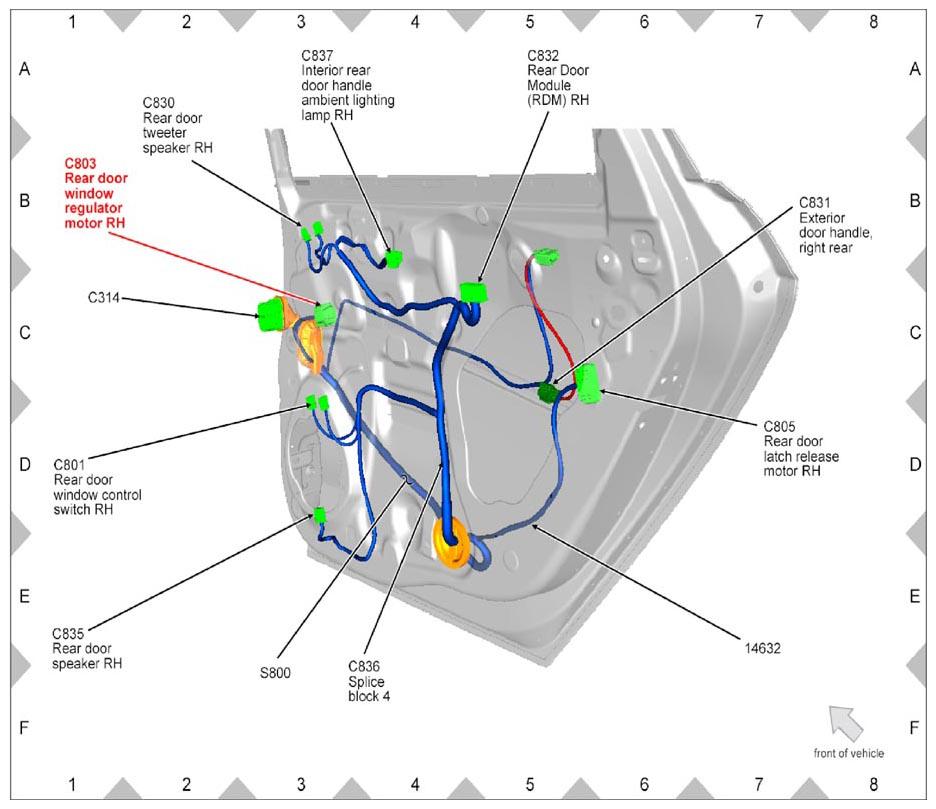

Fig 264: Identifying Rear Door Window Regulator Motor RH Connector (C803) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 265: Identifying Rear Door Window Regulator Motor RH Connector (C803) (MKZ)

Courtesy of FORD MOTOR CO.

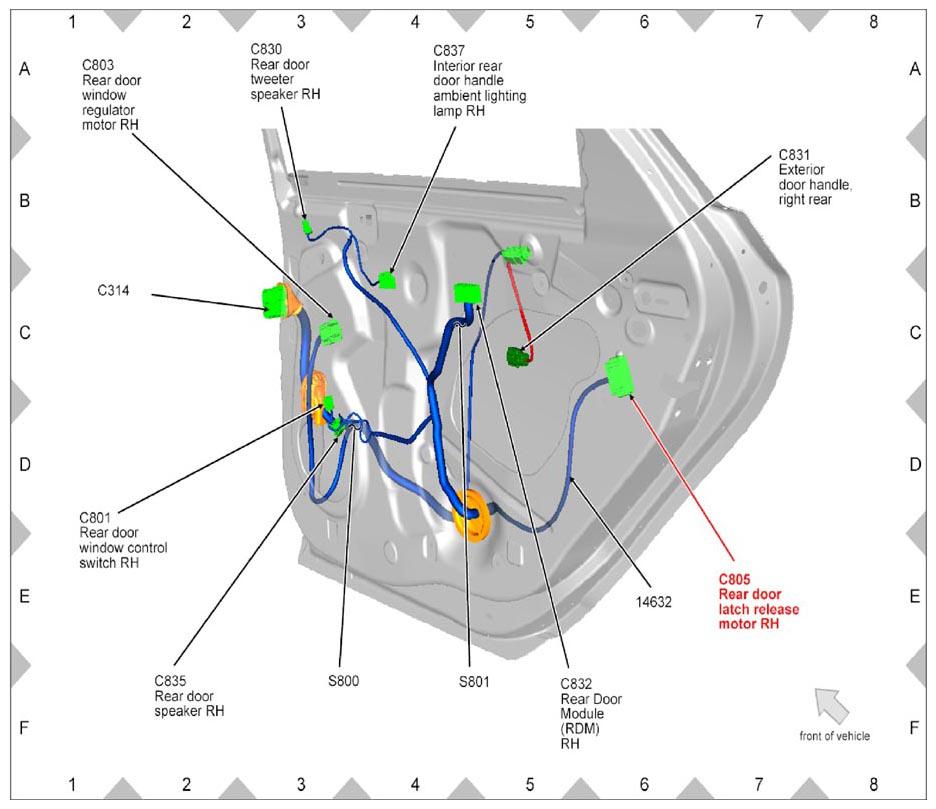

Fig 266: Identifying Rear Door Latch Release Motor RH Connector (C805) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 267: Identifying Rear Door Latch Release Motor RH Connector (C805) (MKZ)

Courtesy of FORD MOTOR CO.

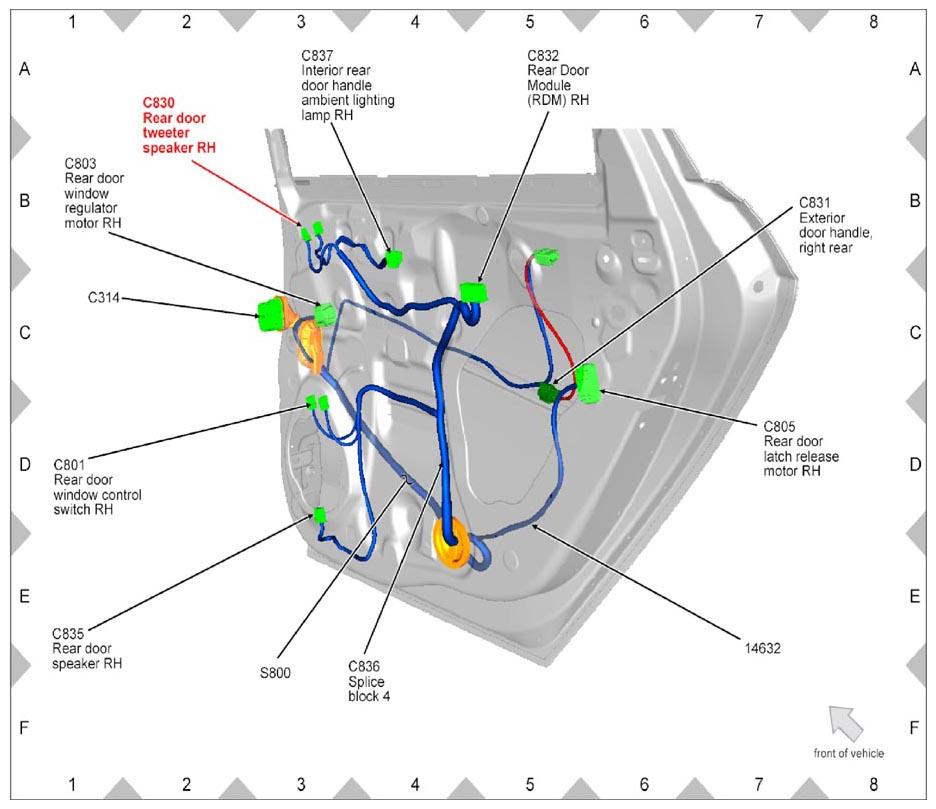

Fig 268: Identifying Rear Door Tweeter Speaker RH Connector (C830) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 269: Identifying Rear Door Tweeter Speaker RH Connector (C830) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 270: Identifying Exterior Door Handle - Right Rear Connector (C831) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 271: Identifying Exterior Door Handle - Right Rear Connector (C831) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 272: Identifying Rear Door Module (RDM) RH Connector (C832) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 273: Identifying Rear Door Module (RDM) RH Connector (C832) (MKZ)

Courtesy of FORD MOTOR CO.

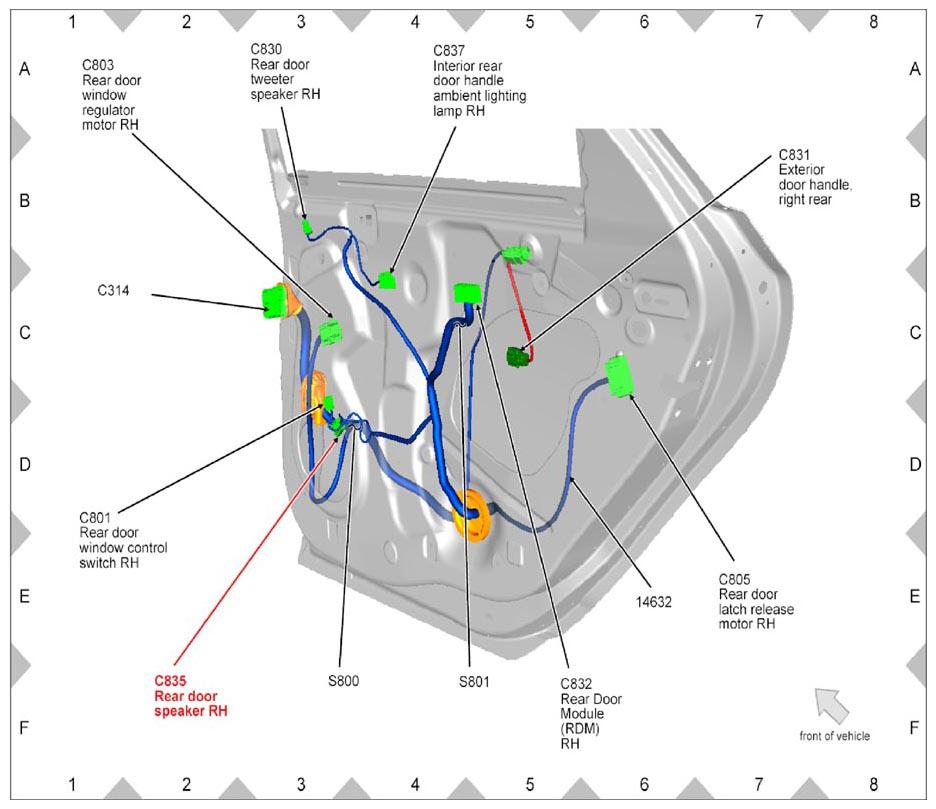

Fig 274: Identifying Rear Door Speaker RH Connector (C835) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 275: Identifying Rear Door Speaker RH Connector (C835) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 276: Identifying Splice Block 4 Connector (C836)

Courtesy of FORD MOTOR CO.

Fig 277: Identifying Interior Rear Door Handle Ambient Lighting Lamp RH Connector (C837) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 278: Identifying Interior Rear Door Handle Ambient Lighting Lamp RH Connector (C837) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 279: Identifying Connector (C900)

Courtesy of FORD MOTOR CO.

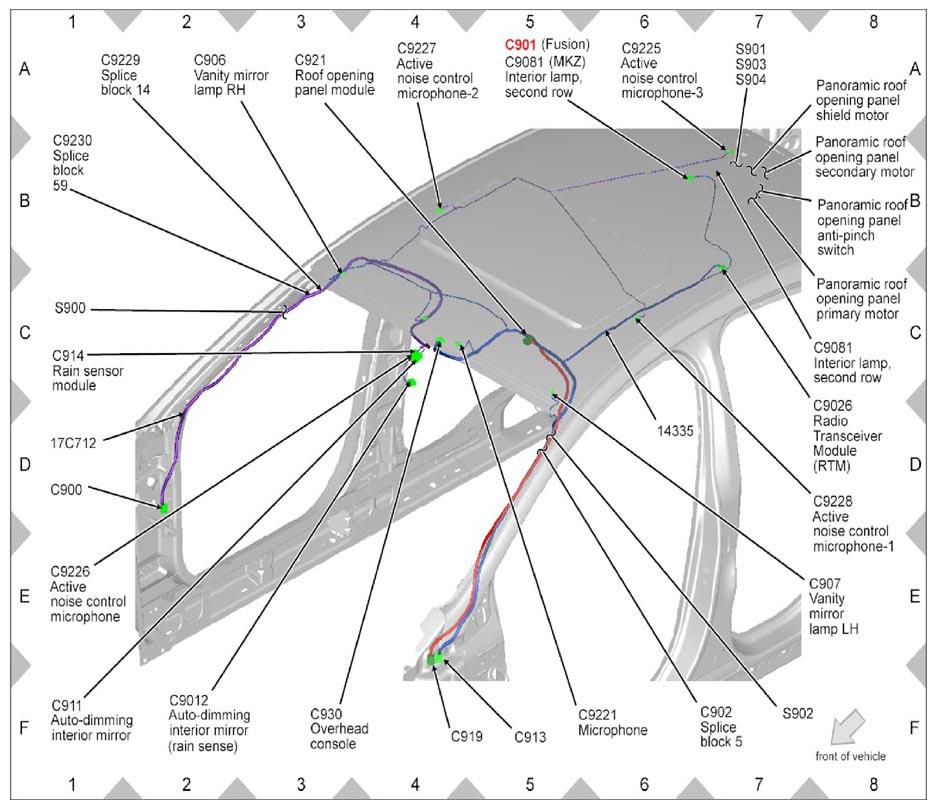

Fig 280: Identifying Connector (C901)

Courtesy of FORD MOTOR CO.

Fig 281: Identifying Splice Block 5 Connector (C902)

Courtesy of FORD MOTOR CO.

Fig 282: Identifying Vanity Mirror Lamp RH Connector (C906)

Courtesy of FORD MOTOR CO.

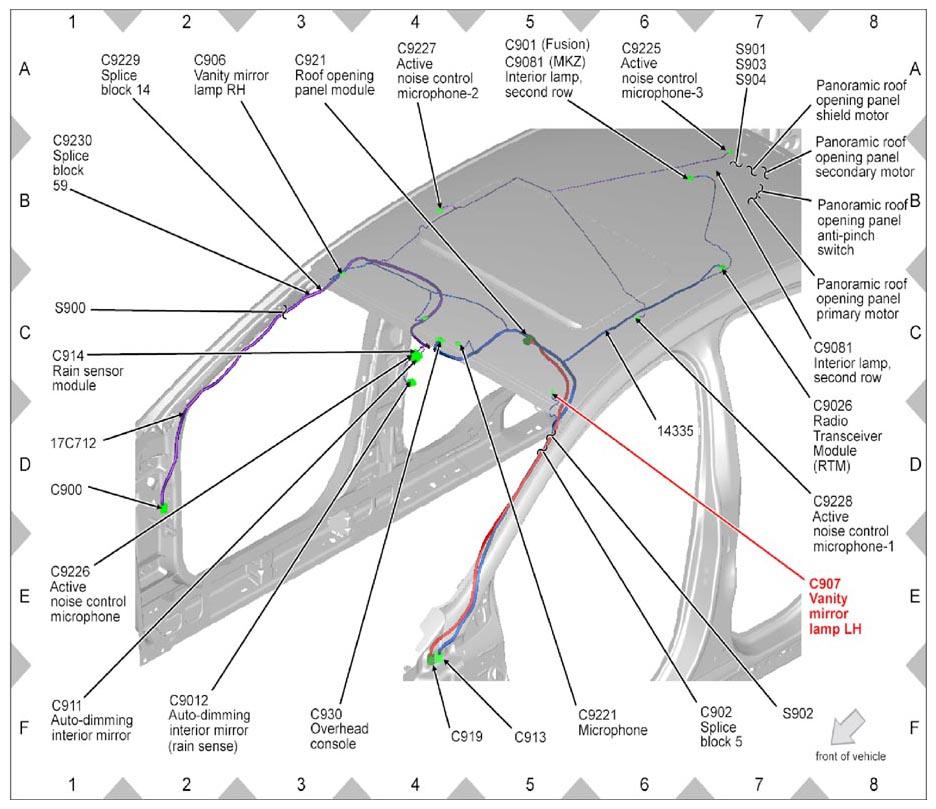

Fig 283: Identifying Vanity Mirror Lamp LH Connector (C907)

Courtesy of FORD MOTOR CO.

Fig 284: Identifying Auto-Dimming Interior Mirror Connector (C911)

Courtesy of FORD MOTOR CO.

Fig 285: Identifying Connector (C913)

Courtesy of FORD MOTOR CO.

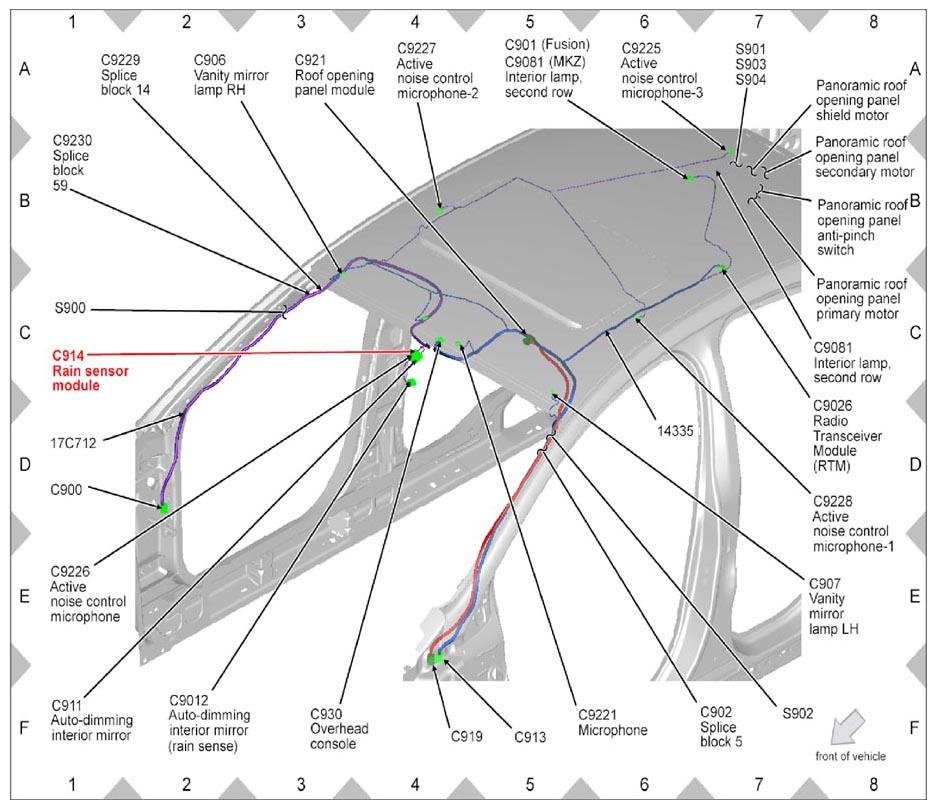

Fig 286: Identifying Rain Sensor Module Connector (C914)

Courtesy of FORD MOTOR CO.

Fig 287: Identifying Connector (C919)

Courtesy of FORD MOTOR CO.

Fig 288: Identifying Roof Opening Panel Module Connector (C921)

Courtesy of FORD MOTOR CO.

Fig 289: Identifying Connector (C922)

Courtesy of FORD MOTOR CO.

Fig 290: Identifying Connector (C925) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 291: Identifying Connector (C925) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 292: Identifying Overhead Console Connector (C930)

Courtesy of FORD MOTOR CO.

Fig 293: Identifying Connector (C1010)

Courtesy of FORD MOTOR CO.

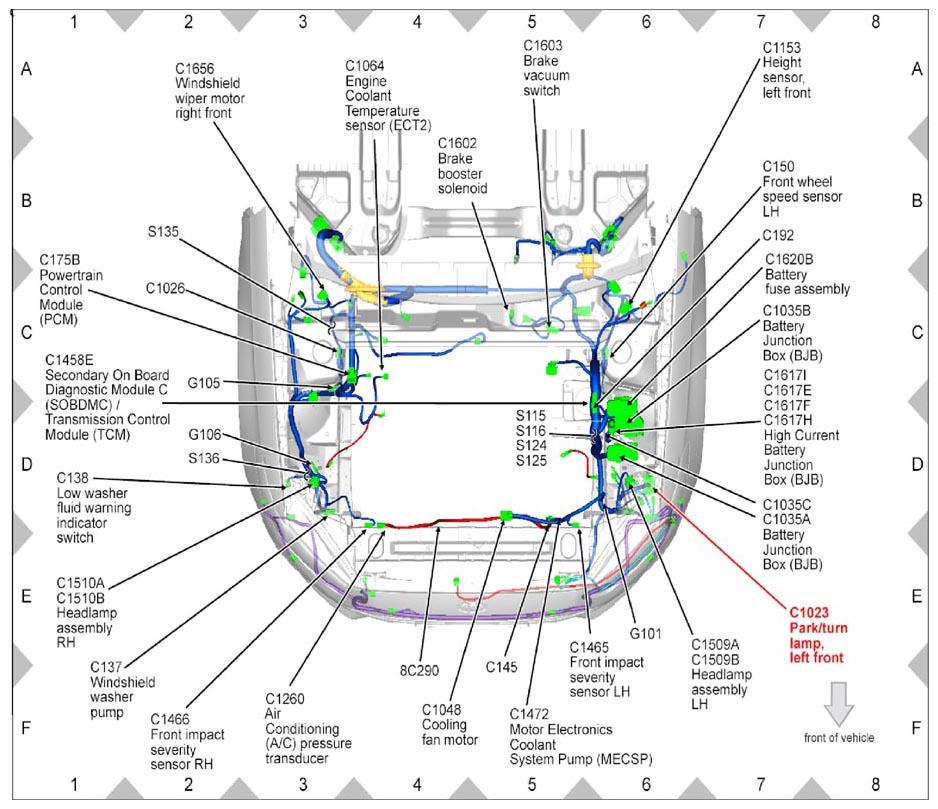

Fig 294: Identifying Park/Turn Lamp - Left Front Connector (C1023)

Courtesy of FORD MOTOR CO.

Fig 295: Identifying Connector (C1026)

Courtesy of FORD MOTOR CO.

Fig 296: Identifying Battery Junction Box (BJB) Connector (C1035A)

Courtesy of FORD MOTOR CO.

Fig 297: Identifying Battery Junction Box (BJB) Connector (C1035B)

Courtesy of FORD MOTOR CO.

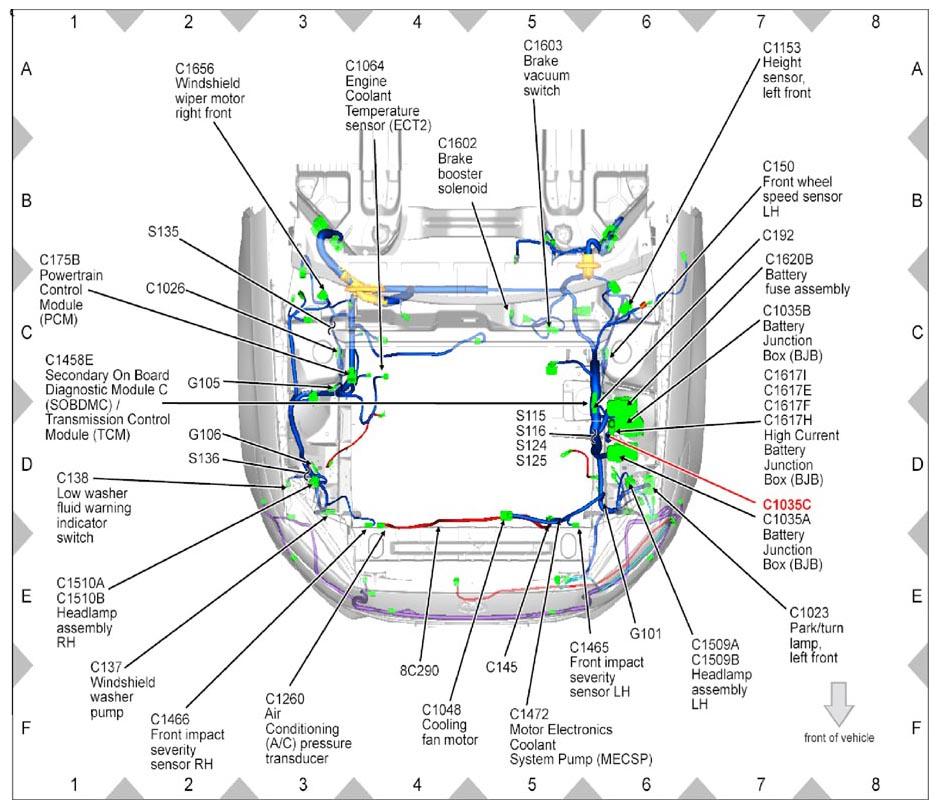

Fig 298: Identifying Connector (C1035C)

Courtesy of FORD MOTOR CO.

Fig 299: Identifying Park/Turn Lamp - Right Front Connector (C1043)

Courtesy of FORD MOTOR CO.

Fig 300: Identifying Cooling Fan Motor Connector (C1048)

Courtesy of FORD MOTOR CO.

Fig 301: Identifying Engine Coolant Temperature (ECT2) Sensor Connector (C1064)

Courtesy of FORD MOTOR CO.

Fig 302: Identifying Engine Coolant Temperature (ECT2) Sensor Connector (C1064) (PHEV)

Courtesy of FORD MOTOR CO.

Fig 303: Identifying Horn Left Connector (C1101)

Courtesy of FORD MOTOR CO.

Fig 304: Identifying Horn Right Connector (C1102)

Courtesy of FORD MOTOR CO.

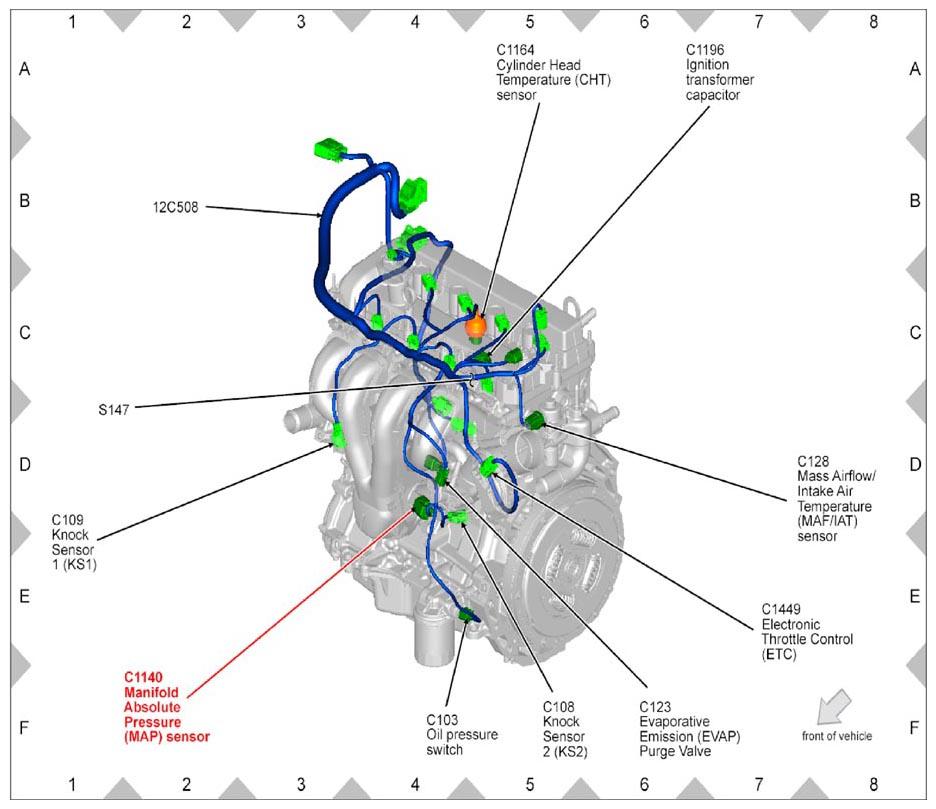

Fig 305: Identifying Manifold Absolute Pressure (MAP) Sensor Connector (C1140)

Courtesy of FORD MOTOR CO.

Fig 306: Identifying Height Sensor Right Front Connector (C1151)

Courtesy of FORD MOTOR CO.

Fig 307: Identifying Height Sensor - Left Front Connector (C1153)

Courtesy of FORD MOTOR CO.

Fig 308: Identifying Cylinder Head Temperature (CHT) Sensor Connector (C1164)

Courtesy of FORD MOTOR CO.

Fig 309: Identifying Ignition Transformer Capacitor Connector (C1196)

Courtesy of FORD MOTOR CO.

Fig 310: Identifying Air Conditioning (A/C) Pressure Transducer Connector (C1260)

Courtesy of FORD MOTOR CO.

Fig 311: Identifying Crankshaft Position (CKP) Sensor Connector (C1339)

Courtesy of FORD MOTOR CO.

Fig 312: Identifying Front Outer Parking Aid Sensor LH Connector (C1428)

Courtesy of FORD MOTOR CO.

Fig 313: Identifying Front Inner Parking Aid Sensor LH Connector (C1429)

Courtesy of FORD MOTOR CO.

Fig 314: Identifying Front Inner Parking Aid Sensor RH Connector (C1430)

Courtesy of FORD MOTOR CO.

Fig 315: Identifying Front Outer Parking Aid Sensor RH Connector (C1431)

Courtesy of FORD MOTOR CO.

Fig 316: Identifying Electronic Throttle Control (ETC) Connector (C1449)

Courtesy of FORD MOTOR CO.

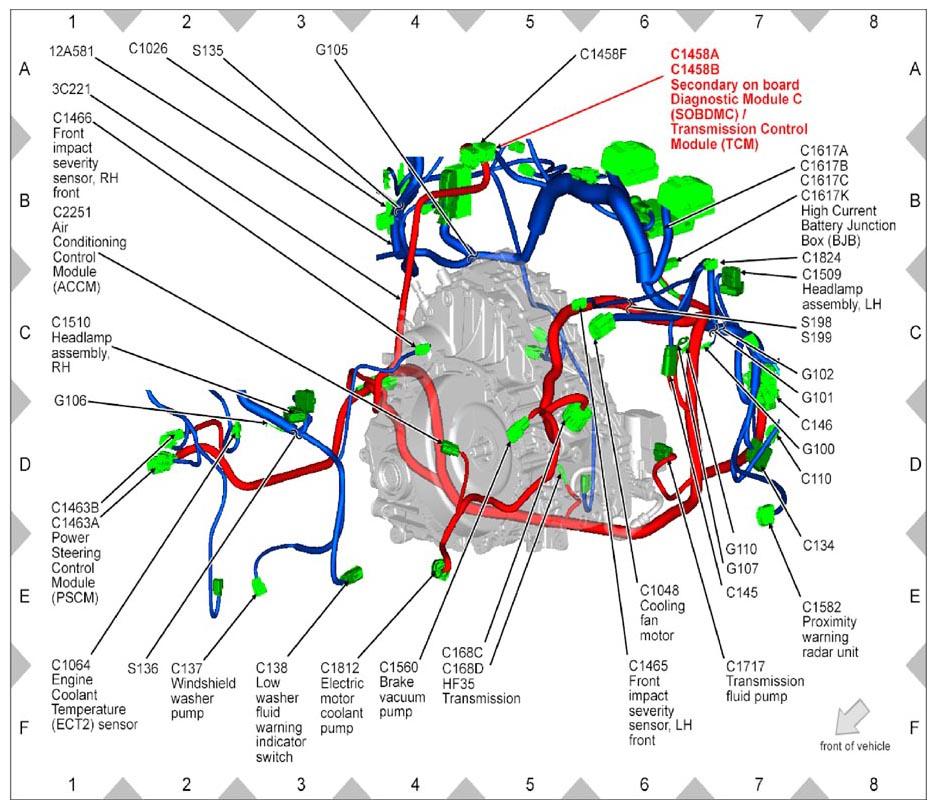

Fig 317: Identifying Secondary On Board Diagnostic Module C/Transmission Control Module Connector (C1458A And C1458B)

Courtesy of FORD MOTOR CO.

Fig 318: Identifying Secondary On Board Diagnostic Module C/Transmission Control Module Connector (C1458A And C1458B)

Courtesy of FORD MOTOR CO.

Fig 319: Identifying Connector (C1458C)

Courtesy of FORD MOTOR CO.

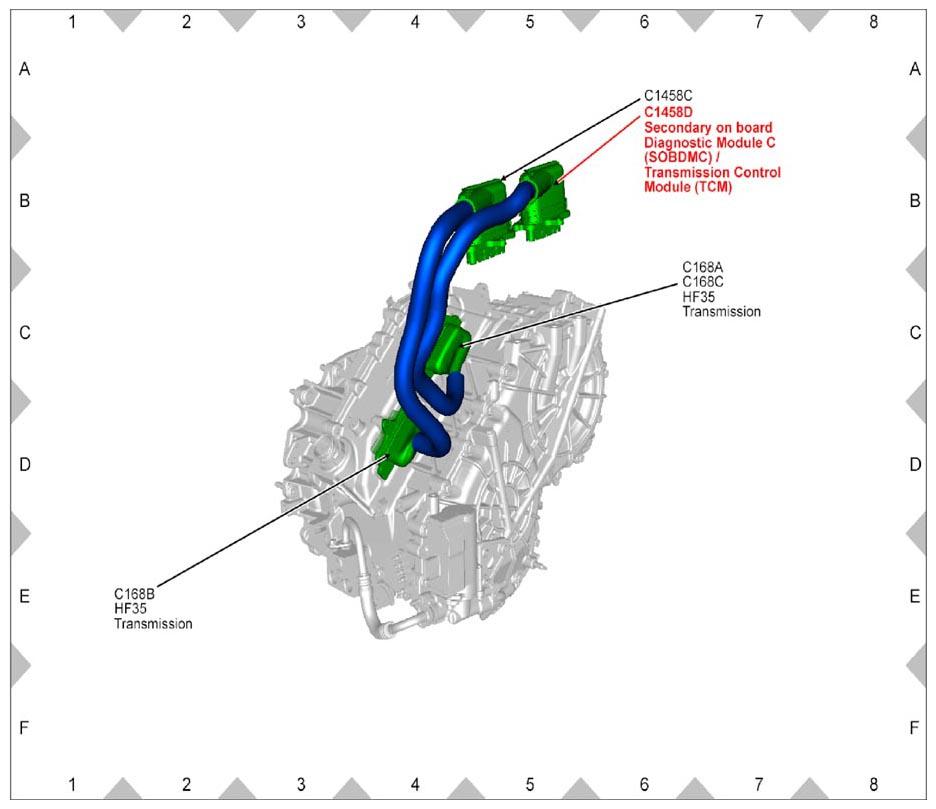

Fig 320: Identifying Secondary On Board Diagnostic Module C/Transmission Control Module Connector (C1458D)

Courtesy of FORD MOTOR CO.

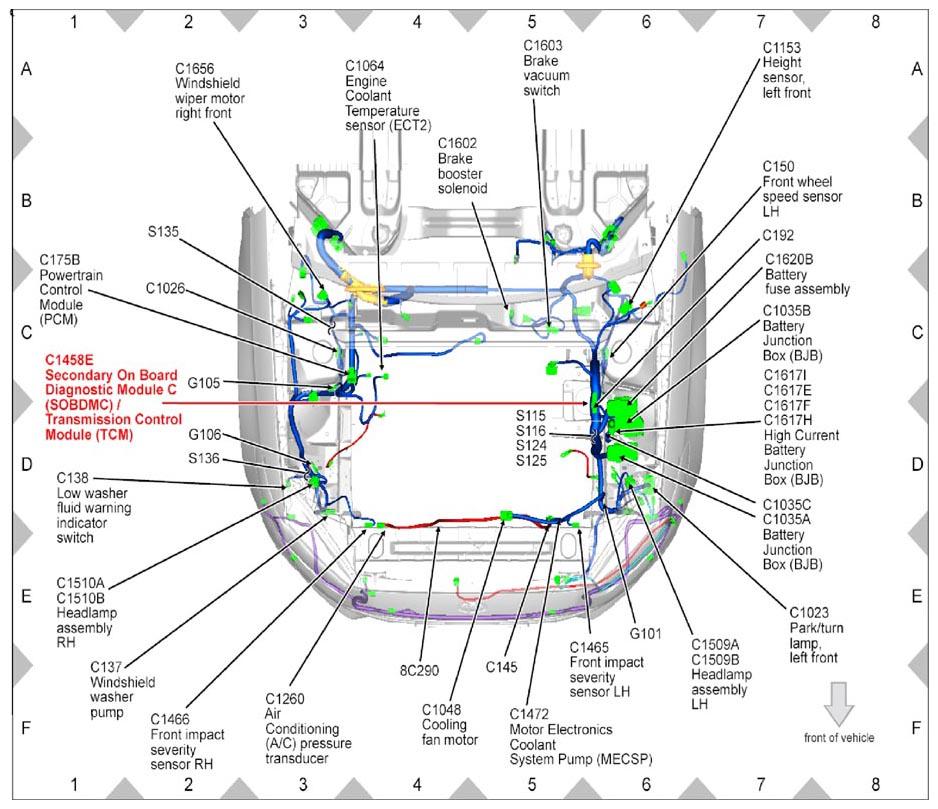

Fig 321: Identifying Secondary On Board Diagnostic Module C/Transmission Control Module Connector (C1458E)

Courtesy of FORD MOTOR CO.

Fig 322: Identifying Connector (C1458F)

Courtesy of FORD MOTOR CO.

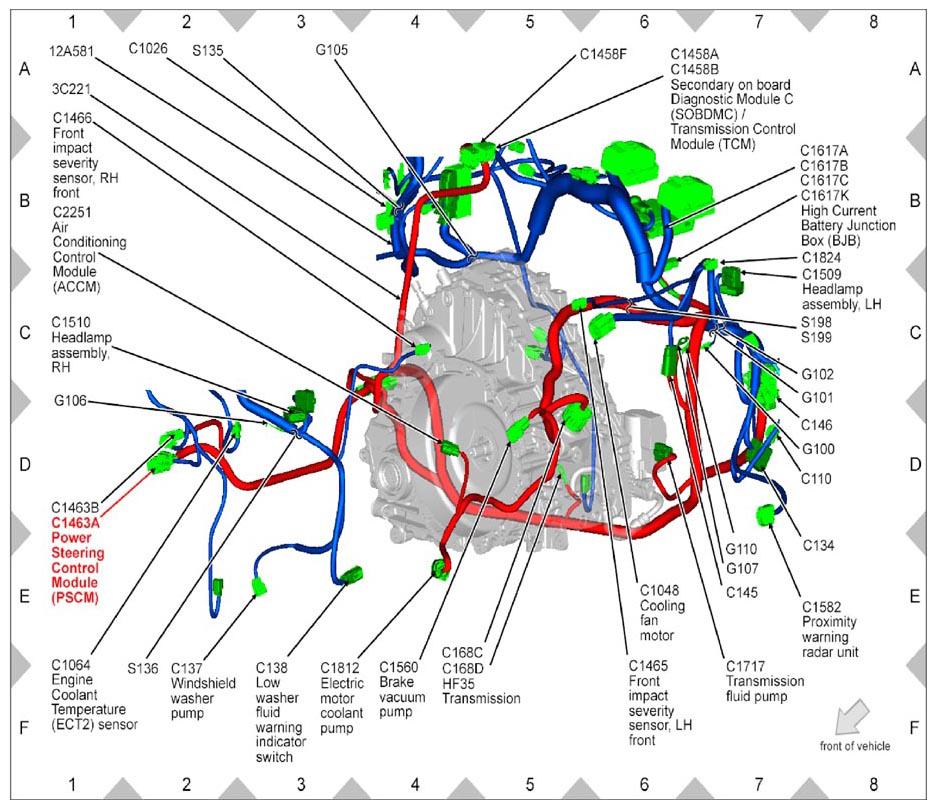

Fig 323: Identifying Power Steering Control Module (PSCM) Connector (C1463A)

Courtesy of FORD MOTOR CO.

Fig 324: Identifying Connector (C1463B)

Courtesy of FORD MOTOR CO.

Fig 325: Identifying Front Impact Severity Sensor - LH Front Connector (C1465)

Courtesy of FORD MOTOR CO.

Fig 326: Identifying Front Impact Severity Sensor - RH Front Connector (C1466)

Courtesy of FORD MOTOR CO.

Fig 327: Identifying Motor Electronics Coolant System Pump (MECSP) Connector (C1472)

Courtesy of FORD MOTOR CO.

Fig 328: Identifying Headlamp Assembly - LH Connector (C1509)

Courtesy of FORD MOTOR CO.

Fig 329: Identifying Headlamp Assembly - LH Connector (C1509A And C1509B)

Courtesy of FORD MOTOR CO.

Fig 330: Identifying Headlamp Assembly - LH Connector (C1509A And C1509B)

Courtesy of FORD MOTOR CO.

Fig 331: Identifying Headlamp Assembly - RH Connector (C1510)

Courtesy of FORD MOTOR CO.

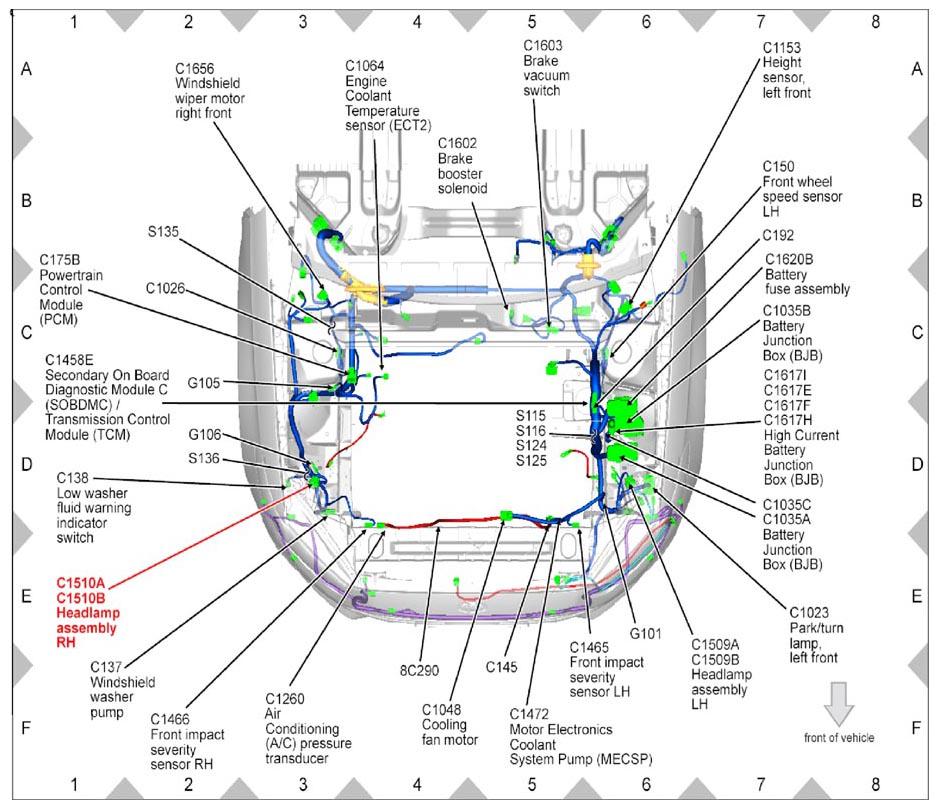

Fig 332: Identifying Headlamp Assembly - RH Connector (C1510A And C1510B)

Courtesy of FORD MOTOR CO.

Fig 333: Identifying Headlamp Assembly - RH Connector (C1510A And C1510B)

Courtesy of FORD MOTOR CO.

Fig 334: Identifying Brake Vacuum Pump Connector (C1560)

Courtesy of FORD MOTOR CO.

Fig 335: Identifying Proximity Warning Radar Unit Connector (C1582)

Courtesy of FORD MOTOR CO.

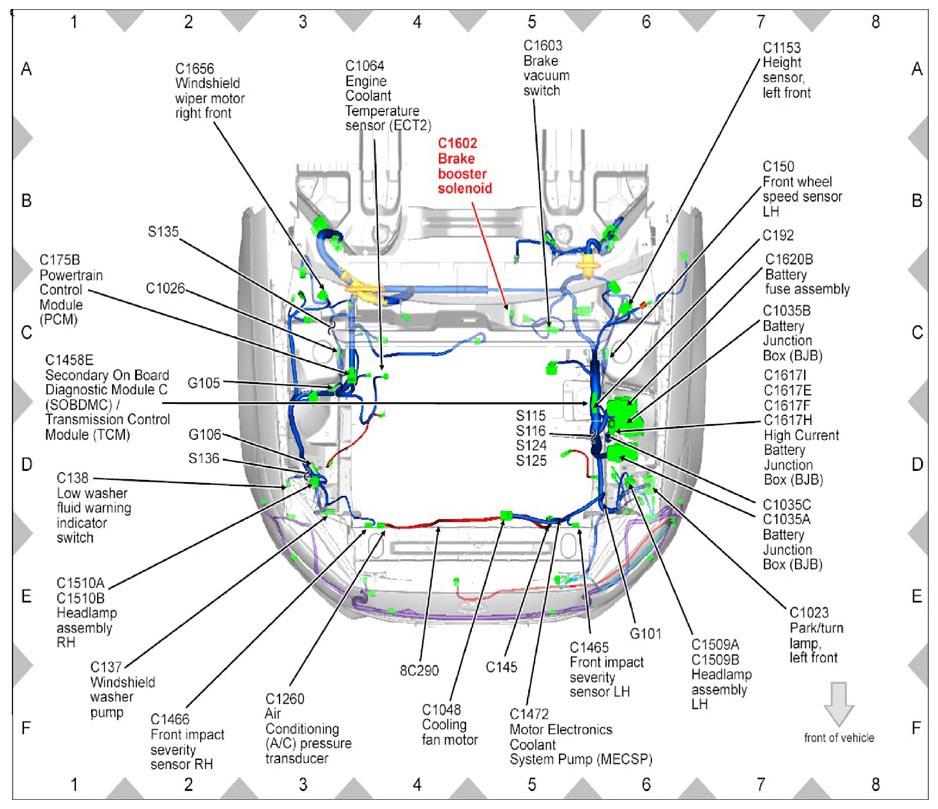

Fig 336: Identifying Brake Booster Solenoid Connector (C1602)

Courtesy of FORD MOTOR CO.

Fig 337: Identifying Brake Vacuum Switch Connector (C1603)

Courtesy of FORD MOTOR CO.

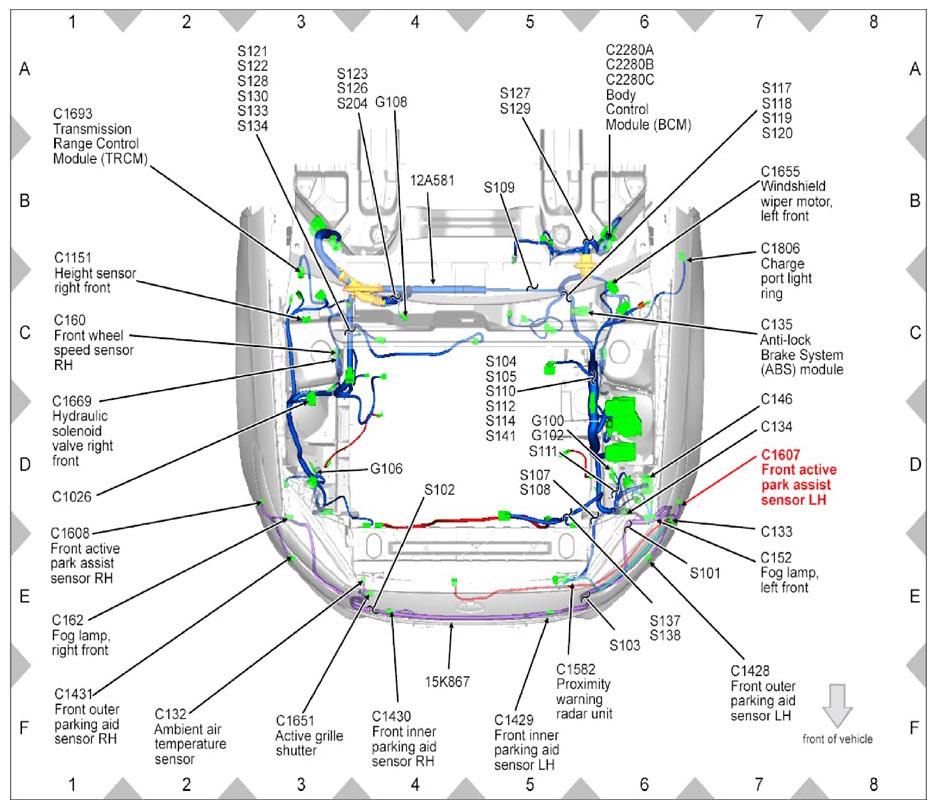

Fig 338: Identifying Front Active Park Assist Sensor LH Connector (C1607)

Courtesy of FORD MOTOR CO.

Fig 339: Identifying Front Active Park Assist Sensor RH Connector (C1608)

Courtesy of FORD MOTOR CO.

Fig 340: Identifying Connector (C1617A, C1617B And C1617C)

Courtesy of FORD MOTOR CO.

Fig 341: Identifying Connector (C1617A, C1617B And C1617C)

Courtesy of FORD MOTOR CO.

Fig 342: Identifying Connector (C1617A, C1617B And C1617C)

Courtesy of FORD MOTOR CO.

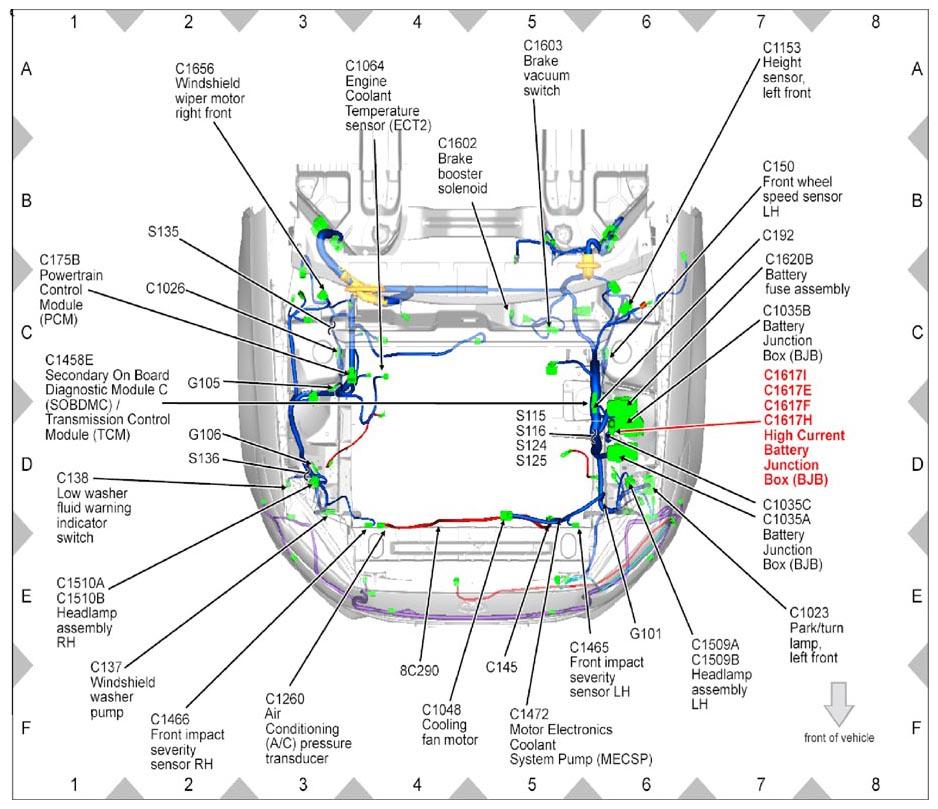

Fig 343: Identifying High Current Battery Junction Box (BJB) Connector (C1617I, C1617E, C1617F And C1617H)

Courtesy of FORD MOTOR CO.

Fig 344: Identifying High Current Battery Junction Box (BJB) Connector (C1617I, C1617E, C1617F And C1617H)

Courtesy of FORD MOTOR CO.

Fig 345: Identifying High Current Battery Junction Box (BJB) Connector (C1617I, C1617E, C1617F And C1617H)

Courtesy of FORD MOTOR CO.

Fig 346: Identifying High Current Battery Junction Box (BJB) Connector (C1617I, C1617E, C1617F And C1617H)

Courtesy of FORD MOTOR CO.

Fig 347: Identifying High Current Battery Junction Box (BJB) Connector (C1617K)

Courtesy of FORD MOTOR CO.

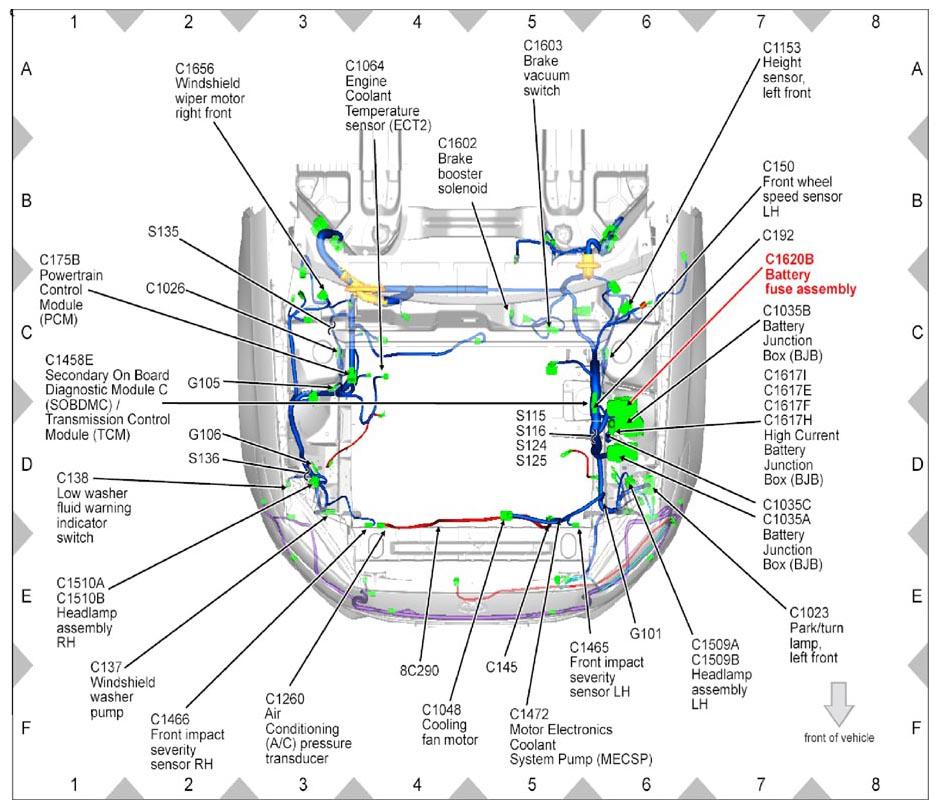

Fig 348: Identifying Battery Fuse Assembly Connector (C1620B)

Courtesy of FORD MOTOR CO.

Fig 349: Identifying Universal Heated Oxygen Sensor (HO2S) No. 11 Connector (C1631)

Courtesy of FORD MOTOR CO.

Fig 350: Identifying Variable Camshaft Timing 11 (VCT11) Solenoid Connector (C1648)

Courtesy of FORD MOTOR CO.

Fig 351: Identifying Active Grille Shutter Connector (C1651)

Courtesy of FORD MOTOR CO.

Fig 352: Identifying Windshield Wiper Motor - Left Front Connector (C1655)

Courtesy of FORD MOTOR CO.

Fig 353: Identifying Windshield Wiper Motor - Right Front Connector (C1656)

Courtesy of FORD MOTOR CO.

Fig 354: Identifying Hydraulic Solenoid Valve - Left Front Connector (C1668)

Courtesy of FORD MOTOR CO.

Fig 355: Identifying Hydraulic Solenoid Valve - Right Front Connector (C1669)

Courtesy of FORD MOTOR CO.

Fig 356: Identifying Transmission Range Control Module (TRCM) Connector (C1693)

Courtesy of FORD MOTOR CO.

Fig 357: Identifying Transmission Fluid Pump Connector (C1717)

Courtesy of FORD MOTOR CO.

Fig 358: Identifying Coil On Plug (COP) 1 Connector (C1730)

Courtesy of FORD MOTOR CO.

Fig 359: Identifying Coil On Plug (COP) 2 Connector (C1731)

Courtesy of FORD MOTOR CO.

Fig 360: Identifying Coil On Plug (COP) 3 Connector (C1732)

Courtesy of FORD MOTOR CO.

Fig 361: Identifying Coil On Plug (COP) 4 Connector (C1733)

Courtesy of FORD MOTOR CO.

Fig 362: Identifying Electric Exhaust Gas Recirculation (EEGR) Assembly Connector (C1746)

Courtesy of FORD MOTOR CO.

Fig 363: Identifying Charge Port Light Ring Connector (C1806)

Courtesy of FORD MOTOR CO.

Fig 364: Identifying Charge Port Connector (C1807)

Courtesy of FORD MOTOR CO.

Fig 365: Identifying Electric Motor Coolant Pump Connector (C1812)

Courtesy of FORD MOTOR CO.

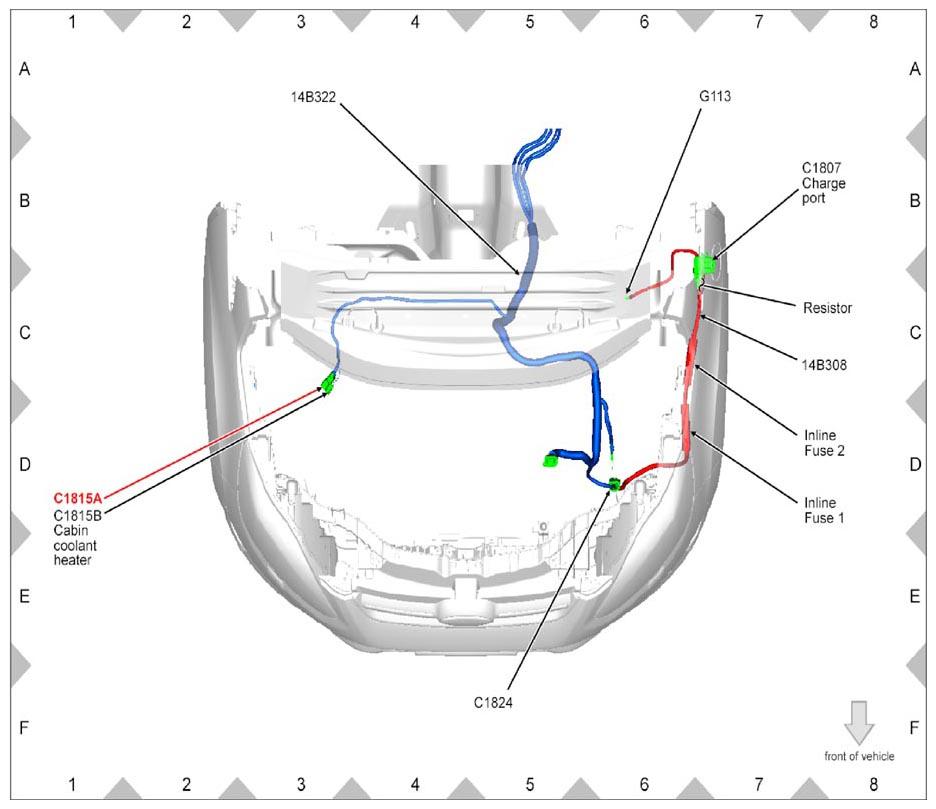

Fig 366: Identifying Connector (C1815A)

Courtesy of FORD MOTOR CO.

Fig 367: Identifying Cabin Coolant Heater Connector (C1815B)

Courtesy of FORD MOTOR CO.

Fig 368: Identifying Connector (C1815C)

Courtesy of FORD MOTOR CO.

Fig 369: Identifying Connector (C1824)

Courtesy of FORD MOTOR CO.

Fig 370: Identifying Connector (C1824) (HEV)

Courtesy of FORD MOTOR CO.

Fig 371: Identifying Heater Core Shutoff Connector (C1914)

Courtesy of FORD MOTOR CO.

Fig 372: Identifying Blower Motor Connector (C2004)

Courtesy of FORD MOTOR CO.

Fig 373: Identifying Parking Brake Switch Connector (C2015)

Courtesy of FORD MOTOR CO.

Fig 374: Identifying Accelerator Pedal Position (APP) Sensor Connector (C2040)

Courtesy of FORD MOTOR CO.

Fig 375: Identifying Driver Temperature Door Actuator Connector (C2091)

Courtesy of FORD MOTOR CO.

Fig 376: Identifying Passenger Temperature Door Actuator Connector (C2092)

Courtesy of FORD MOTOR CO.

Fig 377: Identifying Passenger Airbag Deactivation (PAD) Switch Connector (C2096)

Courtesy of FORD MOTOR CO.

Fig 378: Identifying Instrument Panel Console Switch Assembly Connector (C2114)

Courtesy of FORD MOTOR CO.

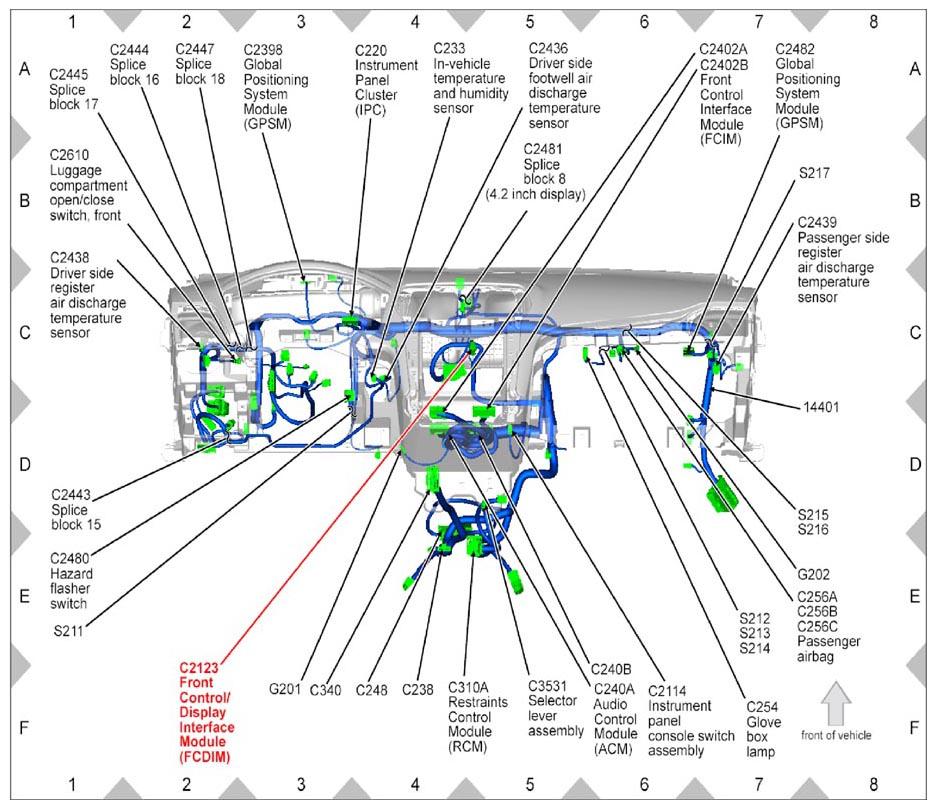

Fig 379: Identifying Front Control/Display Interface Module (FCDIM) Connector (C2123)

Courtesy of FORD MOTOR CO.

Fig 380: Identifying Headlamp Control Module (HCM) Connector (C2129)

Courtesy of FORD MOTOR CO.

Fig 381: Identifying Ignition Switch-Push Button Start Connector (C2195)

Courtesy of FORD MOTOR CO.

Fig 382: Identifying Splice Block 24 Connector (C2198)

Courtesy of FORD MOTOR CO.

Fig 383: Identifying Splice Block 25 Connector (C2199)

Courtesy of FORD MOTOR CO.

Fig 384: Identifying Splice Block 26 Connector (C2200)

Courtesy of FORD MOTOR CO.

Fig 385: Identifying Air Conditioning Control Module (ACCM) Connector (C2251)

Courtesy of FORD MOTOR CO.

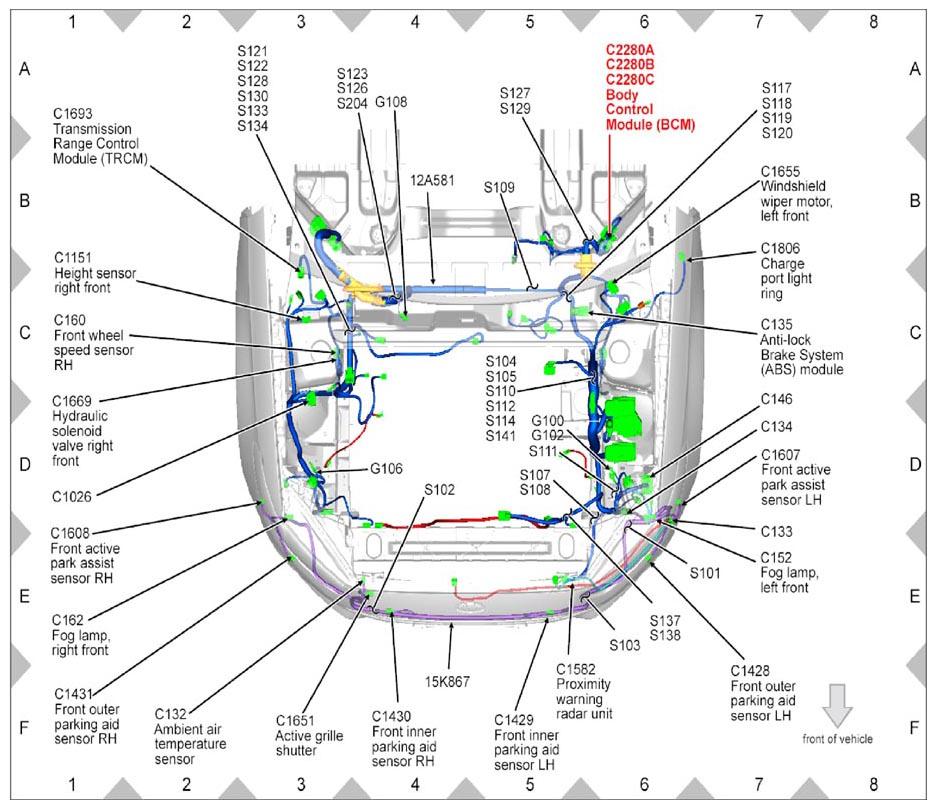

Fig 386: Identifying Body Control Module (BCM) Connector (C2280A, C2280B And C2280C)

Courtesy of FORD MOTOR CO.

Fig 387: Identifying Body Control Module (BCM) Connector (C2280A, C2280B And C2280C)

Courtesy of FORD MOTOR CO.

Fig 388: Identifying Body Control Module (BCM) Connector (C2280A, C2280B And C2280C)

Courtesy of FORD MOTOR CO.

Fig 389: Identifying Body Control Module (BCM) Connector (C2280D)

Courtesy of FORD MOTOR CO.

Fig 390: Identifying Body Control Module (BCM) Connector (C2280E)

Courtesy of FORD MOTOR CO.

Fig 391: Identifying Body Control Module (BCM) Connector (C2280F)

Courtesy of FORD MOTOR CO.

Fig 392: Identifying Connector (C2280G)

Courtesy of FORD MOTOR CO.

Fig 393: Identifying Connector (C2280G)

Courtesy of FORD MOTOR CO.

Fig 394: Identifying Body Control Module (BCM) Connector (C2280H) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 395: Identifying Body Control Module (BCM) Connector (C2280H) (MKZ)

Courtesy of FORD MOTOR CO.

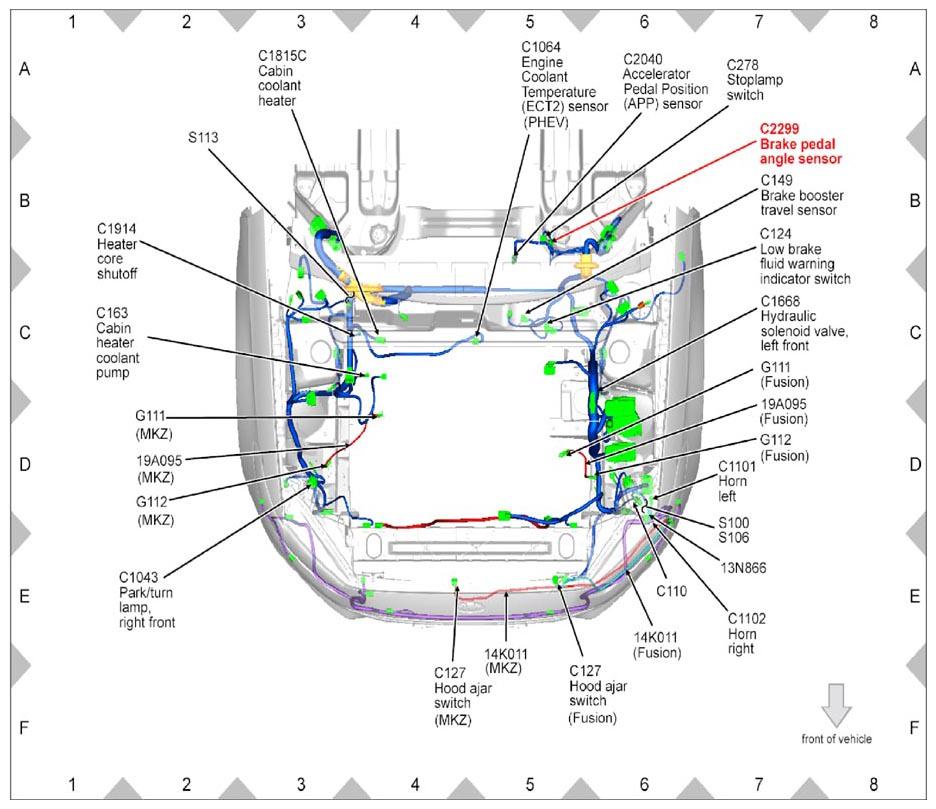

Fig 396: Identifying Brake Pedal Angle Sensor Connector (C2299)

Courtesy of FORD MOTOR CO.

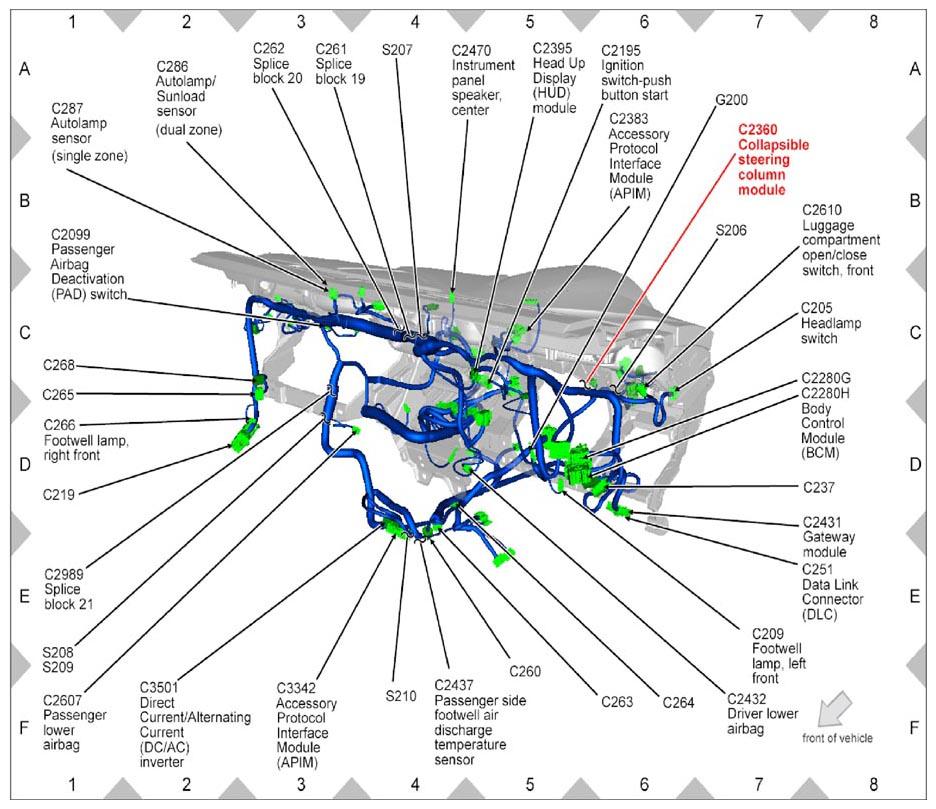

Fig 397: Identifying Collapsible Steering Column Module Connector (C2360) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 398: Identifying Collapsible Steering Column Module Connector (C2360) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 399: Identifying Splice Block 27 Connector (C2365)

Courtesy of FORD MOTOR CO.

Fig 400: Identifying Steering Wheel Switch - LH Lower Connector (C2366)

Courtesy of FORD MOTOR CO.

Fig 401: Identifying Steering Wheel Switch - RH Lower Connector (C2367)

Courtesy of FORD MOTOR CO.

Fig 402: Identifying Accessory Protocol Interface Module (APIM) Connector (C2383) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 403: Identifying Accessory Protocol Interface Module (APIM) Connector (C2383) (MKZ)

Courtesy of FORD MOTOR CO.

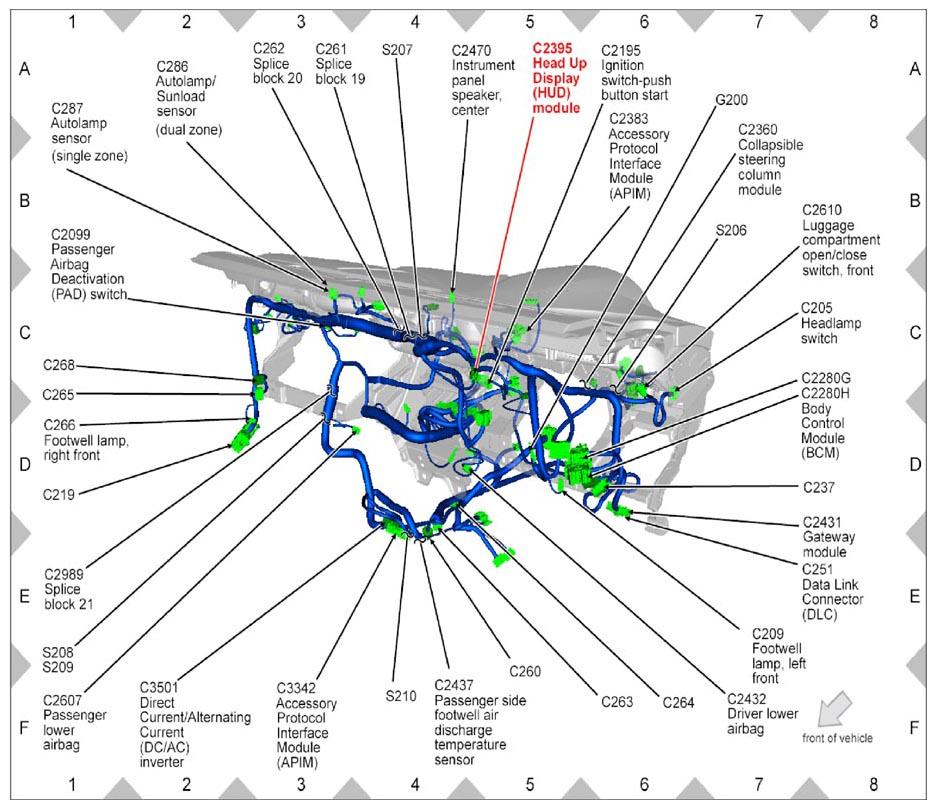

Fig 404: Identifying Head Up Display (HUD) Module Connector (C2395) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 405: Identifying Head Up Display (HUD) Module Connector (C2395) (MKZ)

Courtesy of FORD MOTOR CO.

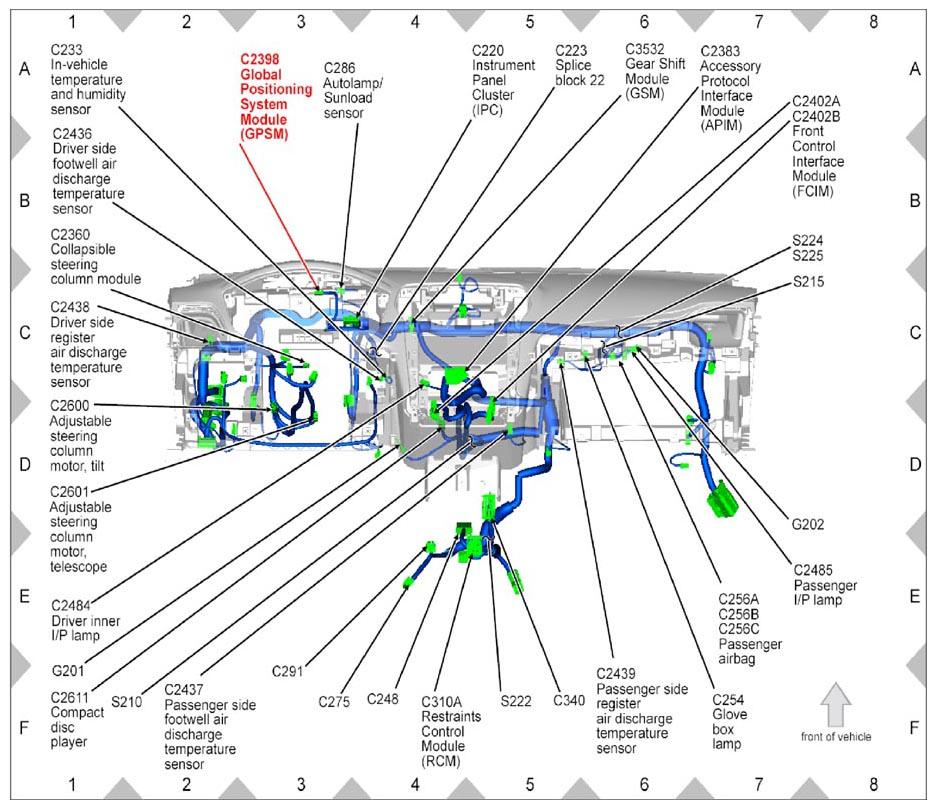

Fig 406: Identifying Global Positioning System Module (GPSM) Connector (C2398) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 407: Identifying Global Positioning System Module (GPSM) Connector (C2398) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 408: Identifying Connector (C2402A) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 409: Identifying Connector (C2402A) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 410: Identifying Front Control Interface Module (FCIM) Connector (C2402B) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 411: Identifying Front Control Interface Module (FCIM) Connector (C2402B) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 412: Identifying Heated Steering Wheel Module Connector (C2406)

Courtesy of FORD MOTOR CO.

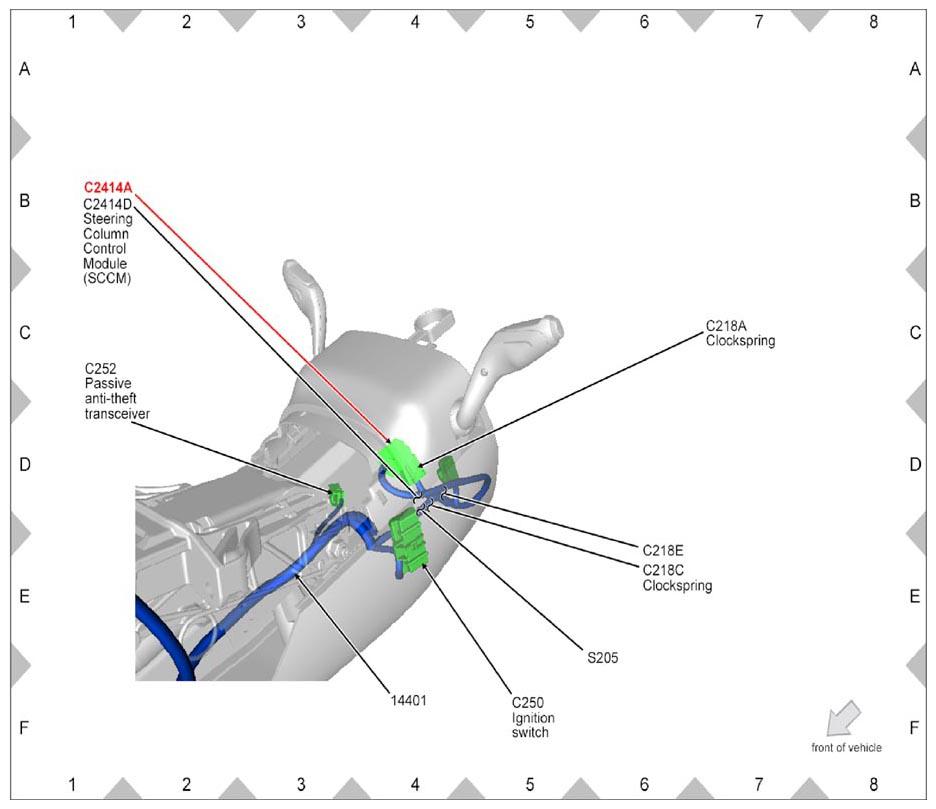

Fig 413: Identifying Connector (C2414A) (Fusion)

Courtesy of FORD MOTOR CO.

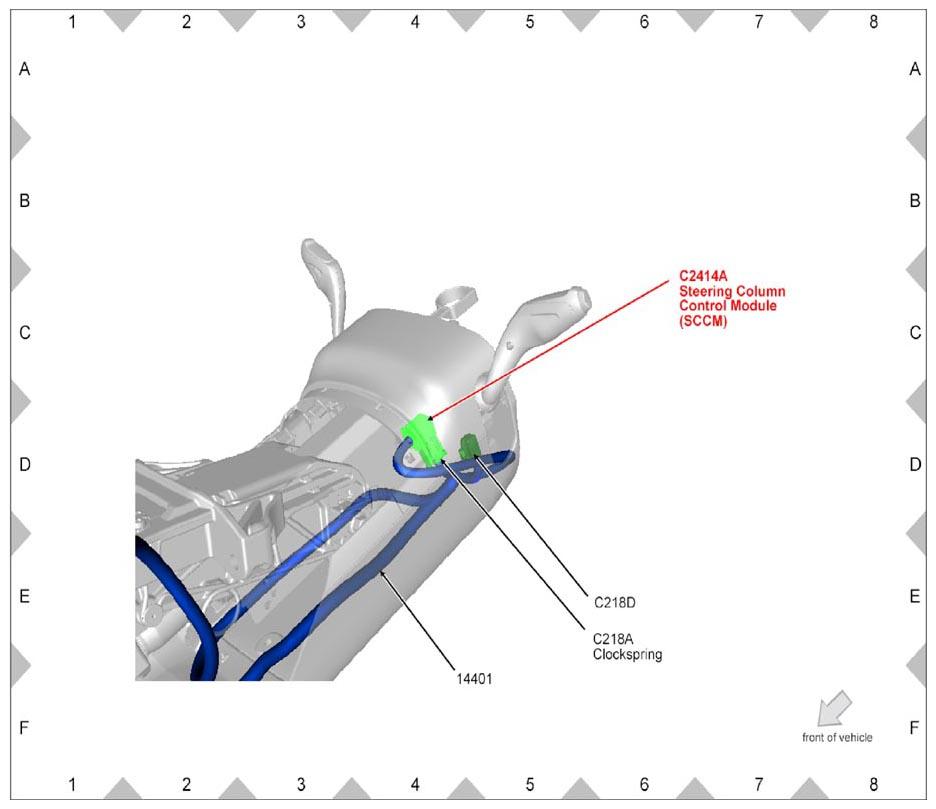

Fig 414: Identifying Steering Column Control Module (SCCM) Connector (C2414A) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 415: Identifying Steering Column Control Module (SCCM) Connector (C2414D)

Courtesy of FORD MOTOR CO.

Fig 416: Identifying Splice Block 28 Connector (C2418)

Courtesy of FORD MOTOR CO.

Fig 417: Identifying Splice Block 29 Connector (C2424)

Courtesy of FORD MOTOR CO.

Fig 418: Identifying Splice Block 30 Connector (C2425)

Courtesy of FORD MOTOR CO.

Fig 419: Identifying Splice Block 21 Connector (C2426)

Courtesy of FORD MOTOR CO.

Fig 420: Identifying Gateway Module Connector (C2431) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 421: Identifying Gateway Module Connector (C2431) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 422: Identifying Driver Lower Airbag Connector (C2432) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 423: Identifying Driver Lower Airbag Connector (C2432) (MKZ)

Courtesy of FORD MOTOR CO.

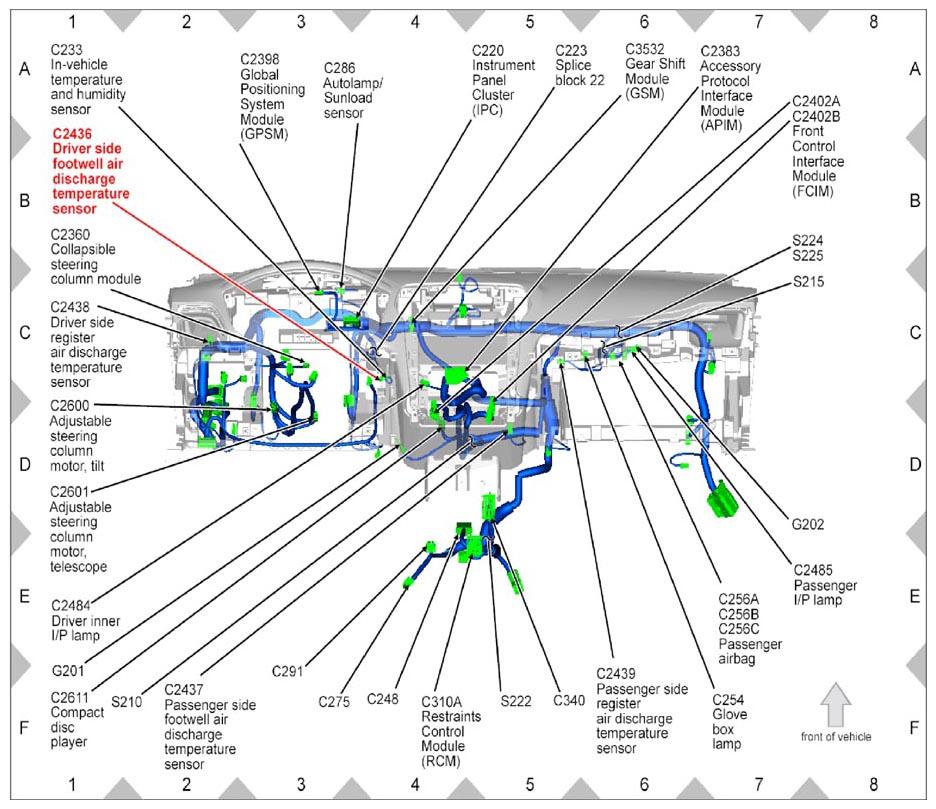

Fig 424: Identifying Driver Side Footwell Air Discharge Temperature Sensor Connector (C2436) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 425: Identifying Driver Side Footwell Air Discharge Temperature Sensor Connector (C2436) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 426: Identifying Passenger Side Footwell Air Discharge Temperature Sensor Connector (C2437) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 427: Identifying Passenger Side Footwell Air Discharge Temperature Sensor Connector (C2437) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 428: Identifying Driver Side Register Air Discharge Temperature Sensor Connector (C2438) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 429: Identifying Driver Side Register Air Discharge Temperature Sensor Connector (C2438) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 430: Identifying Passenger Side Register Air Discharge Temperature Sensor Connector (C2439) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 431: Identifying Passenger Side Register Air Discharge Temperature Sensor Connector (C2439) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 432: Identifying Splice Block 15 Connector (C2443)

Courtesy of FORD MOTOR CO.

Fig 433: Identifying Splice Block 16 Connector (C2444)

Courtesy of FORD MOTOR CO.

Fig 434: Identifying Splice Block 17 Connector (C2445)

Courtesy of FORD MOTOR CO.

Fig 435: Identifying Splice Block 6 Connector (C2446)

Courtesy of FORD MOTOR CO.

Fig 436: Identifying Splice Block 18 Connector (C2447)

Courtesy of FORD MOTOR CO.

Fig 437: Identifying Instrument Panel Speaker - Center Connector (C2468 And C2470) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 438: Identifying Instrument Panel Speaker - Center Connector (C2470) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 439: Identifying Instrument Panel Speaker - Center Connector (C2468 And C2470) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 440: Identifying Hazard Flusher Switch Connector (C2480)

Courtesy of FORD MOTOR CO.

Fig 441: Identifying Splice Block 8 Connector (C2481)

Courtesy of FORD MOTOR CO.

Fig 442: Identifying Global Positioning System Module (GPSM) Connector (C2482)

Courtesy of FORD MOTOR CO.

Fig 443: Identifying Driver Outer I/P Lamp Connector (C2483)

Courtesy of FORD MOTOR CO.

Fig 444: Identifying Driver Inner I/P Lamp Connector (C2484)

Courtesy of FORD MOTOR CO.

Fig 445: Identifying Passenger I/P Lamp Connector (C2485)

Courtesy of FORD MOTOR CO.

Fig 446: Identifying Splice Block 35 Connector (C2486)

Courtesy of FORD MOTOR CO.

Fig 447: Identifying Steering Wheel Switch - Left Connector (C2490)

Courtesy of FORD MOTOR CO.

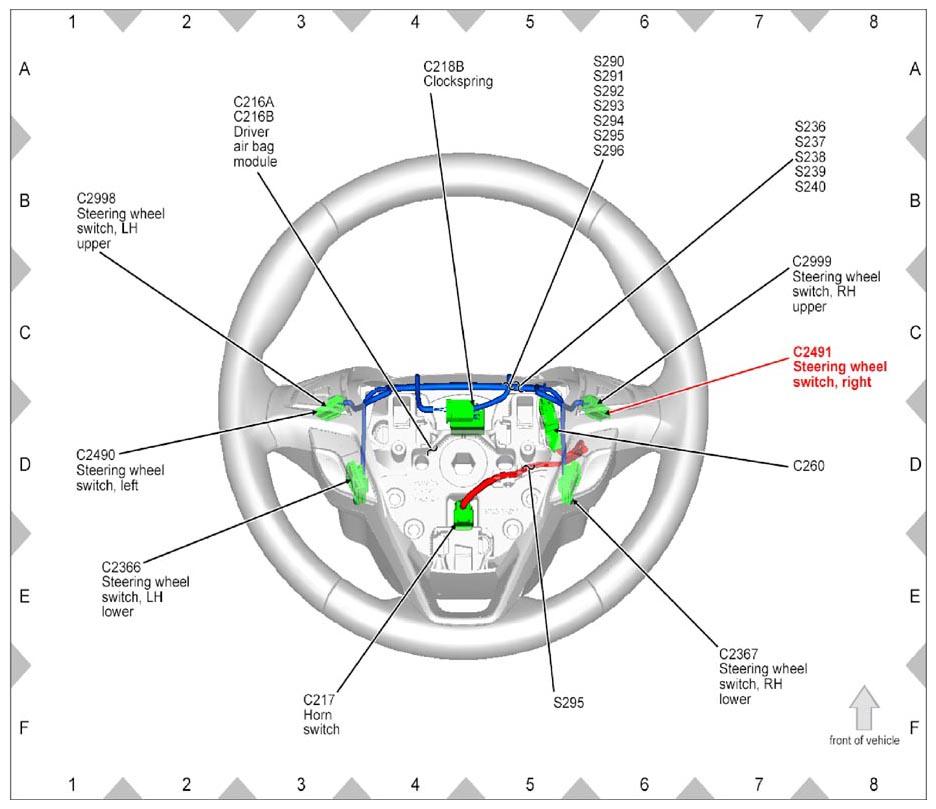

Fig 448: Identifying Steering Wheel Switch - Right Connector (C2491)

Courtesy of FORD MOTOR CO.

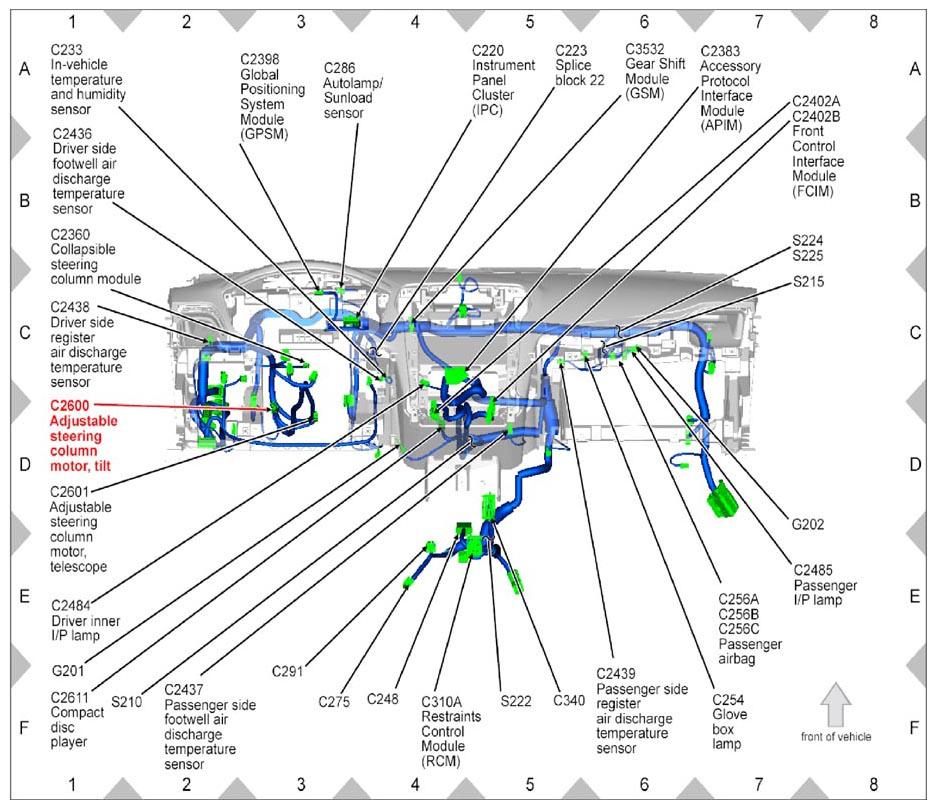

Fig 449: Identifying Adjustable Steering Column Motor - Tilt Connector (C2600)

Courtesy of FORD MOTOR CO.

Fig 450: Identifying Adjustable Steering Column Motor - Telescope Connector (C2601)

Courtesy of FORD MOTOR CO.

Fig 451: Identifying Passenger Lower Airbag Connector (C2607) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 452: Identifying Passenger Lower Airbag Connector (C2607) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 453: Identifying Luggage Compartment Open/Close Switch - Front Connector (C2609)

Courtesy of FORD MOTOR CO.

Fig 454: Identifying Luggage Compartment Open/Close Switch - Front Connector (C2610)

Courtesy of FORD MOTOR CO.

Fig 455: Identifying Compact Disc Player Connector (C2611)

Courtesy of FORD MOTOR CO.

Fig 456: Identifying Splice Lock 21 Connector (C2989)

Courtesy of FORD MOTOR CO.

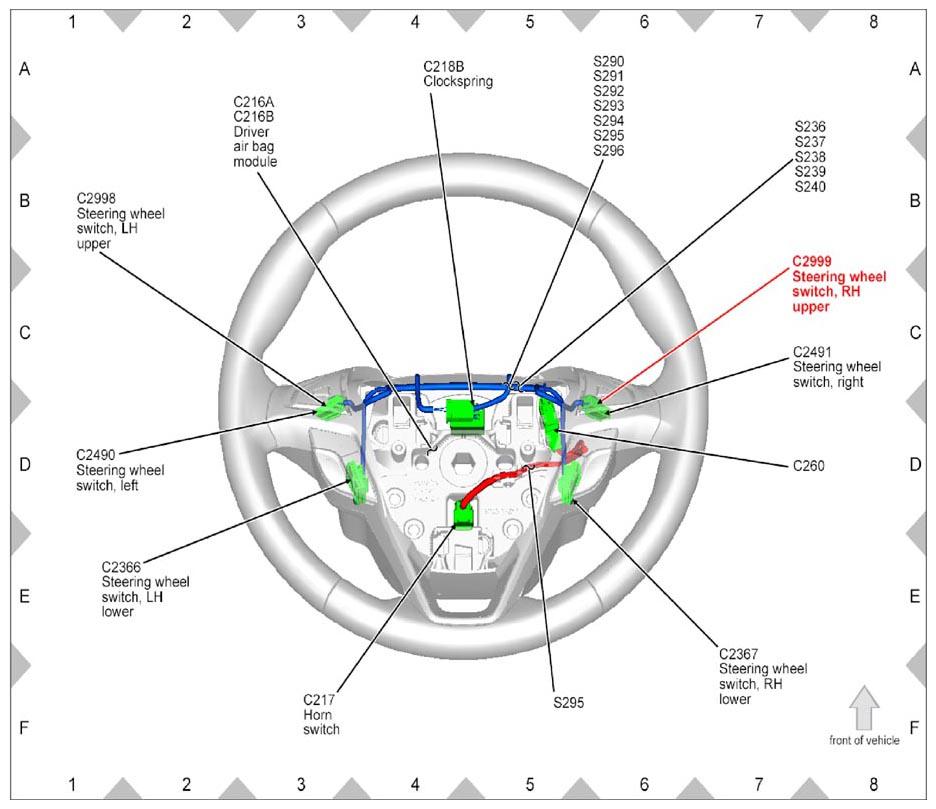

Fig 457: Identifying Steering Wheel Switch - LH Upper Connector (C2998)

Courtesy of FORD MOTOR CO.

Fig 458: Identifying Steering Wheel Switch - RH Upper Connector (C2999)

Courtesy of FORD MOTOR CO.

Fig 459: Identifying Seat Backrest Blower Motor - Driver Side Connector (C3034)

Courtesy of FORD MOTOR CO.

Fig 460: Identifying Seat Cushion Blower Motor - Driver Side Connector (C3035)

Courtesy of FORD MOTOR CO.

Fig 461: Identifying Seat Backrest Blower Motor - Passenger Side Connector (C3039)

Courtesy of FORD MOTOR CO.

Fig 462: Identifying Seat Cushion Blower Motor - Passenger Side Connector (C3040)

Courtesy of FORD MOTOR CO.

Fig 463: Identifying Connector (C3047)

Courtesy of FORD MOTOR CO.

Fig 464: Identifying Connector (C3047) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 465: Identifying Connector (C3050) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 466: Identifying Connector (C3050) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 467: Identifying Connector (C3050) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 468: Identifying Connector (C3051) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 469: Identifying Connector (C3051) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 470: Identifying Connector (C3052)

Courtesy of FORD MOTOR CO.

Fig 471: Identifying Connector (C3053)

Courtesy of FORD MOTOR CO.

Fig 472: Identifying Front Power Outlet Socket Connector (C3064) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 473: Identifying Front Power Outlet Socket Connector (C3064) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 474: Identifying Safety Belt Anchor Pretensioner - Driver Connector (C3065)

Courtesy of FORD MOTOR CO.

Fig 475: Identifying Safety Belt Anchor Pretensioner - Passenger Connector (C3066)

Courtesy of FORD MOTOR CO.

Fig 476: Identifying Fuel Door Ajar Sensor Connector (C3067)

Courtesy of FORD MOTOR CO.

Fig 477: Identifying Passenger Seat Front Height Motor Connector (C3074)

Courtesy of FORD MOTOR CO.

Fig 478: Identifying Fuel Tank Pressure (FTP) Sensor Connector (C3123) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 479: Identifying Fuel Tank Pressure (FTP) Sensor Connector (C3123) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 480: Identifying Fuel Pump Assembly Connector (C3127) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 481: Identifying Fuel Pump (FP) Assembly Connector (C3127) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 482: Identifying Connector (C3133)

Courtesy of FORD MOTOR CO.

Fig 483: Identifying Connector (C3133) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 484: Identifying Connector (C3134)

Courtesy of FORD MOTOR CO.

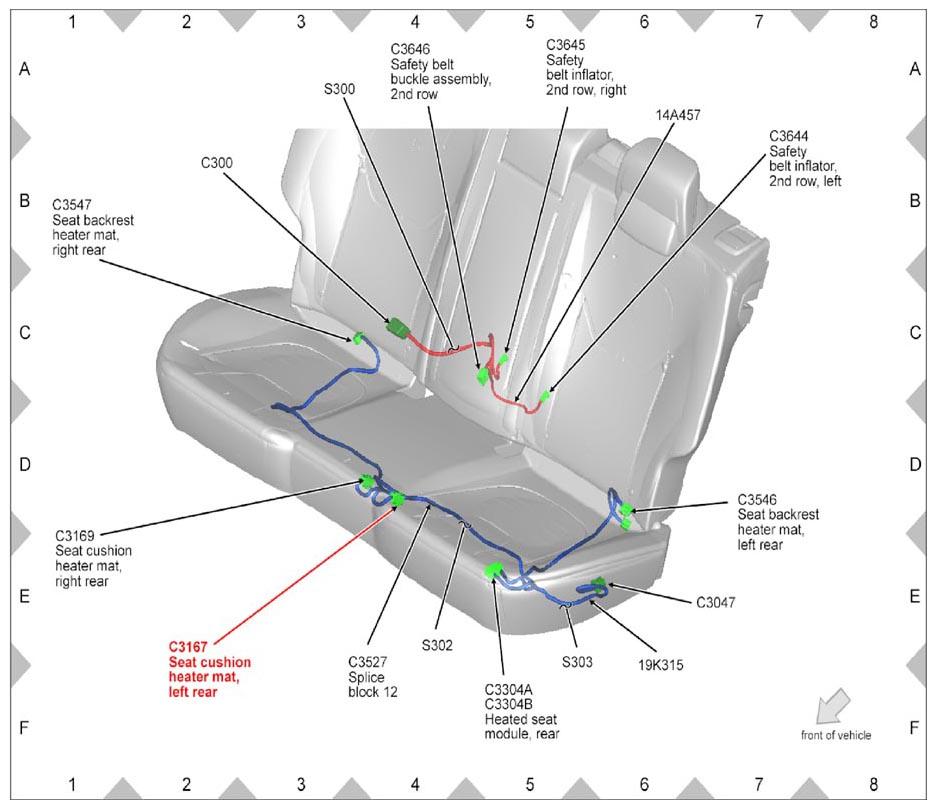

Fig 485: Identifying Seat Cushion Heater Mat - Left Rear Connector (C3167)

Courtesy of FORD MOTOR CO.

Fig 486: Identifying Seat Cushion Heater Mat - Right Rear Connector (C3169)

Courtesy of FORD MOTOR CO.

Fig 487: Identifying Driver Seat Recliner Motor Connector (C3187)

Courtesy of FORD MOTOR CO.

Fig 488: Identifying Passenger Seat Recliner Motor Connector (C3189)

Courtesy of FORD MOTOR CO.

Fig 489: Identifying Safety Belt Buckle - Driver Connector (C3201)

Courtesy of FORD MOTOR CO.

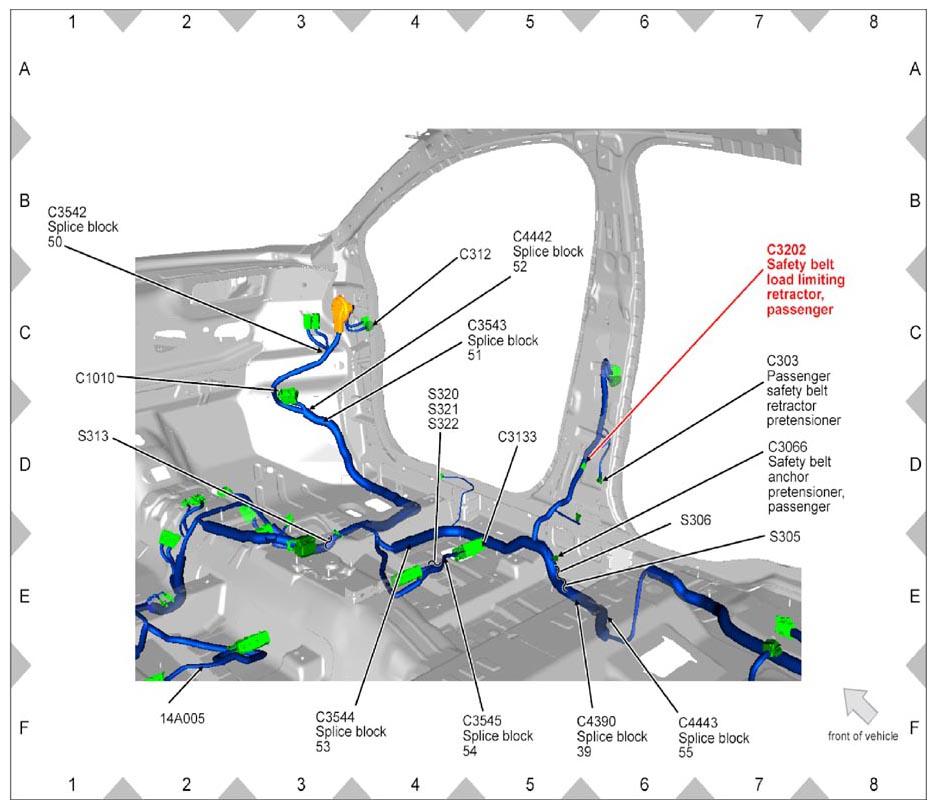

Fig 490: Identifying Safety Belt Load Limiting Retractor - Passenger Connector (C3202)

Courtesy of FORD MOTOR CO.

Fig 491: Identifying Connector (C3205)

Courtesy of FORD MOTOR CO.

Fig 492: Identifying Connector (C3206)

Courtesy of FORD MOTOR CO.

Fig 493: Identifying Lumbar Motor - Driver Seat Connector (C3215)

Courtesy of FORD MOTOR CO.

Fig 494: Identifying Lumbar Motor - Passenger Seat Connector (C3216)

Courtesy of FORD MOTOR CO.

Fig 495: Identifying Seat Position Sensor - Passenger Connector (C3240)

Courtesy of FORD MOTOR CO.

Fig 496: Identifying Side Impact Sensor LH C-Pillar Connector (C3248) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 497: Identifying Side Impact Sensor LH C-Pillar Connector (C3248) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 498: Identifying Side Impact Sensor RH C-Pillar Connector (C3249) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 499: Identifying Side Impact Sensor RH C-Pillar Connector (C3249) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 500: Identifying Footwell Lamp - RH Connector (C3250)

Courtesy of FORD MOTOR CO.

Fig 501: Identifying Footwell Lamp - LH Connector (C3251)

Courtesy of FORD MOTOR CO.

Fig 502: Identifying Fuel Tank Isolation Valve Connector (C3255)

Courtesy of FORD MOTOR CO.

Fig 503: Identifying Front Seat Climate Control Module (SCME) Connector (C3265A, C3265B And C3265C)

Courtesy of FORD MOTOR CO.

Fig 504: Identifying Front Seat Climate Control Module (SCME) Connector (C3265A, C3265B And C3265C)

Courtesy of FORD MOTOR CO.

Fig 505: Identifying Front Seat Climate Control Module (SCME) Connector (C3265A, C3265B And C3265C)

Courtesy of FORD MOTOR CO.

Fig 506: Identifying Occupant Classification System Module (OSCM) Connector (C3285)

Courtesy of FORD MOTOR CO.

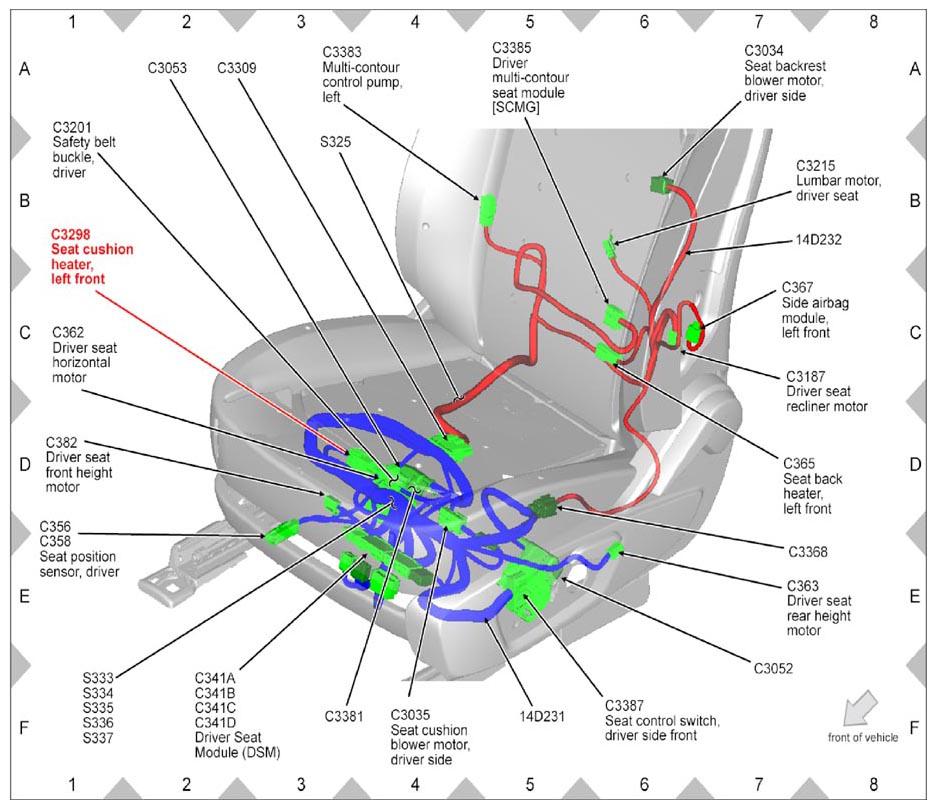

Fig 507: Identifying Seat Cushion Heater - Left Front Connector (C3298)

Courtesy of FORD MOTOR CO.

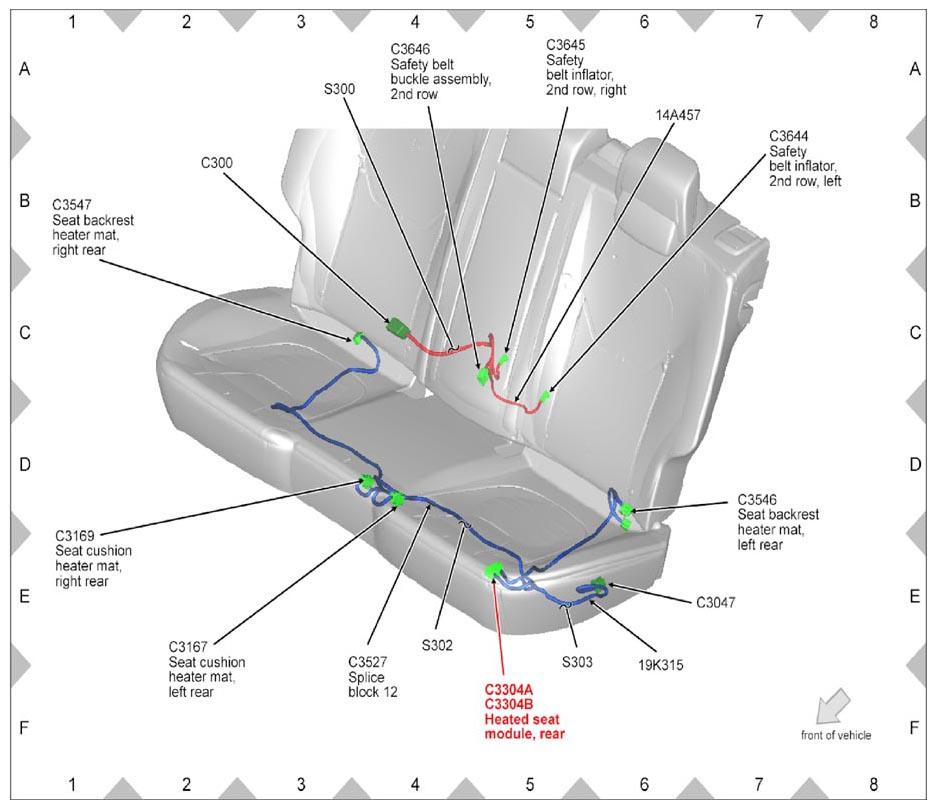

Fig 508: Identifying Heated Seat Module - Rear Connector (C3304A And C3304B)

Courtesy of FORD MOTOR CO.

Fig 509: Identifying Heated Seat Module - Rear Connector (C3304A And C3304B)

Courtesy of FORD MOTOR CO.

Fig 510: Identifying Connector (C3304A And C3304B)

Courtesy of FORD MOTOR CO.

Fig 511: Identifying Audio Input Jack Connector (C3312)

Courtesy of FORD MOTOR CO.

Fig 512: Identifying Driver Side Air Curtain Module Connector (C3321) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 513: Identifying Driver Side Air Curtain Module Connector (C3321) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 514: Identifying Rear Passenger Power Outlet Socket Connector (C3323) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 515: Identifying Rear Passenger Power Outlet Socket Connector (C3323) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 516: Identifying Passenger Side Air Curtain Module Connector (C3329) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 517: Identifying Passenger Side Air Curtain Module Connector (C3329) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 518: Identifying Accessory Protocol Interface Module (APIM) Connector (C3342)

Courtesy of FORD MOTOR CO.

Fig 519: Identifying Connector (C3368)

Courtesy of FORD MOTOR CO.

Fig 520: Identifying Connector (C3381)

Courtesy of FORD MOTOR CO.

Fig 521: Identifying Multi-Contour Control Pump - Left Connector (C3383)

Courtesy of FORD MOTOR CO.

Fig 522: Identifying Multi-Contour Control Pump - Right Connector (C3384)

Courtesy of FORD MOTOR CO.

Fig 523: Identifying Driver Multi-Contour Seat Module Connector (C3385)

Courtesy of FORD MOTOR CO.

Fig 524: Identifying Passenger Multi-Contour Seat Module (SCMG) Connector (C3386)

Courtesy of FORD MOTOR CO.

Fig 525: Identifying Seat Control Switch - Driver Side Front Connector (C3387)

Courtesy of FORD MOTOR CO.

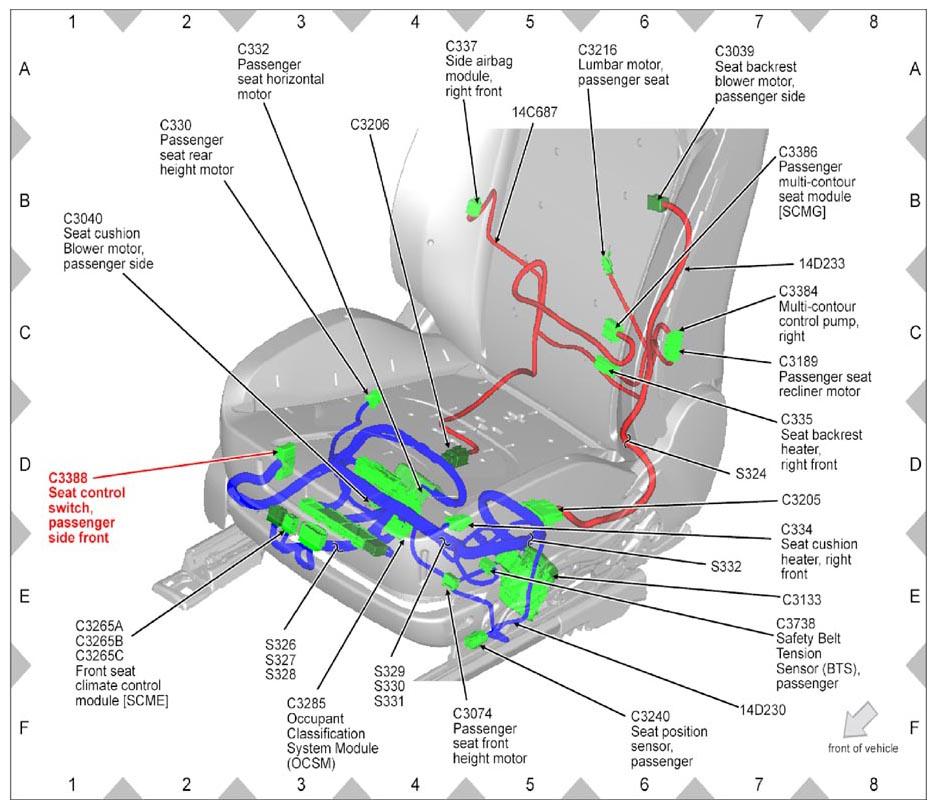

Fig 526: Identifying Seat Control Switch - Passenger Side Front Connector (C3388)

Courtesy of FORD MOTOR CO.

Fig 527: Identifying Splice Block 7 Connector (C3408) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 528: Identifying Splice Block 7 Connector (C3408) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 529: Identifying AC Outlet Connector (C3429)

Courtesy of FORD MOTOR CO.

Fig 530: Identifying Brake Shift Interlock Override Connector (C3430)

Courtesy of FORD MOTOR CO.

Fig 531: Identifying Splice Block 60 Connector (C3460) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 532: Identifying Splice Block 60 Connector (C3460) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 533: Identifying Splice Block 60 Connector (C3460) (PHEV)

Courtesy of FORD MOTOR CO.

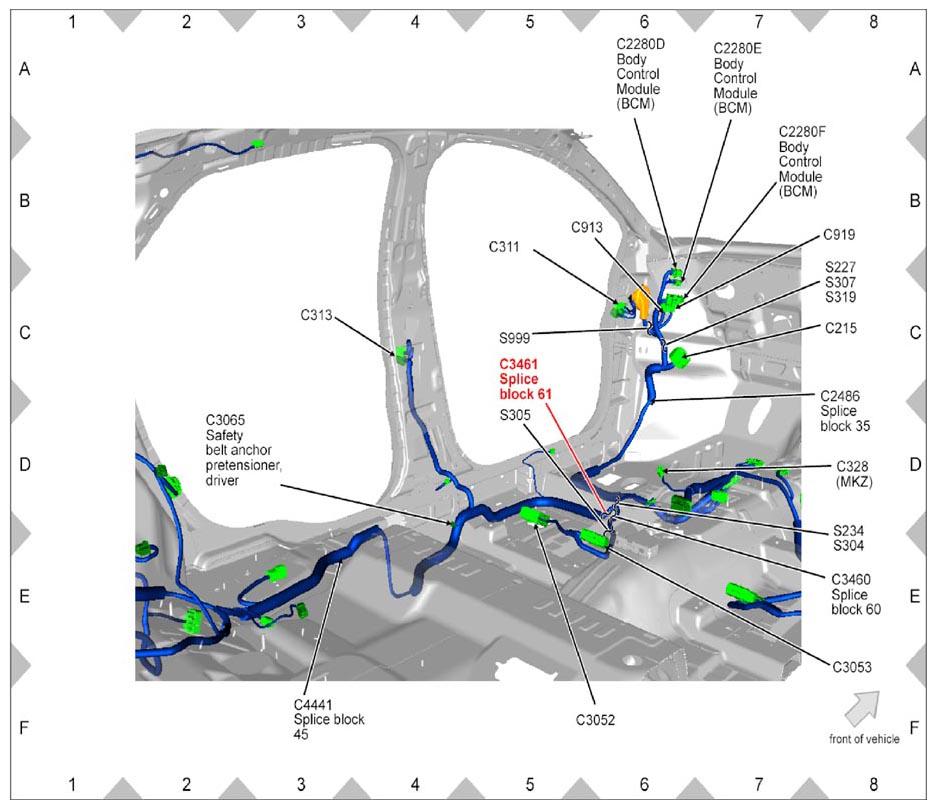

Fig 534: Identifying Splice Block 61 Connector (C3461)

Courtesy of FORD MOTOR CO.

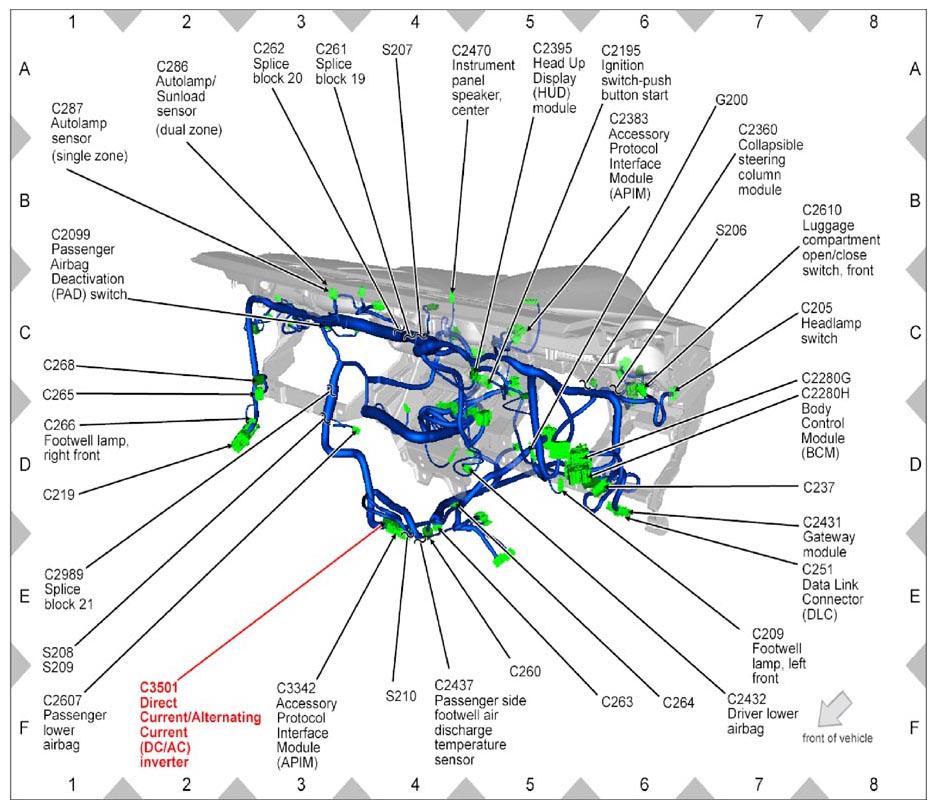

Fig 535: Identifying Direct Current/Alternating Current (DC/AC) Inverter Connector (C3501) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 536: Identifying Direct Current/Alternating Current (DC/AC) Inverter Connector (C3501) (MKZ)

Courtesy of FORD MOTOR CO.

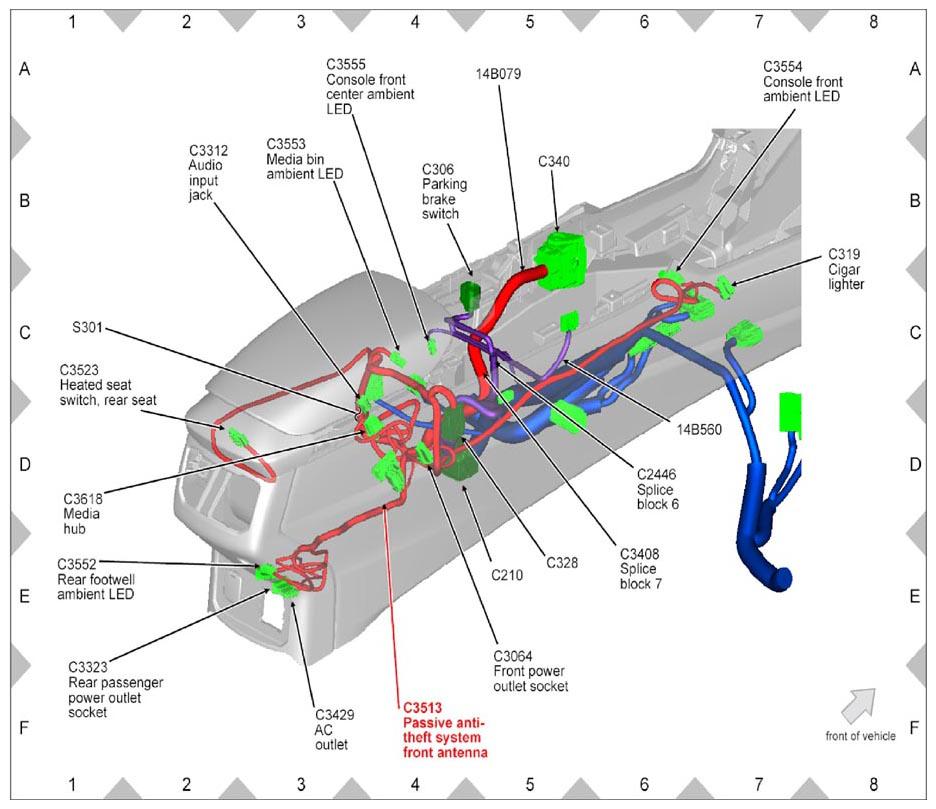

Fig 537: Identifying Passive Antitheft System Front Antenna Connector (C3513) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 538: Identifying Passive Antitheft System Front Antenna Connector (C3513) (MKZ)

Courtesy of FORD MOTOR CO.

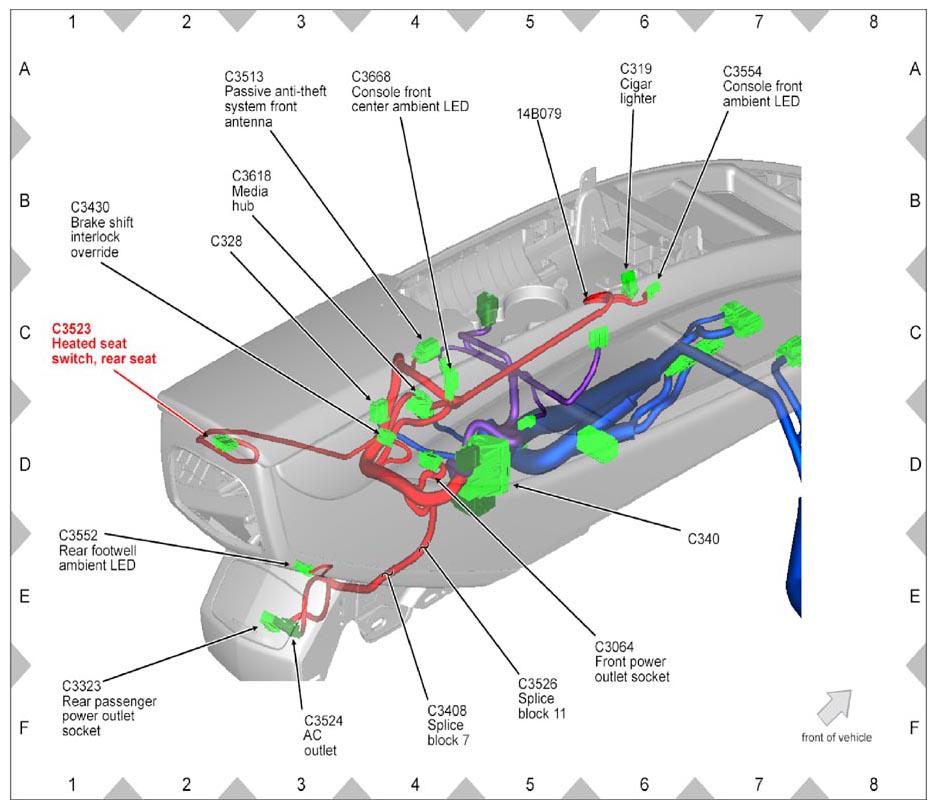

Fig 539: Identifying Heated Seat Switch - Rear Seat Connector (C3523) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 540: Identifying Heated Seat Switch - Rear Seat Connector (C3523) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 541: Identifying AC Outlet Connector (C3524)

Courtesy of FORD MOTOR CO.

Fig 542: Identifying Splice Block 11 Connector (C3526)

Courtesy of FORD MOTOR CO.

Fig 543: Identifying Splice Block 12 Connector (C3527)

Courtesy of FORD MOTOR CO.

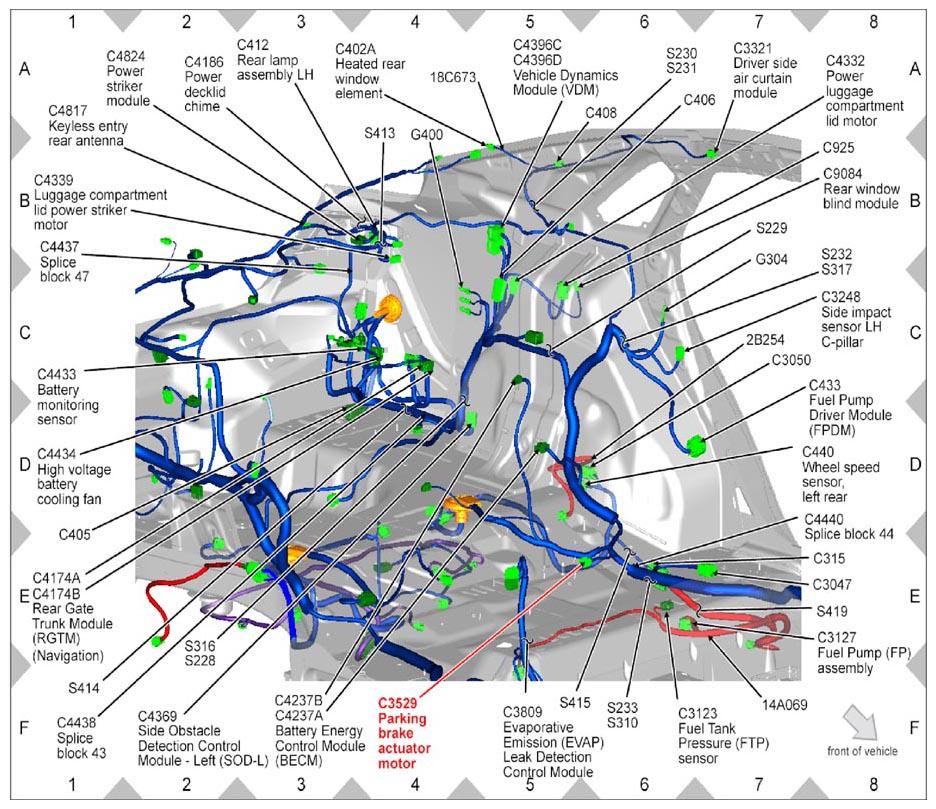

Fig 544: Identifying Parking Brake Actuator Motor Connector (C3529) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 545: Identifying Parking Brake Actuator Motor Connector (C3529) (MKZ)

Courtesy of FORD MOTOR CO.

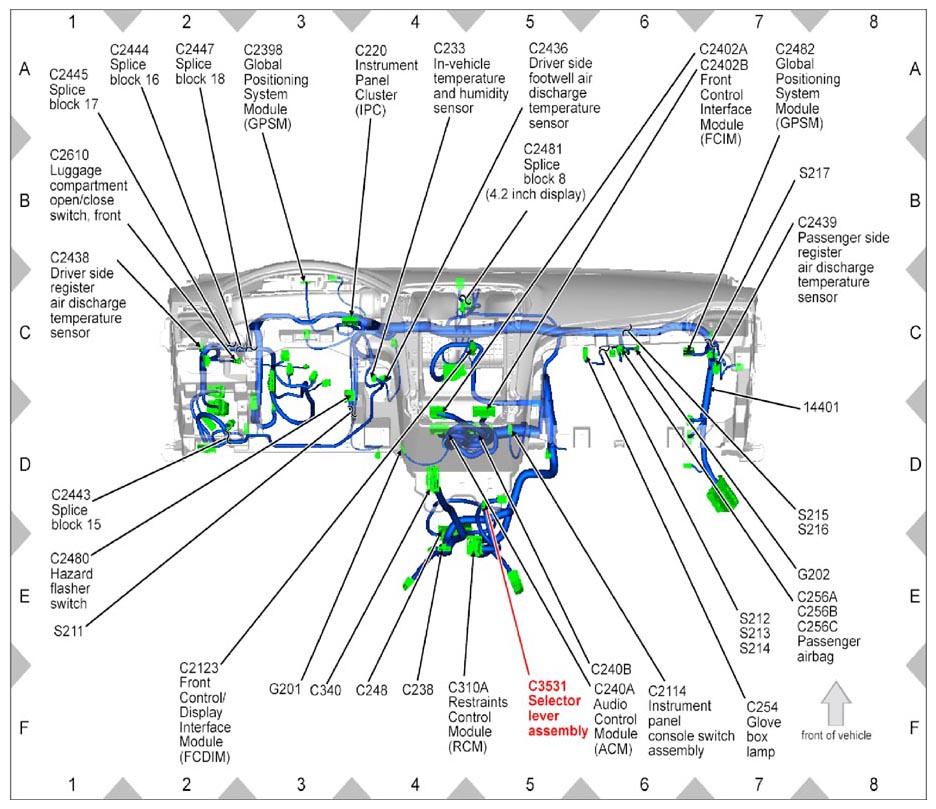

Fig 546: Identifying Selector Lever Assembly Connector (C3531)

Courtesy of FORD MOTOR CO.

Fig 547: Identifying Gear Shift Module (GSM) Connector (C3532)

Courtesy of FORD MOTOR CO.

Fig 548: Identifying Splice Block 33 Connector (C3533)

Courtesy of FORD MOTOR CO.

Fig 549: Identifying Splice Block 34 Connector (C3534)

Courtesy of FORD MOTOR CO.

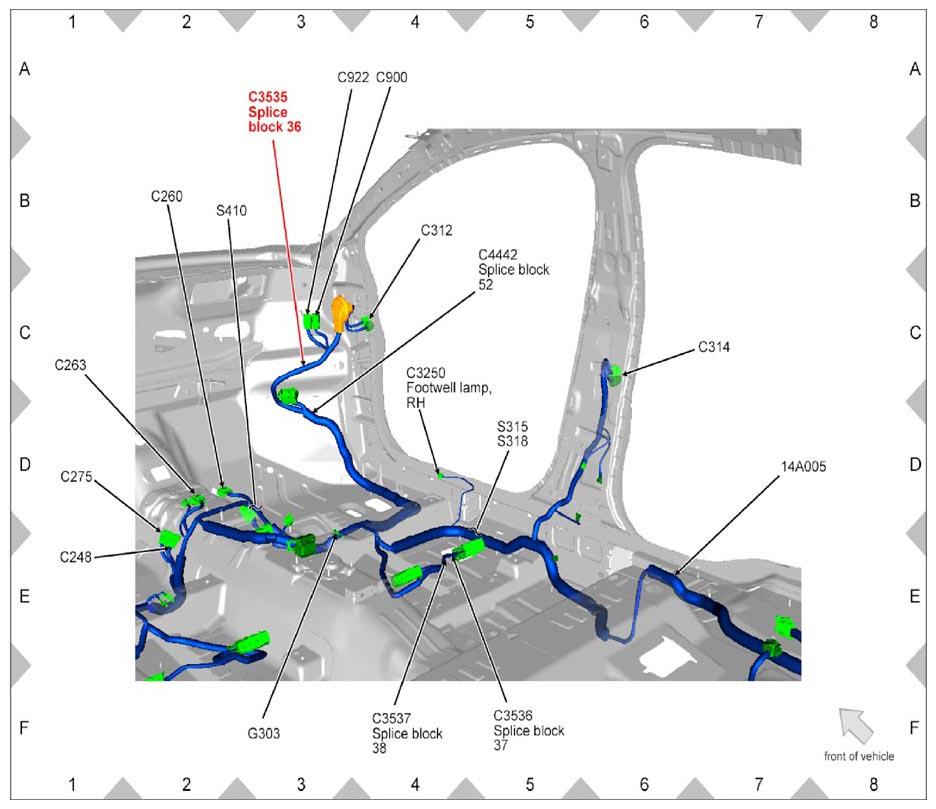

Fig 550: Identifying Splice Block 36 Connector (C3535)

Courtesy of FORD MOTOR CO.

Fig 551: Identifying Splice Block 37 Connector (C3536)

Courtesy of FORD MOTOR CO.

Fig 552: Identifying Splice Block 38 Connector (C3537)

Courtesy of FORD MOTOR CO.

Fig 553: Identifying Splice Block 46 Connector (C3538)

Courtesy of FORD MOTOR CO.

Fig 554: Identifying Splice Block 47 Connector (C3539)

Courtesy of FORD MOTOR CO.

Fig 555: Identifying Splice Block 48 Connector (C3540)

Courtesy of FORD MOTOR CO.

Fig 556: Identifying Splice Block 49 Connector (C3541)

Courtesy of FORD MOTOR CO.

Fig 557: Identifying Splice Block 50 Connector (C3542)

Courtesy of FORD MOTOR CO.

Fig 558: Identifying Splice Block 51 Connector (C3543)

Courtesy of FORD MOTOR CO.

Fig 559: Identifying Splice Block 53 Connector (C3544)

Courtesy of FORD MOTOR CO.

Fig 560: Identifying Splice Block 54 Connector (C3545)

Courtesy of FORD MOTOR CO.

Fig 561: Identifying Seat Backrest Heater Mat - Left Rear Connector (C3546)

Courtesy of FORD MOTOR CO.

Fig 562: Identifying Seat Backrest Heater Mat - Right Rear Connector (C3547)

Courtesy of FORD MOTOR CO.

Fig 563: Identifying Parking Brake Actuator Motor Connector (C3551)

Courtesy of FORD MOTOR CO.

Fig 564: Identifying Rear Footwell Ambient LED Connector (C3552)

Courtesy of FORD MOTOR CO.

Fig 565: Identifying Rear Footwell Ambient LED Connector (C3552)

Courtesy of FORD MOTOR CO.

Fig 566: Identifying Media Bin Ambient LED Connector (C3553)

Courtesy of FORD MOTOR CO.

Fig 567: Identifying Console Front Ambient LED Connector (C3554) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 568: Identifying Console Front Ambient LED Connector (C3554) (MKZ)

Courtesy of FORD MOTOR CO.

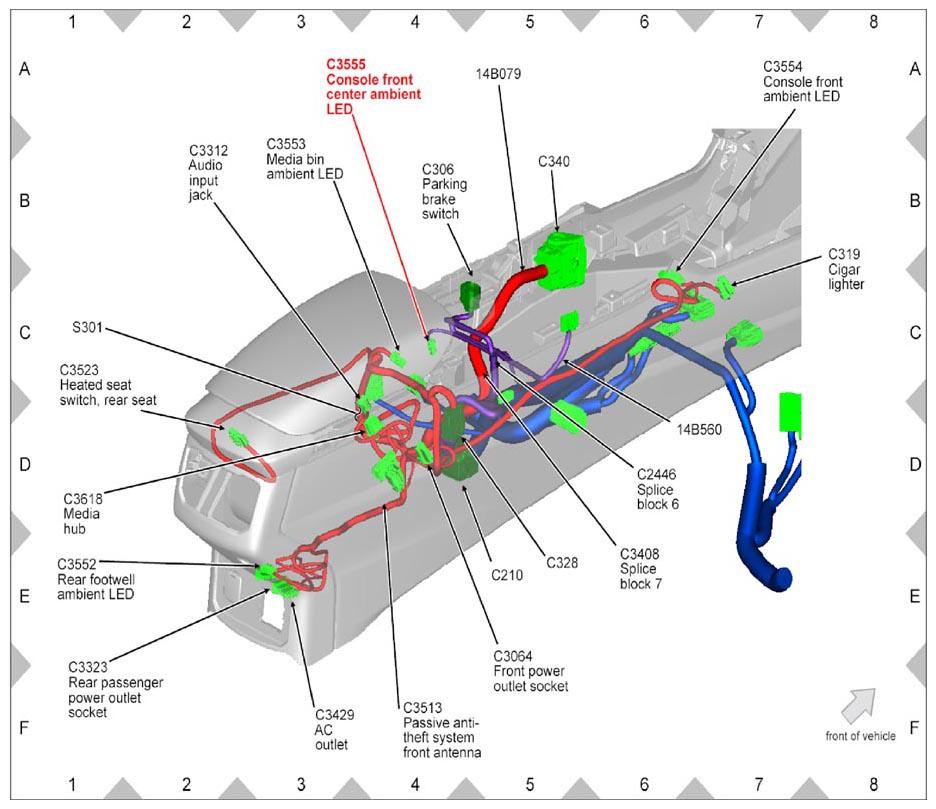

Fig 569: Identifying Console Front Center Ambient LED Connector (C3555)

Courtesy of FORD MOTOR CO.

Fig 570: Identifying Media Hub Connector (C3618) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 571: Identifying Media Hub Connector (C3618) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 572: Identifying Safety Belt Inflator - 2nd Row Left Connector (C3644)

Courtesy of FORD MOTOR CO.

Fig 573: Identifying Safety Belt Inflator - 2nd Row Right Connector (C3645)

Courtesy of FORD MOTOR CO.

Fig 574: Identifying Safety Belt Buckle Assembly - 2nd Row Connector (C3646)

Courtesy of FORD MOTOR CO.

Fig 575: Identifying Height Sensor - Left Rear Connector (C3653) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 576: Identifying Height Sensor - Left Rear Connector (C3653) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 577: Identifying Height Sensor - Right Rear Connector (C3654) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 578: Identifying Height Sensor - Right Rear Connector (C3654) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 579: Identifying Hydraulic Solenoid Valve - Left Rear Connector (C3655) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 580: Identifying Hydraulic Solenoid Valve - Left Rear Connector (C3655) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 581: Identifying Hydraulic Solenoid Valve - Right Rear Connector (C3656) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 582: Identifying Hydraulic Solenoid Valve - Right Rear Connector (C3656) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 583: Identifying Console Front Center Ambient LED Connector (C3668)

Courtesy of FORD MOTOR CO.

Fig 584: Identifying Safety Belt Tension Sensor (BTS) - Passenger Connector (C3738)

Courtesy of FORD MOTOR CO.

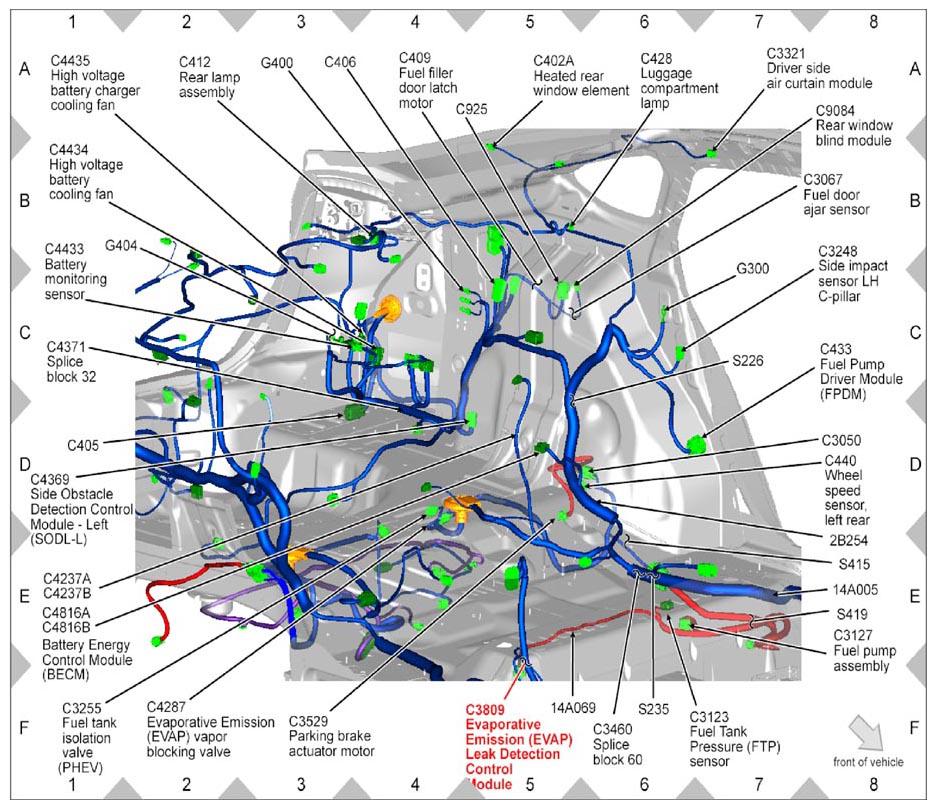

Fig 585: Identifying Evaporative Emission (EVAP) Leak Detection Control Module Connector (C3809) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 586: Identifying Evaporative Emission (EVAP) Leak Detection Control Module Connector (C3809) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 587: Identifying Connector (C4000)

Courtesy of FORD MOTOR CO.

Fig 588: Identifying Connector (C4001)

Courtesy of FORD MOTOR CO.

Fig 589: Identifying Connector (C4002)

Courtesy of FORD MOTOR CO.

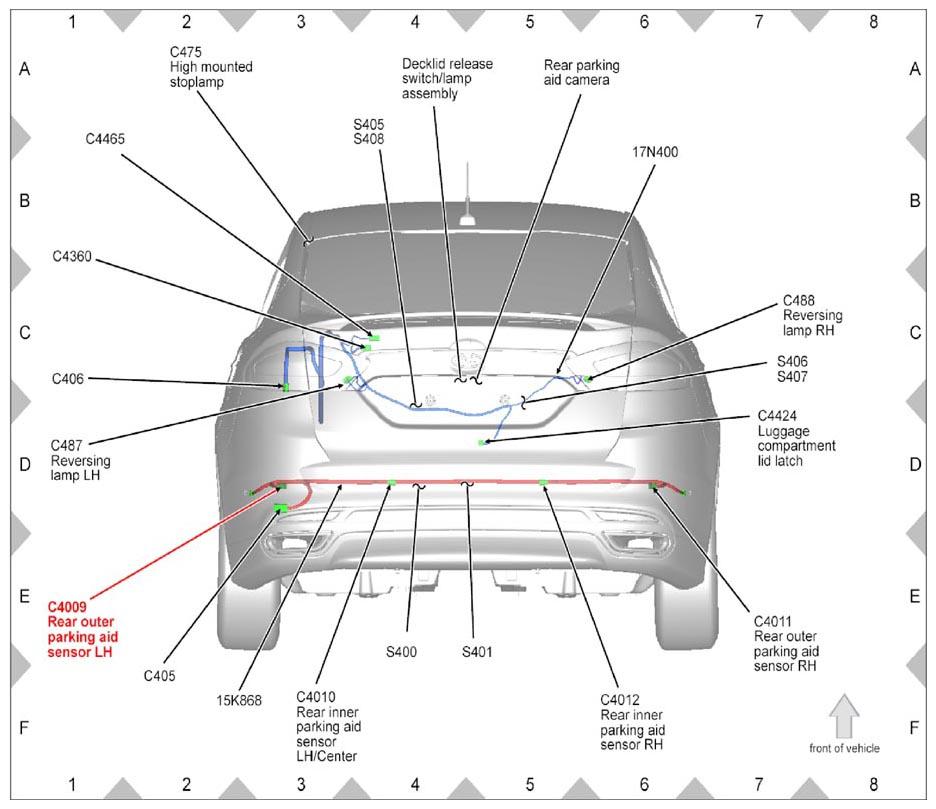

Fig 590: Identifying Rear Outer Parking Aid Sensor LH Connector (C4009) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 591: Identifying Rear Outer Parking Aid Sensor LH Connector (C4009) (MKZ)

Courtesy of FORD MOTOR CO.

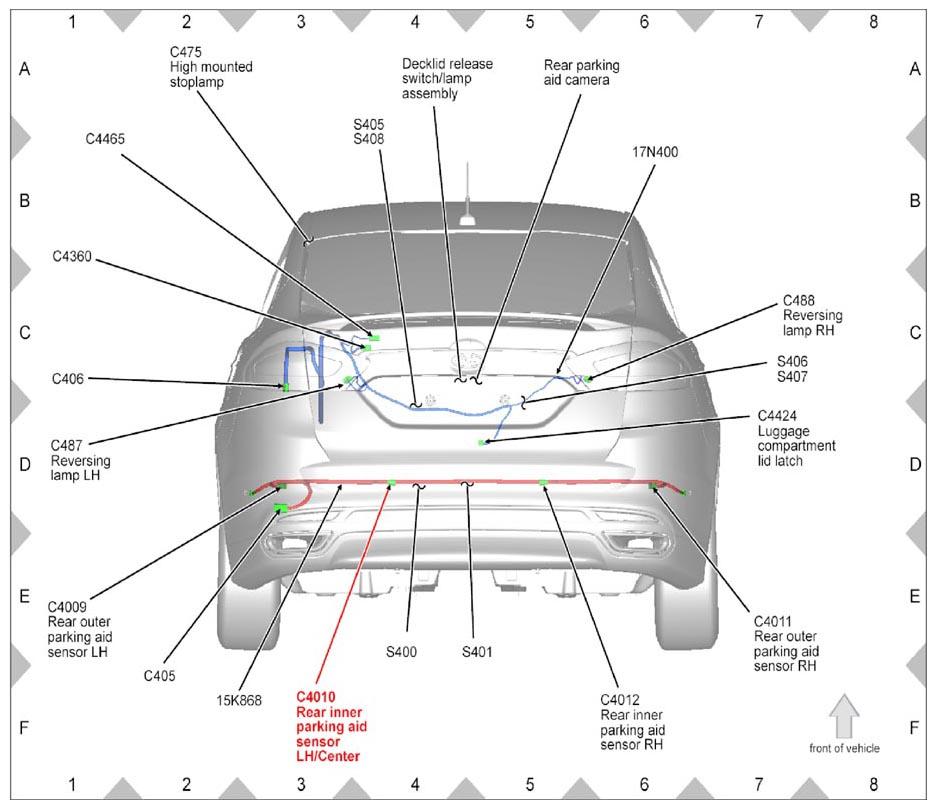

Fig 592: Identifying Rear Inner Parking Aid Sensor LH/Center Connector (C4010) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 593: Identifying Rear Outer Parking Aid Sensor LH/Center Connector (C4010) (MKZ)

Courtesy of FORD MOTOR CO.

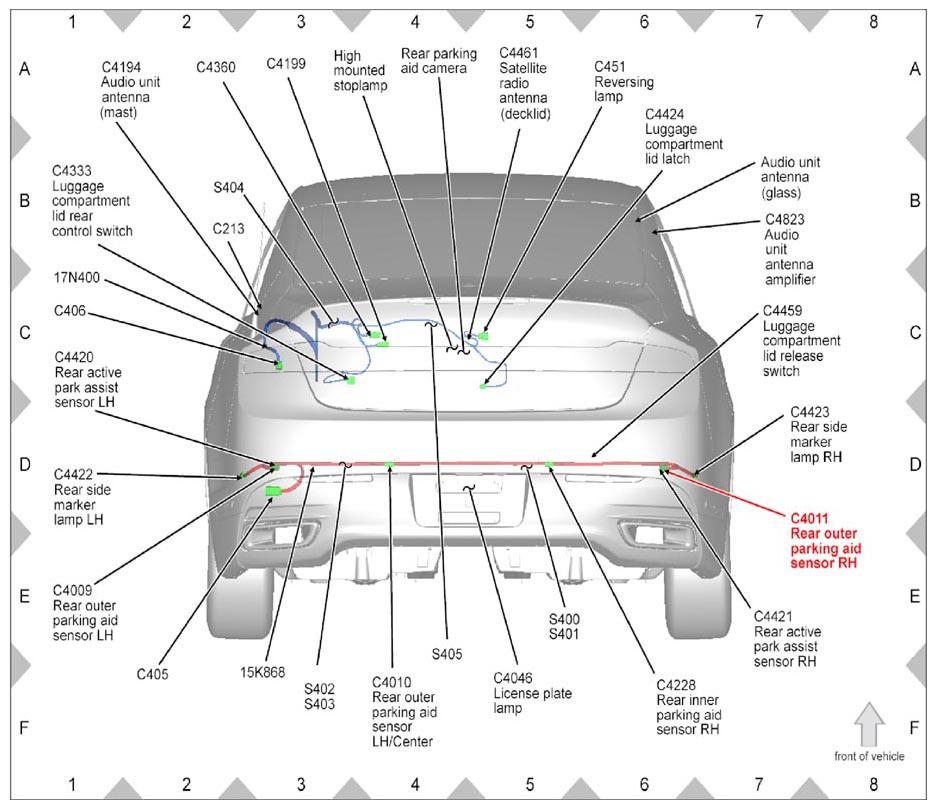

Fig 594: Identifying Rear Outer Parking Aid Sensor RH Connector (C4011) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 595: Identifying Rear Outer Parking Aid Sensor RH Connector (C4011) (MKZ)

Courtesy of FORD MOTOR CO.

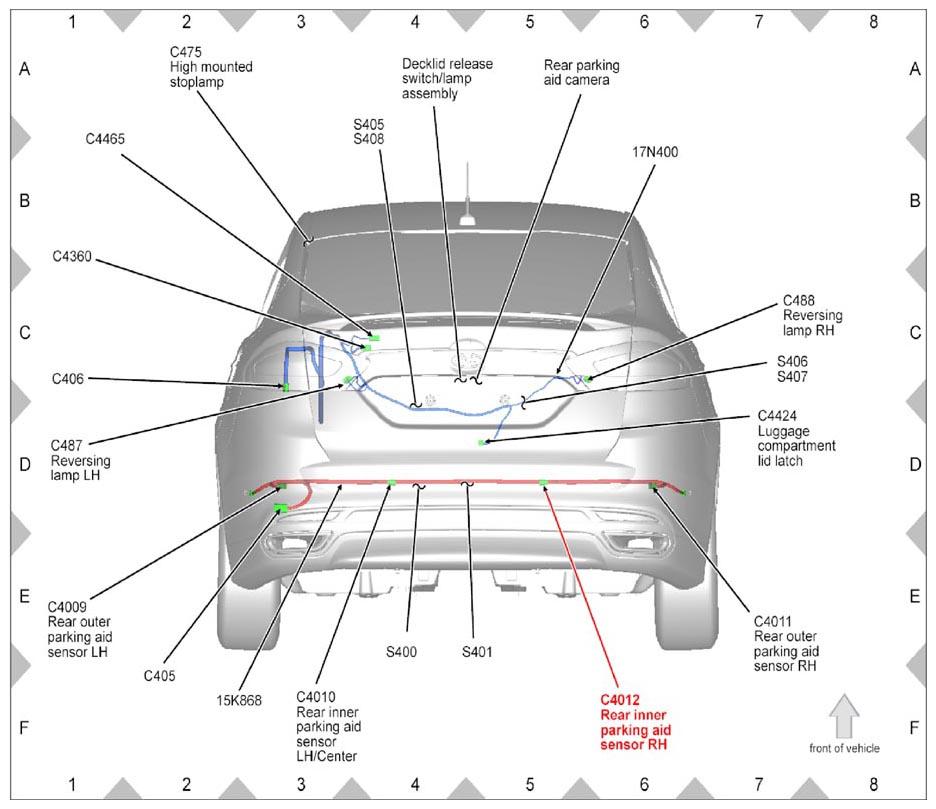

Fig 596: Identifying Rear Inner Parking Aid Sensor RH Connector (C4012)

Courtesy of FORD MOTOR CO.

Fig 597: Identifying License Plate Lamp Connector (C4046)

Courtesy of FORD MOTOR CO.

Fig 598: Identifying Subwoofer - Left Connector (C4068)

Courtesy of FORD MOTOR CO.

Fig 599: Identifying Subwoofer - Right Connector (C4069)

Courtesy of FORD MOTOR CO.

Fig 600: Identifying Battery Connector (C4070A)

Courtesy of FORD MOTOR CO.

Fig 601: Identifying Connector (C4070B)

Courtesy of FORD MOTOR CO.

Fig 602: Identifying Intelligent Access (IA) Antenna - Liftgate Connector (C4082)

Courtesy of FORD MOTOR CO.

Fig 603: Identifying Connector (C4174A)

Courtesy of FORD MOTOR CO.

Fig 604: Identifying Rear Gate Trunk Module (RGTM) Connector (C4174B)

Courtesy of FORD MOTOR CO.

Fig 605: Identifying Power Decklic Chime Connector (C4186)

Courtesy of FORD MOTOR CO.

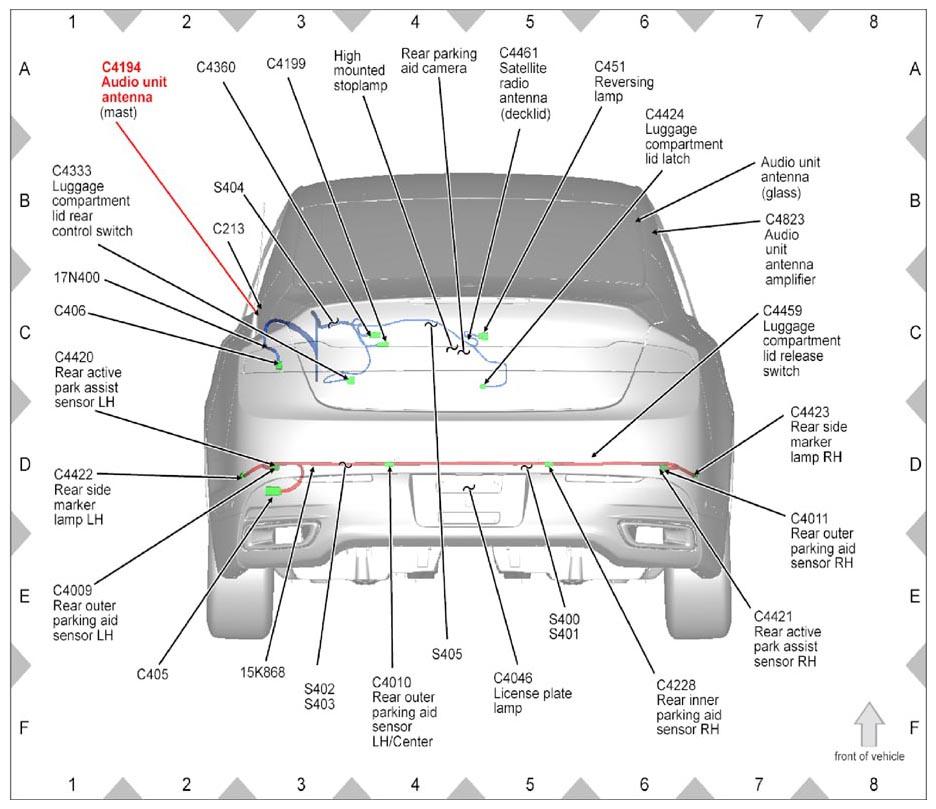

Fig 606: Identifying Audio Unit Antenna Connector (C4194)

Courtesy of FORD MOTOR CO.

Fig 607: Identifying Connector (C4199)

Courtesy of FORD MOTOR CO.

Fig 608: Identifying Rear Inner Parking Aid Sensor RH Connector (C4228)

Courtesy of FORD MOTOR CO.

Fig 609: Identifying High Voltage Battery Junction Box Connector (C4236A)

Courtesy of FORD MOTOR CO.

Fig 610: Identifying Connector (C4236B)

Courtesy of FORD MOTOR CO.

Fig 611: Identifying Connector (C4236C)

Courtesy of FORD MOTOR CO.

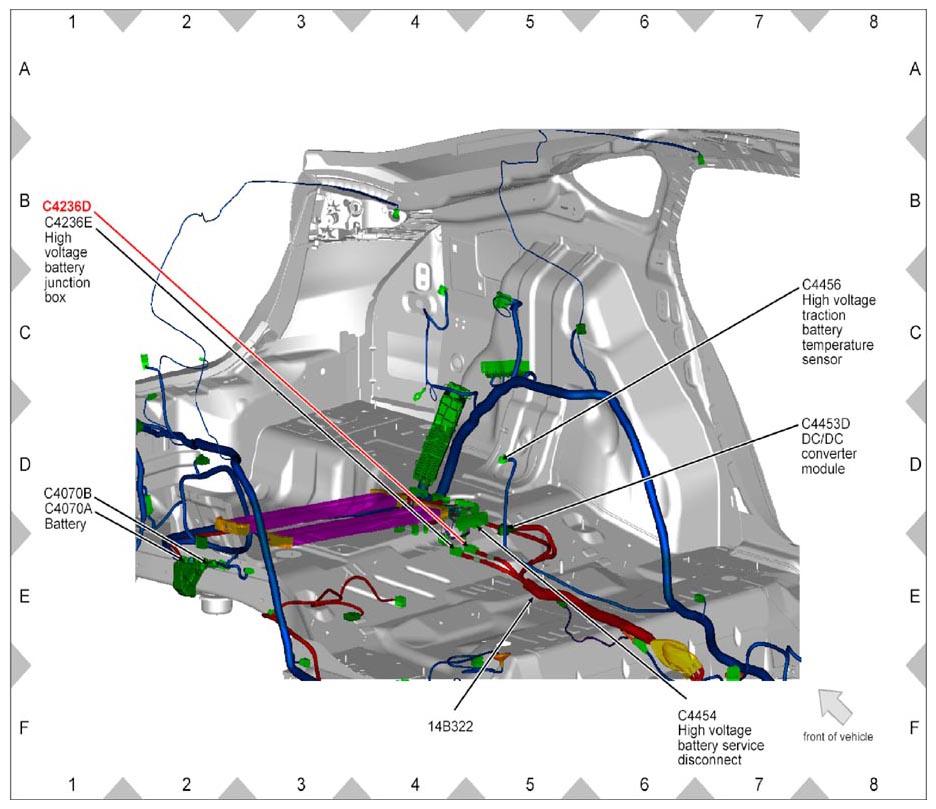

Fig 612: Identifying Connector (C4236D)

Courtesy of FORD MOTOR CO.

Fig 613: Identifying High Voltage Battery Junction Box Connector (C4236E)

Courtesy of FORD MOTOR CO.

Fig 614: Identifying Connector (C4237A And C4237B)

Courtesy of FORD MOTOR CO.

Fig 615: Identifying Battery Energy Control Module (BECM) Connector (C4237A)

Courtesy of FORD MOTOR CO.

Fig 616: Identifying Connector (C4237A And C4237B)

Courtesy of FORD MOTOR CO.

Fig 617: Identifying Connector (C4237B)

Courtesy of FORD MOTOR CO.

Fig 618: Identifying Connector (C4237C)

Courtesy of FORD MOTOR CO.

Fig 619: Identifying Battery Energy Control Module (BECM) Connector (C4237D)

Courtesy of FORD MOTOR CO.

Fig 620: Identifying Evaporative Emission (EVAP) Vapor Blocking Valve Connector (C4287)

Courtesy of FORD MOTOR CO.

Fig 621: Identifying Connector (C4326A)

Courtesy of FORD MOTOR CO.

Fig 622: Identifying Connector (C4326B)

Courtesy of FORD MOTOR CO.

Fig 623: Identifying Audio Digital Signal Processing (DSP) Module Connector (C4326C)

Courtesy of FORD MOTOR CO.

Fig 624: Identifying Power Luggage Compartment Lid Motor Connector (C4332)

Courtesy of FORD MOTOR CO.

Fig 625: Identifying Luggage Compartment Lid Rear Control Switch Connector (C4333)

Courtesy of FORD MOTOR CO.

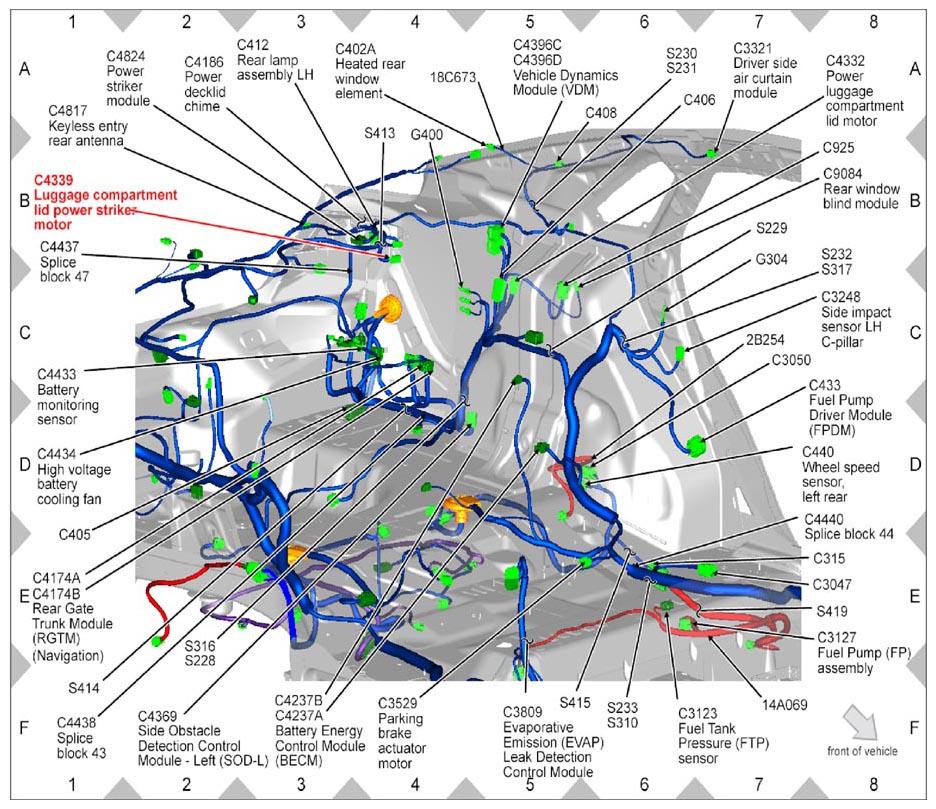

Fig 626: Identifying Luggage Compartment Lid Power Striker Motor Connector (C4339)

Courtesy of FORD MOTOR CO.

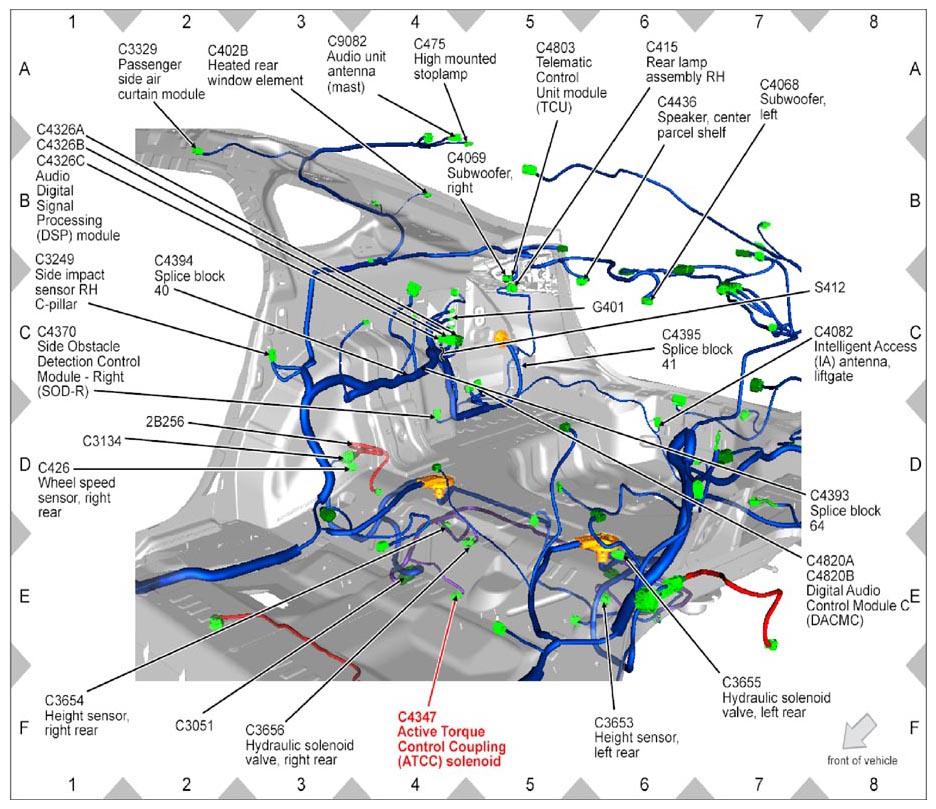

Fig 627: Identifying Active Torque Control Coupling (ATCC) Solenoid Connector (C4347) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 628: Identifying Active Torque Control Coupling (ATCC) Solenoid Connector (C4347) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 629: Identifying Connector (C4360) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 630: Identifying Connector (C4360) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 631: Identifying Side Obstacle Detection Control Module - Left (SODL-L) Connector (C4369) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 632: Identifying Side Obstacle Detection Control Module - Left (SODL-L) Connector (C4369) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 633: Identifying Side Obstacle Detection Control Module - Right (SOD-R) Connector (C4370) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 634: Identifying Side Obstacle Detection Control Module - Right (SOD-R) Connector (C4370) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 635: Identifying Splice Block 32 Connector (C4371)

Courtesy of FORD MOTOR CO.

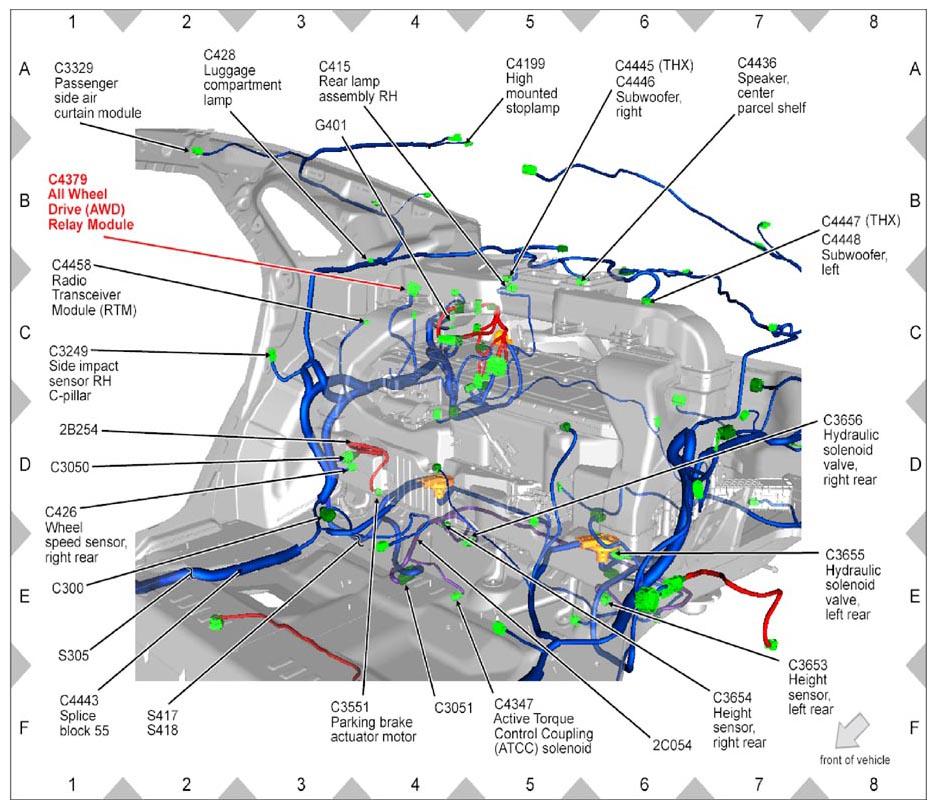

Fig 636: Identifying All Wheel Drive (AWD) Relay Module Connector (C4379)

Courtesy of FORD MOTOR CO.

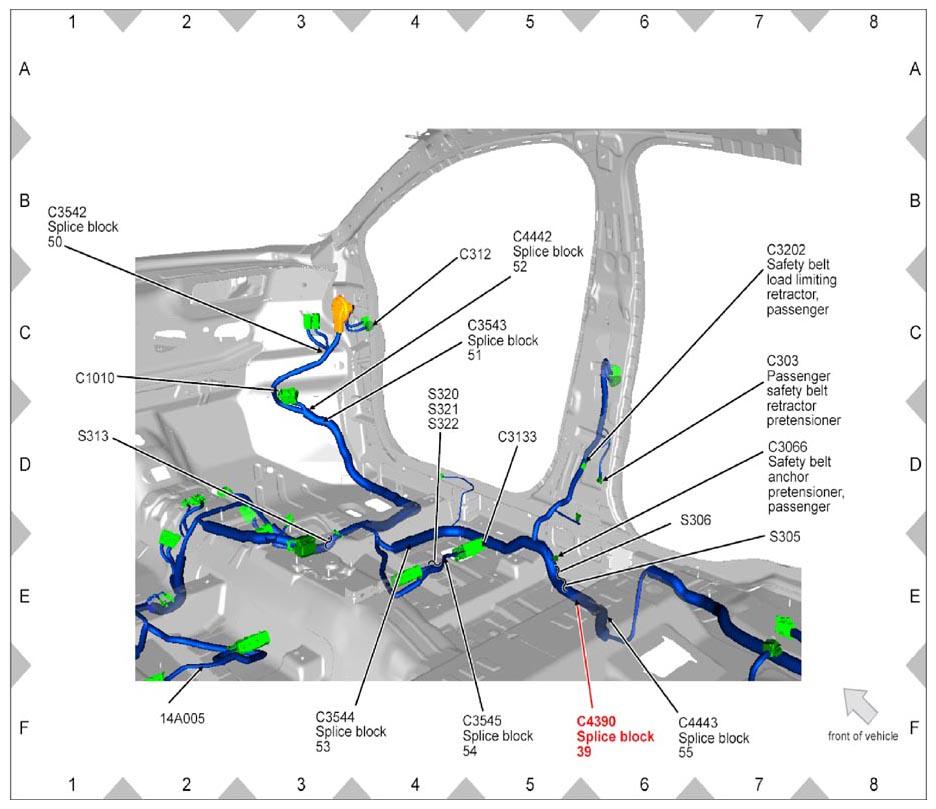

Fig 637: Identifying Splice Block 39 Connector (C4390)

Courtesy of FORD MOTOR CO.

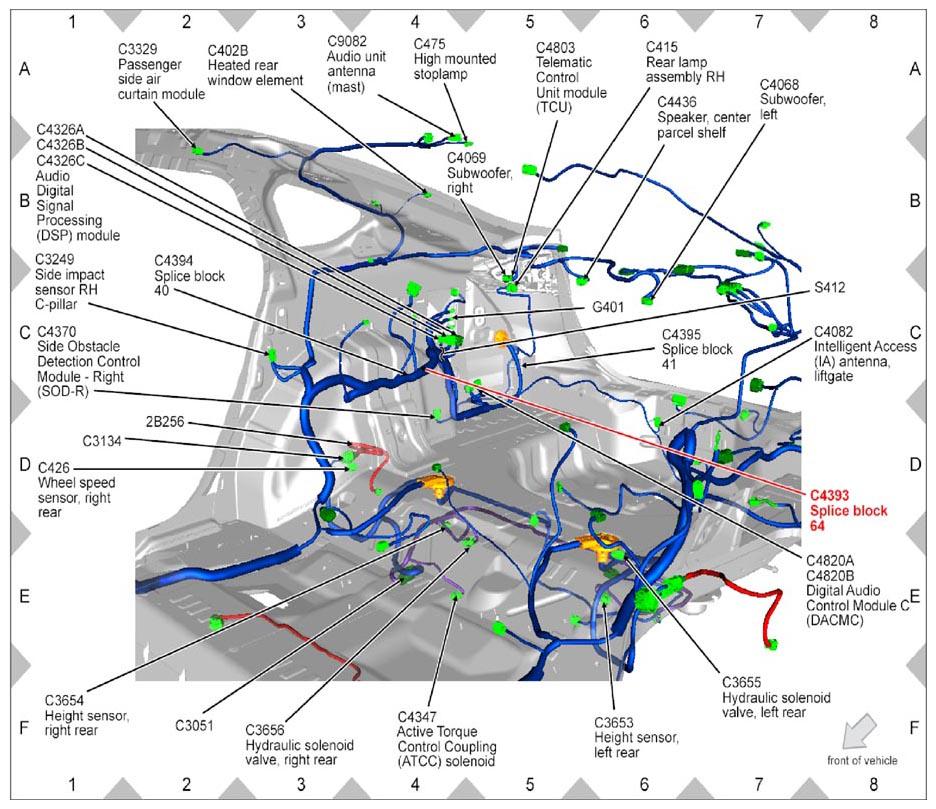

Fig 638: Identifying Splice Block 64 Connector (C4393)

Courtesy of FORD MOTOR CO.

Fig 639: Identifying Splice Block 40 Connector (C4394)

Courtesy of FORD MOTOR CO.

Fig 640: Identifying Splice Block 41 Connector (C4395)

Courtesy of FORD MOTOR CO.

Fig 641: Identifying Vehicle Dynamics Module (VDM) Connector (C4396C And C4396D)

Courtesy of FORD MOTOR CO.

Fig 642: Identifying Vehicle Dynamics Module (VDM) Connector (C4396C And C4396D)

Courtesy of FORD MOTOR CO.

Fig 643: Identifying Rear Active Park Assist Sensor LH Connector (C4420)

Courtesy of FORD MOTOR CO.

Fig 644: Identifying Rear Active Park Assist Sensor RH Connector (C4421)

Courtesy of FORD MOTOR CO.

Fig 645: Identifying Rear Side Marker Lamp LH Connector (C4422)

Courtesy of FORD MOTOR CO.

Fig 646: Identifying Rear Side Marker Lamp RH Connector (C4423)

Courtesy of FORD MOTOR CO.

Fig 647: Identifying Luggage Compartment Lid Latch Connector (C4424) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 648: Identifying Luggage Compartment Lid Latch Connector (C4424) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 649: Identifying Battery Monitoring Sensor Connector (C4433) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 650: Identifying Battery Monitoring Sensor Connector (C4433) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 651: Identifying High Voltage Battery Cooling Fan Connector (C4434) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 652: Identifying High Voltage Battery Cooling Fan Connector (C4434) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 653: Identifying High Voltage Battery Charger Cooling Fan Connector (C4435)

Courtesy of FORD MOTOR CO.

Fig 654: Identifying Speaker Center Parcel Shelf Connector (C4436) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 655: Identifying Speaker Center Parcel Shelf Connector (C4436) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 656: Identifying Splice Block 47 Connector (C4437)

Courtesy of FORD MOTOR CO.

Fig 657: Identifying Splice Block 43 Connector (C4438)

Courtesy of FORD MOTOR CO.

Fig 658: Identifying Splice Block 44 Connector (C4440)

Courtesy of FORD MOTOR CO.

Fig 659: Identifying Splice Block 45 Connector (C4441)

Courtesy of FORD MOTOR CO.

Fig 660: Identifying Splice Block 52 Connector (C4442)

Courtesy of FORD MOTOR CO.

Fig 661: Identifying Splice Block 55 Connector (C4443) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 662: Identifying Splice Block 55 Connector (C4443) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 663: Identifying Connector (C4445)

Courtesy of FORD MOTOR CO.

Fig 664: Identifying Subwoofer - Right Connector (C4446)

Courtesy of FORD MOTOR CO.

Fig 665: Identifying Connector (C4447)

Courtesy of FORD MOTOR CO.

Fig 666: Identifying Subwoofer - Left Connector (C4448)

Courtesy of FORD MOTOR CO.

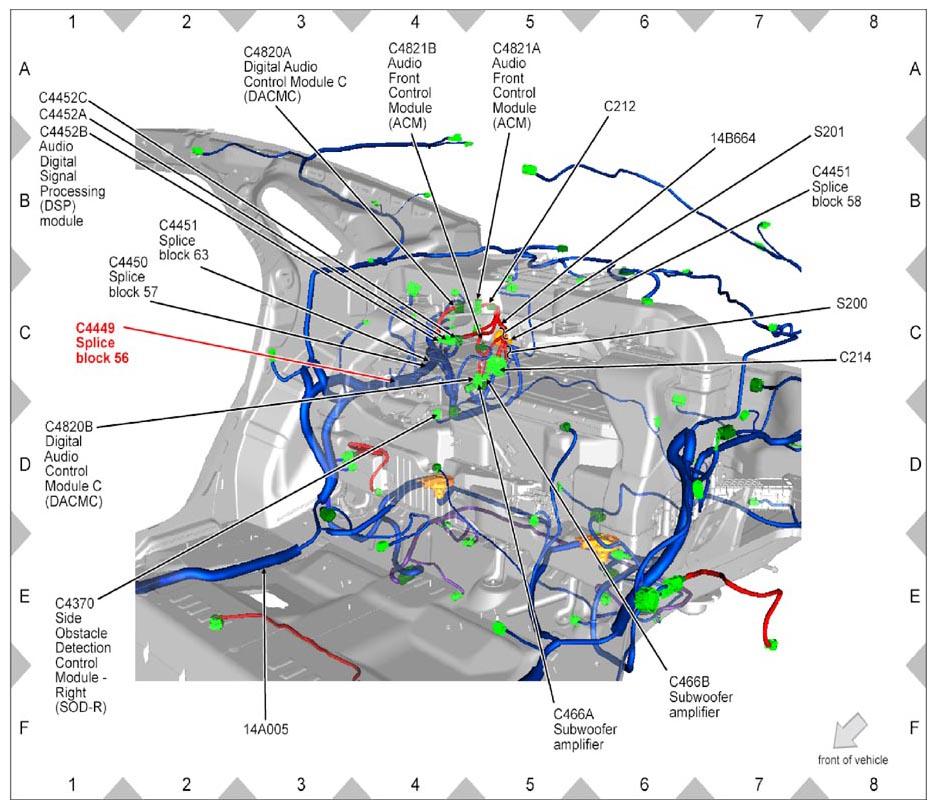

Fig 667: Identifying Splice Block 56 Connector (C4449)

Courtesy of FORD MOTOR CO.

Fig 668: Identifying Splice Block 57 Connector (C4450)

Courtesy of FORD MOTOR CO.

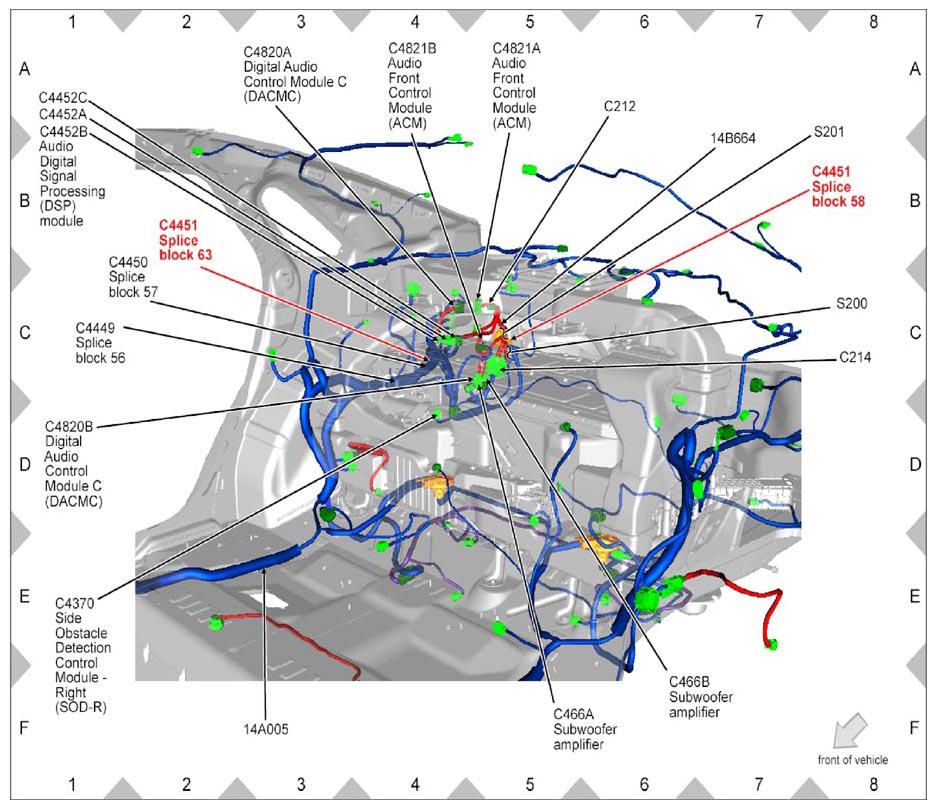

Fig 669: Identifying Splice Block 63 Connector (C4451)

Courtesy of FORD MOTOR CO.

Fig 670: Identifying Connector (C4452A)

Courtesy of FORD MOTOR CO.

Fig 671: Identifying Audio Digital Signal Processing (DSP) Module Connector (C4452B)

Courtesy of FORD MOTOR CO.

Fig 672: Identifying Connector (C4452C)

Courtesy of FORD MOTOR CO.

Fig 673: Identifying DC/DC Converter Module Connector (C4453A)

Courtesy of FORD MOTOR CO.

Fig 674: Identifying DC/DC Converter Module Connector (C4453B And C4453C)

Courtesy of FORD MOTOR CO.

Fig 675: Identifying DC/DC Converter Module Connector (C4453B And C4453C)

Courtesy of FORD MOTOR CO.

Fig 676: Identifying DC/DC Converter Module Connector (C4453D)

Courtesy of FORD MOTOR CO.

Fig 677: Identifying High Voltage Battery Service Disconnect Connector (C4454) (HEV)

Courtesy of FORD MOTOR CO.

Fig 678: Identifying High Voltage Battery Service Disconnect Connector (C4454) (PHEV)

Courtesy of FORD MOTOR CO.

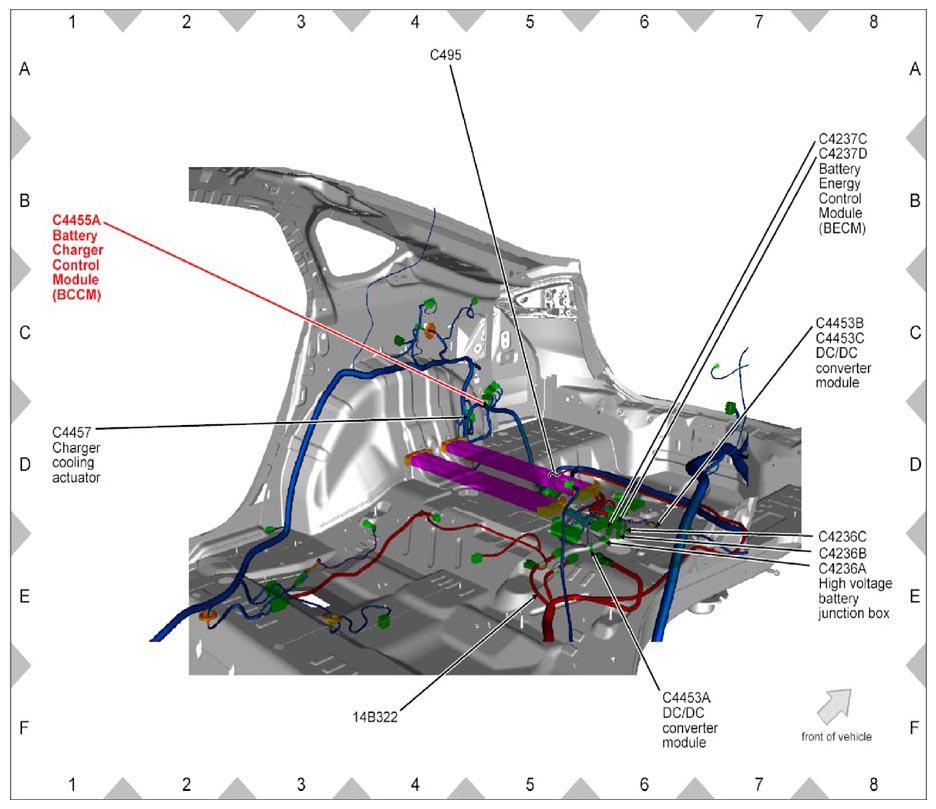

Fig 679: Identifying Battery Charger Control Module (BCCM) Connector (C4455A)

Courtesy of FORD MOTOR CO.

Fig 680: Identifying Battery Charger Control Module (BCCM) Connector (C4455B)

Courtesy of FORD MOTOR CO.

Fig 681: Identifying High Voltage Traction Battery Temperature Sensor Connector (C4456)

Courtesy of FORD MOTOR CO.

Fig 682: Identifying Charger Cooling Actuator Connector (C4457)

Courtesy of FORD MOTOR CO.

Fig 683: Identifying Radio Transceiver Module (RTM) Connector (C4458)

Courtesy of FORD MOTOR CO.

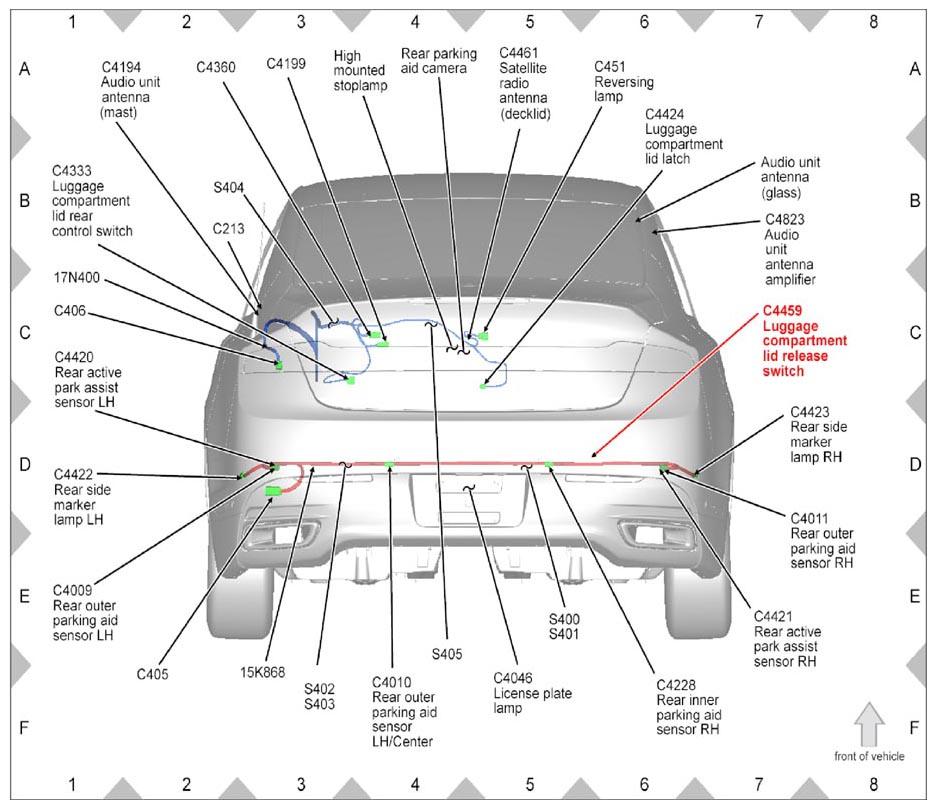

Fig 684: Identifying Luggage Compartment Lid Release Switch Connector (C4459)

Courtesy of FORD MOTOR CO.

Fig 685: Identifying Satellite Radio Antenna Connector (C4461)

Courtesy of FORD MOTOR CO.

Fig 686: Identifying High Voltage High Current Fuse Connector (C4464A And C4464B)

Courtesy of FORD MOTOR CO.

Fig 687: Identifying High Voltage High Current Fuse Connector (C4464A And C4464B)

Courtesy of FORD MOTOR CO.

Fig 688: Identifying Connector (C4465)

Courtesy of FORD MOTOR CO.

Fig 689: Identifying Telematic Control Unit Module (TCU) Connector (C4803)

Courtesy of FORD MOTOR CO.

Fig 690: Identifying High Voltage Battery Junction Box Connector (C4815A)

Courtesy of FORD MOTOR CO.

Fig 691: Identifying Connector (C4815B)

Courtesy of FORD MOTOR CO.

Fig 692: Identifying High Voltage Battery Junction Box Connector (C4815C)

Courtesy of FORD MOTOR CO.

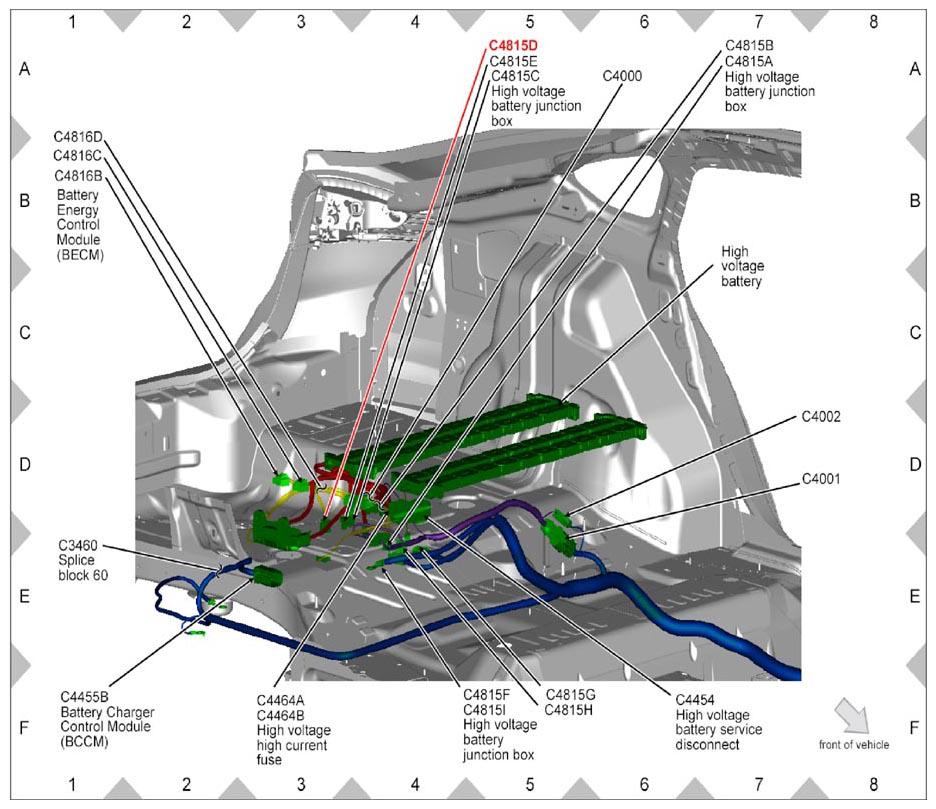

Fig 693: Identifying Connector (C4815D)

Courtesy of FORD MOTOR CO.

Fig 694: Identifying Connector (C4815E)

Courtesy of FORD MOTOR CO.

Fig 695: Identifying High Voltage Battery Junction Box Connector (C4815F And C4815I)

Courtesy of FORD MOTOR CO.

Fig 696: Identifying Connector (C4815G)

Courtesy of FORD MOTOR CO.

Fig 697: Identifying Connector (C4815H)

Courtesy of FORD MOTOR CO.

Fig 698: Identifying High Voltage Battery Junction Box Connector (C4815F And C4815I)

Courtesy of FORD MOTOR CO.

Fig 699: Identifying Connector (C4816A And C4816B)

Courtesy of FORD MOTOR CO.

Fig 700: Identifying Connector (C4816A And C4816B)

Courtesy of FORD MOTOR CO.

Fig 701: Identifying Connector (C4816C)

Courtesy of FORD MOTOR CO.

Fig 702: Identifying Connector (C4816D)

Courtesy of FORD MOTOR CO.

Fig 703: Identifying Keyless Entry Rear Antenna Connector (C4817)

Courtesy of FORD MOTOR CO.

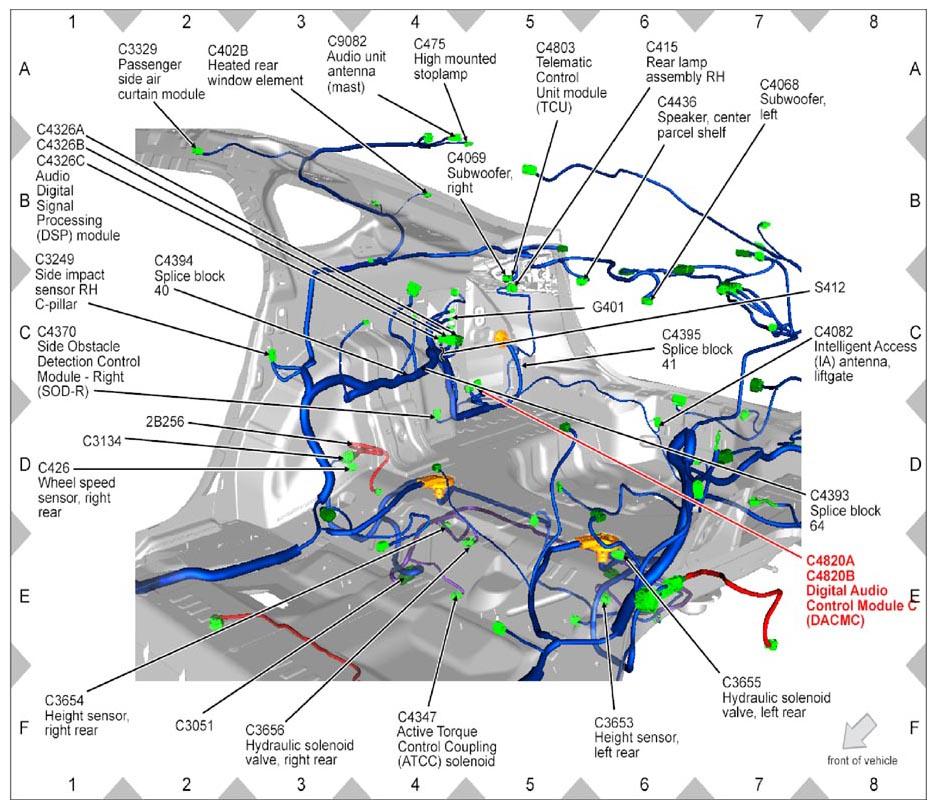

Fig 704: Identifying Digital Audio Control Module (DACMC) Connector (C4820A And C4820B) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 705: Identifying Digital Audio Control Module C (DACMC) Connector (C4820A) (MKZ)

Courtesy of FORD MOTOR CO.

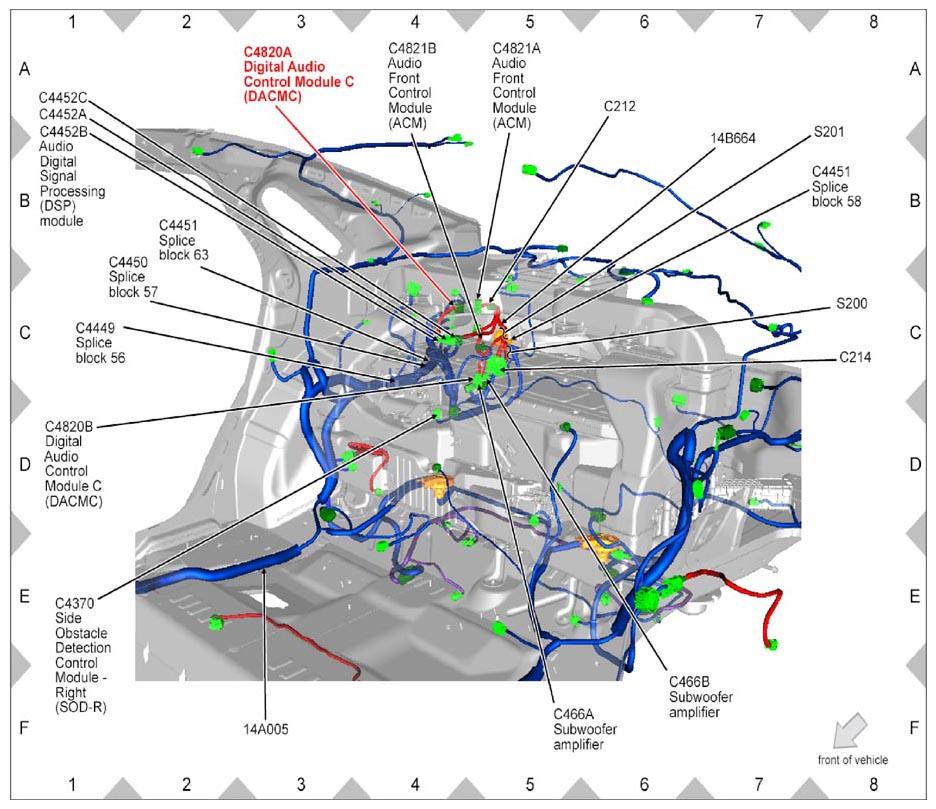

Fig 706: Identifying Digital Audio Control Module (DACMC) Connector (C4820A And C4820B) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 707: Identifying Digital Audio Control Module C (DACMC) Connector (C4820B) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 708: Identifying Audio Front Control Module (ACM) Connector (C4821A)

Courtesy of FORD MOTOR CO.

Fig 709: Identifying Audio Front Control Module (ACM) Connector (C4821B)

Courtesy of FORD MOTOR CO.

Fig 710: Identifying Audio Unit Antenna Amplifier Connector (C4823)

Courtesy of FORD MOTOR CO.

Fig 711: Identifying Power Striker Module Connector (C4824)

Courtesy of FORD MOTOR CO.

Fig 712: Identifying Auto-Dimming Interior Mirror Connector (C9012)

Courtesy of FORD MOTOR CO.

Fig 713: Identifying Radio Transceiver Module (RTM) Connector (C9026)

Courtesy of FORD MOTOR CO.

Fig 714: Identifying Interior Lamp - Second Row Connector (C9081)

Courtesy of FORD MOTOR CO.

Fig 715: Identifying Audio Unit Antenna Connector (C9082)

Courtesy of FORD MOTOR CO.

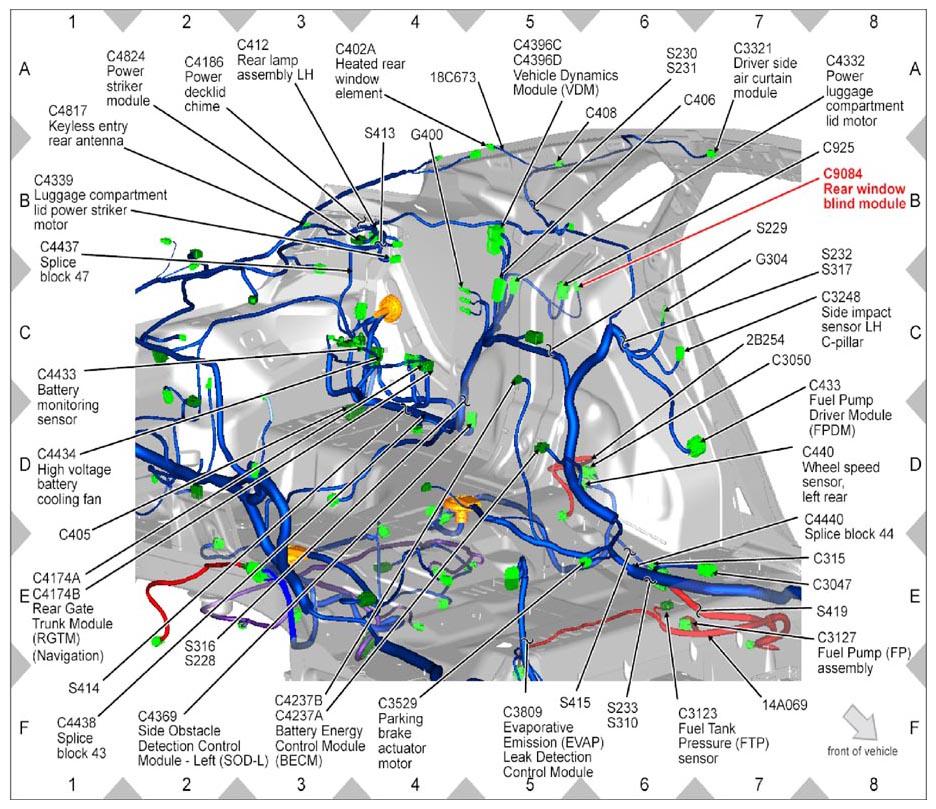

Fig 716: Identifying Rear Window Blind Module Connector (C9084) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 717: Identifying Rear Window Blind Module Connector (C9084) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 718: Identifying Microphone Connector (C9221)

Courtesy of FORD MOTOR CO.

Fig 719: Identifying Active Noise Control Microphone-3 Connector (C9225)

Courtesy of FORD MOTOR CO.

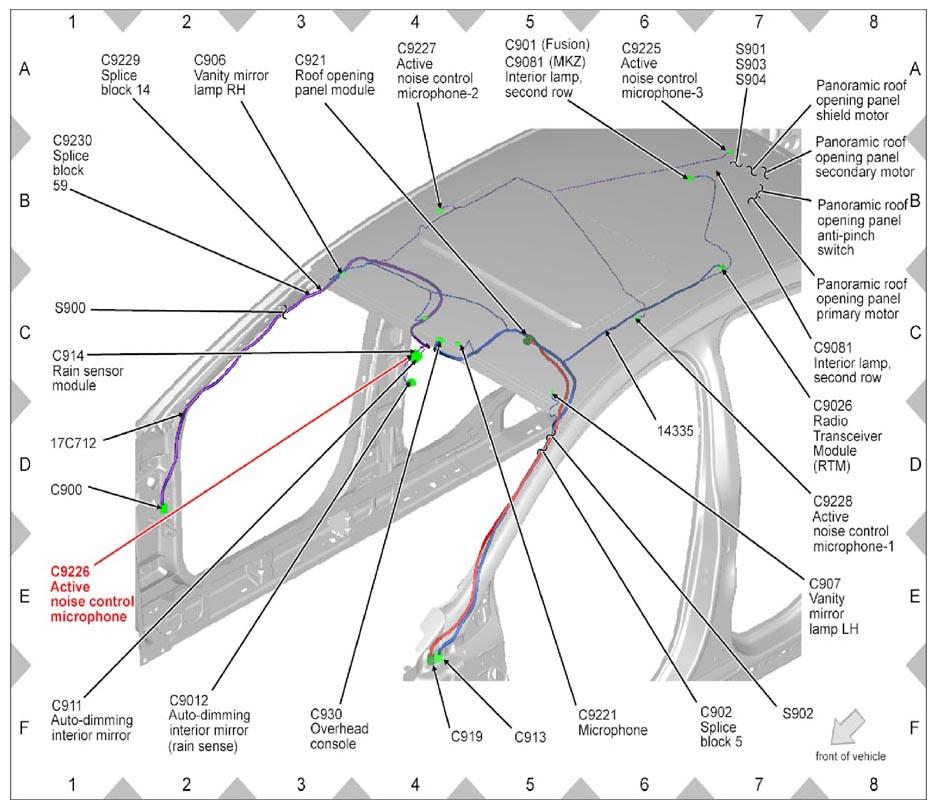

Fig 720: Identifying Active Noise Control Microphone Connector (C9226)

Courtesy of FORD MOTOR CO.

Fig 721: Identifying Active Noise Control Microphone-2 Connector (C9227)

Courtesy of FORD MOTOR CO.

Fig 722: Identifying Active Noise Control Microphone-1 Connector (C9228)

Courtesy of FORD MOTOR CO.

Fig 723: Identifying Splice Block 14 Connector (C9229)

Courtesy of FORD MOTOR CO.

Fig 724: Identifying Splice Block 59 Connector (C9230)

Courtesy of FORD MOTOR CO.
