Component Bleeding: Bleeding

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

Master Cylinder

NOTE: When a new brake master cylinder has been installed, it should be primed to prevent air from entering the system.

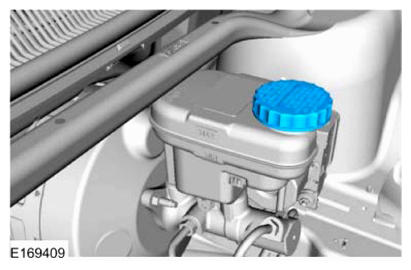

  1. NOTE: Make sure the area around the master cylinder cap is clean and free of foreign material.
    G08668021
  2. Fill the reservoir with clean, specified brake fluid.

    Refer to: SPECIFICATIONS .

    G08668027
  3. G08668022
  4. Use the General Equipment: Master Cylinder Bleeding Set
    G08668023

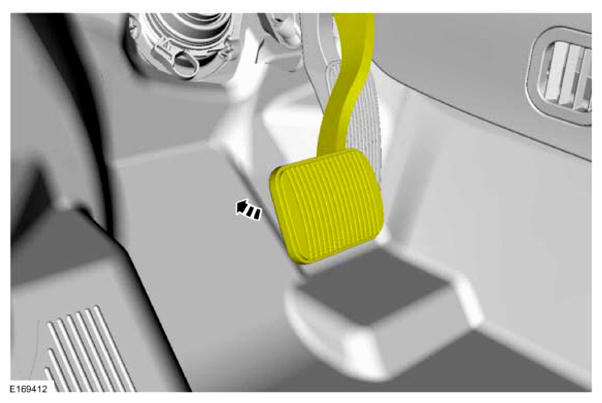

  5. Have an assistant pump the brake pedal slowly until clear bubble free fluid flows from the brake tubes.
    G08668024
  6. Remove the General Equipment: Master Cylinder Bleeding Set
    G08668023
  7. Tighten the brake tube fittings.

    Refer to: SPECIFICATIONS .

    G08668022
  8. Fill the reservoir with clean, specified brake fluid.

    Refer to: SPECIFICATIONS .

    G08668027
  9. Refer to: BRAKE SYSTEM PRESSURE BLEEDING .

    Brake Caliper, Wheel Cylinder, Brake Hose or Brake Tube

  10. NOTE: Pressure bleeding the brake system is required anytime a hydraulic brake system component has been disconnected.

    Refer to: BRAKE SYSTEM PRESSURE BLEEDING .
