Roof Opening Panel Shield: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Both sides.

    Refer to: A-PILLAR TRIM PANEL .

  2. Both sides.

    Refer to: B-PILLAR TRIM PANEL .

  3. Both sides.

    Refer to: C-PILLAR UPPER TRIM PANEL .

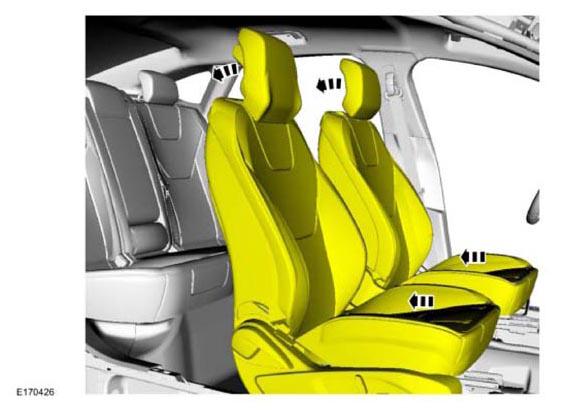

  4. G08634713
  5. If equipped.
    G08638723
  6. If equipped.
    G08634717
  7. If equipped.
    G08638724
  8. Both sides.
    G08638725
  9. Both sides.
    G08638726
  10. All.
    G08409733
  11. NOTE: Disconnect as necessary to lower the headliner.

    Both sides.

    G08637908
  12. NOTE: When releasing the magnets around the roof opening panel area, pull down on the plastic headliner reinforcement between the headliner and the roof or damage to the headliner may result.

    Release the seven magnets and two guide pins and magnets.

    G08409736

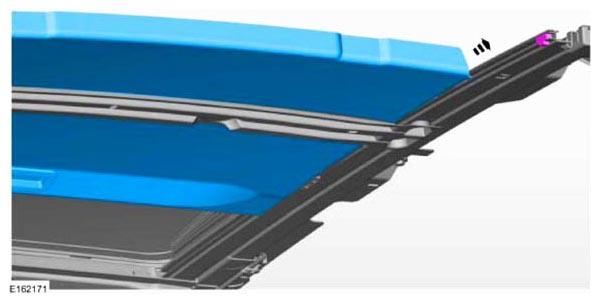

  13. Retainer on both sides.
    G08637920
