Roof Opening Panel Glass: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION -- (HYBRID) . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  2. Both sides.
    G08637873

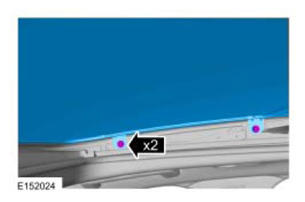

  3. NOTE: Blind removed for clarity.

    Both sides.

    Torque:  53 lb.in (6 Nm)

    G08101344
  4. G08101345
