Roof Opening Panel Frame: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. If replacing the roof opening panel frame, remove the air deflector.

    Refer to: AIR DEFLECTOR .

  2. Refer to: ROOF OPENING PANEL GLASS .
  3. Both sides.

    Refer to: A-PILLAR TRIM PANEL .

  4. Both sides.

    Refer to: B-PILLAR TRIM PANEL .

  5. Both sides.

    Refer to: C-PILLAR UPPER TRIM PANEL .

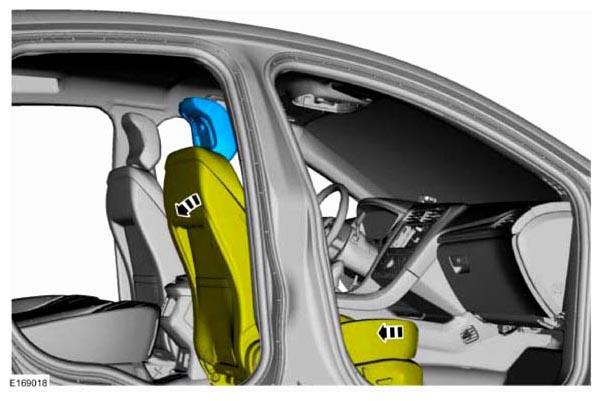

  6. G08637884

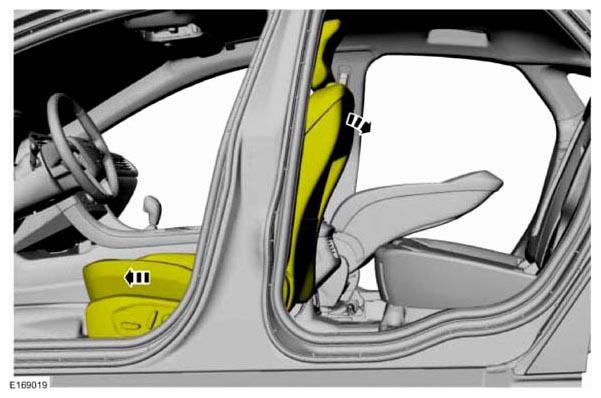

  7. G08637885

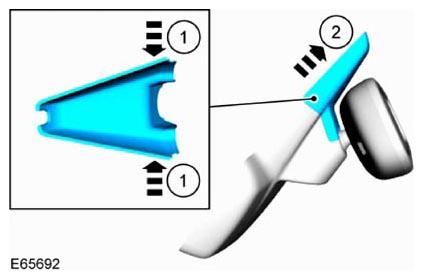

  8. If equipped.
    G08638723
  9. If equipped.

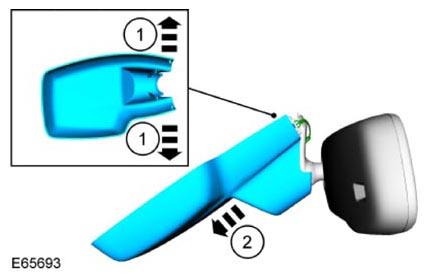

    G08634717
  10. If equipped.

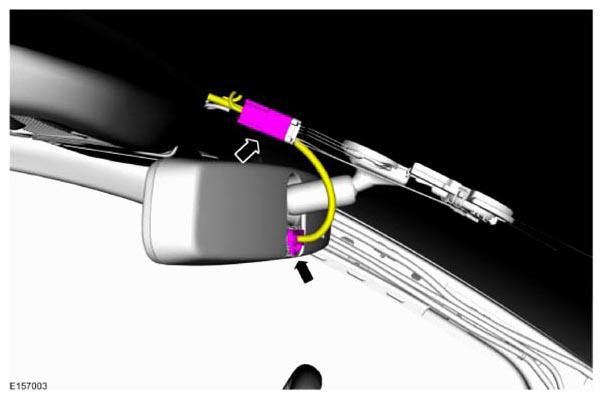

    G08638724
  11. Both sides.

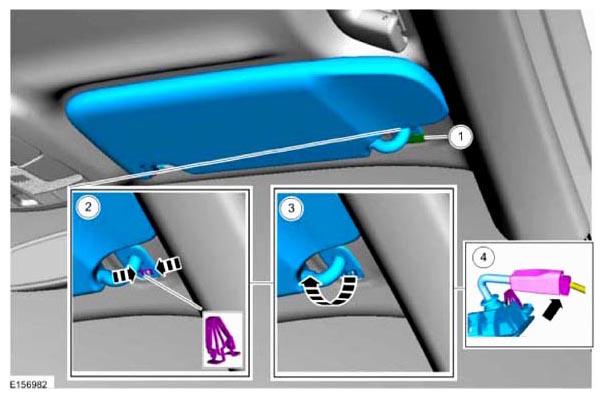

    G08638725
  12. Both sides.

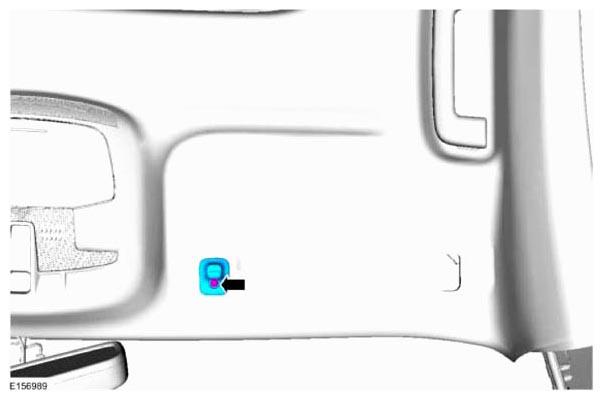

    G08638726
  13. All.

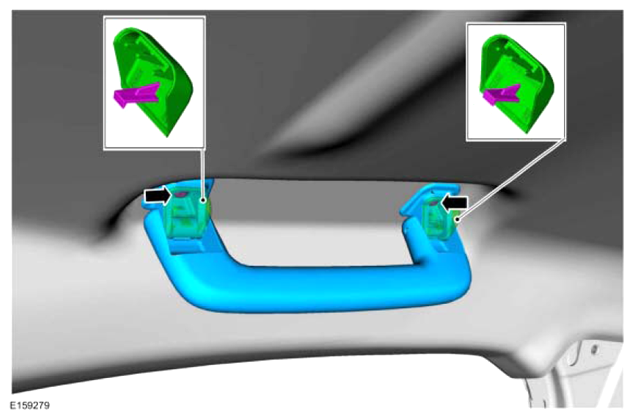

    G08409733

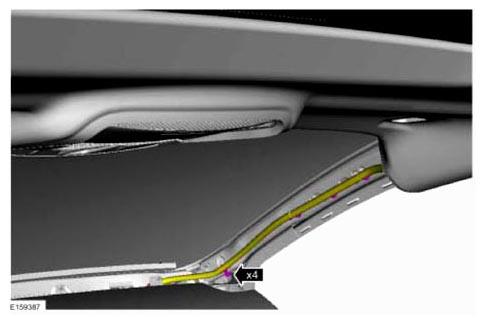

  14. Both sides.
    G08637908

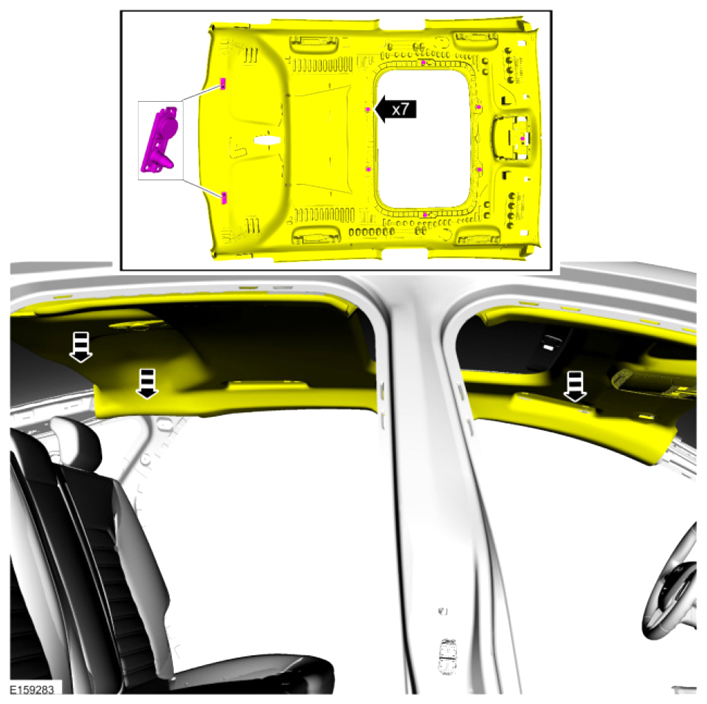

  15. NOTE: When releasing the magnets around the roof opening panel area, pull down on the plastic headliner reinforcement between the headliner and the roof or damage to the headliner may result.

    Carefully release the seven magnets and two guide pins and magnets.

    G08409736

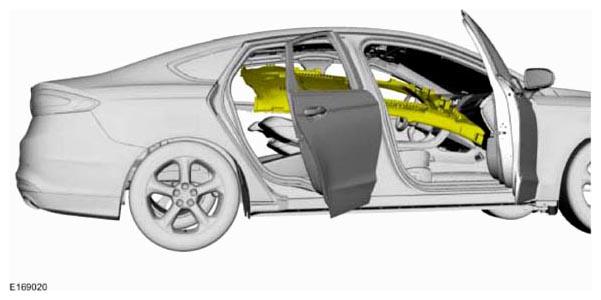

  16. Position headliner as shown below.
    G08637894

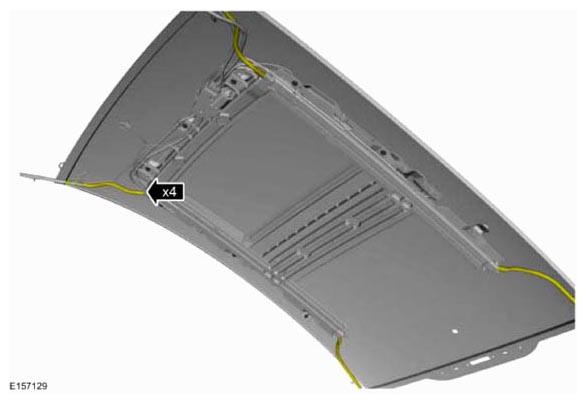

  17. G08637895

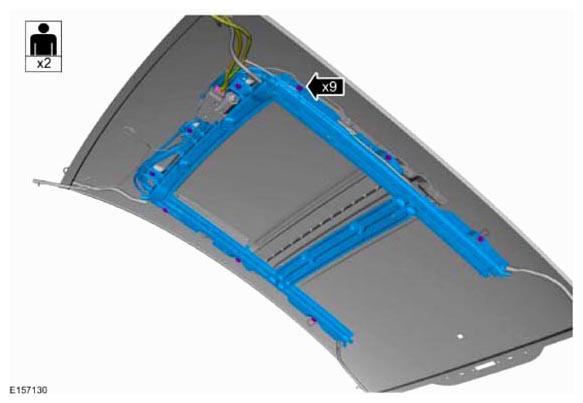

  18. Torque:  106 lb.in (12 Nm)
    G08637896

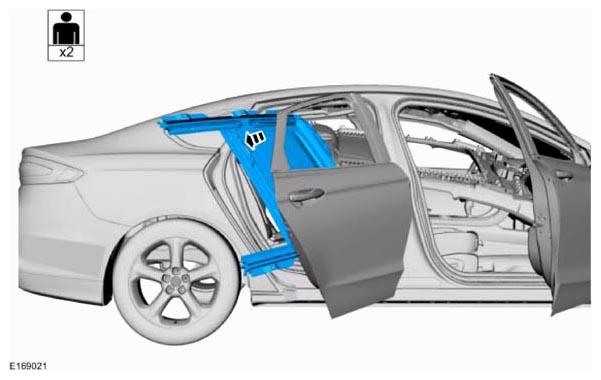

  19. G08637897
