Air Deflector: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION -- (HYBRID) . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

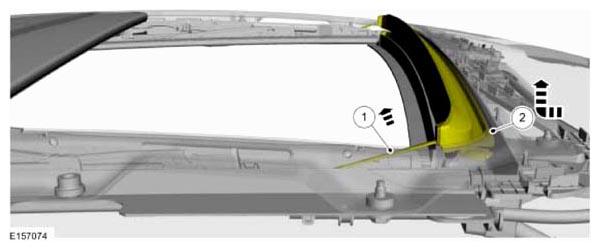

  2. NOTE: Some parts removed for clarity.

    Both sides.

    G08637879

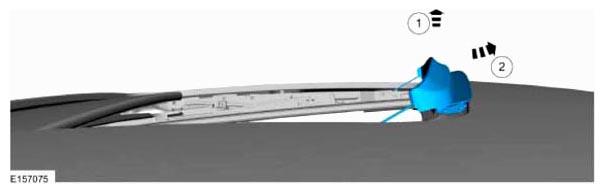

  3. G08637880
