Roof Opening Panel Alignment: Adjustment

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION -- (HYBRID) . Failure to follow this instruction may result in serious personal injury.

Refer to: HEALTH AND SAFETY PRECAUTIONS .
NOTE: Roof opening panel blind removed for clarity.

Both sides. Loosen only, for alignment.

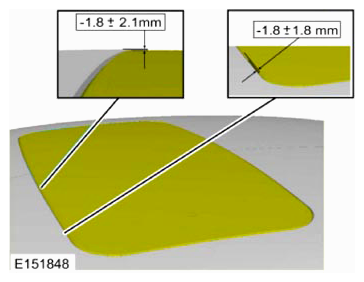

- Center line -1.8 +/- 2.1mm
- Outboard line -1.8 +/- 1.8mm
- Outboard line 0.30 +/- 1.8mm
- Center line 0.30 +/- 2.1mm
Torque: 53 lb.in (6 Nm)
Refer to: POWER ROOF OPENING PANEL INITIALIZATION .
