Rear Door Alignment: Adjustment
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH
side shown, RH
side similar.
All alignments
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION -- (HYBRID) . Failure to follow this instruction may result in serious personal injury.
Refer to: HEALTH AND SAFETY PRECAUTIONS .
- Check body to rear door dimensions.
Refer to: BODY AND FRAME .

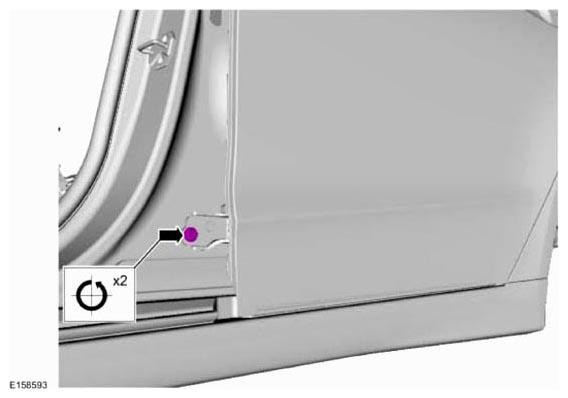

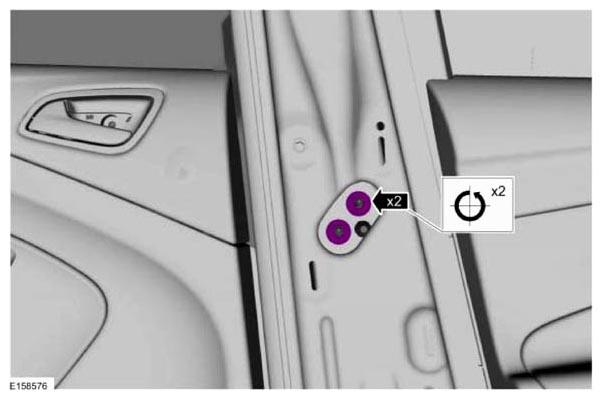

Rear door in and out, up and down alignment
- Torque:
35 lb.ft (48 Nm)
- Adjust door to specification.
Refer to: BODY AND FRAME .

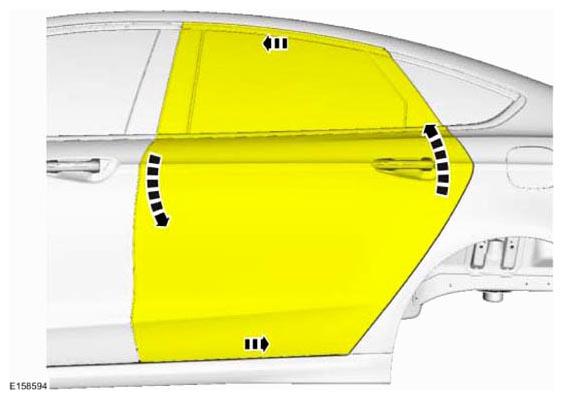

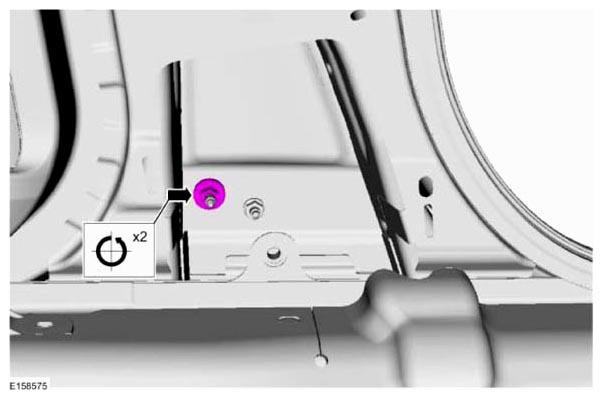

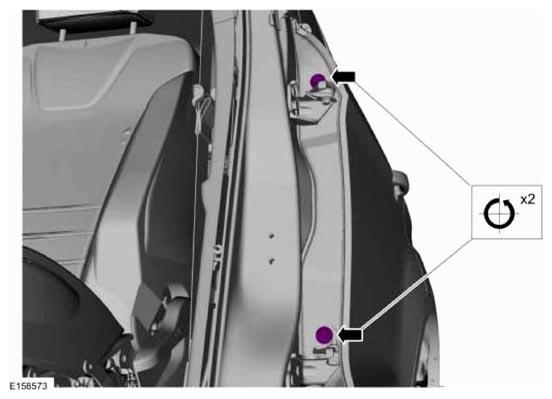

Rear door fore, aft and tilt alignment
- Refer to: SAFETY BELT RETRACTOR AND PRETENSIONER .
- Torque:
22 lb.ft (30 Nm)
- Torque:
22 lb.ft (30 Nm)
- Torque:
22 lb.ft (30 Nm)

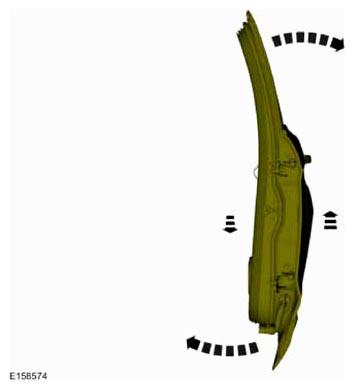

- Adjust door to specification.
Refer to: BODY AND FRAME .

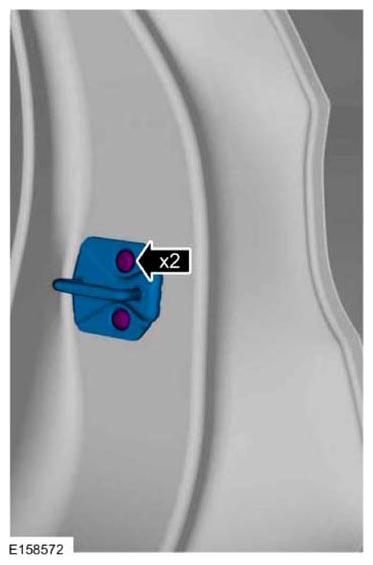

All alignments
- Torque:
18 lb.ft (25 Nm)

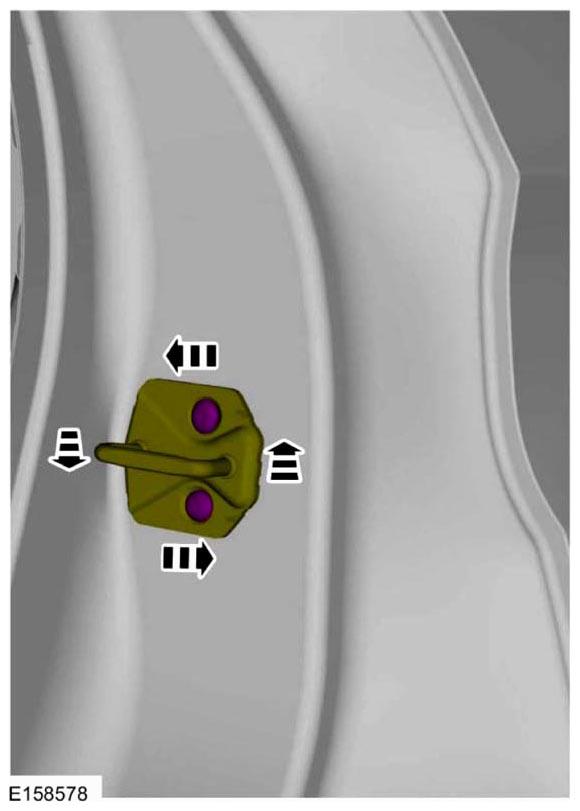

- Check body to rear door dimensions.
Refer to: BODY AND FRAME .
- To install, reverse the removal procedure.
