Luggage Compartment Lid Alignment: Adjustment
- Refer to: LUGGAGE COMPARTMENT LID LATCH .

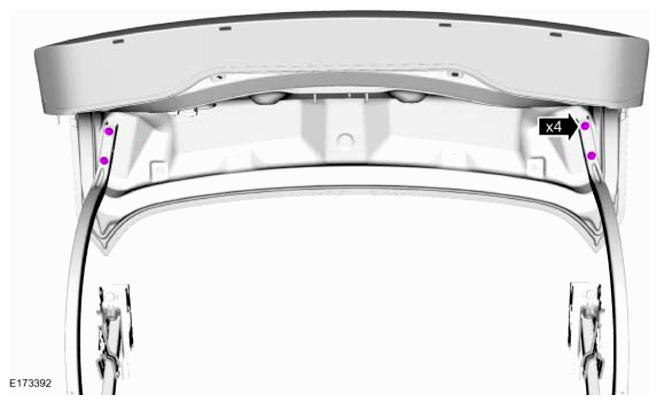

- Loosen:
: 2 turn(s)

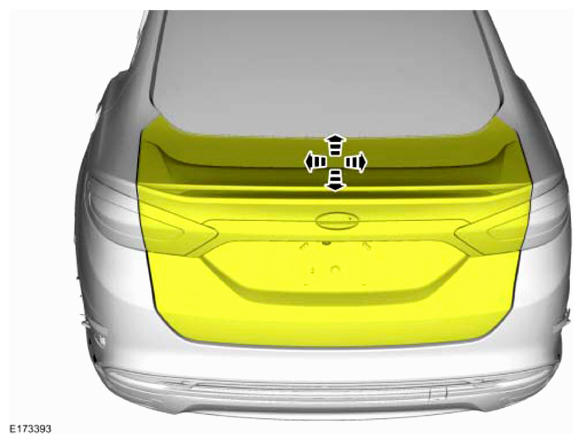

- Adjust the luggage compartment lid to specifications.
Refer to: BODY AND FRAME .
- Torque:
89 lb.in (10 Nm)

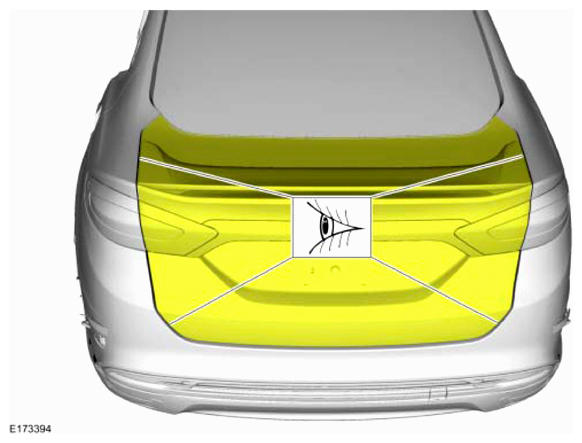

- Check the luggage compartment lid to body specifications.
Refer to: BODY AND FRAME .
- Refer to: LUGGAGE COMPARTMENT LID LATCH .
