Rocker Panel Moulding: Removal

WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

1.

NOTE: Before beginning any service procedure, REFER to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .

2.

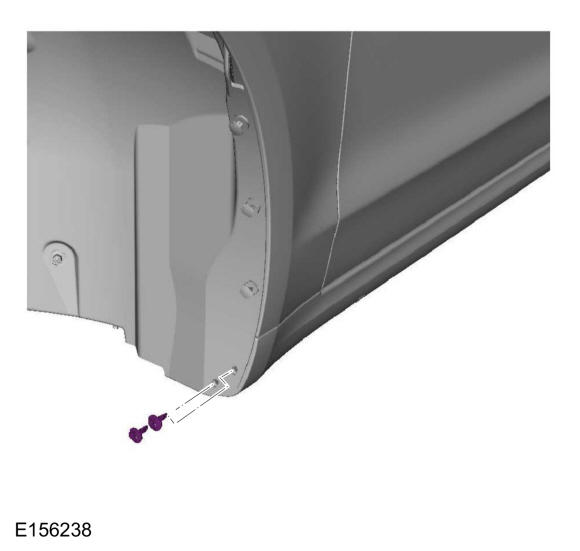

Remove the retainers.

Courtesy of FORD MOTOR COMPANY

3.

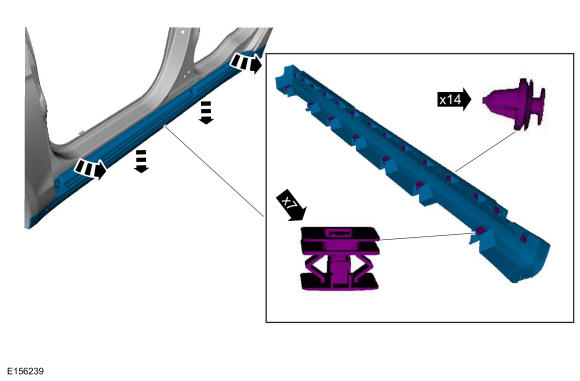

Remove the rocker panel moulding.
- Release the clips along the side of the rocker panel moulding.
- Slide rocker panel downward and remove.

Courtesy of FORD MOTOR COMPANY
