Front Active Park Assist Sensors: Removal
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.WARNING: Before beginning any service procedure in this article, refer to Health and Safety Precautions . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- 2.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- 4.

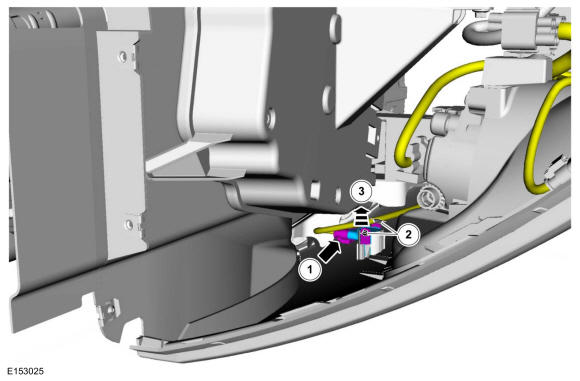

Remove the front active park assist sensor.- 1.
Disconnect the front active park assist sensor electrical connector.
- 2.
Release the tabs.
- 3.
Remove the front active park assist sensor from the bracket.
- 1.
