Wipers And Washers: MKZ

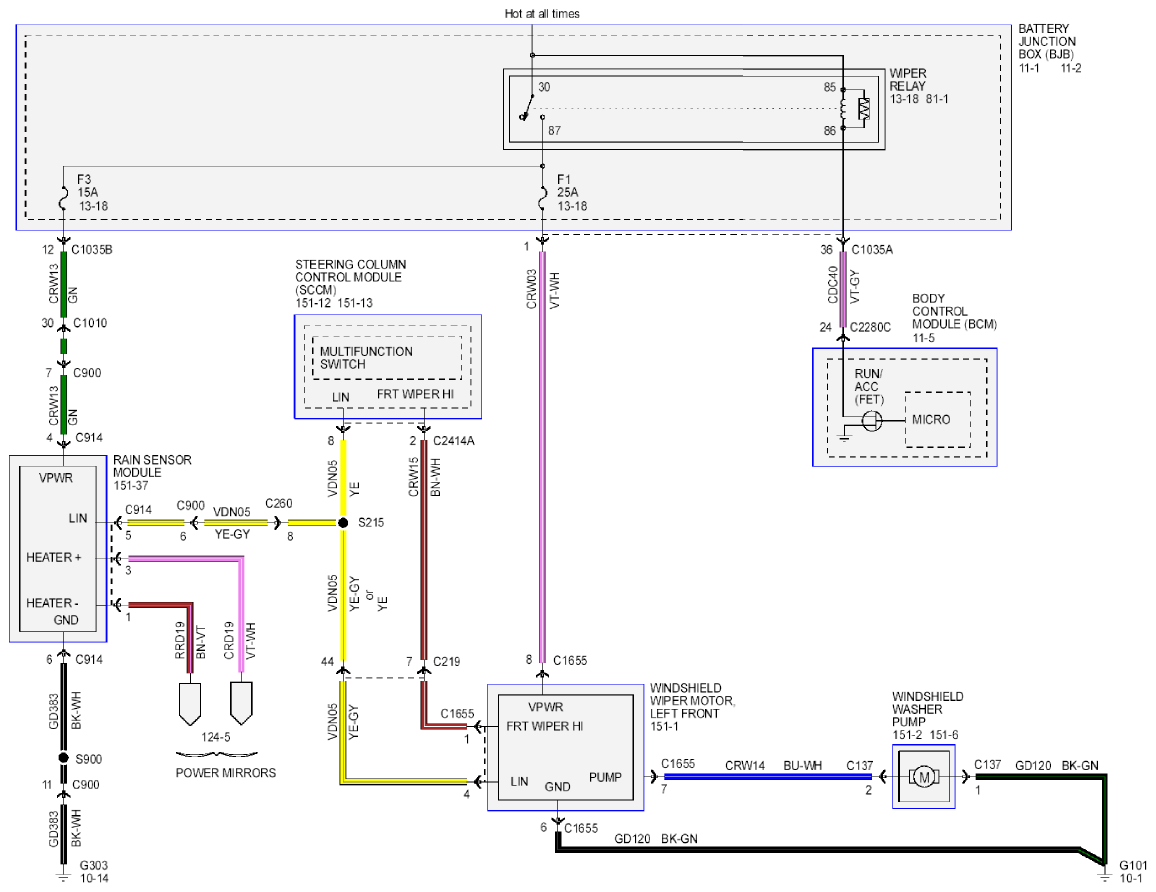

Fig 1: Wipers And Washers - Wiring Diagram - MKZ

G09269478

Courtesy of FORD MOTOR CO.
