Turn Signal/Stop/Hazard Lamps
>>
Led Headlamps
Led Headlamps

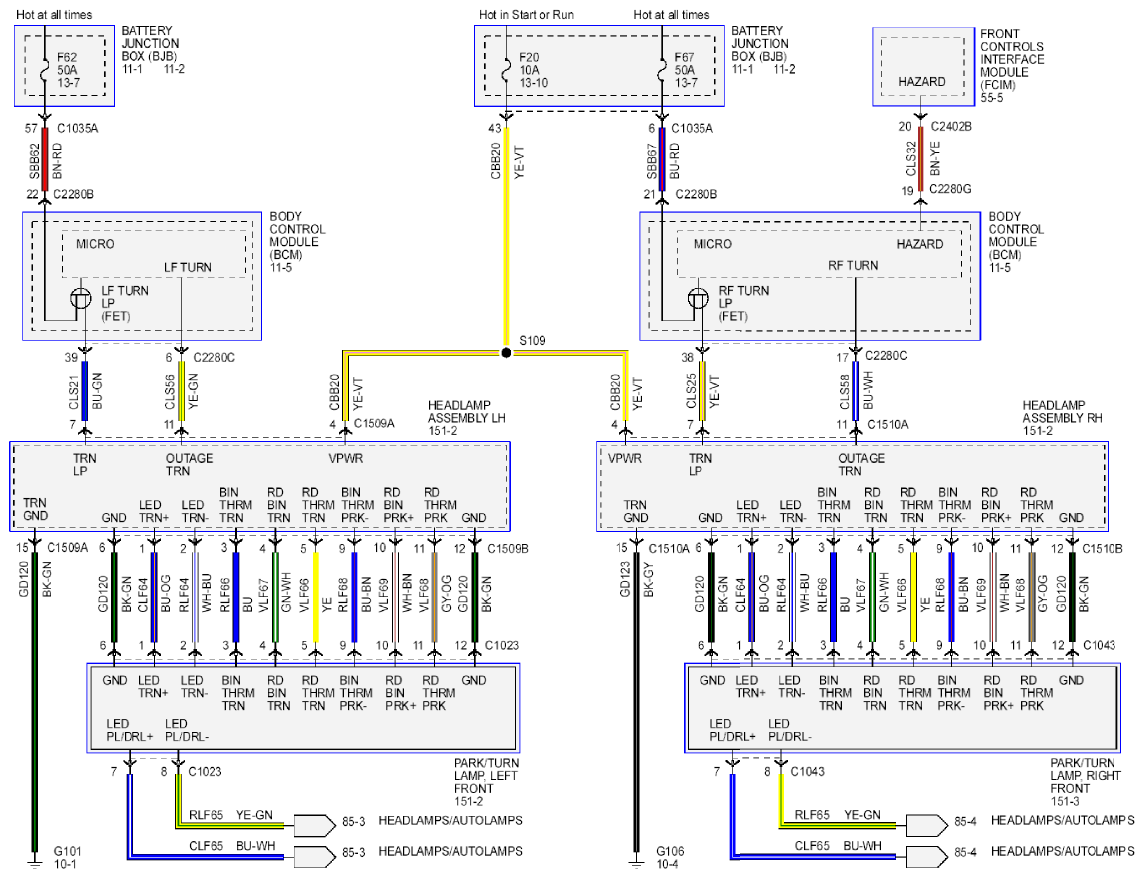

Fig 1: LED Headlamps - Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
