Supplemental Restraint System
>>
Rear Inflatable Safety Belts
Rear Inflatable Safety Belts

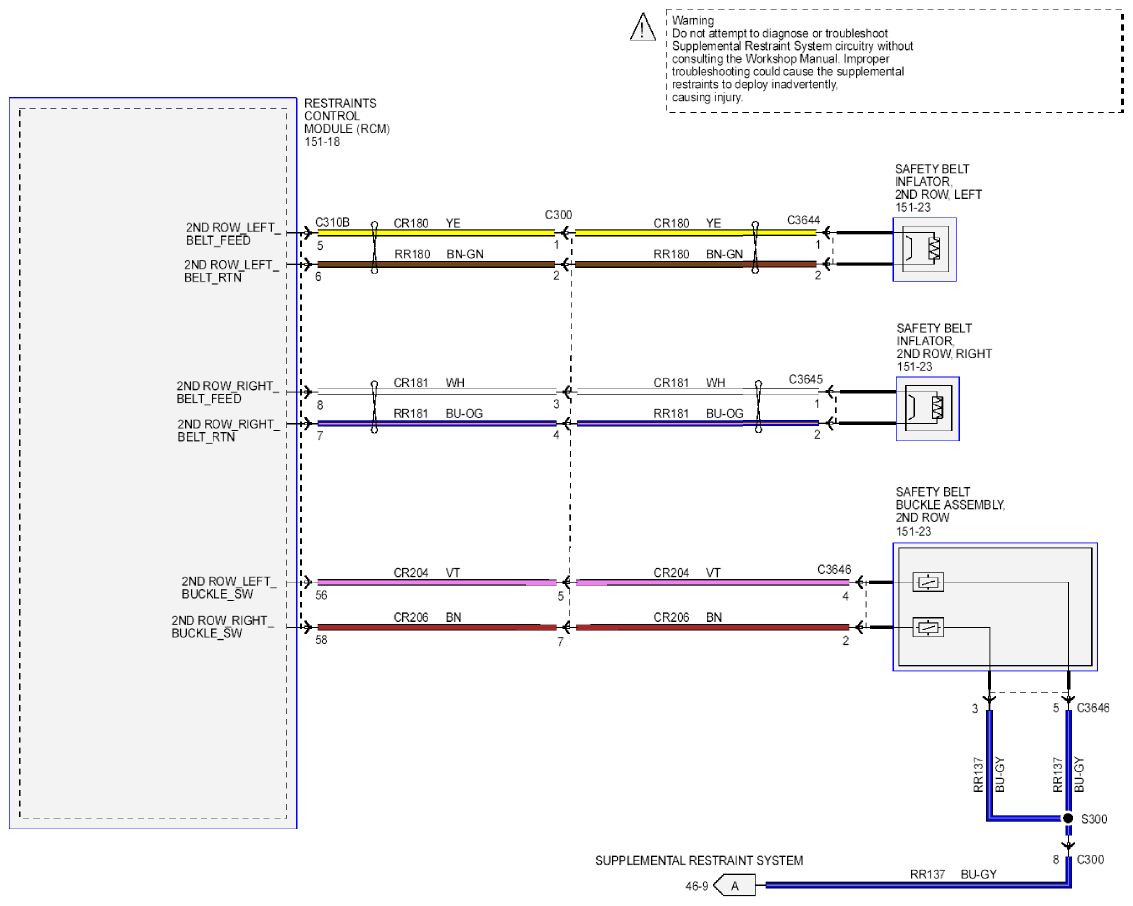

Fig 1: Supplemental Restraint System - Rear Inflatable Safety Belts - Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
