Shift Interlock: MKZ

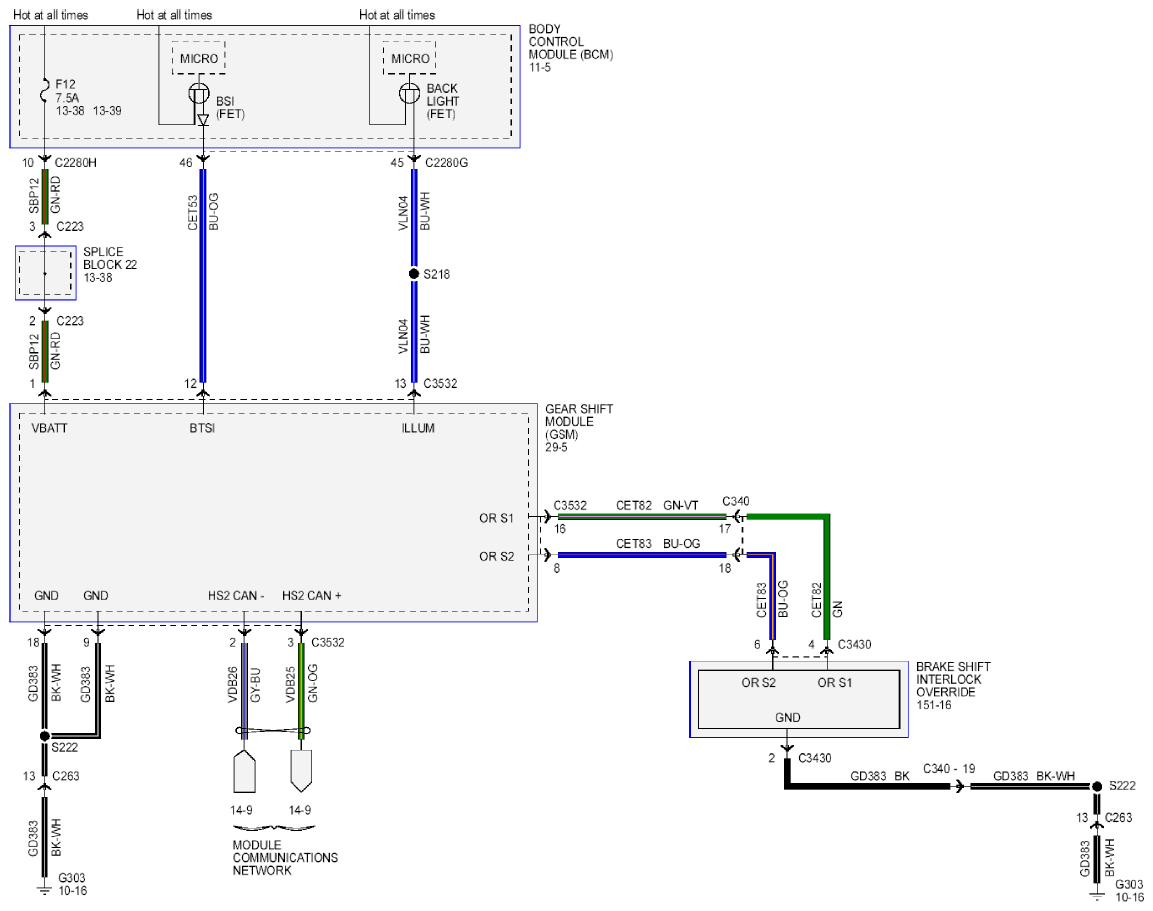

Fig 1: Shift Interlock Fusion - MKZ - Wiring Diagram

G09269430

Courtesy of FORD MOTOR CO.
