Roof Opening Panel
>>
Without Panoramic Roof
Without Panoramic Roof

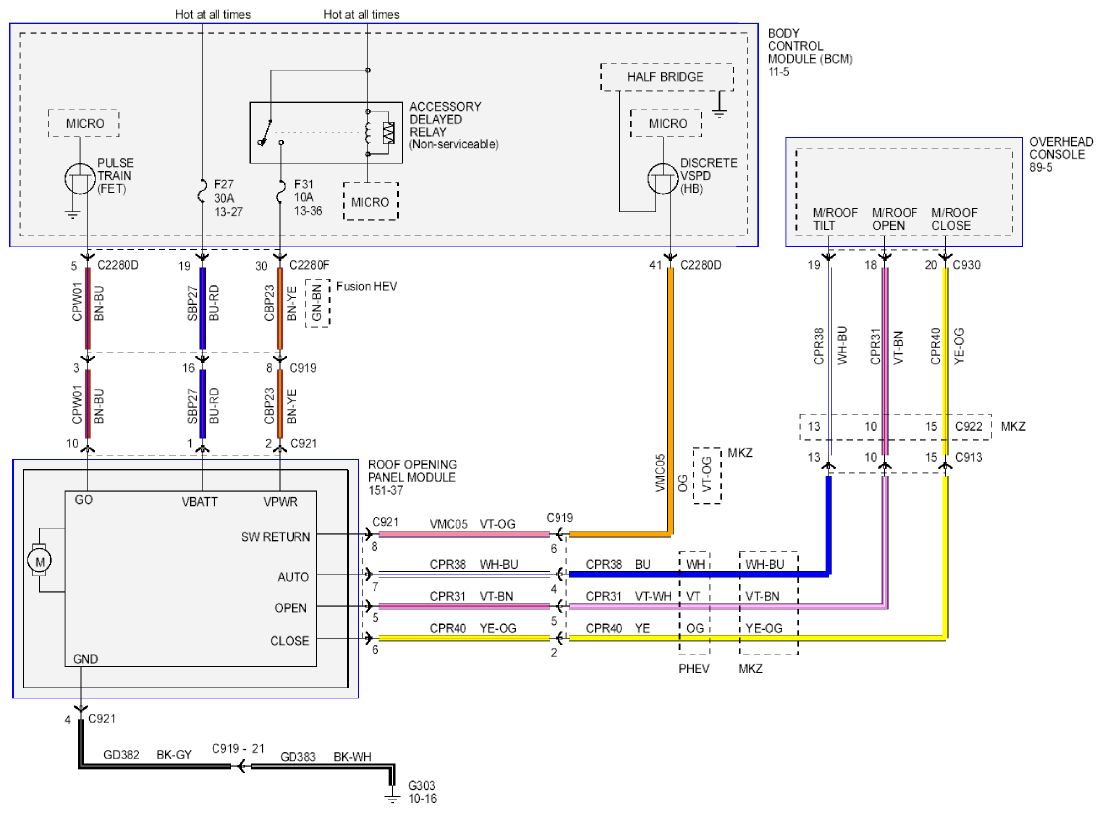

Fig 1: Roof Opening Panel Without Panoramic Roof - Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
