Reversing Lamps: MKZ

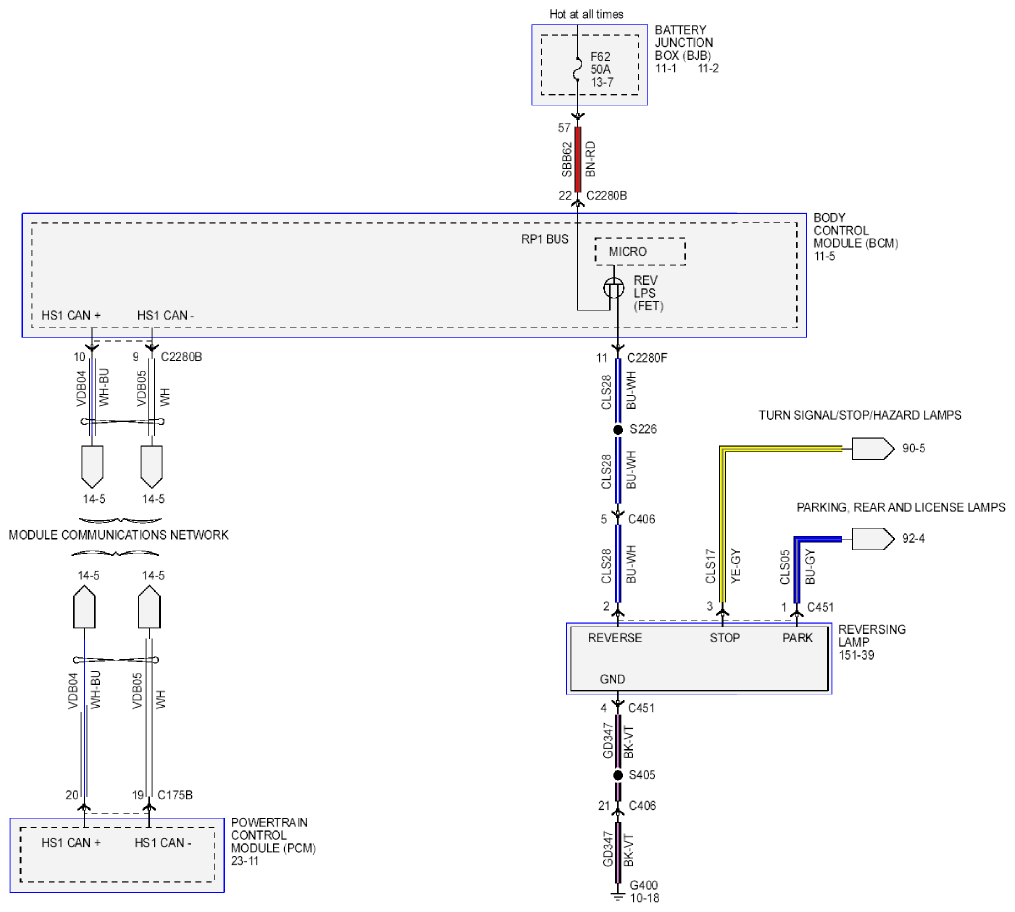

Fig 1: Reversing Lamps (MKZ) - Wiring Diagram
G09269507Courtesy of FORD MOTOR CO.
