Fusion Energi Titanium
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Power Sunshade
>>
Panoramic Roof
Panoramic Roof

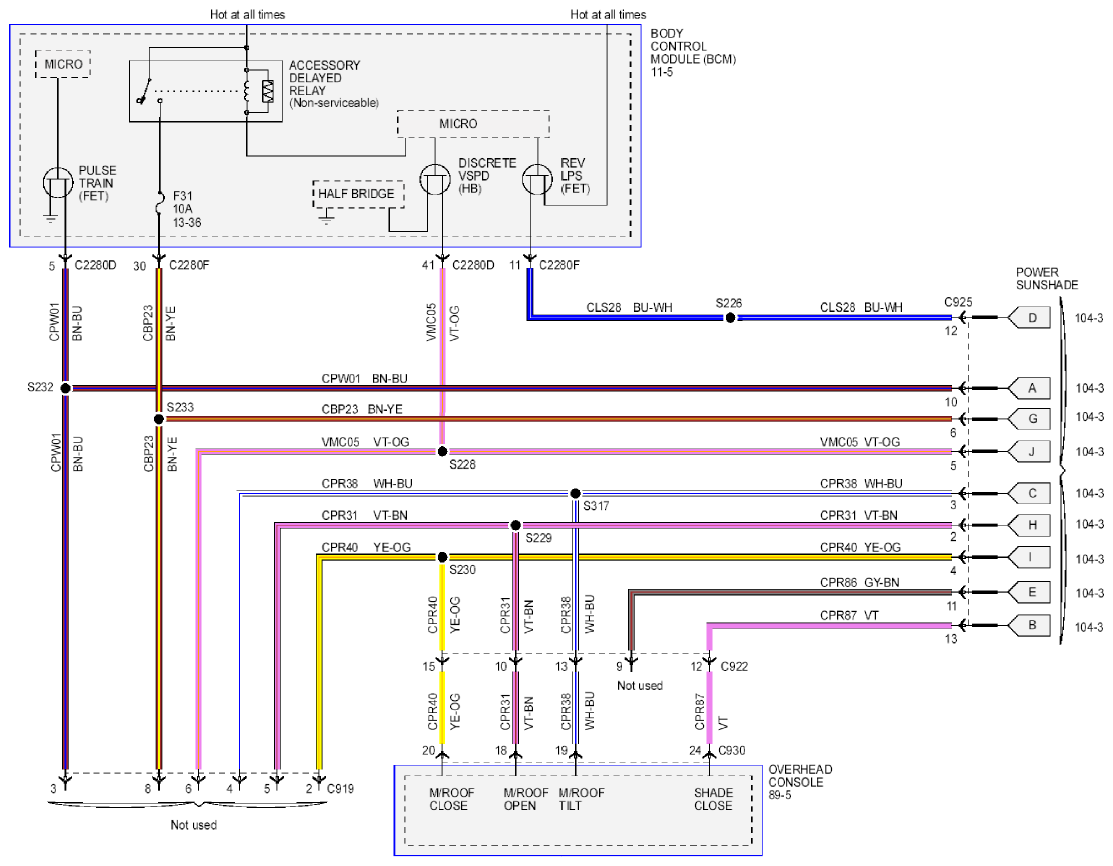

Fig 1: Power Sunshade - Panoramic Roof - Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

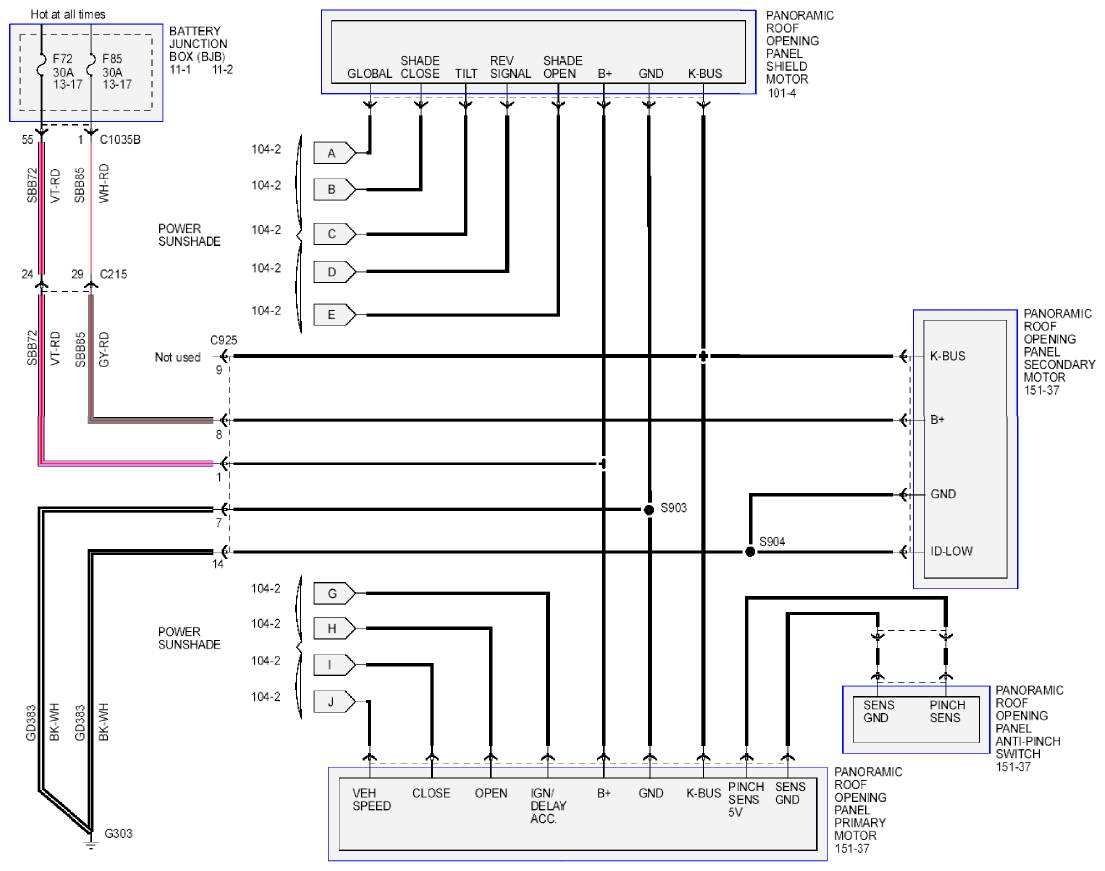

Fig 2: Power Sunshade - Panoramic Roof - Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
