Parking Aid
>>
With Adaptive Cruise
With Adaptive Cruise

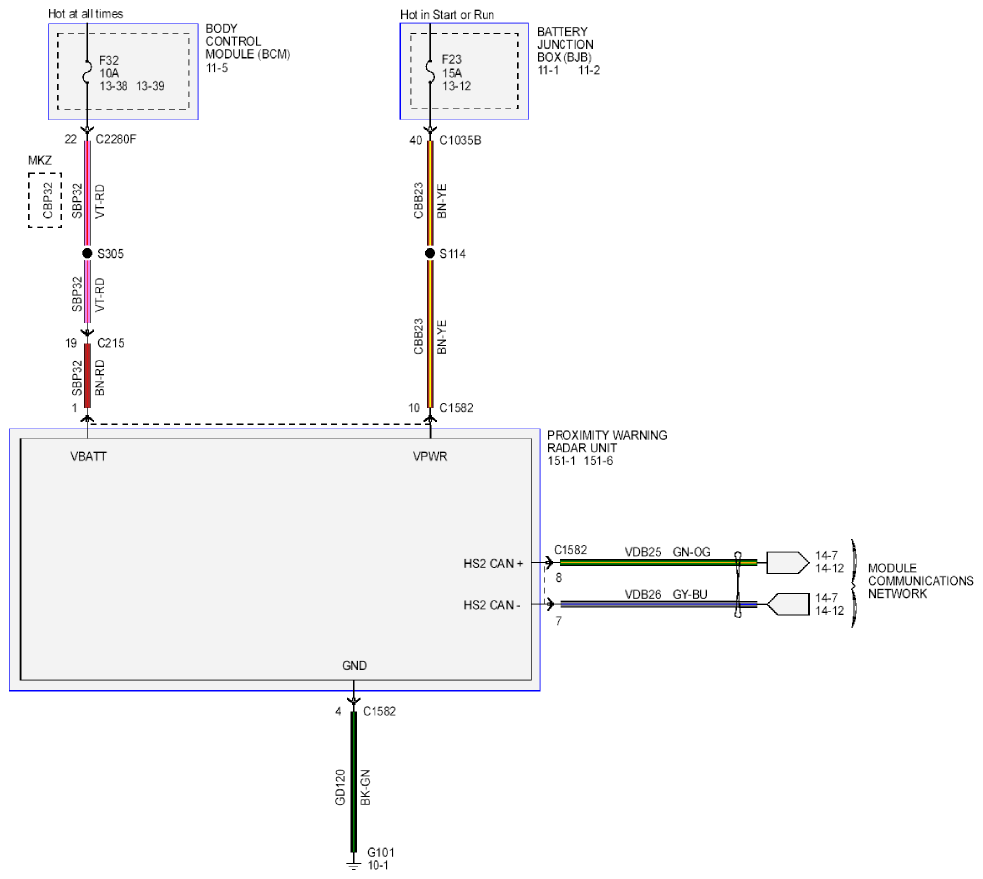

Fig 1: Parking Aid With Adaptive Cruise - Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
