Rear Video Camera 4.2 Inch Display
Rear Video Camera 4.2 Inch Display

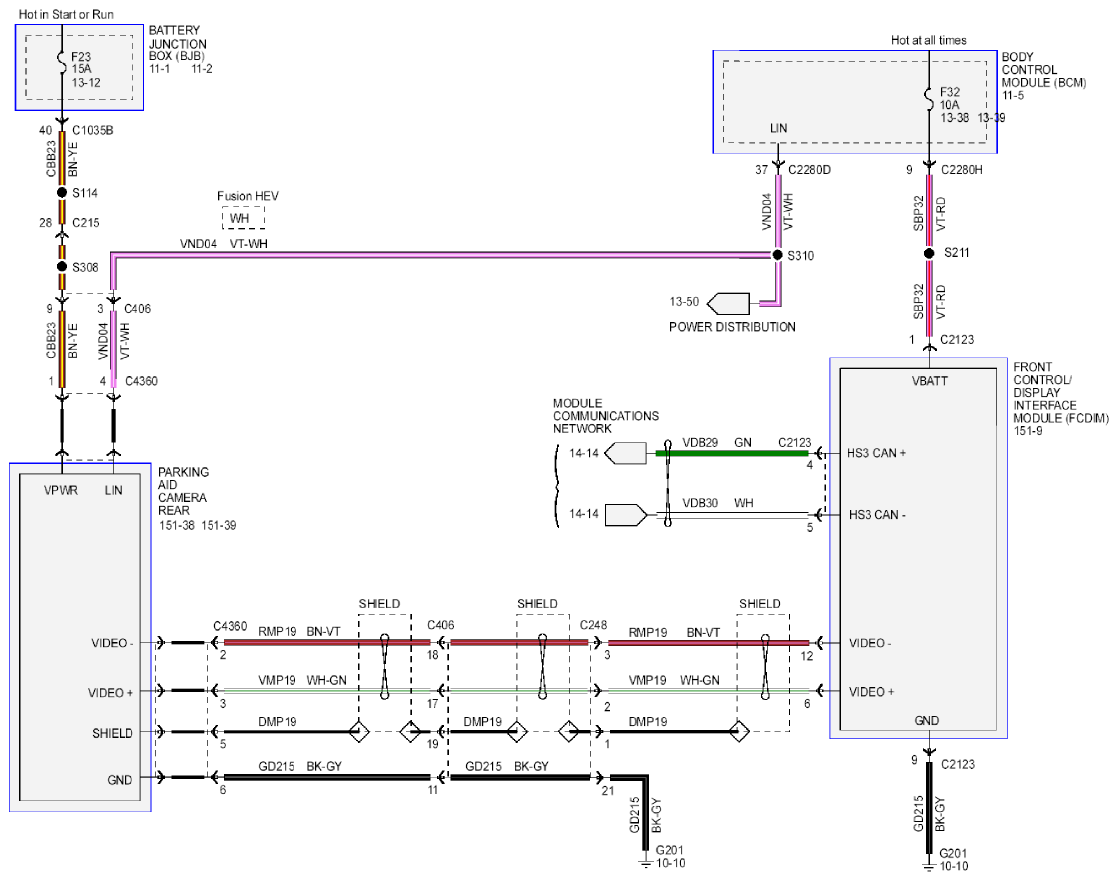

Fig 1: Parking Aid Rear Video Camera 4.2 Inch Display - Wiring Diagram
Courtesy of FORD MOTOR CO.
