Rear Parking Aid

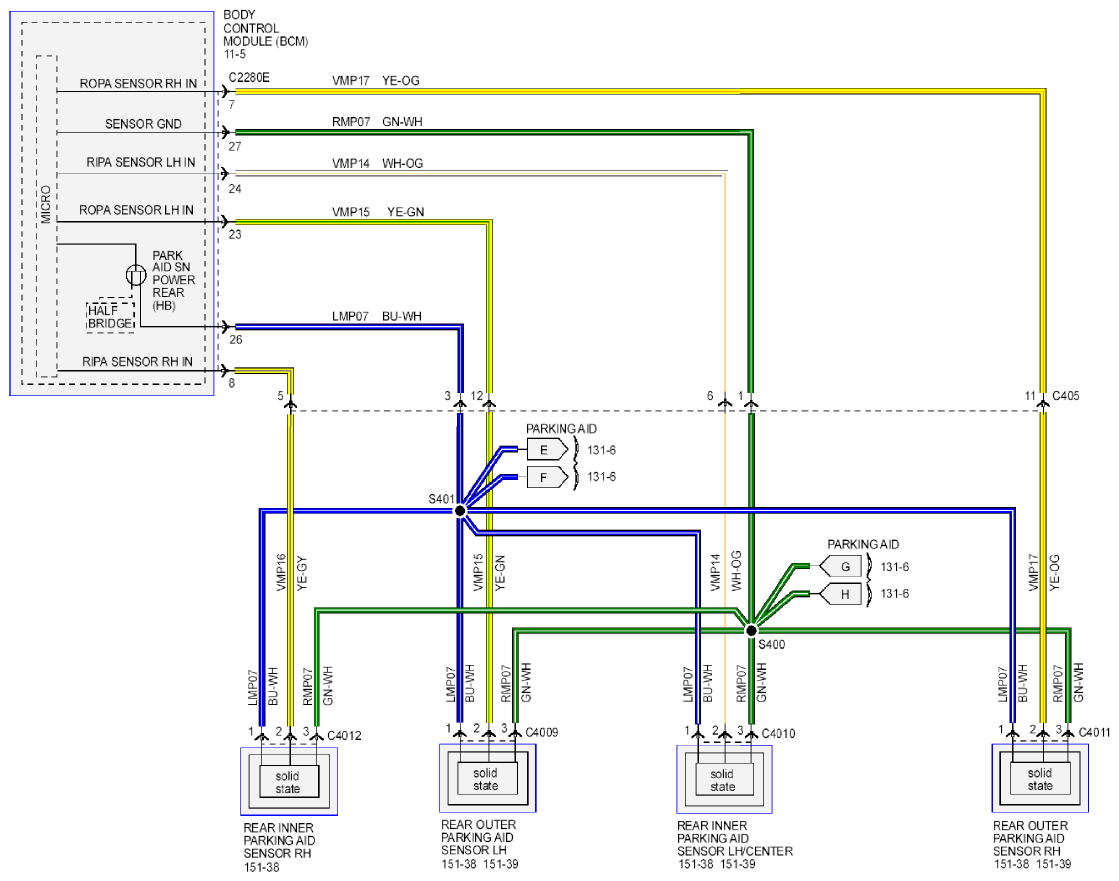

Fig 1: Parking Aid Rear Parking Aid - Wiring Diagram

G09269610

Courtesy of FORD MOTOR CO.
