Front Parking Aid And Active Park Assist

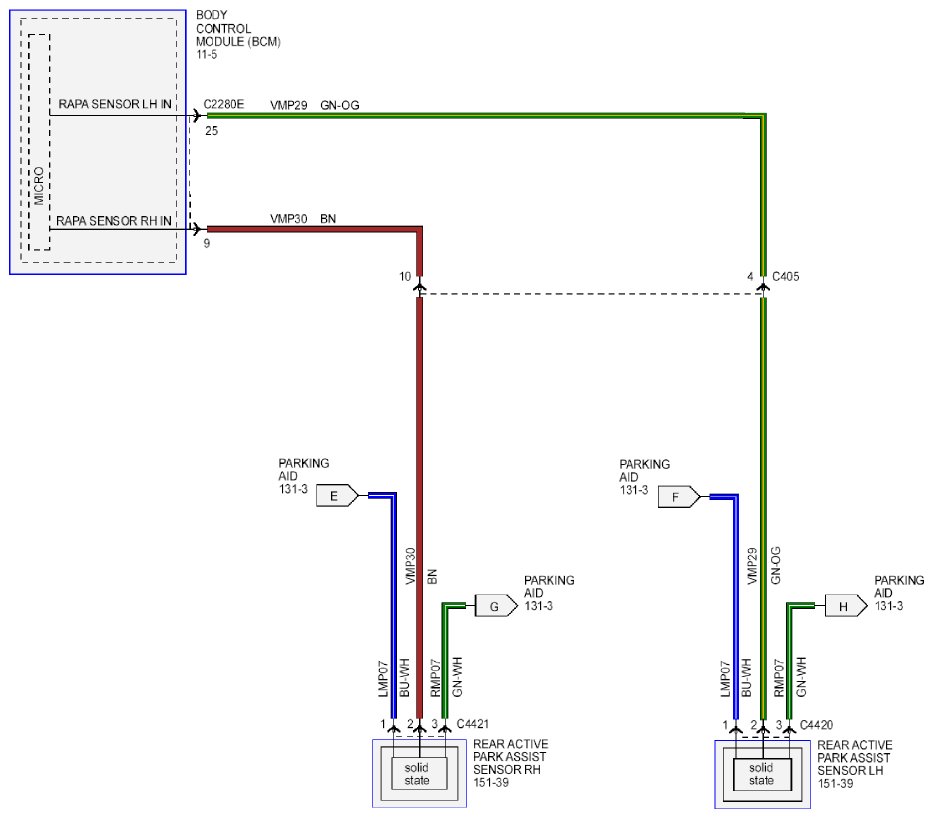

Fig 1: Parking Aid Front Parking Aid And Active Park Assist - Wiring Diagram (1 Of 3)

Courtesy of FORD MOTOR CO.

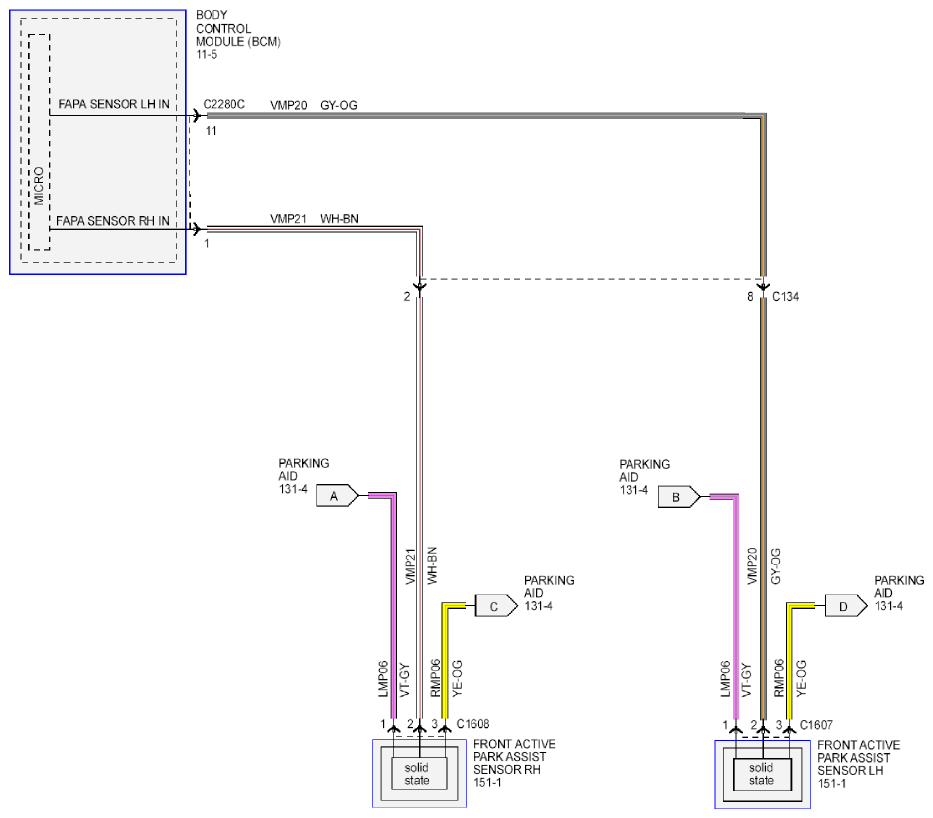

Fig 2: Parking Aid Front Parking Aid And Active Park Assist - Wiring Diagram (2 Of 3)

Courtesy of FORD MOTOR CO.

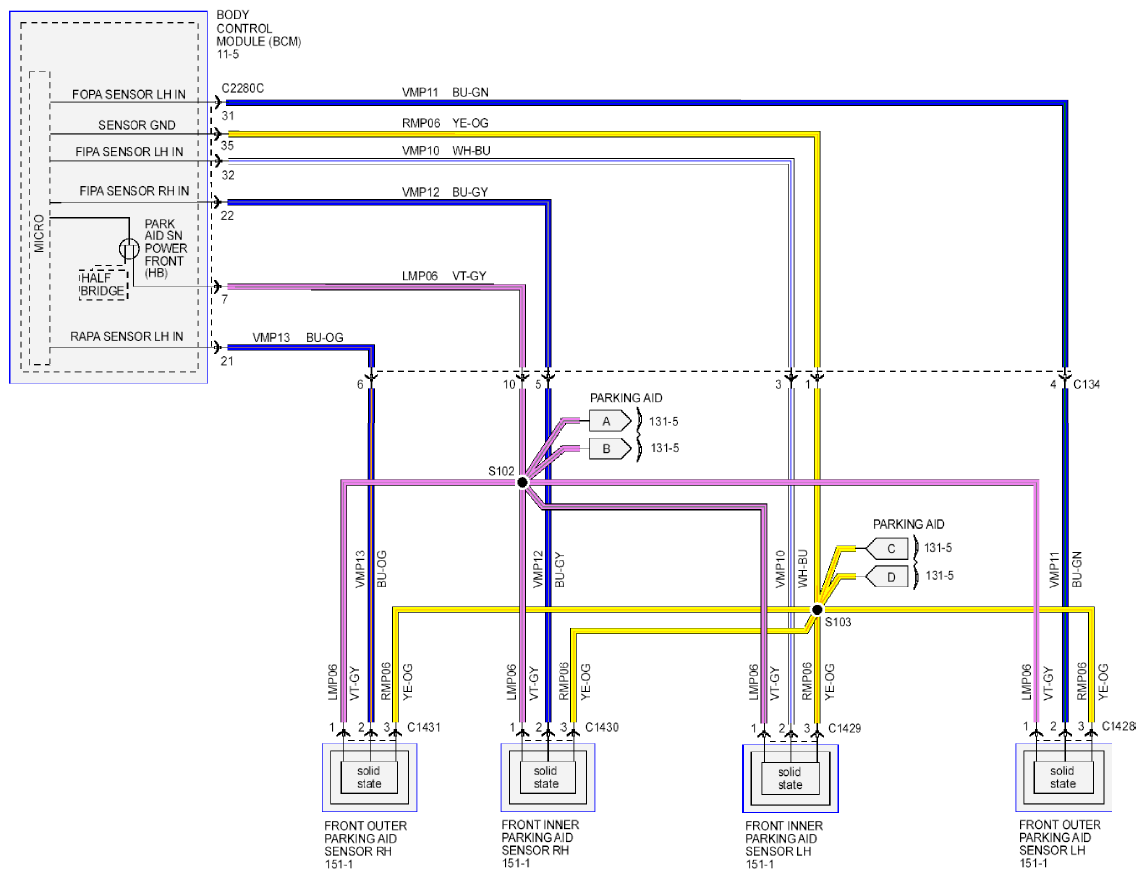

Fig 3: Parking Aid Front Parking Aid And Active Park Assist - Wiring Diagram (3 Of 3)

Courtesy of FORD MOTOR CO.
