10-Way Power Seat With Multi Contour - Passenger

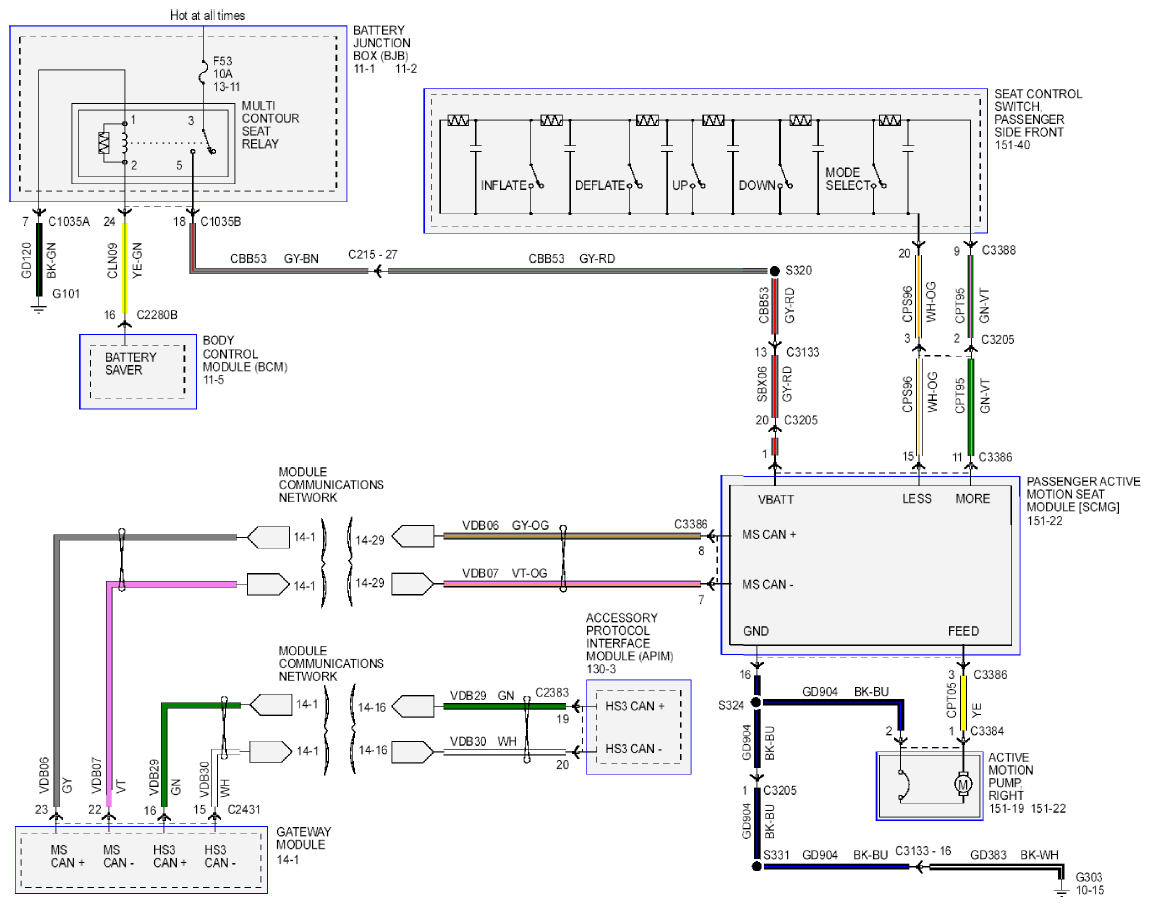

Fig 1: Memory Seats MKZ 10-Way Power Seat With Multi Contour - Passenger - Wiring Diagram

G09269566

Courtesy of FORD MOTOR CO.
