Interior Lamps: MKZ

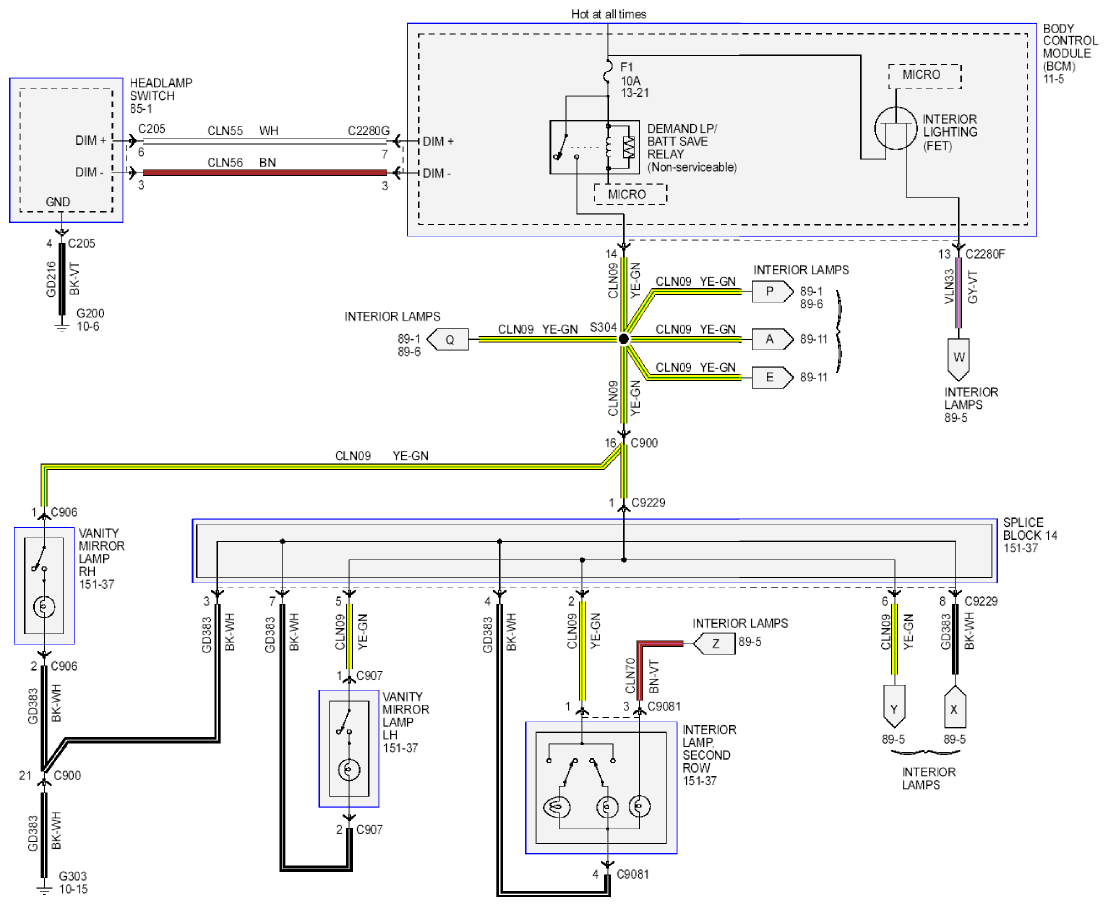

Fig 1: Interior Lamps - Wiring Diagram - MKZ (1 Of 4)
G09269488Courtesy of FORD MOTOR CO.

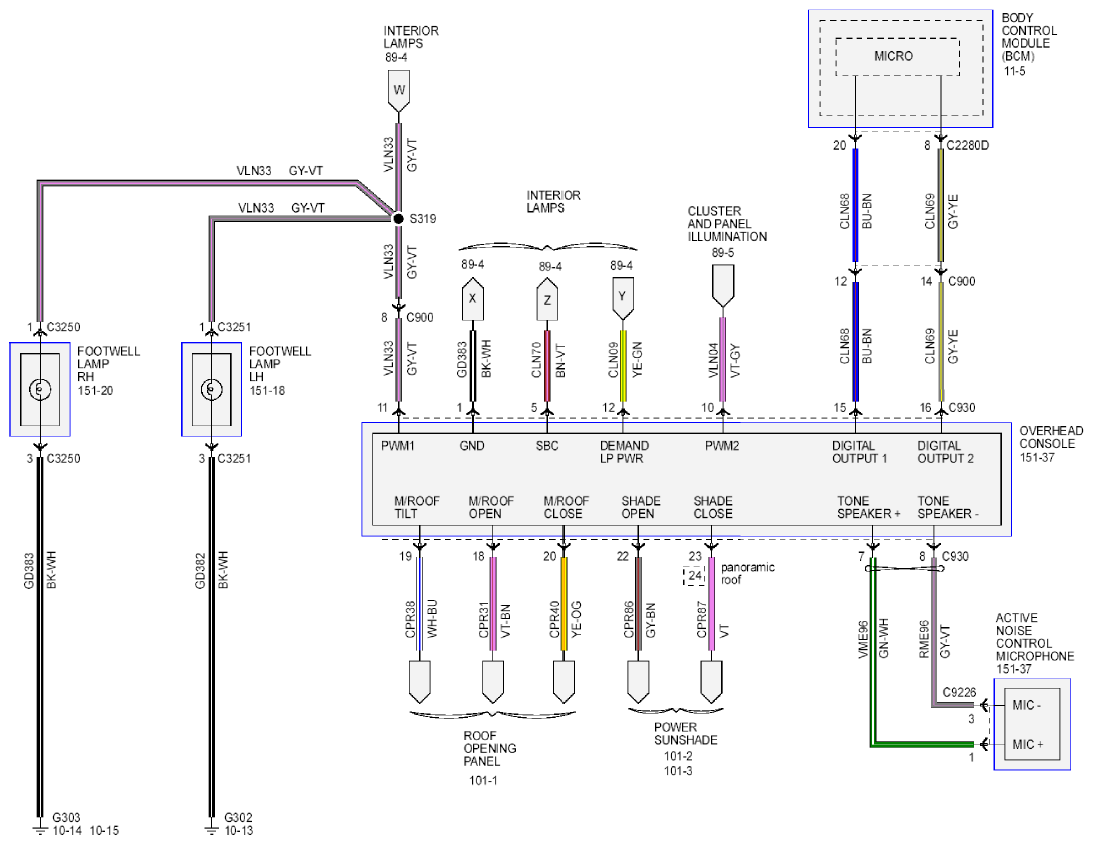

Fig 2: Interior Lamps - Wiring Diagram - MKZ (2 Of 4)
G09269489Courtesy of FORD MOTOR CO.

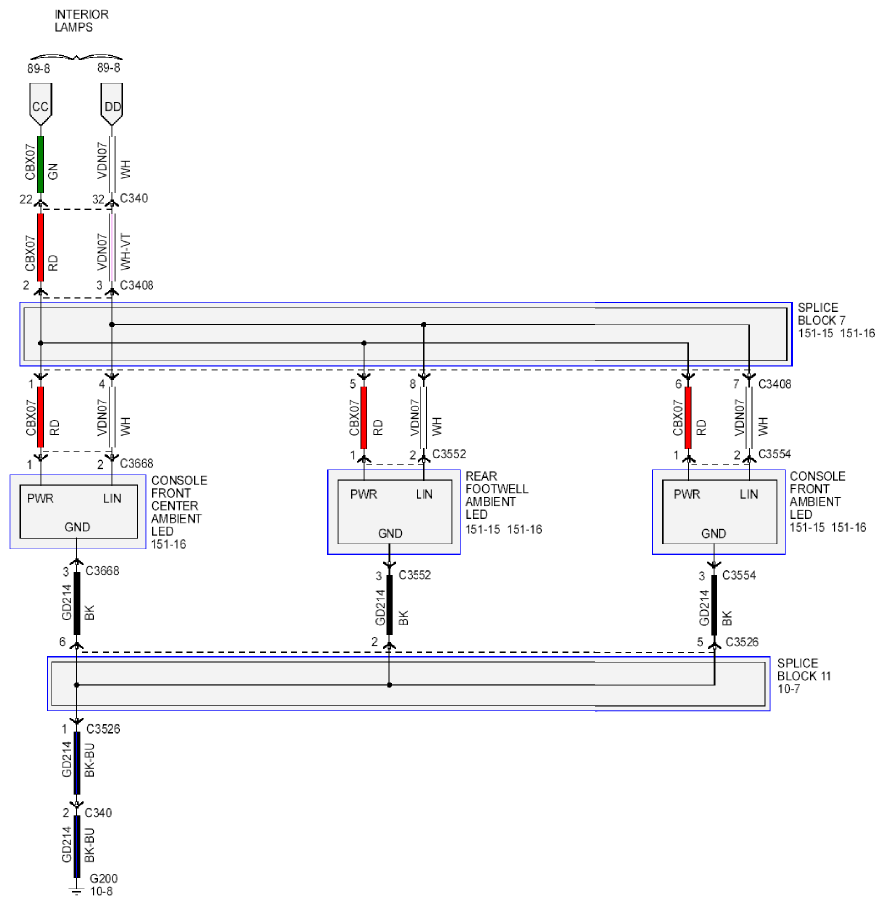

Fig 3: Interior Lamps - Wiring Diagram - MKZ (3 Of 4)
G09269491Courtesy of FORD MOTOR CO.

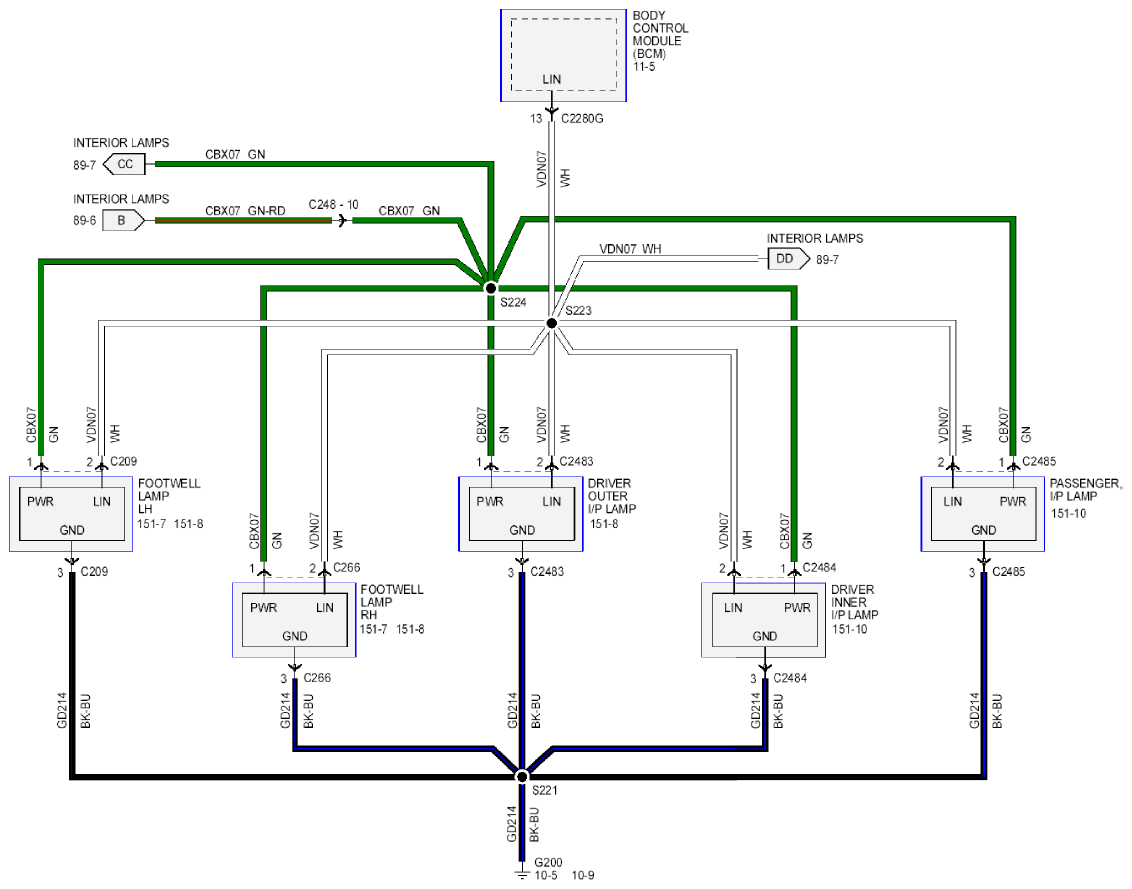

Fig 4: Interior Lamps - Wiring Diagram - MKZ (4 Of 4)
G09269492Courtesy of FORD MOTOR CO.
