Interior Lamps: Fusion

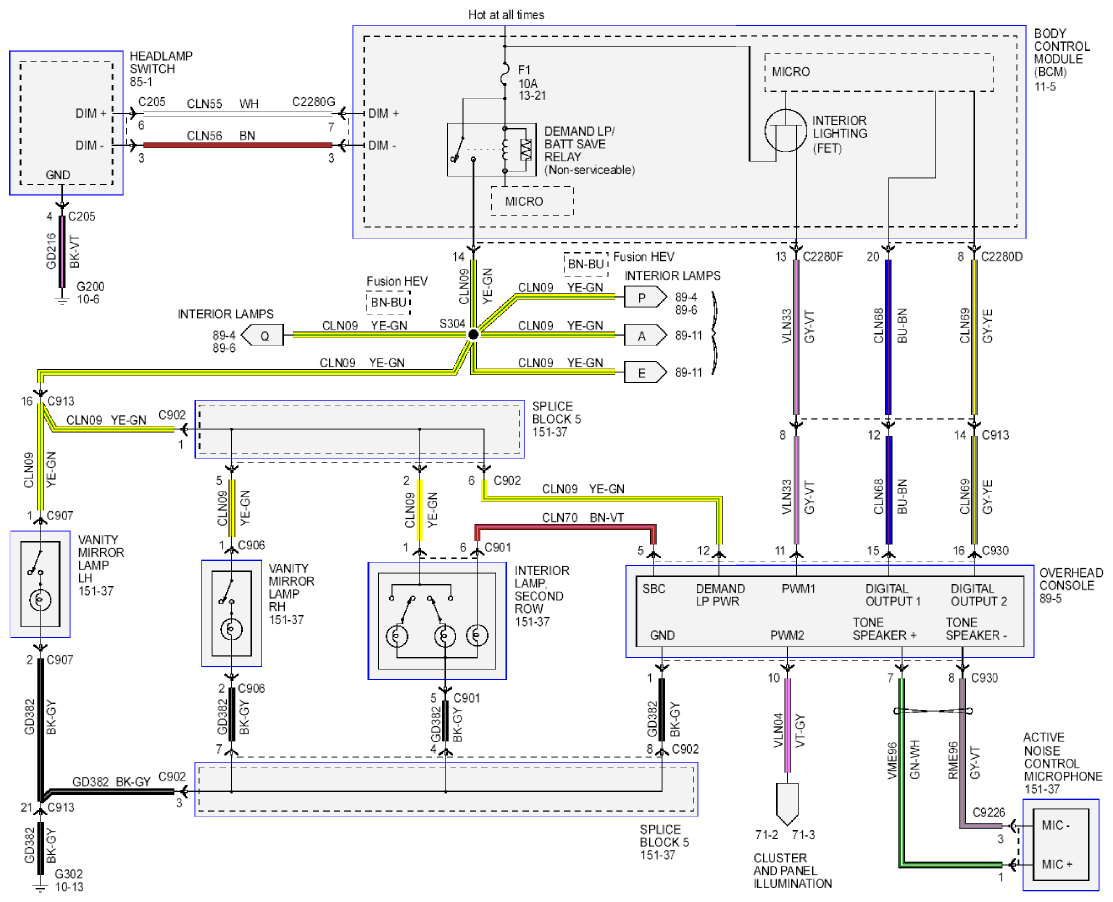

Fig 1: Interior Lamps - Wiring Diagram - Fusion (1 Of 3)
G09269485Courtesy of FORD MOTOR CO.

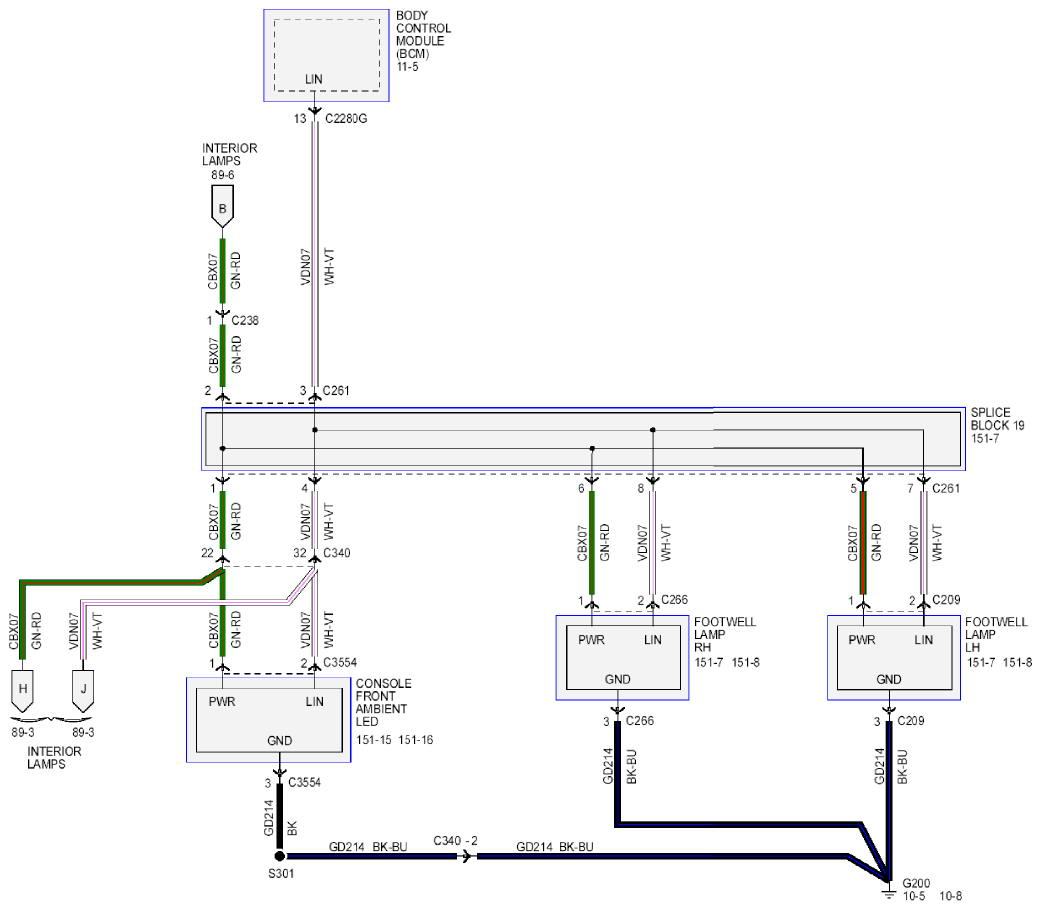

Fig 2: Interior Lamps - Wiring Diagram - Fusion (2 Of 3)
G09269486Courtesy of FORD MOTOR CO.

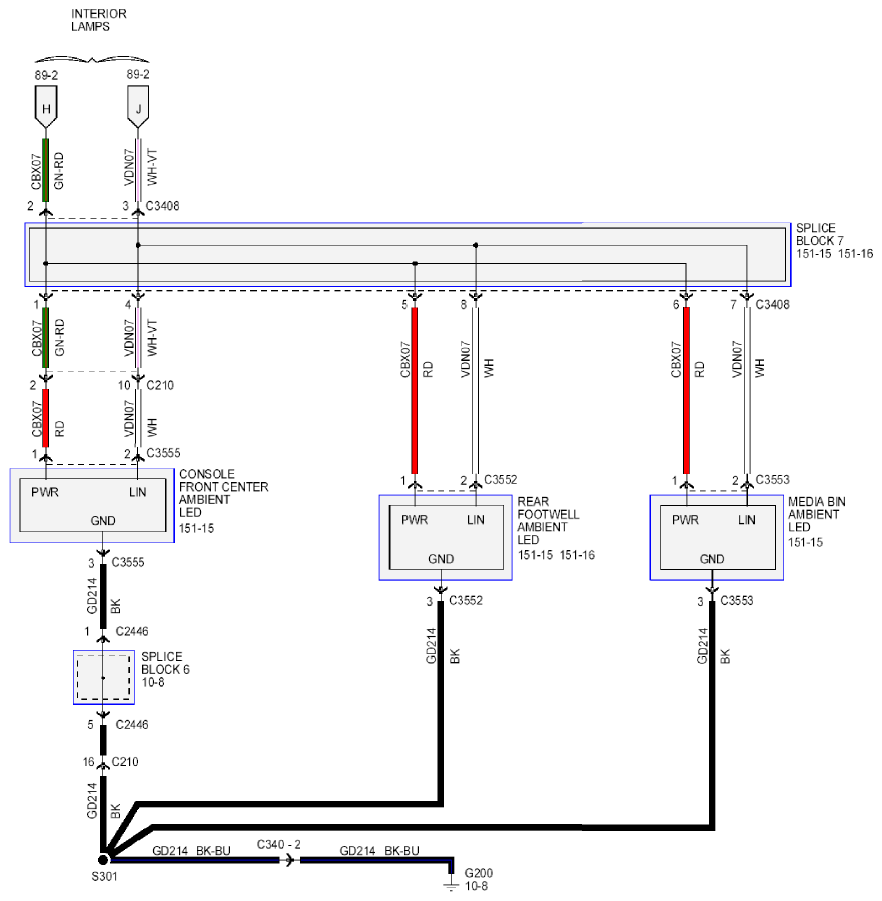

Fig 3: Interior Lamps - Wiring Diagram - Fusion (3 Of 3)
G09269487Courtesy of FORD MOTOR CO.
