Instrument Cluster: Fusion

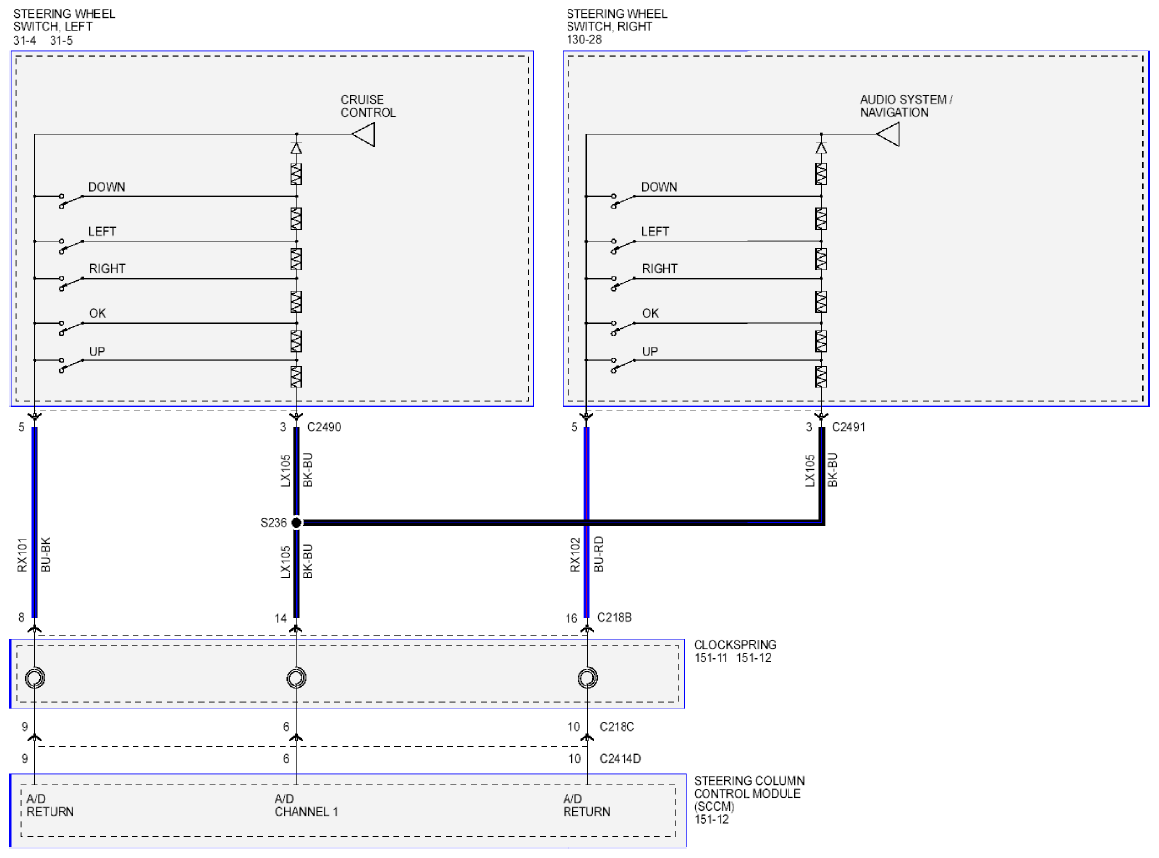

Fig 1: Instrument Cluster - Wiring Diagram - Fusion (1 Of 2)
Courtesy of FORD MOTOR CO.

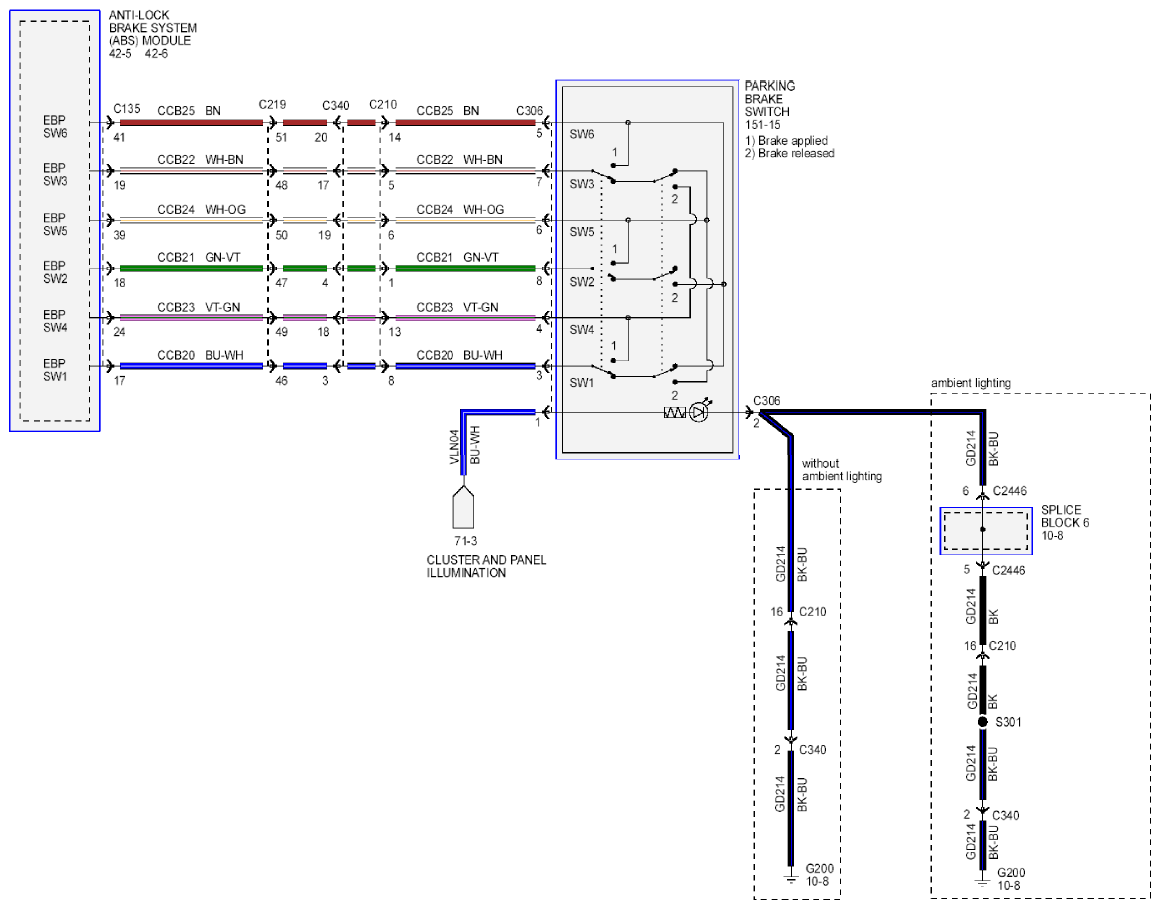

Fig 2: Instrument Cluster - Wiring Diagram - Fusion (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
