OEM Wiring Diagrams -- (Hybrid): Headlamps/AUTOLAMPS: Led

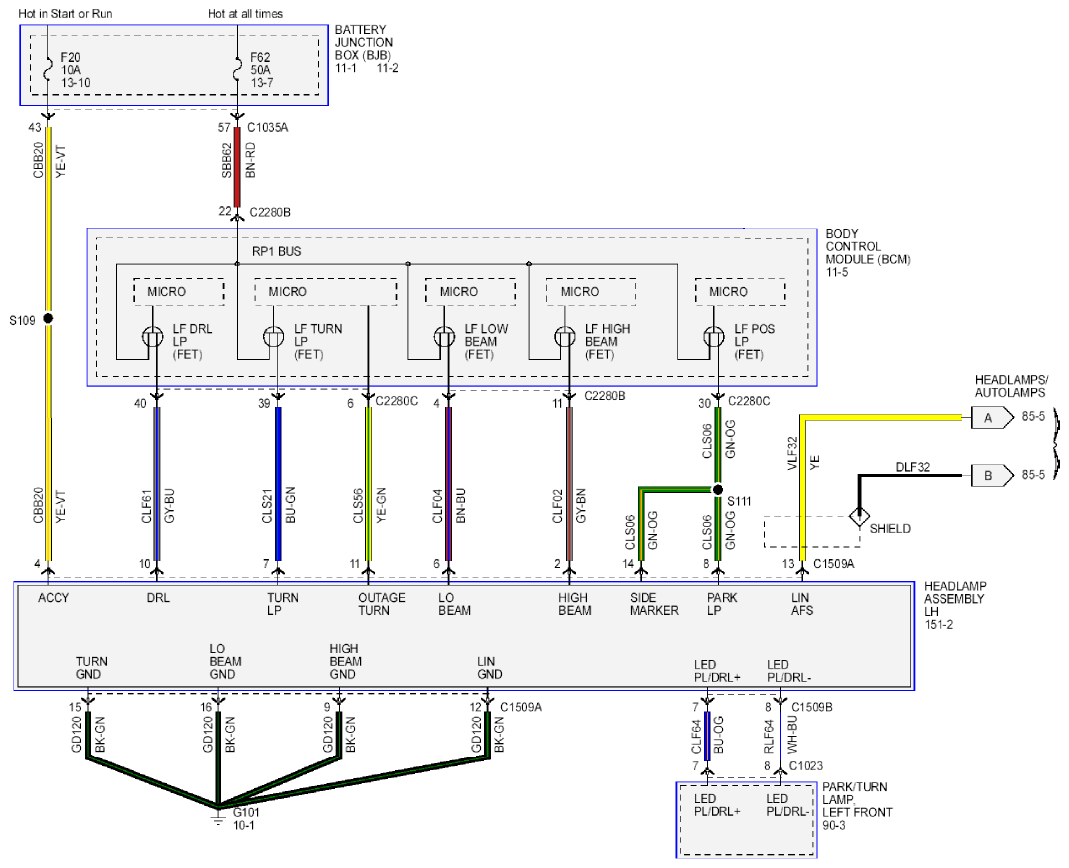

Fig 1: Headlamps Autolamps - Wiring Diagram - LED (1 Of 3)
G09269481Courtesy of FORD MOTOR CO.

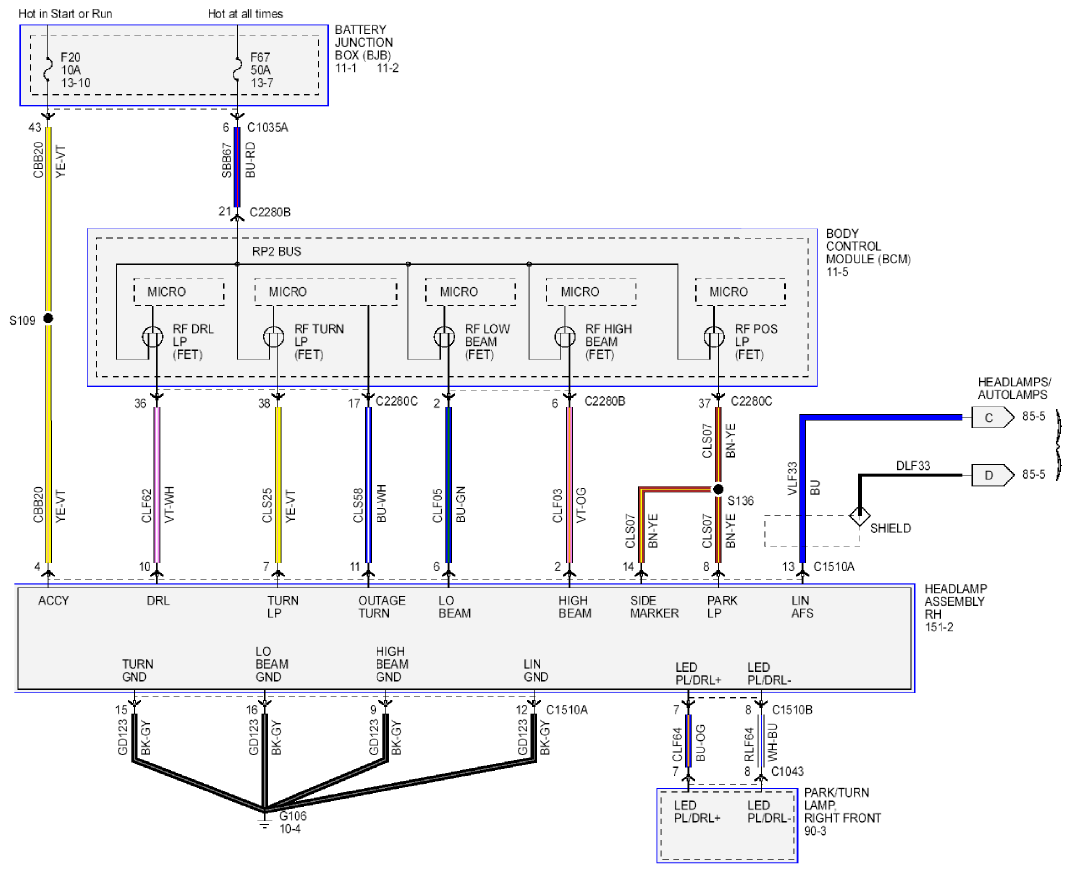

Fig 2: Headlamps Autolamps - Wiring Diagram - LED (2 Of 3)
G09269482Courtesy of FORD MOTOR CO.

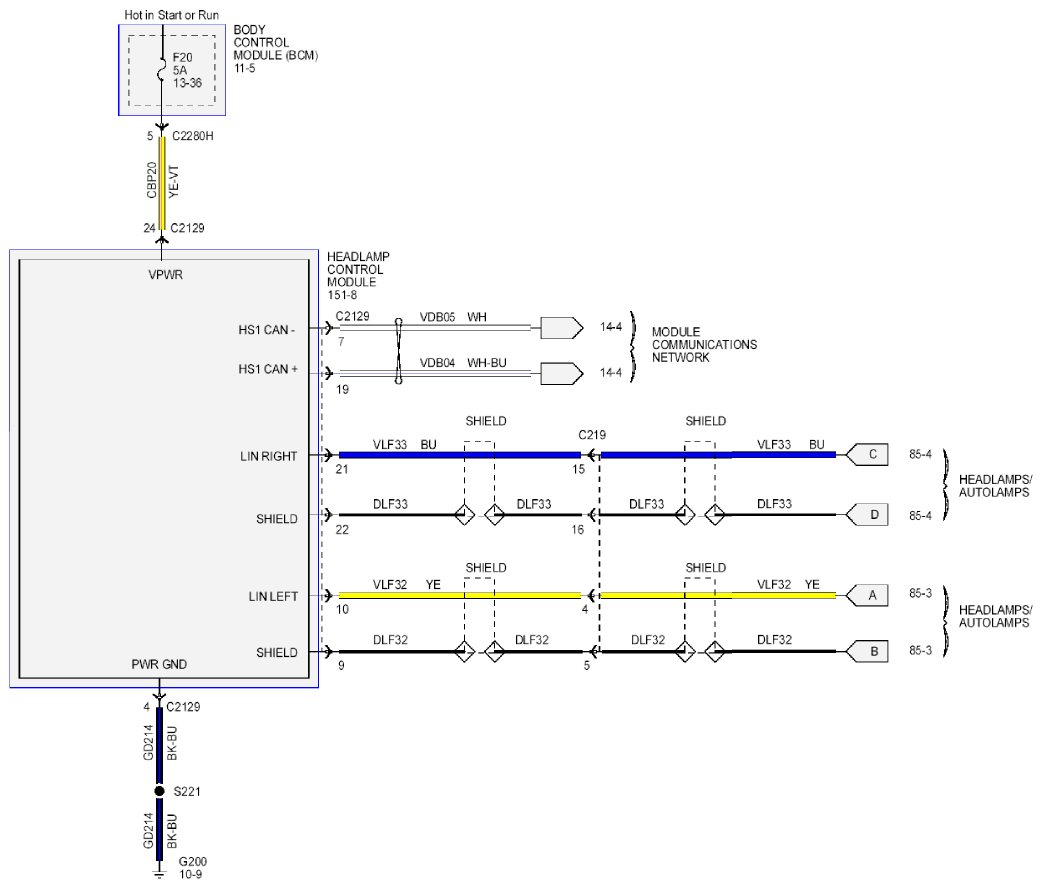

Fig 3: Headlamps Autolamps - Wiring Diagram - LED (3 Of 3)
G09269483Courtesy of FORD MOTOR CO.
