Cluster And Panel Illumination: MKZ

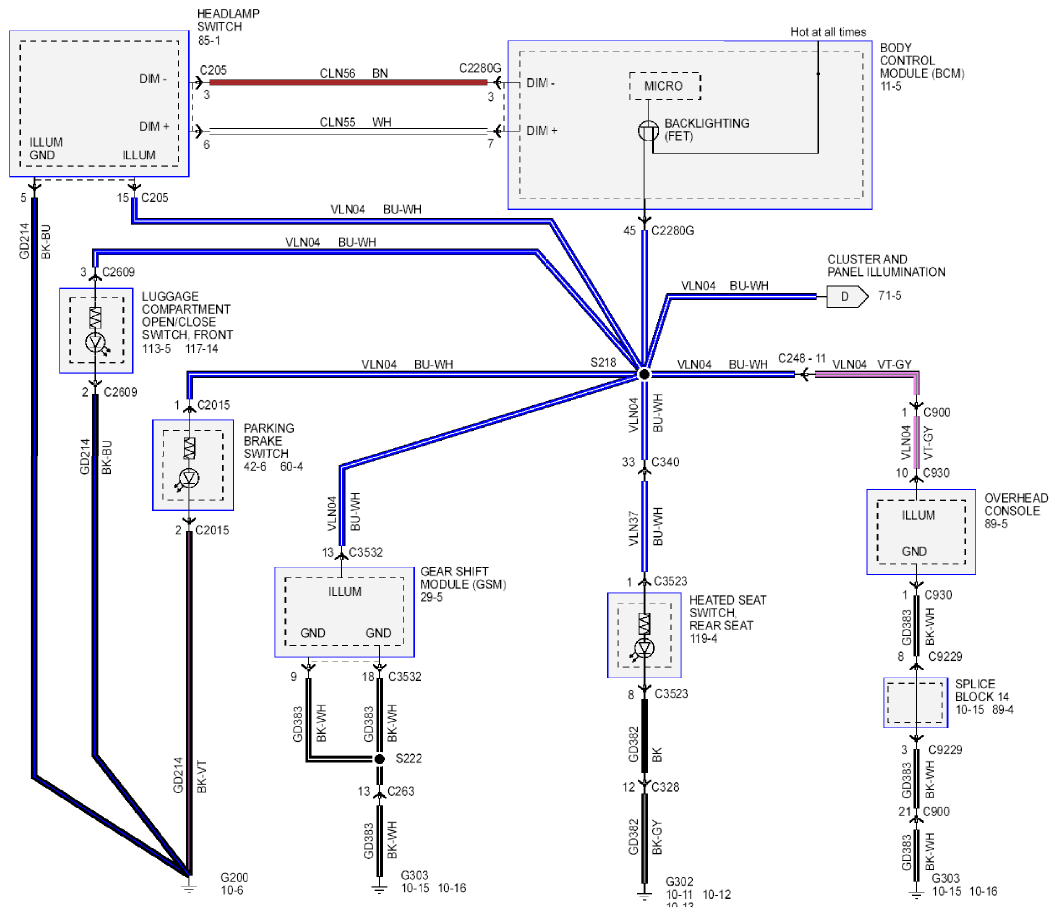

Fig 1: Cluster And Panel Illumination - MKZ - Wiring Diagram (1 Of 2)
G09269473Courtesy of FORD MOTOR CO.

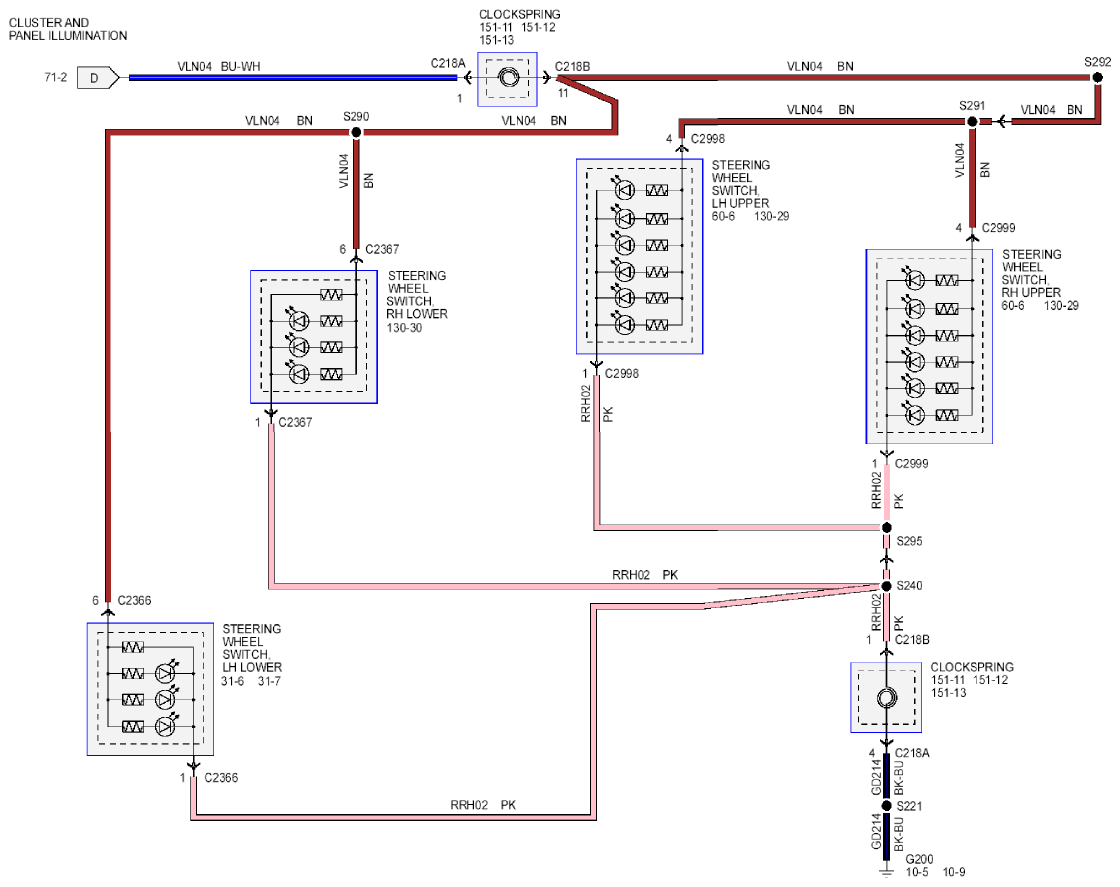

Fig 2: Cluster And Panel Illumination - MKZ - Wiring Diagram (2 Of 2)
G09269476Courtesy of FORD MOTOR CO.
