Cluster And Panel Illumination: Fusion

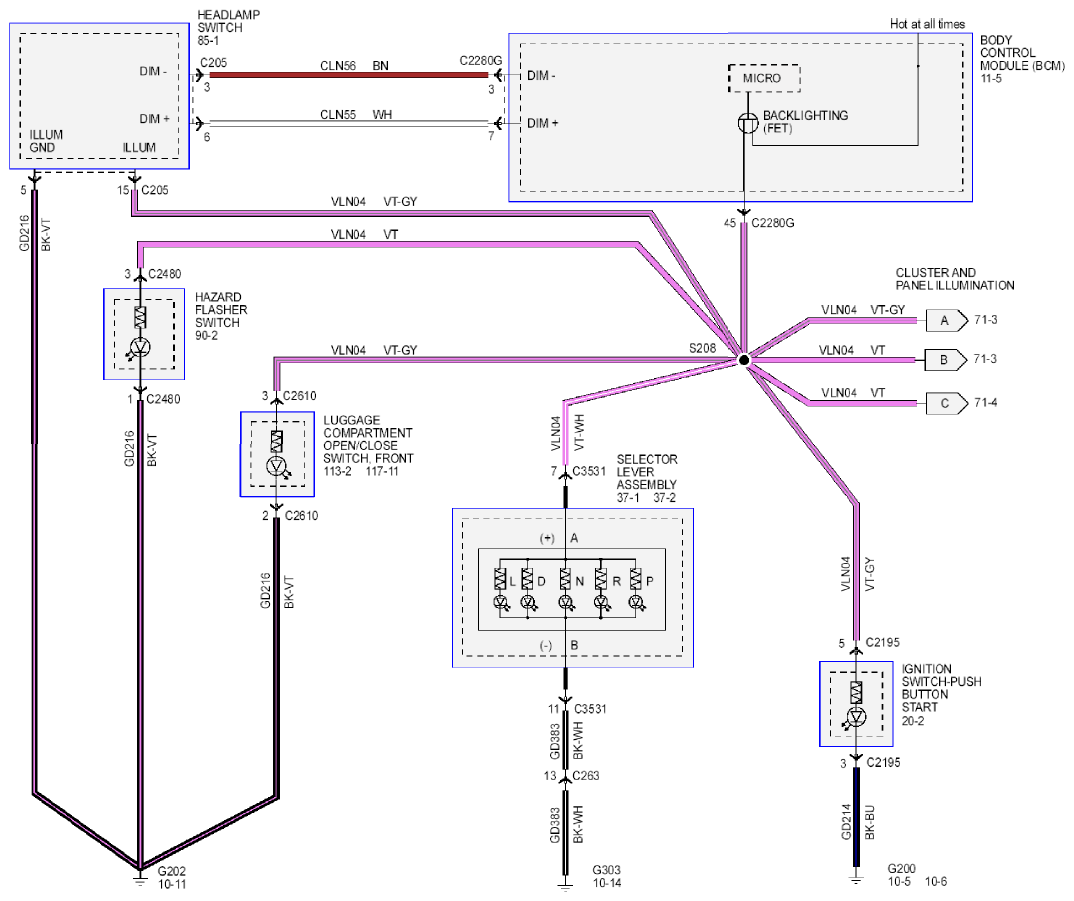

Fig 1: Cluster And Panel Illumination - Fusion - Wiring Diagram (1 Of 3)
G09269472Courtesy of FORD MOTOR CO.

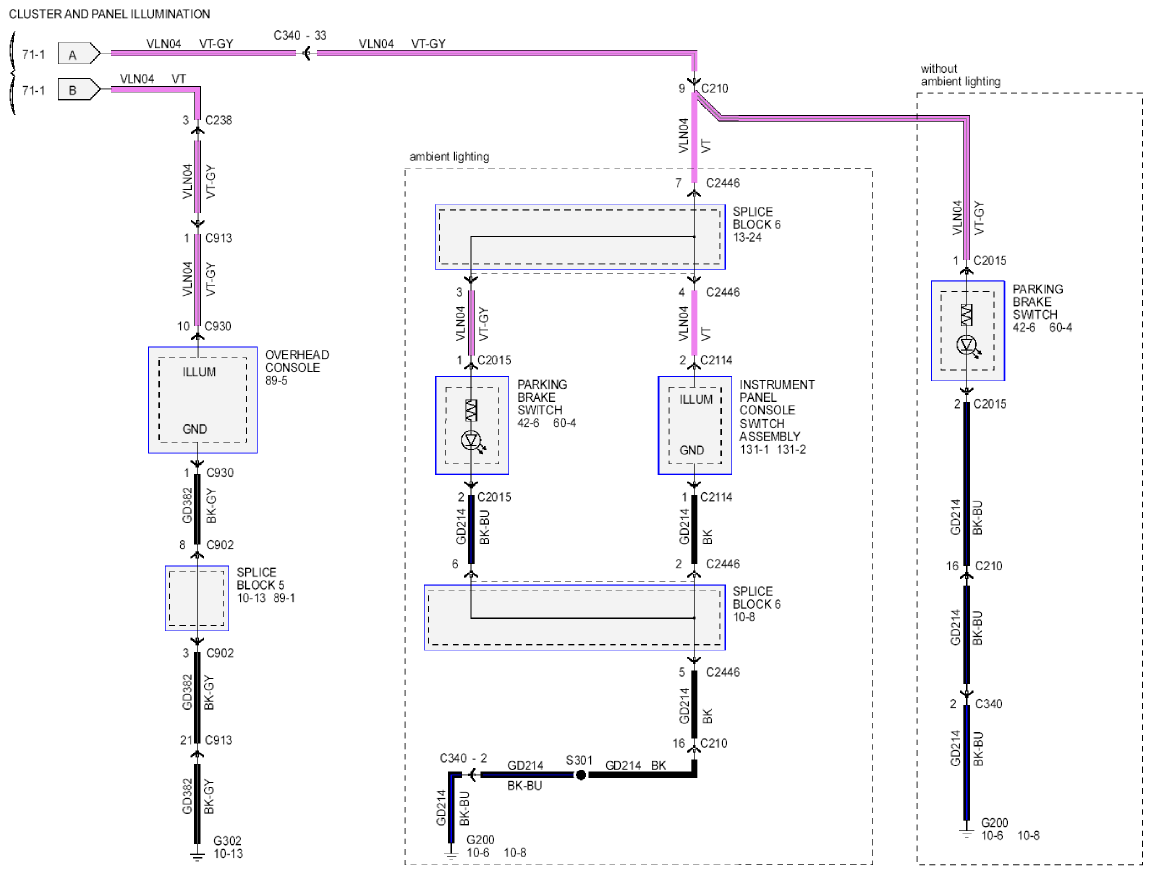

Fig 2: Cluster And Panel Illumination - Fusion - Wiring Diagram (2 Of 3)
G09269474Courtesy of FORD MOTOR CO.

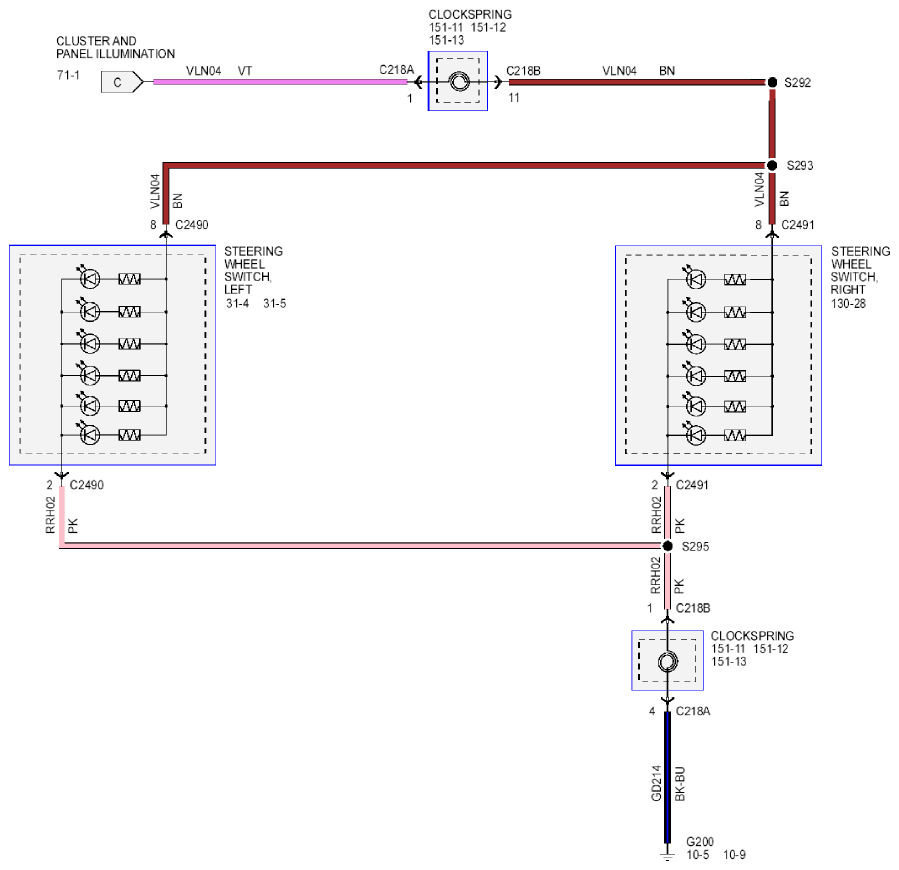

Fig 3: Cluster And Panel Illumination - Fusion - Wiring Diagram (3 Of 3)
G09269475Courtesy of FORD MOTOR CO.
