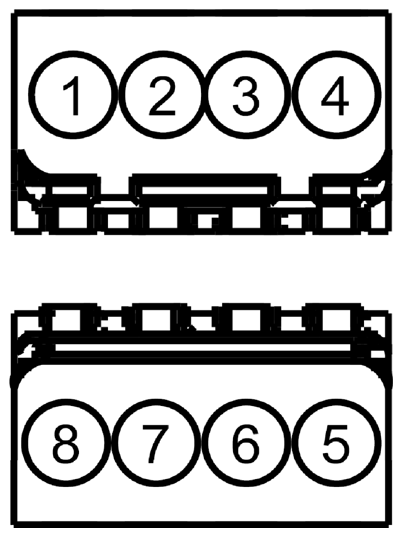

Splice Block 7 Connector End View (C3408)

Fig 1: Identifying Splice Block 7 Connector (C3408)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBX07 (GN-RD)	22	POWER - CTRL MOD. AMBIENT LIGHTING	FUSION
1	CBX07 (RD)	26	POWER - CTRL MOD. AMBIENT LIGHTING	MKZ
2	CBX07 (RD)	26	POWER - CTRL MOD. AMBIENT LIGHTING	MKZ
2	CBX07 (GN-RD)	22	POWER - CTRL MOD. AMBIENT LIGHTING	FUSION
3	VDN07 (WH-VT)	22	CTRL MOD. - LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE
4	VDN07 (WH)	26	CTRL MOD. - LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE	MKZ
4	VDN07 (WH-VT)	22	CTRL MOD. - LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE	FUSION
5	CBX07 (RD)	26	POWER - CTRL MOD. AMBIENT LIGHTING
6	CBX07 (RD)	26	POWER - CTRL MOD. AMBIENT LIGHTING	FUSION
6	CBX07 (RD)	22	POWER - CTRL MOD. AMBIENT LIGHTING	MKZ
7	VDN07 (WH)	26	CTRL MOD. - LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE	FUSION
7	VDN07 (WH)	22	CTRL MOD. - LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE	MKZ
8	VDN07 (WH)	26	CTRL MOD. - LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE
