Splice Block 61 Connector End View (C3461)

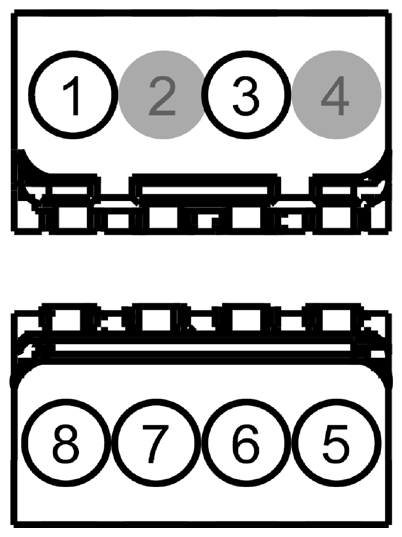

Fig 1: Identifying Splice Block 61 Connector (C3461)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
2	*	*	Not Used
3	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
4	*	*	Not Used
5	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
6	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
7	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
8	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
