Splice Block 38 Connector End View (C3537)

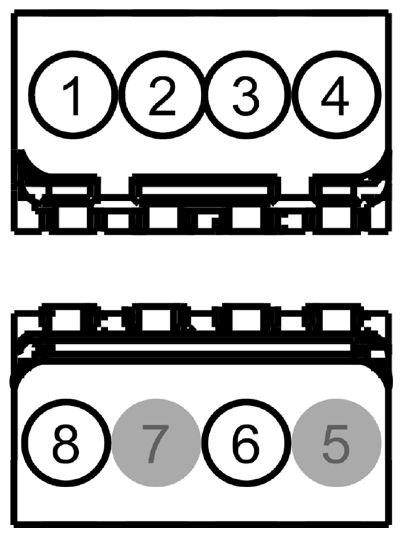

Fig 1: Identifying Splice Block 38 Connector (C3537)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VDB25 (GN-WH)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	FUSION HEV
1	VDB25 (GN)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	PHEV
2	VDB25 (GN-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH
3	VDB26 (GY)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW
4	VDB26 (GY-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW
5	*	*	Not Used
6	VDB25 (GN)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH
7	*	*	Not Used
8	VDB26 (GY)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW
