Side Impact Sensor LH C-Pillar Connector End View (C3248)

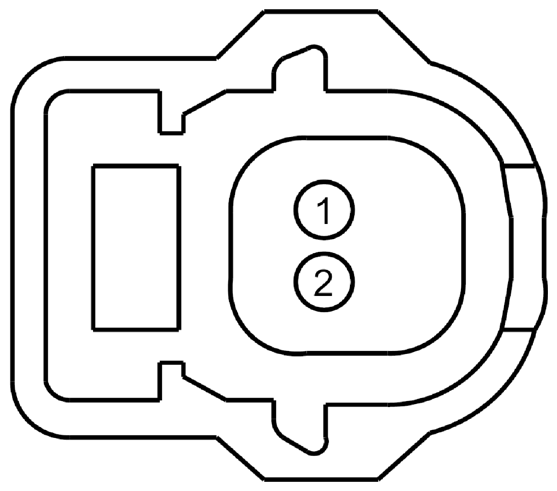

Fig 1: Identifying Side Impact Sensor LH C-Pillar Connector (C3248)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VR219 (GN-WH)	20	SENSOR - SIDE IMPACT ROW 2 DRIVER SIDE	FUSION
1	VR217 (GY-YE)	20	SENSOR - SIDE IMPACT FRONT DRIVER SIDE	MKZ
2	RR131 (VT-GY)	20	CTRL MOD. - SENSOR SIDE IMPACT FRONT DRIVER SIDE -	MKZ
2	RR133 (GY-BN)	20	CTRL MOD. - SENSOR SIDE IMPACT ROW 2 DRIVER SIDE -	FUSION

Available Pigtail Kits

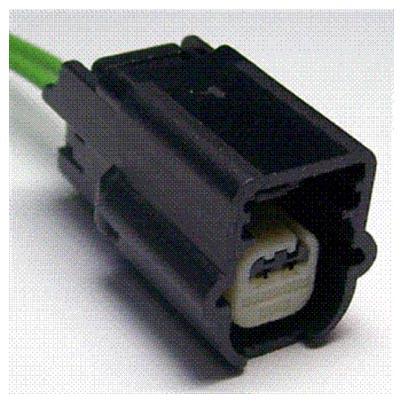

Pigtail Kit Part Number WPT-1314	Service Part Number: 8U2Z-14S411-AAC  Gauge: 20  Pin material: Silver  Cavities: 2  Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Seat Track Position Sensor - Side Impact Solenoid - Down Shift Solenoid - Torque Control Coupling Valve - Heated PCV Valve - Heater Core Shut Off Valve - Transmission Fluid Warmer
Pigtail Kit Part Number WPT-1216	Service Part Number: 8U2Z-14S411-AAB  Gauge: 18  Pin material: Silver  Cavities: 2  Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Seat Track Position Sensor - Side Impact Solenoid - Down Shift Valve - Heated PCV
