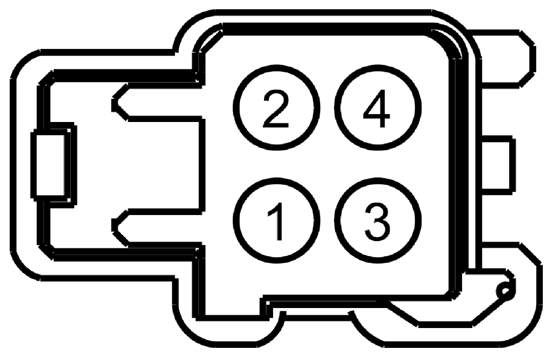

Seat Cushion Heater, Left Front Connector End View (C3298)

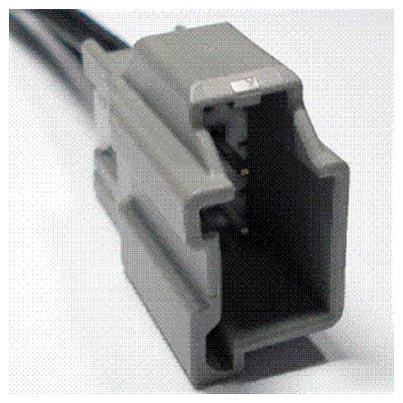

Fig 1: Identifying Seat Cushion Heater, Left Front Connector (C3298)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CHS02 (YE-BU)	16	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER +
2	VHS26 (VT)	20	SENSOR - CUSHION TEMP. DRIVER
3	RHS05 (YE-VT)	20	CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP.
4	CHS12 (YE-GN)	16	HEATER - DRIVER CUSHION/BACK

Available Pigtail Kits
Pigtail Kit Part Number WPT-1076	Service Part Number: 3U2Z-14S411-BUB  Gauge: 14  Pin material: Tin (greased)  Cavities: 4  Vehicle Uses Connector - Inline Element - Heated Seat Lamp - Ash Tray Lamp - Courtesy - Footwell Module - Remote Keyless Entry Motor - Heater/AC Blower (Auxiliary) Radio - Amplifier Switch - Convertable Top
