Seat Cushion Blower Motor, Passenger Side Connector End View (C3040)

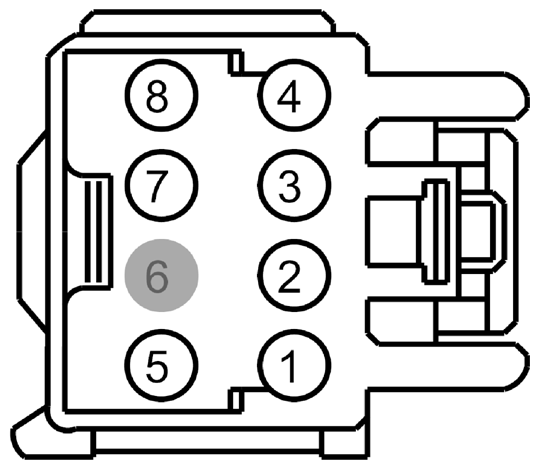

Fig 1: Identifying Seat Cushion Blower Motor, Passenger Side Connector (C3040)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	CHS07 (GY-BU)	14	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER +
2	RJS07 (BU)	14	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER -
3	CHS08 (BN-YE)	18	CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN +
4	RHS08 (VT-WH)	18	CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN -
5	VHS27 (WH-OG)	20	SENSOR - CUSHION TEMP. PASSENGER
6	*	*	Not Used
7	VHS23 (BN-BU)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION BLOWER SPEED CONTROL
8	RHS10 (BU-OG)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR CUSHION TEMP.

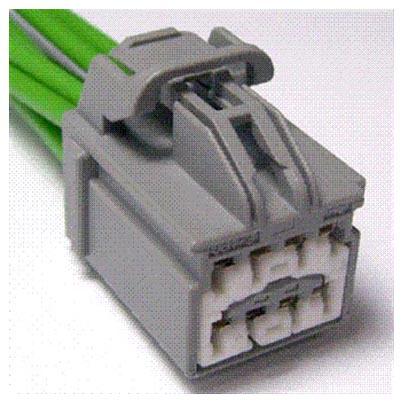

Available Pigtail Kits
Pigtail Kit Part Number WPT-1128	Service Part Number: 3U2Z-14S411-BCB Gauge: 16 Pin material: Silver Cavities: 8 Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Mirror - Sideview Solenoid - Brake Shift Park Interlock Switch - Headlamp Switch - Power Window - Quarter Glass Switch - Sliding Door Contact
