Seat Control Switch, Driver Side Front Connector End View (C3387)

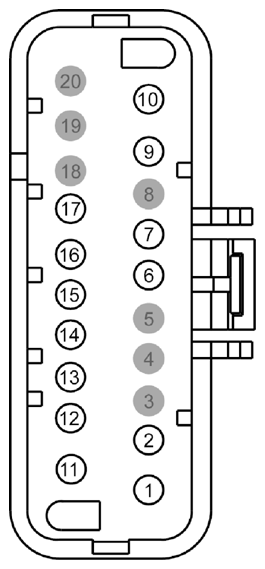

Fig 1: Identifying Seat Control Switch, Driver Side Front Connector (C3387)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPS96 (WH-OG)	20	SWITCH - SEAT MULTICONTOUR # LESS (LLS)	active motion
2	CPS18 (BN-GN)	18	SWITCH - DRIVER LUMBAR PUMP	without active motion
2	CPS95 (GN-VT)	20	SWITCH - SEAT MULTICONTOUR # MORE (LMR)	active motion
3	*	*	Not Used
4	*	*	Not Used
5	*	*	Not Used
6	CPS19 (GY-VT)	18	SWITCH - DRIVER LUMBAR SOLENOID (UPPER CELL) DEFLATE	without active motion
7	CPS29 (WH-BN)	14	SWITCH - SEAT ADJUST. DRIVER RECLINE FORWARD	without memory
7	CPS30 (VT-BN)	20	SWITCH - SEAT ADJUST. DRIVER RECLINE REARWARD	memory
8	*	*	Not Used
9	CPS29 (WH-BN)	20	SWITCH - SEAT ADJUST. DRIVER RECLINE FORWARD	memory
9	CPS30 (VT-BN)	14	SWITCH - SEAT ADJUST. DRIVER RECLINE REARWARD	without memory
10	CBX04 (WH-RD)	16	POWER - SEAT # MEMORY MODULE HIGH CURRENT	memory
10	CBX05 (VT-RD)	14	POWER - SEAT # POWER SEAT SWITCH	without memory
11	GD904 (BK-BU)	14	GROUND - DRIVER SEAT # SEAT SWITCH
12	CPS27 (BU-BN)	20	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP	memory
12	CPS27 (BU-BN)	14	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP	without memory
13	CPS26 (YE-BU)	20	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN	memory
13	CPS26 (YE-BU)	14	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN	without memory
14	CPS28 (GN)	20	SWITCH - SEAT ADJUST. DRIVER REARWARD	memory
14	CPS28 (GN)	14	SWITCH - SEAT ADJUST. DRIVER REARWARD	without memory
15	CPS23 (GN-VT)	20	SWITCH - SEAT ADJUST. DRIVER FORWARD	memory
15	CPS23 (GN-VT)	14	SWITCH - SEAT ADJUST. DRIVER FORWARD	without memory
16	CPS25 (WH-VT)	20	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP	memory
16	CPS25 (WH-VT)	14	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP	without memory
17	CPS24 (GY)	20	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN	memory
17	CPS24 (GY)	14	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN	without memory
18	*	*	Not Used
19	*	*	Not Used
20	*	*	Not Used
