Safety Belt Tension Sensor (BTS), Driver Connector End View (C3201)

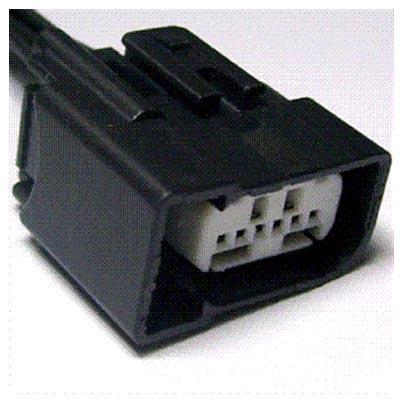

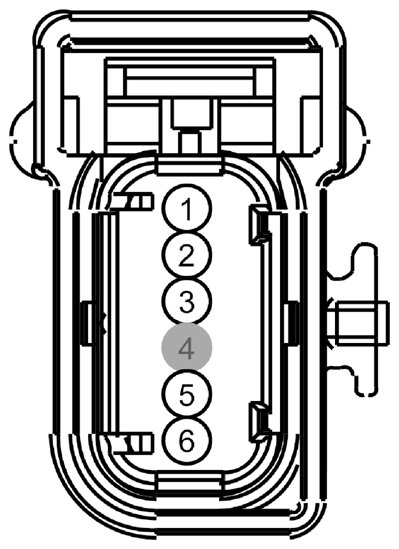

Fig 1: Identifying Safety Belt Tension Sensor, Driver Connector (C3201)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VR210 (BU-BN)	20	SENSOR - SEAT BELT TENSION FRONT PASSENGER OUTBOARD
2	LR142 (YE-BU)	20	CTRL MOD. - SENSOR SEAT BELT TENSION FRONT PASSENGER OUTBOARD +
3	GD901 (BK)	20	GROUND - PASSENGER SEAT # RESTRAINTS CLEAN
4	*	*	Not Used
5	CR201 (GN-BU)	20	SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT DRIVER SIDE
6	GD901 (BK)	20	GROUND - PASSENGER SEAT # RESTRAINTS CLEAN

Available Pigtail Kits
Pigtail Kit Part Number WPT-1329	Service Part Number: DU2Z-14S411-EA  Gauge: 20  Pin material: Tin  Cavities: 6  Vehicle Uses Antenna - Keyless Entry Handle - Decklid Switch - Keyless Entry Switch - Seatbelt
