Safety Belt Inflator, 2ND Row, Right Connector End View (C3645)

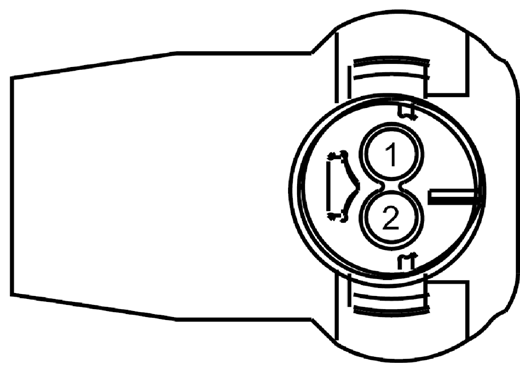

Fig 1: Identifying Safety Belt Inflator, 2nd Row, Right Connector (C3645)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR181 (WH)	20	CTRL MOD. - INFLATABLE SEAT BELT ROW 2 PASSENGER OUTBOARD +
2	RR181 (BU-OG)	20	CTRL MOD. - INFLATABLE SEAT BELT ROW 2 PASSENGER OUTBOARD -

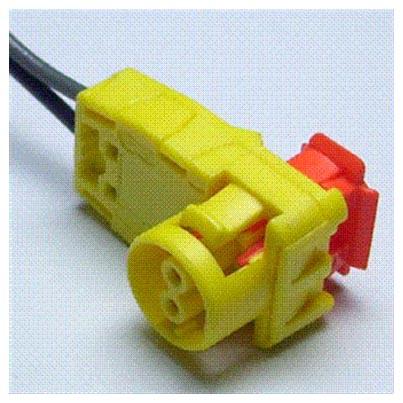

Available Pigtail Kits
Pigtail Kit Part Number WPT-1227	Service Part Number: BU2Z-14S411-BKA  Gauge: 20  Pin material: FCI - Airbag  Cavities: 2  Vehicle Uses Sensor - Side Impact Squib - Airbag (Driver) Squib - Airbag (Passenger)
