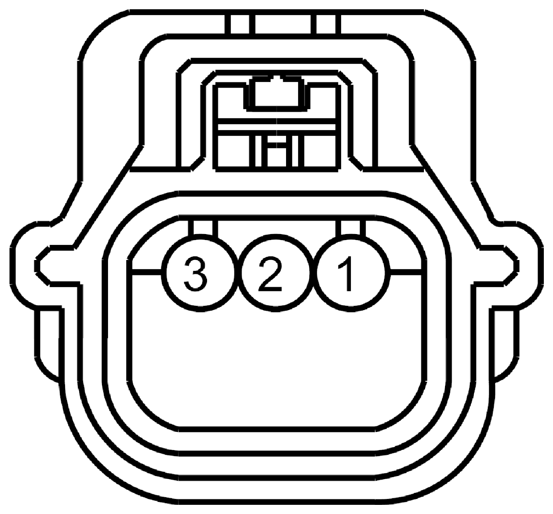

Rear Inner Parking Aid Sensor LH/Center Connector End View (C4010)

Fig 1: Identifying Rear Inner Parking Aid Sensor LH/Center Connector (C4010)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	LMP07 (BU-WH)	18	CTRL MOD. - PARKING AID # SENSORS REAR +
2	VMP14 (WH-OG)	18	SENSOR - PARKING AID # REAR # (LEFT INNER OR MIDDLE)
3	RMP07 (GN-WH)	18	CTRL MOD. - PARKING AID # SENSORS REAR -

Available Pigtail Kits

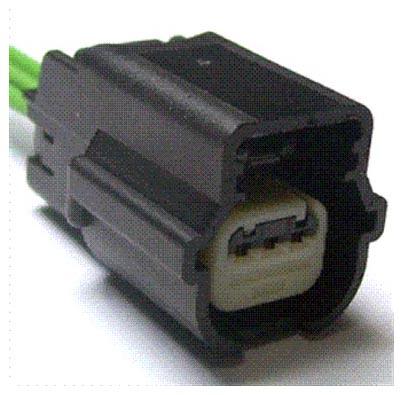

Pigtail Kit Part Number WPT-926	Service Part Number: 9U2Z-14S411-CA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Sensor - Front Park Aid (FPA) Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling

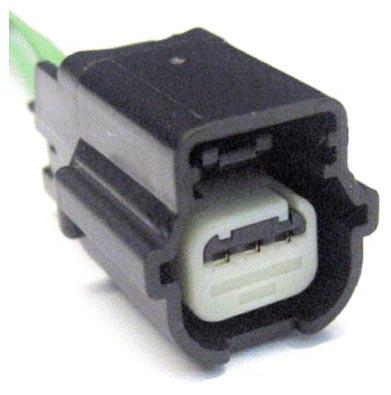

Pigtail Kit Part Number WPT-1315	Service Part Number: 9U2Z-14S411-CB Gauge: 20 Pin material: Silver Cavities: 3 Vehicle Uses Monitor - Crankcase Ventilation Sensor - Air Suspension Sensor - Front Park Aid (FPA) Sensor - Occupant Classification Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling Switch - A/C High Pressure
