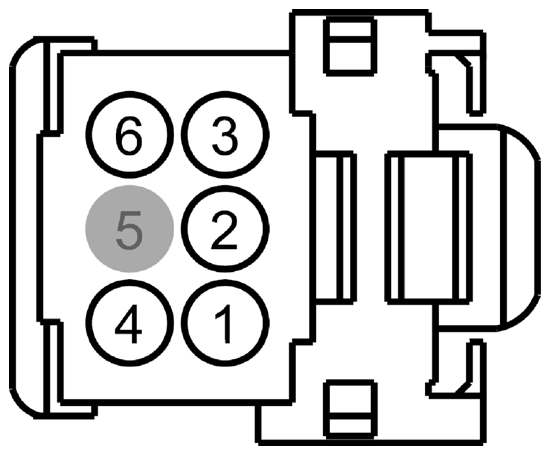

Luggage Compartment Open/Close Switch, Front Connector End View (C2610)

Fig 1: Identifying Luggage Compartment Open/Close Switch, Front Connector (C2610)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	GD216 (BK-VT)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT
3	VLN04 (VT)	26	CTRL MOD. - IP/SWITCH ILLUMINATION
4	*	*	Not Used
5	*	*	Not Used
6	CPR63 (GY-YE)	22	SWITCH - LUGGAGE COMPARTMENT # OPEN/CLOSE

Available Pigtail Kits

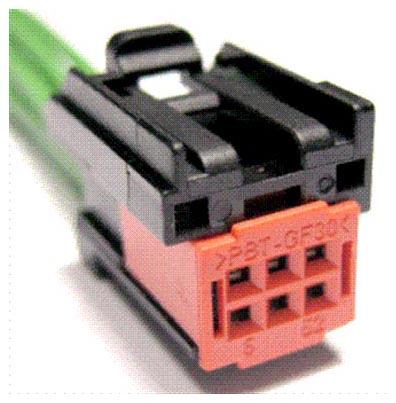

Pigtail Kit Part Number WPT-907	Service Part Number: 8U2Z-14S411-JA  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Sensor - Steering Wheel Position Sensor - Sunload Solenoid - Canister Vent Switch - Brake Deactivation Switch - Deck Lid/Hatch Release Switch - Fog Lamp Switch - Hazard Warning Switch - Headlamp/Foglamp

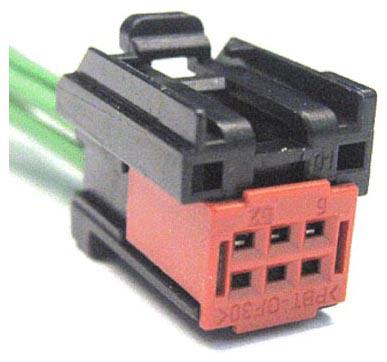

Pigtail Kit Part Number WPT-1164	Service Part Number: 8U2Z-14S411-JB  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Switch - Deck Lid/Hatch Release Switch - Deck Lid/Lift Gate Ajar Switch - Hazard Warning Switch - Heated Back Light (Rear Defrost) Switch - Power Liftgate Switch - Reverse Park Aid Switch - Start/Stop Switch - Sunshade Switch - Traction Control
