Luggage Compartment Open/Close Switch, Front Connector End View (C2609)

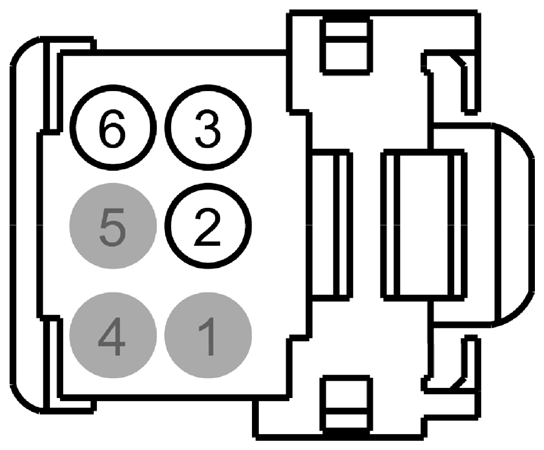

Fig 1: Identifying Luggage Compartment Open/Close Switch, Front Connector (C2609)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	GD214 (BK-BU)	22	GROUND - INSTRUMENT PANEL STRUCTURE
3	VLN04 (BU-WH)	26	CTRL MOD. - IP/SWITCH ILLUMINATION
4	*	*	Not Used
5	*	*	Not Used
6	CPR63 (GY-YE)	22	WITCH - POWER LIFTGATE # OPEN/CLOSE
