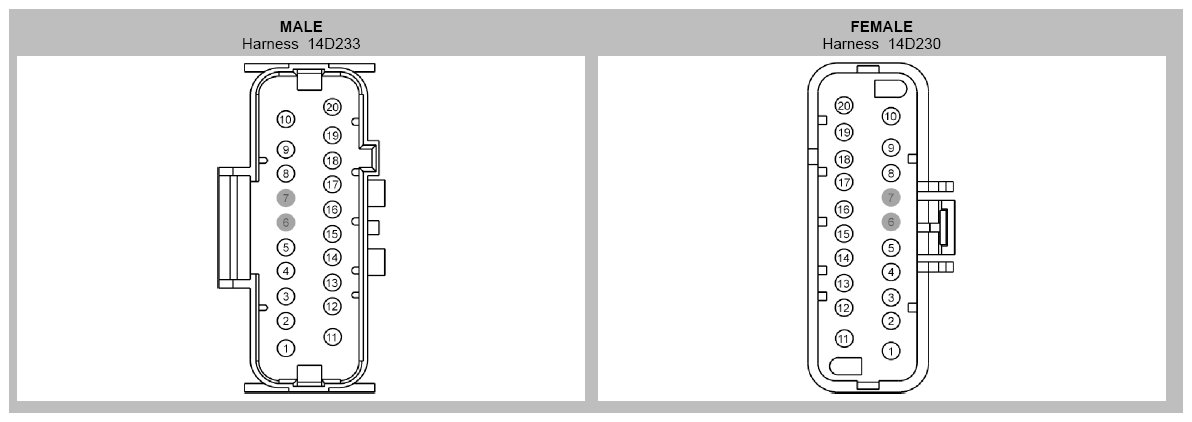

Inline Connector End View (C3205)
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | GD904 (BK-BU) | 16 | |
| 2 | CPS95 (GN-VT) | 20 | |
| 3 | CPS96 (WH-OG) | 20 | |
| 4 | VDB06 (GY-OG) | 20 | |
| 5 | VDB07 (VT-OG) | 20 | |
| 6 | * | * | 14D230 |
| 6 | VPS12 (VT-OG) | 20 | 14D233 |
| 7 | * | * | 14D230 |
| 7 | RPS12 (GN-OG) | 20 | 14D233 |
| 8 | CPS18 (BN-GN) | 18 | |
| 9 | CPS19 (GY-VT) | 18 | |
| 10 | CPS08 (VT-OG) | 14 | 14D233 |
| 10 | CPS30 (VT-BN) | 14 | |
| 11 | CPS07 (GY-BN) | 14 | 14D233 - MKZ |
| 11 | CPS29 (WH-BN) | 14 | 14D230 |
| 11 | CPS29 (WH-BN) | 14 | 14D233 - FUSION |
| 12 | VHS21 (BU-WH) | 20 | |
| 13 | RHS08 (VT-WH) | 18 | 14D233 |
| 13 | RHS08 (VT-WH) | 20 | 14D230 |
| 14 | GD904 (BK-BU) | 16 | 14D230 - heated seats |
| 14 | RHS02 (BU-OG) | 16 | 14D233 - heated seats |
| 14 | RHS06 (WH) | 14 | 14D230 - climate control seats |
| 14 | RHS06 (WH) | 14 | 14D233 - climate controlled seats |
| 15 | CHS06 (BU-BN) | 14 | |
| 16 | VHS36 (YE-BU) | 20 | |
| 17 | RHS20 (GN-BU) | 20 | |
| 18 | CHS12 (YE-GN) | 16 | |
| 19 | CHS08 (BN-YE) | 18 | |
| 20 | SBX06 (GY-RD) | 18 |
